Remove/Install Additional Brake Lamp - AR82.10-P-5376LWR
Model 205.4, 238.4

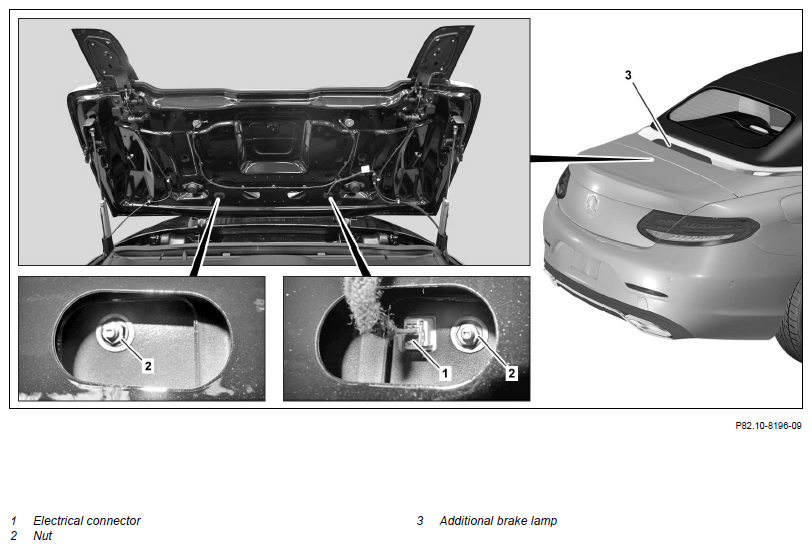

Shown On Model 205.4
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Move soft top to repair positionR4 | AR77.30-P-1030LWR | |
| 2 | Disconnect electrical connector (1) | ||
| 3 | Unscrew nuts (2) and remove additional brake lamp (3) | ||
| 4 | Install in the reverse order |
