Detach/Attach Wiper Arms - AR82.30-P-6100-03LWO

Model 238

With Code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)

	Risk of fire and explosion  caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning  caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury  or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin.	Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children.	AS82.35-Z-0001-01A
	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A

Fig 1: Identifying Puller (001 589 57 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Thrust Washer M 10X1.5 (210 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Remove

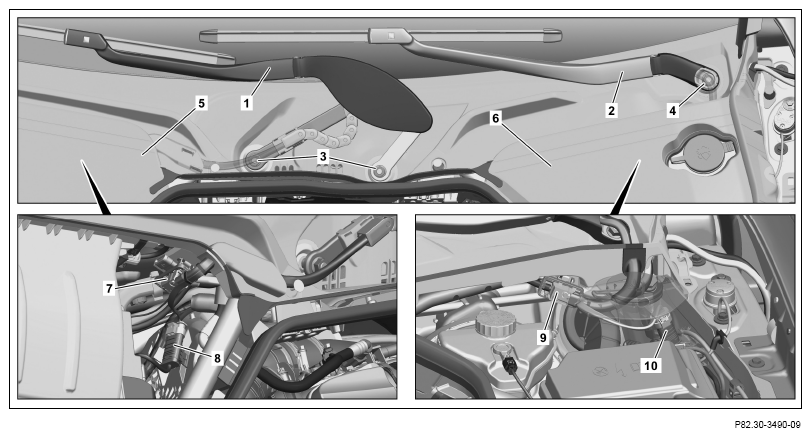

1. Remove covers (5, 6).
2. Disconnect electrical connectors (8, 10).
3. Disconnect terminal block (7, 9).
4. Remove caps and unscrew nuts (3, 4).
5. Release and remove wiper arms (1, 2) from windshield wiper system using puller and thrust piece.

   Install

6. Attach wiper arms (1, 2) to the windshield wiper system driver.

   Position wiper arms (1, 2) with the aid of the window markings.

7. Screw nuts (3, 4) and install caps .
8. Connect terminal block (7, 9).
9. Connect electrical connectors (8, 10).
10. Mount covers (5, 6).
