Check, Adjust Low Beams - AP82.10-P-8263LA

Model 213, 238

With Code 460 (Canada version)

With Code 642 (Dynamic LED headlamps, right-hand traffic)

Except Code 632 (Headlamps, LED, static, right-side traffic)

Model 213, 238

With Code 494 (US version)

With Code 642 (Dynamic LED headlamps, right-hand traffic)

Except Code 632 (Headlamps, LED, static, right-side traffic)

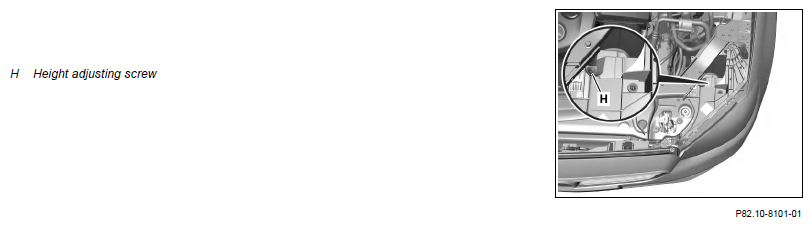

Illustration shows model 213

Courtesy of MERCEDES-BENZ USA

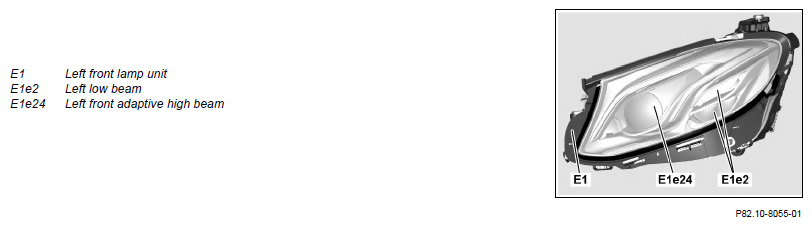

Dynamic LED headlamp, SAE version, shown On Model 213

Courtesy of MERCEDES-BENZ USA

Light gradient for low beams

Courtesy of MERCEDES-BENZ USA

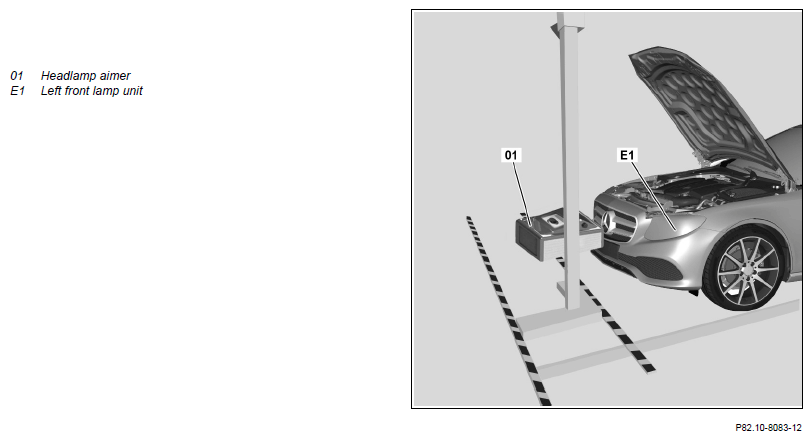

Illustration shows model 213

Courtesy of MERCEDES-BENZ USA

	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	General information on checking/correcting headlamp adjustment		AH82.10-P-1000-01A
	Preparatory activity
1	Prepare vehicle for checking/correcting headlamp adjustment.		AP82.10-P-8260-10H
2	Set prescribed degree of inclination of 0.1 % for main headlamps on headlamp aimer (01).
	000 588 11 21 00 Adjustment device	Observe all regulations and specifications in the operating instructions from the headlamp aimer manufacturer. Otherwise, correct headlamp adjustment is no possible.	WS82.00-P-0151B
3	Switch on low beams.	When testing and adjusting the low beams, make sure that the extended fog light function is not active.
4	Open hood.
	Check and, if necessary, adjust (checking and adjustment of the low beams is described at the left low beam headlamp (E1e2); use procedure for left side for right side too.)
5	Check height adjustment of left low beam (E1e2), adjust if necessary.
	000 588 11 21 00 Adjustment device	With a low beam light path and correct height adjustment, the horizontal light-dark boundary (1) of the left low beam headlamp (E1e2) to the left of the center mark (3) must be congruent with the reference line for the height adjustment (2) in the headlamp aimer (01). The colored area of the light-dark boundary (1 of the left low beam headlamp (E1e2) must be above the reference line for the height adjustment (2). If the height adjustment for the left low beam (E1e2) is correct, ↓ No further check necessary, continue with operation step 6. If the height adjustment for the left low beam (E1e2) is not correct, ↓ Turn the adjustment screw for the height adjustment (H) to correct the height adjustment of the left low beam headlamp (E1e2).	WS82.00-P-0151B
	Finishing activity
6	Reset switch positions to input condition.	Only if the high beam setting is not to be checked afterwards.
7	Close hood.
