Check Setting Of High Beam - AP82.10-P-8260-02I

Model 213, 238

Shown On Model 213 with ECE version of headlamp

Courtesy of MERCEDES-BENZ USA

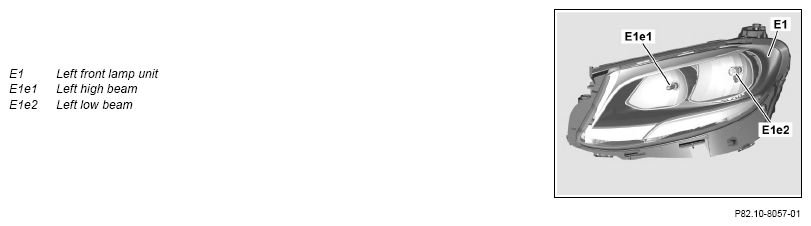

Halogen headlamp, shown On Model 213

Courtesy of MERCEDES-BENZ USA

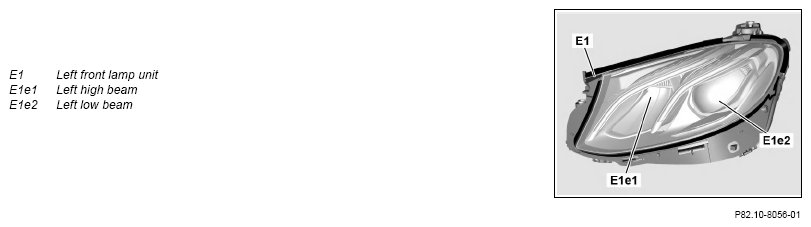

Static LED headlamp, shown On Model 213

Courtesy of MERCEDES-BENZ USA

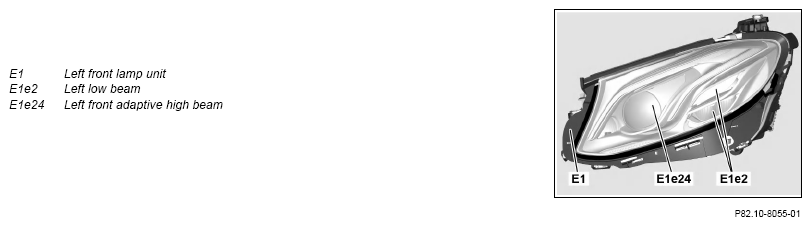

Dynamic LED headlamp, shown On Model 213

Courtesy of MERCEDES-BENZ USA

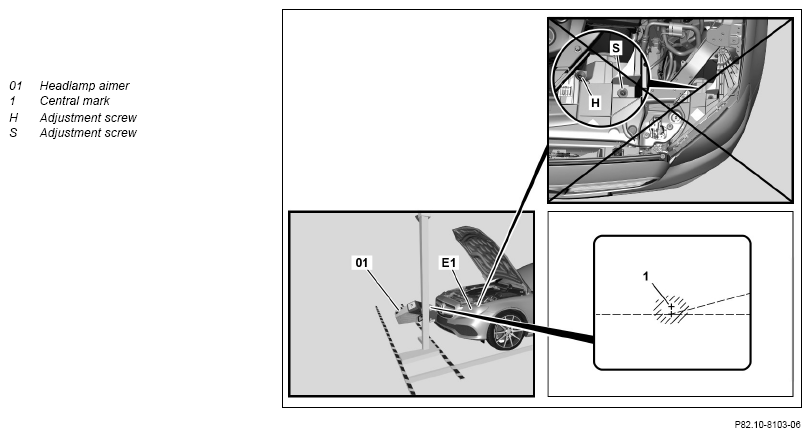

1. Align headlamp aimer (01) parallel to vehicle level with left high beam (E1e1) or left and right front adaptive high beam (E1e24).
2. Check setting of high beam.

   Corrections must not be made to the adjustment screws (H, S) on the headlamp.

   Otherwise, the previously adjusted low beams will be mis-adjusted.

   The center of the light beam must be positioned on the central mark (1) in the headlamp aimer (01).

   If headlamp adjustment is not correct.

   ↓

   Rectify problem subject to separate repair order.
