Prepare Waistline Reinforcement For Rear Fender For Installation - Ar63.50-P-0003-02LWA
Model 238.4
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
The following operation steps are shown on the left side of the vehicle. This must be similarly performed for damage to the right side of the vehicle.

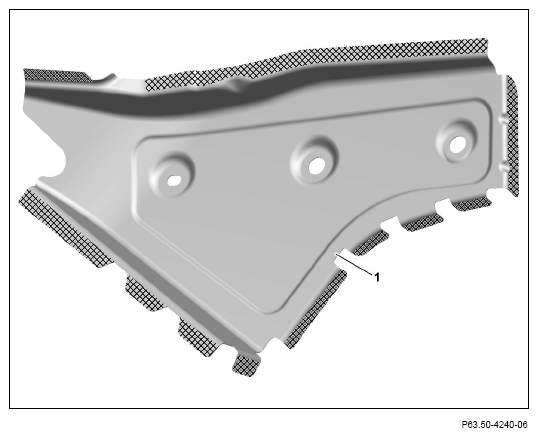

- Grind mating surfaces on beltline reinforcement (1) down to bare metal on both sides in cross-hatched areas.
- Remove grinding dust.
- Apply zinc dust paint to insides of spot weld flanges in cross-hatched areas.
