Partially Remove Inner Side Wall With Rear Outer Wheelhouse - Ar63.10-P-6050-01LWO

Model 238.3

The following operation steps are shown on the left side of the vehicle. This must be similarly performed for damage to the right side of the vehicle.

Courtesy of MERCEDES-BENZ USA

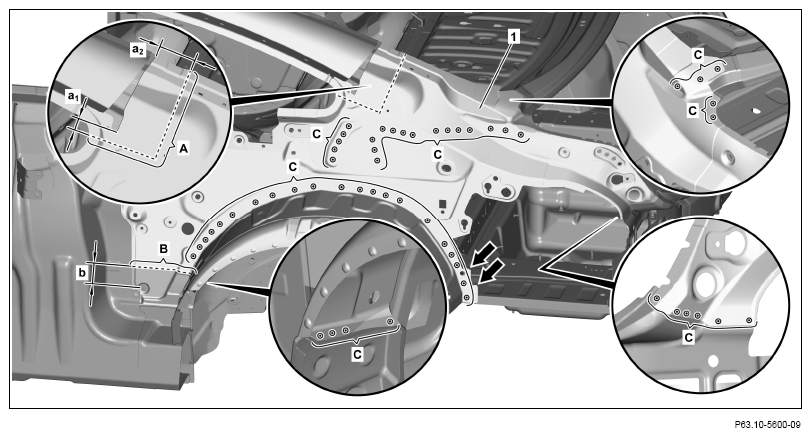

1. Mark separating points on inner side wall (1) and cut (areas A and B).

   Do not cut too deeply.

   Component parts located behind this will otherwise be damaged and the strength affected.

   Dimensions:

   a₁ = approx. 25 mm

   a₂ = approx. 45 mm

   b approx. 60 mm

2. Expose spot welds on inner side wall (1) and cut off (area C).
3. Bend up sheet metal lugs (arrows).

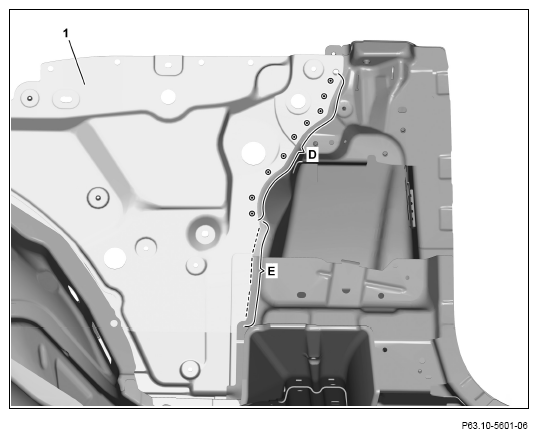

4. Expose spot welds on inner side wall (1) and cut off (area D).
5. Expose weld seams on inner side wall (1) and cut (area E).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

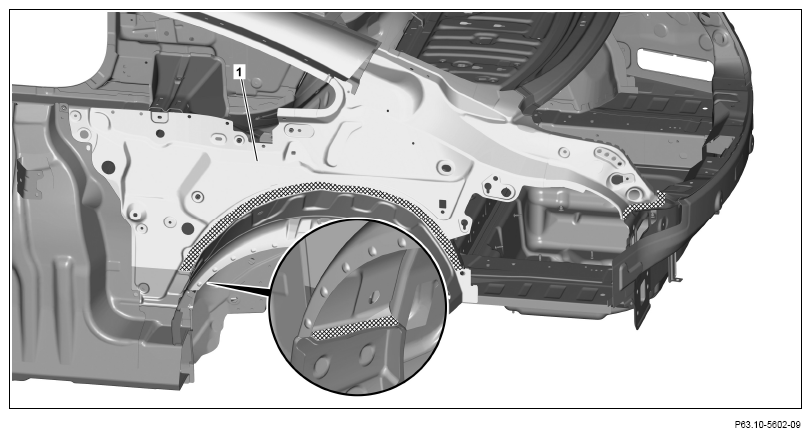

6. Heat inner side wall (1) in cross-hatched areas.

   Cross-hatched areas are bonded.

7. Remove inner side wall (1).

   Courtesy of MERCEDES-BENZ USA

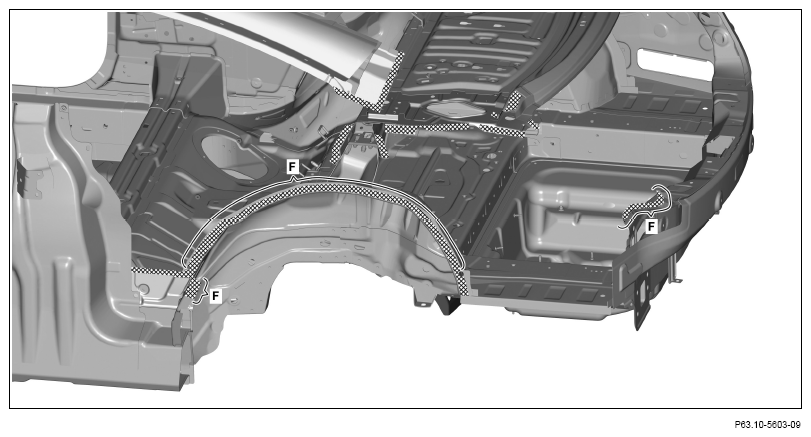

8. Grind mating surfaces down to bare metal in cross-hatched areas.

   Grind spot weld flanges down to bare metal on both sides.

9. Remove grinding dust and chips from drilling.
10. Apply zinc dust paint to insides of spot weld flanges.

    Do not coat bonding surfaces with zinc dust paint (area F).

    Otherwise adhesion problems can occur.

    Observe pretreatment of bonding surfaces.

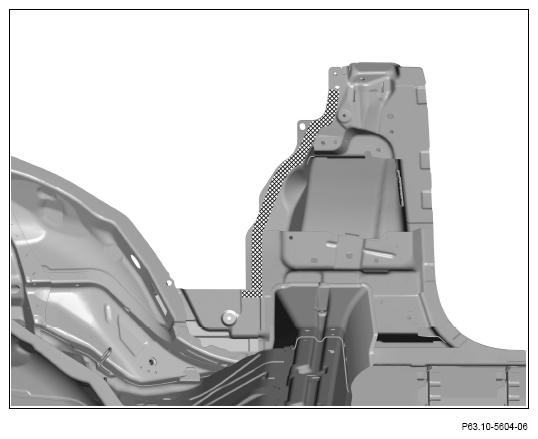

11. Grind mating surfaces down to bare metal in cross-hatched areas.

    Grind spot weld flanges down to bare metal on both sides.

12. Remove grinding dust and chips from drilling.
13. Apply zinc dust paint to insides of spot weld flanges.

Courtesy of MERCEDES-BENZ USA
