Install Waistline Reinforcement For Rear Fender - Ar63.50-P-0003-03LWA

Model 238.4

The following operation steps are shown on the left side of the vehicle. This must be similarly performed for damage to the right side of the vehicle.

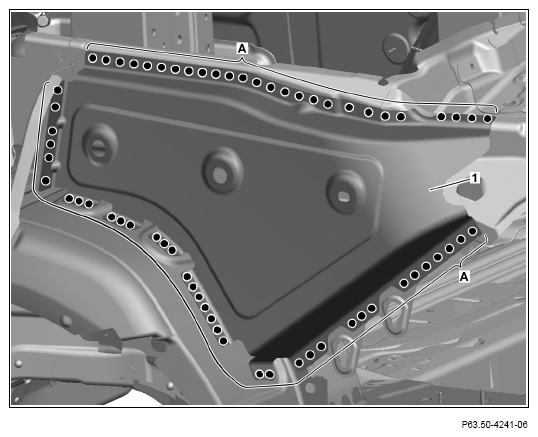

1. Install, fit and fix in place beltline reinforcement (1).
2. Beltline reinforcement (1) (area A).

Courtesy of MERCEDES-BENZ USA
