Replace Spare Tire Well - Ar64.20-P-1245LWO
Model 238.3
MODIFICATION NOTES
| 26.05.2021 | Repair materials reference BR00.45-Z-1049-02A replaced by BR00.45-Z-1104-02A and BR00.45-Z-1180-02A. | Operation steps 3, 4 |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | General information on body repair | AH60.00-P-0001-01KOA | |
| Notice | Pretreatment of bonding surfaces | AH60.00-P-0008-01SX | |
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area of repair point. | ||

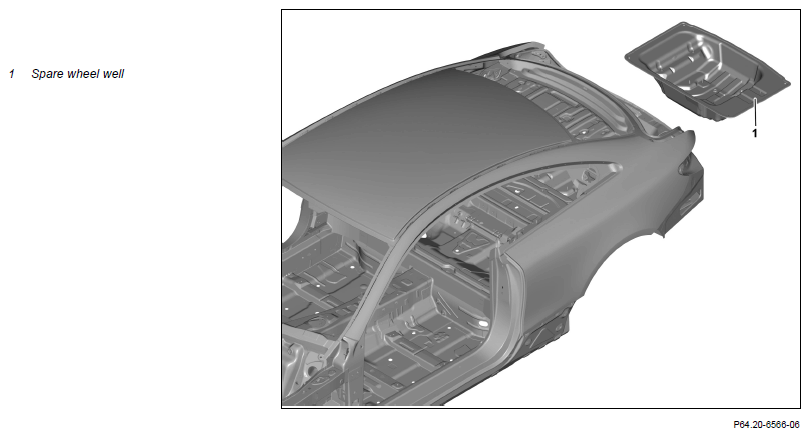

| 2 | Remove spare wheel well (1). | AR64.20-P-1245-01LW | |
| Primer stick | *BR00.45-Z-1012-07A | ||
| Install | |||
| 3 | Prepare spare wheel well (1). | AR64.20-P-1245-02LW | |
| Repair kit for installing windshields, 1- component adhesive | *BR00.45-Z-1180-02A | ||
| SIKA primer 209, 250 ml | *BR00.45-Z-1104-02A | ||
| 4 | Install spare wheel well (1). | AR64.20-P-1245-03LW | |
| Repair kit for installing windshields, 1- component adhesive | *BR00.45-Z-1180-02A | ||
| SIKA primer 209, 250 ml | *BR00.45-Z-1104-02A | ||
| 5 | Clean repair area. | ||
| 6 | Reinstall detachable parts in area of repair point. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1012-07A | Primer stick | A 000 986 27 50 |
| BR00.45-Z-1104-02A | SIKA primer 209, 250 ml | A 009 989 75 71 09 |
| BR00.45-Z-1180-02A | Repair kit for installing windshields, 1-component adhesive | A 000 989 49 05 |
