Remove Longitudinal Member At Rear - Ar64.20-P-1200-22LWO

	Risk of explosion  from aluminum grinding dust, risk of injury to respiratory system from inhaling dust	Wear dust filter mask, safety glasses, and protective gloves. Use a suitable, grounded dust extraction system.	AS60.00-Z-0007-01N
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX
Notice	General information on crack diagnosis of aluminum parts		AH60.00-P-0014-01N
	General information on repair of vehicles with ultra-strength steels.		AH60.00-P-0024-01N
	Note on working on aluminum components and vehicles		AH60.00-P-0034-01LW

Model 238.3

The following operation steps are shown on the left side of the vehicle This must be similarly performed for damage to the right side of the vehicle.

Use following repair materials:

• Zinc dust paint

Courtesy of MERCEDES-BENZ USA

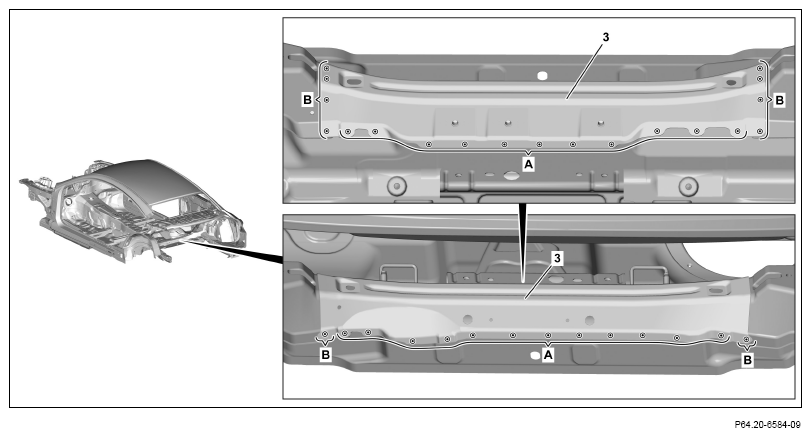

1. Expose spot welds on upper crossmember (3) and cut off (area A).
2. Expose ImpAcT tacks at upper crossmember (3) and cut off (area B).

   Courtesy of MERCEDES-BENZ USA

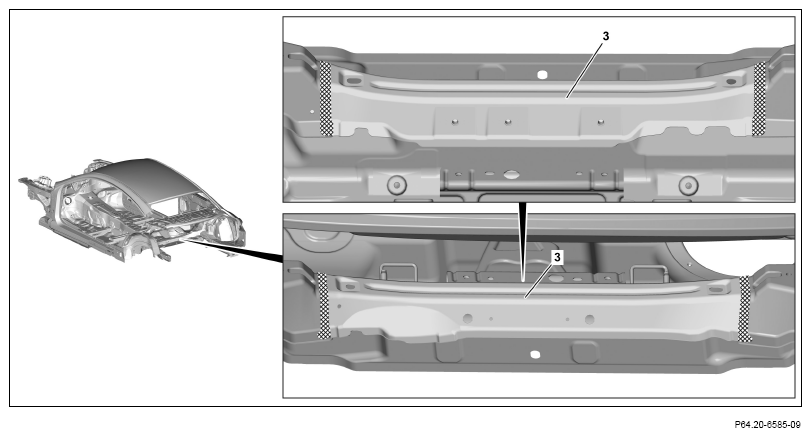

3. Heat upper crossmember (3) in crosshatched areas.

   Cross-hatched areas are bonded.

4. Remove top crossmember (3).

   Courtesy of MERCEDES-BENZ USA

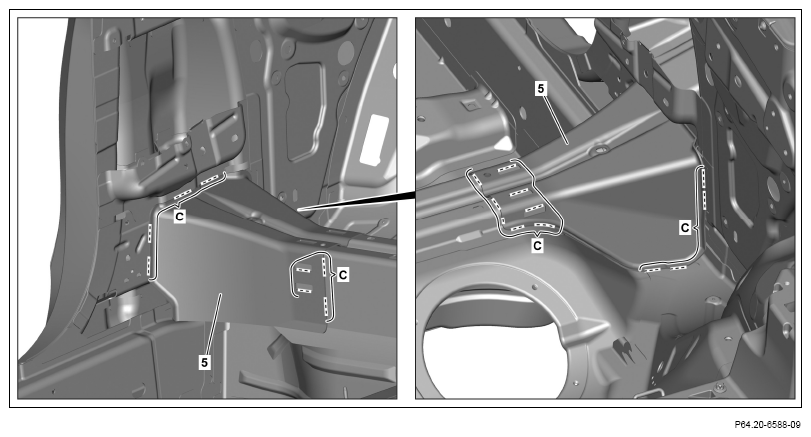

5. Expose MIG solder seams on support (5) and cut (area C).
6. Remove support (5).

   Courtesy of MERCEDES-BENZ USA

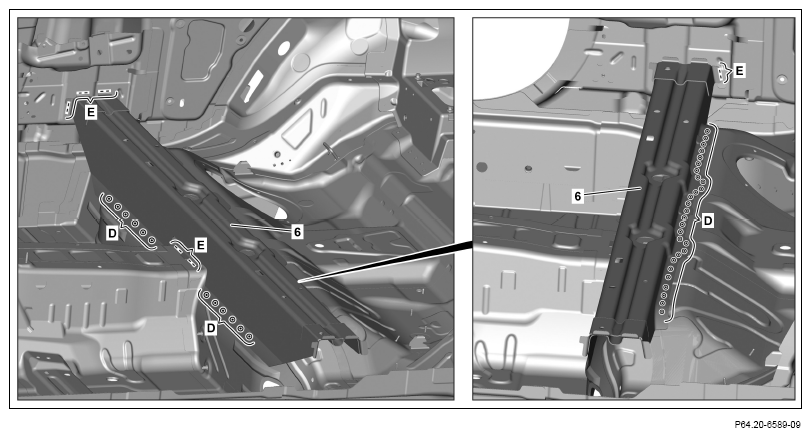

7. Expose spot welds on center support (6) and cut off (area D).
8. Expose MIG solder seams on center support (6) and cut (area E).
9. Remove center support (6).

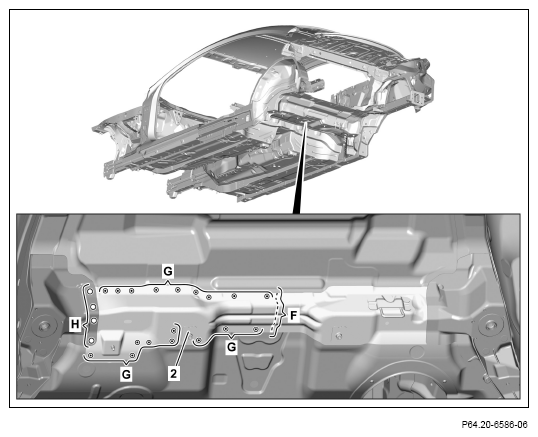

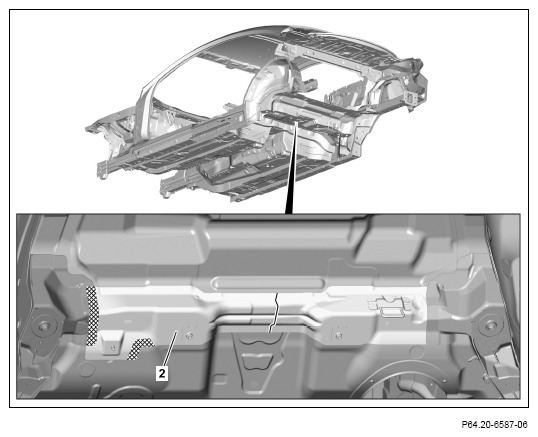

10. Mark separating point on lower crossmember (2) and cut (area F).

    Do not cut too deeply.

    Damage to the component parts located behind this can otherwise occur and the strength is affected.

11. Expose spot welds on lower crossmember (2) and cut off (area G).
12. Expose self-pierce rivets on lower crossmember (2) and drill out with Ø 6 mm (area H).

    Courtesy of MERCEDES-BENZ USA

13. Heat lower crossmember (2) in crosshatched areas.

    Cross-hatched areas are bonded.

14. Remove bottom crossmember (2).

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

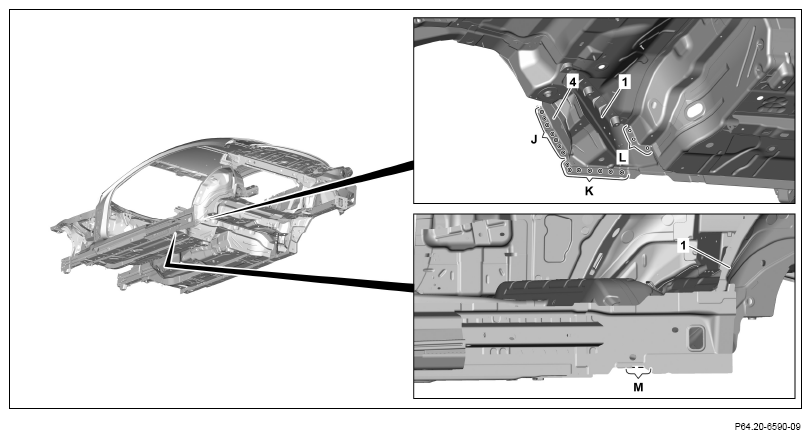

15. Expose spot welds on front end plate (4) and cut off (area J).
16. Expose spot welds on rear longitudinal member (1) and cut off (area K).
17. Expose spot welds on rear longitudinal member (1) and drill out with Ø 6.5 mm (area L).
18. Expose MIG solder seam on rear longitudinal member (1) and cut (area M).

    Courtesy of MERCEDES-BENZ USA

19. Mark separating point on rear longitudinal member (1) and cut (area P).

    Do not cut too deeply

    Damage to the component parts located behind this can otherwise occur and the strength is affected.

20. Expose concealed spot weld under cutout and drill out with a diameter of 6.5 mm.

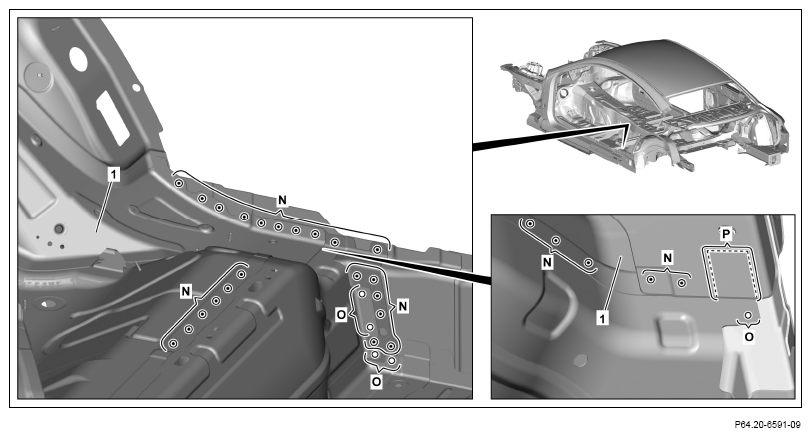

21. Expose spot welds on rear longitudinal member (1) and cut off (area N).

    Cut off common spot welds on panels that are located one behind the other through two panel thicknesses.

22. Expose spot welds on rear longitudinal member (1) and drill out with Ø 6.5 mm (area O).

    Courtesy of MERCEDES-BENZ USA

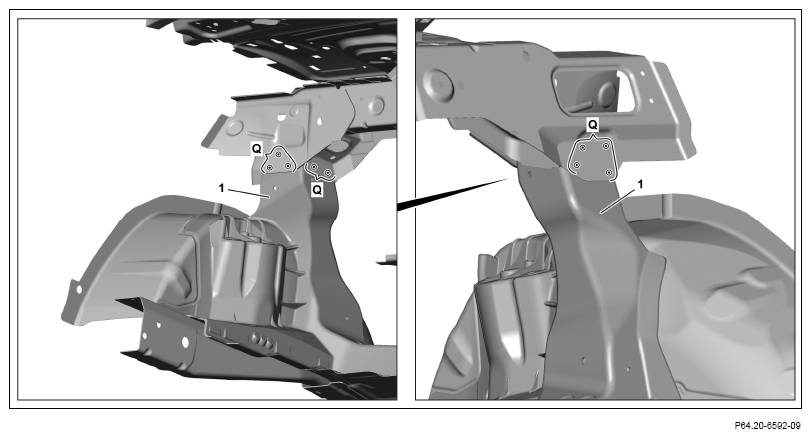

23. Expose ImpAcT tacks on rear longitudinal member (1) and cut off (area Q).

    Courtesy of MERCEDES-BENZ USA

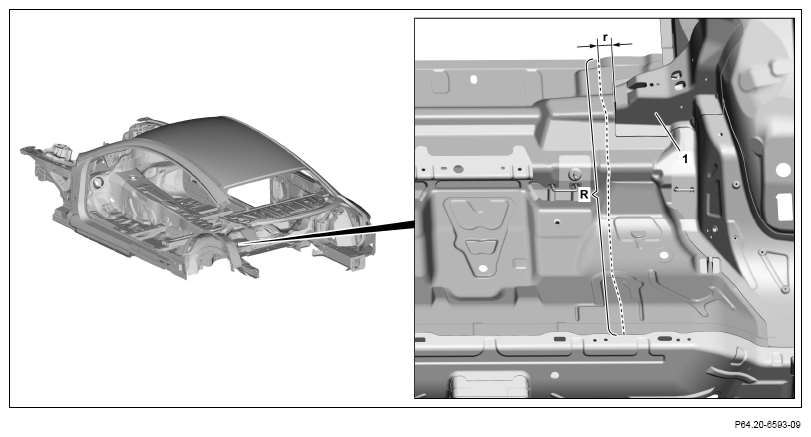

24. Mark separating point on rear longitudinal member (1) and cut (area R).

    Do not cut too deeply.

    Damage to the component parts located behind this can otherwise occur and the strength is affected.

    Dimensions  :

    r = approx. 20 mm

    Courtesy of MERCEDES-BENZ USA

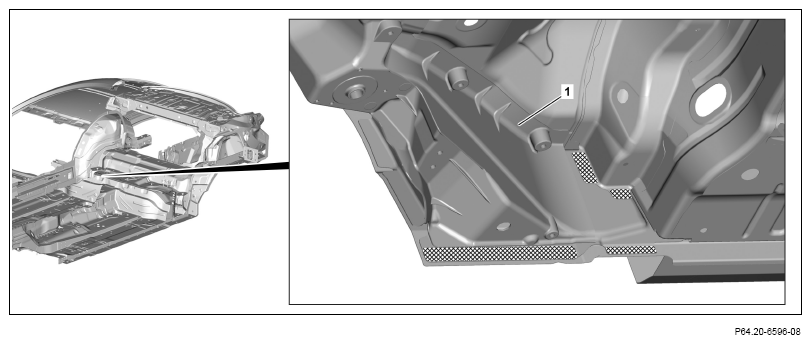

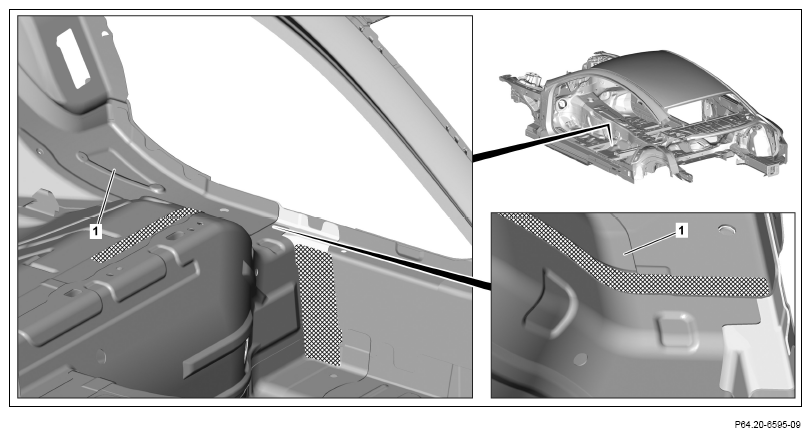

25. Heat rear longitudinal member (1) in crosshatched areas.

    Cross-hatched areas are bonded.

    Courtesy of MERCEDES-BENZ USA

26. Heat rear longitudinal member (1) in crosshatched areas.

    Cross-hatched areas are bonded.

    Courtesy of MERCEDES-BENZ USA

27. Heat rear longitudinal member (1) in crosshatched areas.

    Cross-hatched areas are bonded.

28. Remove rear longitudinal member (1).

    Helper required.

    Courtesy of MERCEDES-BENZ USA

29. Grind mating surfaces down to bare metal in cross-hatched areas.

    Grind mating surfaces on inside down to bare metal (area W).

    Grind spot weld flanges down to bare metal on both sides.

30. Remove grinding dust and chips from drilling.
31. Apply zinc dust paint to insides of spot weld flanges.

    Do not coat bonding surfaces with zinc dust paint (areas W and V).

    Otherwise adhesion problems can occur.

    Observe pretreatment of bonding surfaces.

    Courtesy of MERCEDES-BENZ USA

32. Grind mating surfaces down to bare metal in cross-hatched areas.

    Grind spot weld flanges down to bare metal on both sides.

33. Remove grinding dust and chips from drilling.

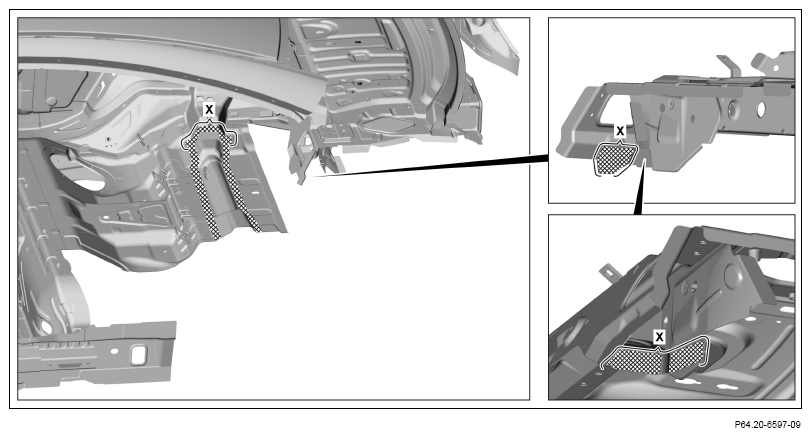

34. Apply zinc dust paint to insides of spot weld flanges.

    Do not coat bonding surfaces with zinc dust paint (area X).

    Otherwise adhesion problems can occur.

    Observe pretreatment of bonding surfaces.
