Install And Weld In Bottom Rear Center Section - Ar64.20-P-1000-08LWO

Model 238.3

Courtesy of MERCEDES-BENZ USA

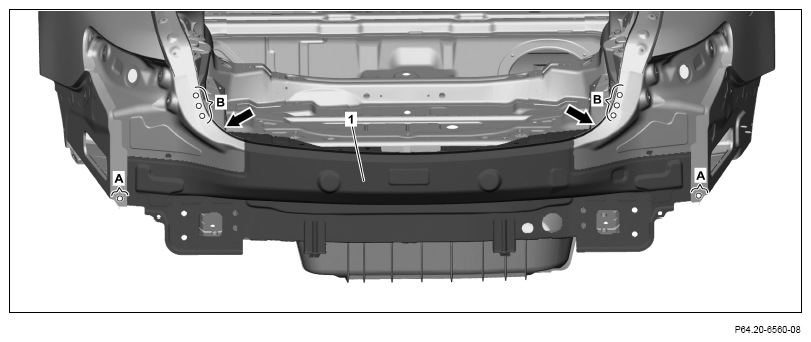

1. Install rear center section (1) and fit.

   When extending and retracting rear center section (1), slightly press body parts (arrows) located one behind the other apart.

2. Bend back connecting flange on right rand left rear fender.
3. Install trunk lid seal.
4. Install striker eye.
5. Check and adjust gap dimensions.
6. Fix rear center section (1) in place.
7. Remove trunk lid seal.
8. Remove striker eye.
9. Drill rivet holes on rear center section (1) with Ø 6.7 mm through present holes in body (areas A).
10. Drill rivet holes on right and left rear fender with Ø 6.7 mm bit through present holes in body (areas B).
11. Countersunk rivet holes from outside (areas B).

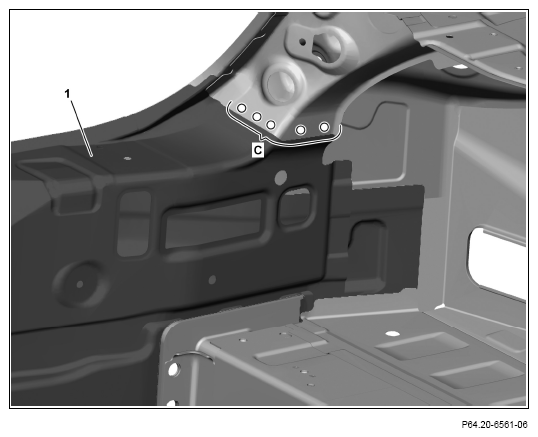

    The following operation step 12 is shown on the left side of the vehicle and must be performed in the same way on the right side of the vehicle.

12. Drill rivet holes on rear center section (1) with Ø 6.7 mm through present holes in body (areas C).
13. Remove rear center section (1).
14. Deburr rivet holes on rear center section (1) and body on both sides.
15. Remove drilling chips.
16. Coat with zinc dust paint insides of those riveted joints that will not be bonded.

    Courtesy of MERCEDES-BENZ USA

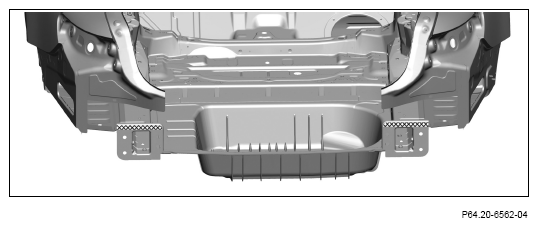

17. Apply 2-component adhesive to body in crosshatched areas.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

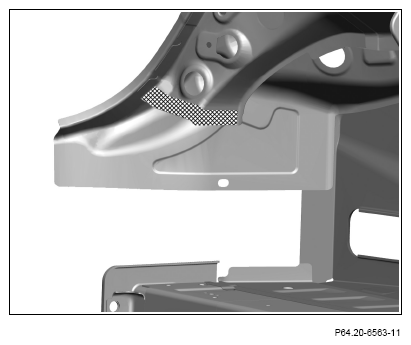

    The following operation step 18 is shown on the left side of the vehicle and must be performed in the same way on the right side of the vehicle.

18. Apply 2-component adhesive to body in cross-hatched area.

    Apply 2-component adhesive to body from inside. Some of the 2-component adhesive is wiped off in this area when the rear center section is installed; it is necessary to compensate for this by applying an additional amount.

    Also apply 2-component adhesive to new part.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

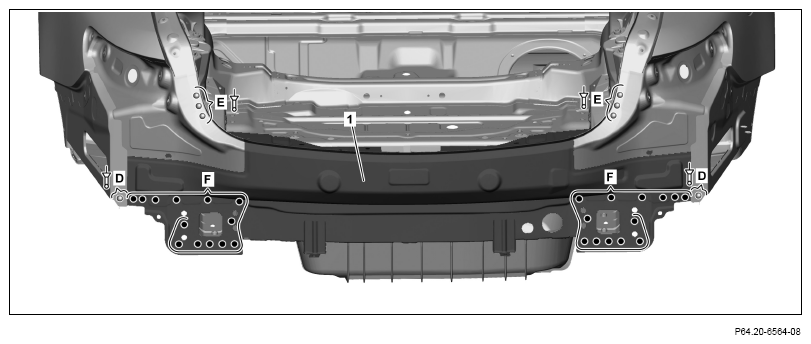

19. Install rear center section (1) and fix in place.
20. Rivet rear center section (1) with Ø 6, 5x12.5 rivets (areas D).

    Clamping range 2.4 mm.

21. Rivet rear center section (1) with Ø 6, 4x14.0 countersunk-head rivets (areas E).

    Clamping range 2.4 mm to 2.8 mm.

22. Rear center section (1) (areas F).

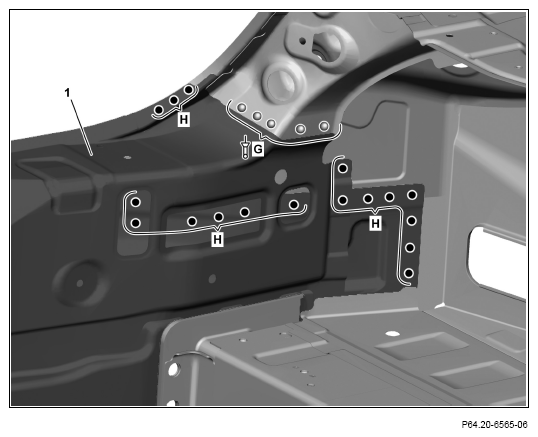

    The following operation steps 23 and 24 are shown on the left side of the vehicle and must be performed in the same way on the right side of the vehicle.

23. Rivet rear center section (1) with Ø6.4x12 rivets (area G).

    Clamping range 1.4 mm to 1.7 mm.

24. Rear center section (1) (areas H).
