Remove Windshield CROSSMEMBER - Ar62.25-P-1120-01LWO

Model 238

The following operation steps 1 and 2 are shown on the left side of the vehicle and must be performed in the same way on the right side of the vehicle.

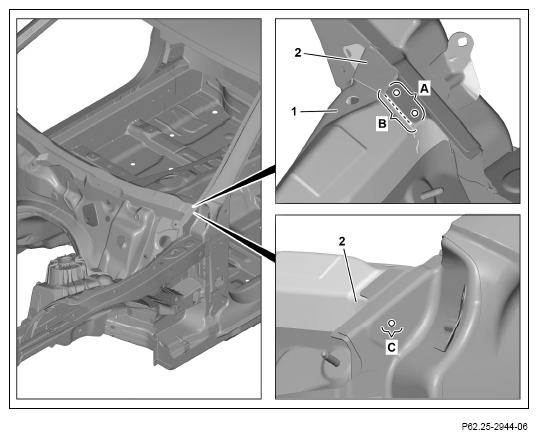

1. Expose spot welds on crossmember (1) and mounting console (2) and drill with Ø 6, 5 mm bit (areas A and C).
2. Expose inert gas welds on mounting console (2) and cut (area B).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

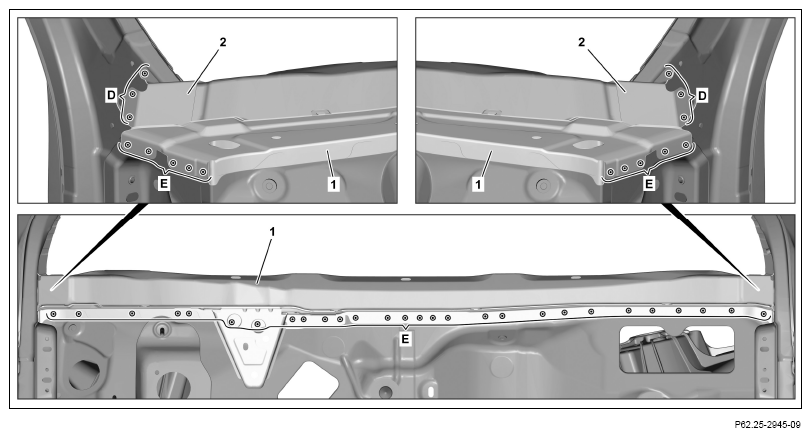

3. Expose spot welds on crossmember (1) and mounting console (2) and cut out (areas D and E).

   Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.

   Courtesy of MERCEDES-BENZ USA

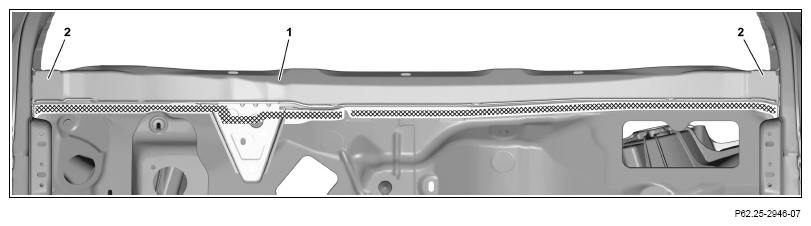

4. Heat crossmember (1) in cross-hatched area.

   Cross-hatched area is bonded.

5. Remove crossmember (1) and mounting consoles (2).

   Courtesy of MERCEDES-BENZ USA

   The following operation steps 6 and 7 are shown on the left side of the vehicle and must be performed in the same way on the right side of the vehicle.

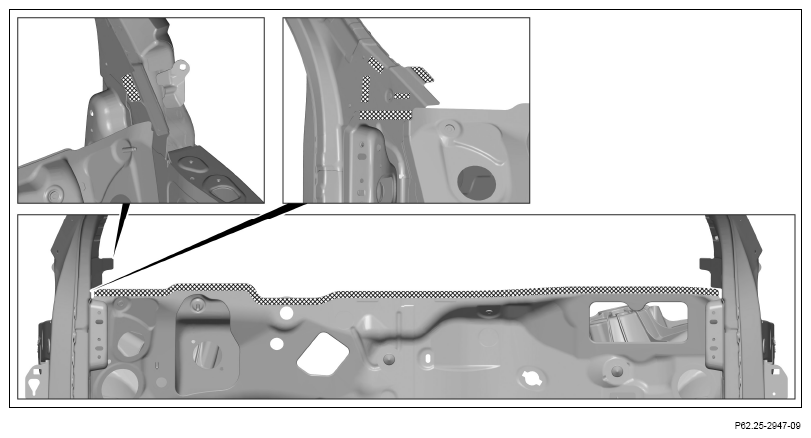

6. Sand down mating surfaces to bare metal in cross-hatched areas.
7. Remove grinding dust and drill chips.
