Prepare Windshield CROSSMEMBER For Installation - Ar62.25-P-1120-03LWO

Model 238

Courtesy of MERCEDES-BENZ USA

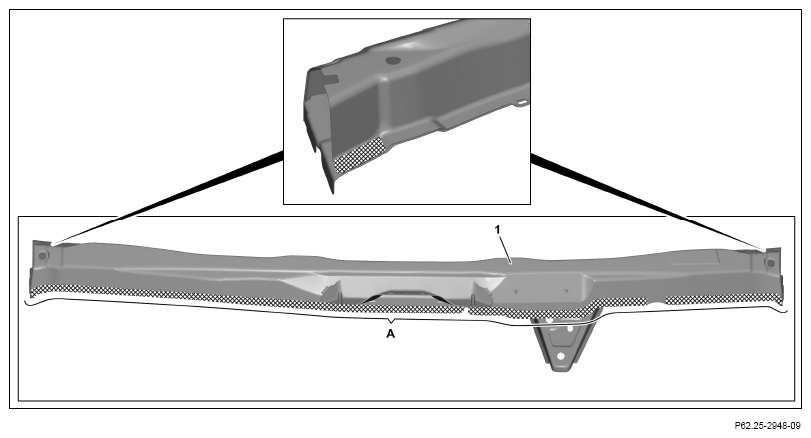

1. Grind mating surfaces on crossmember (1) down to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Remove grinding dust.
3. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surfaces with zinc dust paint (area A).

   Otherwise adhesion problems may occur.

   Observe pretreatment of bonding surfaces.

   The following operation steps 4, 5 and 6 are shown on the left side of the vehicle and must be performed in the same way on the right side of the vehicle.

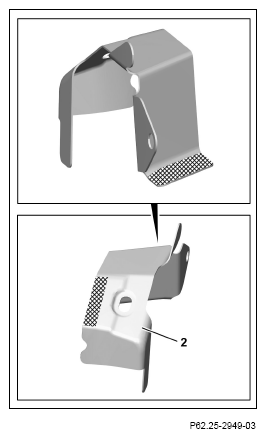

4. Grind mating surfaces on mounting console (2) down to bare metal in the crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

5. Remove grinding dust.
6. Coat insides of spot weld flanges with zinc dust paint.
