Wiring Diagram For ADAPTIVE BRAKE (ABR) - PE42.47-P-2000-97DEA
Model 238 as of Model year 2021 Control unit N30/4
| Code: | Designation: | Position: |
|---|---|---|

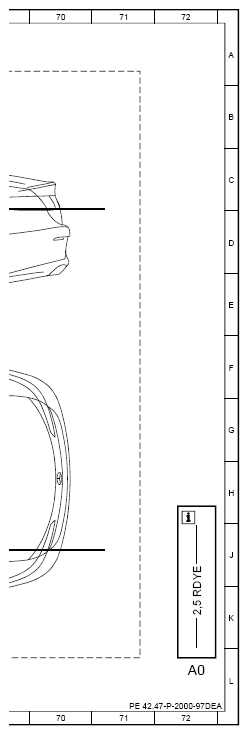

| A0 | Use of wiring diagrams | 72L |

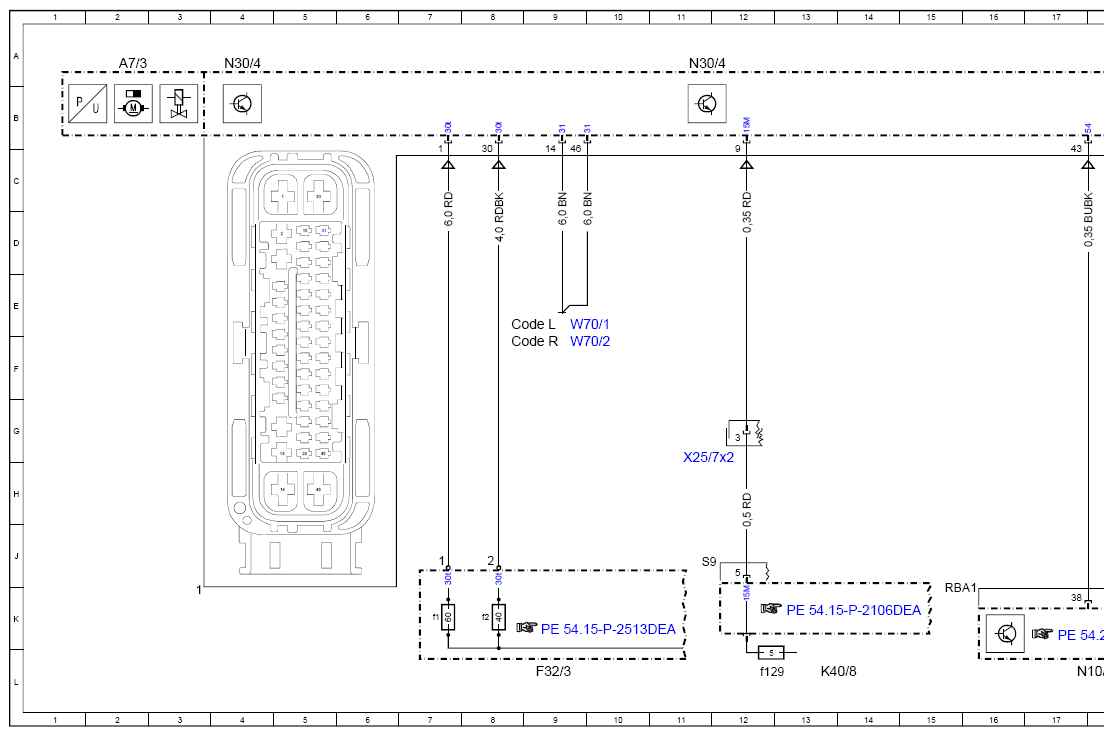

| A7/3 | Traction system hydraulic unit | 2A |

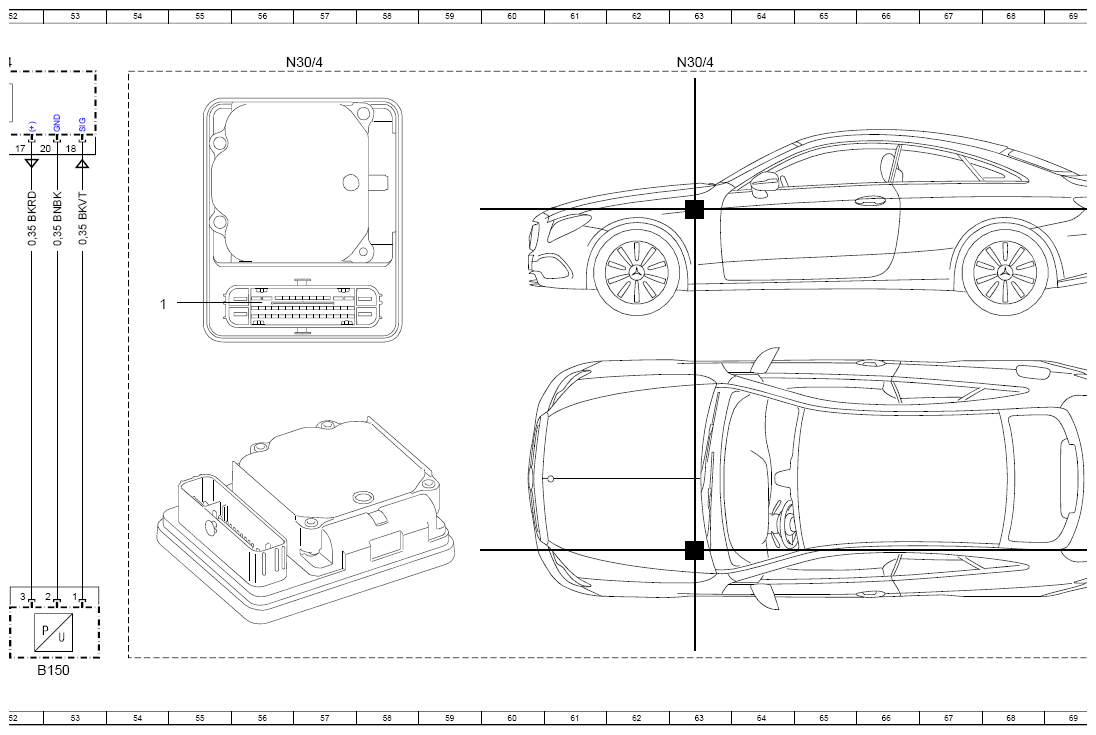

| B150 | Brake vacuum sensor | 53L |

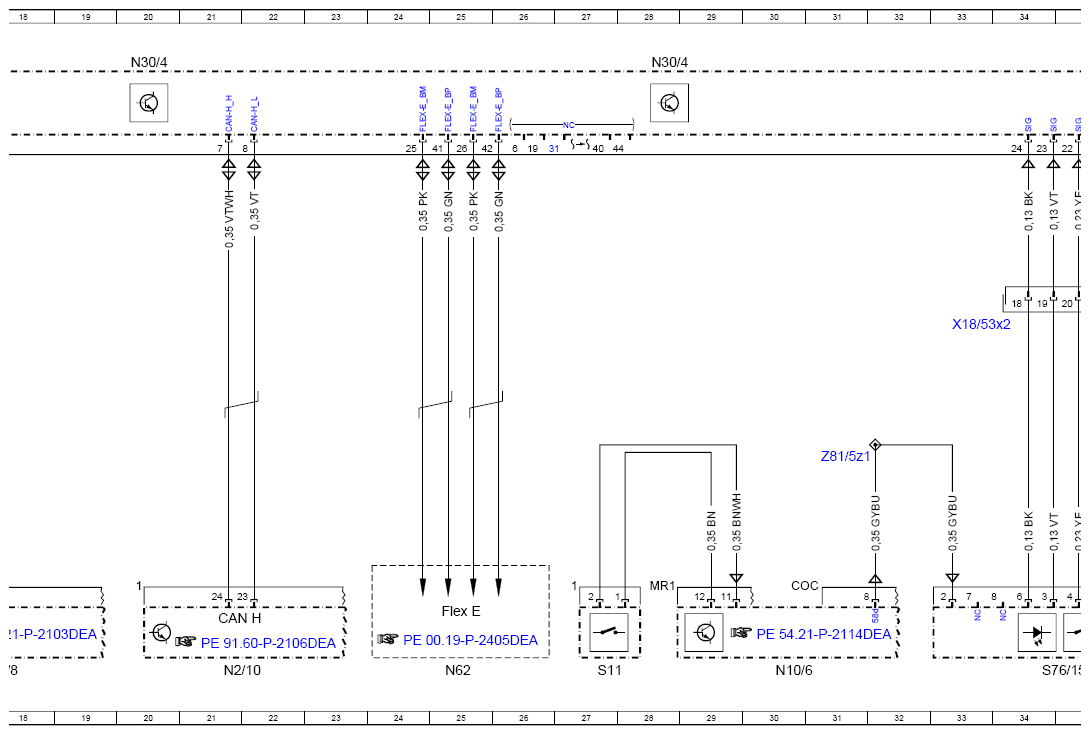

| CAN H | Vehicle dynamics CAN | 21K |
| Code L | LEFT-HAND DRIVE | 35G |
| Code L | LEFT-HAND DRIVE | 8E |
| Code R | RIGHT-HAND DRIVE | 35H |
| Code R | RIGHT-HAND DRIVE | 8F |
| F32/3 | Engine compartment pre-fuse box | 9L |
| F32/3f1 | Fuse 1 | 7K |
| F32/3f2 | Fuse 2 | 8K |
| Flex E | Chassis FlexRay | 25K |
| K40/8 | Engine fuse and relay module | 13L |
| K40/8f 129 | Fuse 129 | 12L |
| L6/1 | Left front axle RPM sensor | 43L |
| L6/2 | Right front axle RPM sensor | 45L |
| L6/3 | Left rear axle RPM sensor | 47L |
| L6/4 | Right rear axle RPM sensor | 49L |

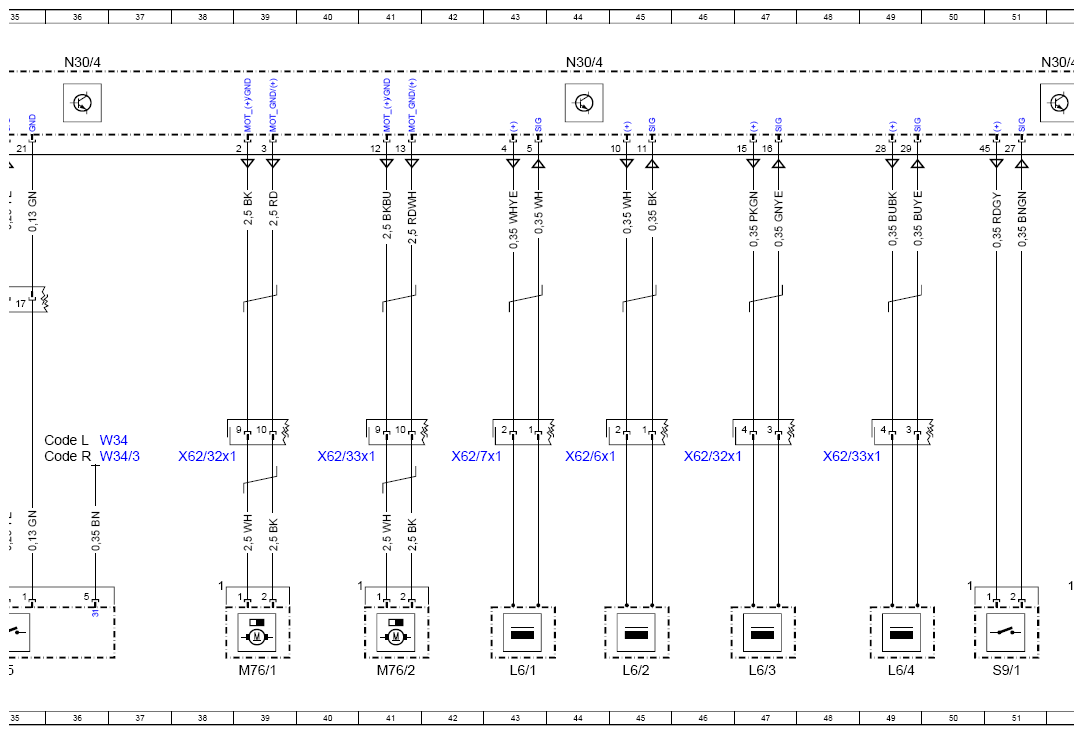

| M76/1 | Left electric parking brake actuator motor | 39L |
| M76/2 | Right electric parking brake actuator motor | 41L |
| N10/6 | Front SAM control unit | 30L |
| N10/8 | Rear SAM control unit | 17L |
| N2/10 | Supplemental restraint system control unit | 21L |
| N30/4 | Electronic Stability Program control unit | 4A |
| N30/4 | Electronic Stability Program control unit | 11A |
| N30/4 | Electronic Stability Program control unit | 20A |
| N30/4 | Electronic Stability Program control unit | 28A |
| N30/4 | Electronic Stability Program control unit | 36A |
| N30/4 | Electronic Stability Program control unit | 44A |
| N30/4 | Electronic Stability Program control unit | 52A |
| N30/4 | Electronic Stability Program control unit | 57A |
| N30/4 | Electronic Stability Program control unit | 63A |
| N62 | Parking system control unit | 25L |
| S11 | Brake fluid level switch | 27L |
| S76/15 | Electric parking brake switch | 34L |
| S9/1 | Stop lamp switch | 51L |
| W34 | Left footwell ground point | 36G |
| W34/3 | Right footwell ground point | 36H |
| W70/1 | Left ESP® ground point | 9E |
| W70/2 | Right ESP® ground point | 9F |
| X18/53x2 | Driver cockpit/interior wiring harness electrical connector | 33E |
| X25/7x2 | Engine compartment/interior wiring harness electrical connector | 11H |
| X62/32x1 | Rear axle electrical connector, left distributor | 38H |
| X62/32x1 | Rear axle electrical connector, left distributor | 46H |
| X62/33x1 | Rear axle electrical connector, right distributor | 48H |
| X62/33x1 | Rear axle electrical connector, right distributor | 40H |
| X62/6x1 | Front axle electrical connector, right distributor | 44H |
| X62/7x1 | Front axle electrical connector, left distributor | 42H |
| Z81/5z1 | Cockpit terminal 58d connector sleeve | 31G |
