Brake System - Inspect Fluid Level - AP42.10-P-4210B
Model 213, 238, 253, 257, 290
Show on Model 253.3
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Topical note | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Topical note | Brake fluid notes | AH42.50-P-0001-01A | |
| Preparatory activity | |||

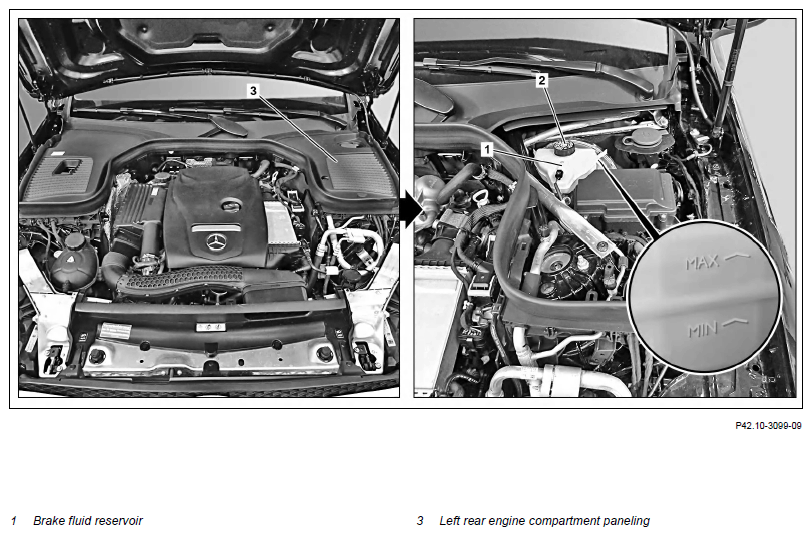

| 1 | Remove left rear engine compartment trim (3). | ||
| Check | |||
| 2 | Check fluid level in brake fluid reservoir (1). | ||
| General brake fluid | BB00.40-P-0330-01A | ||
| Brake fluids (DOT 4 plus) | and min. marks on the brake fluid reservoir (1). If the fluid level is too low, ↓ rectify problem. If the fluid level is too high, ↓ extract brake fluid up to max. mark. |
BB00.40-P-0331-00A | |
| Finishing activity | |||
| 3 | Install left rear engine compartment trim (3). |
