Assess Condition Of Brake Linings - AP42.10-P-4252F

Model 238

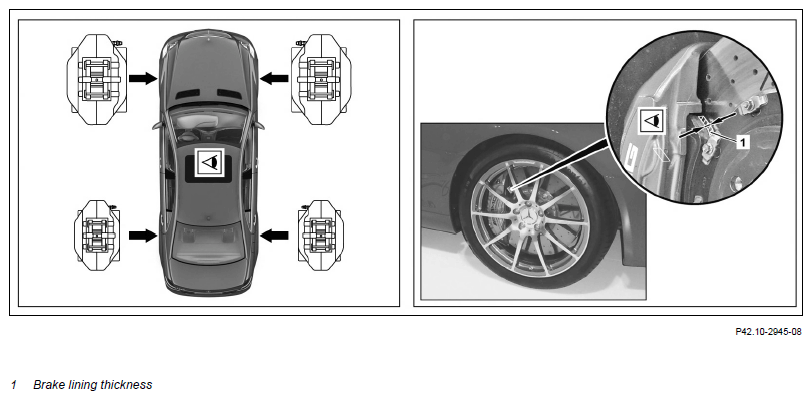

G15371941Courtesy of MERCEDES-BENZ USA

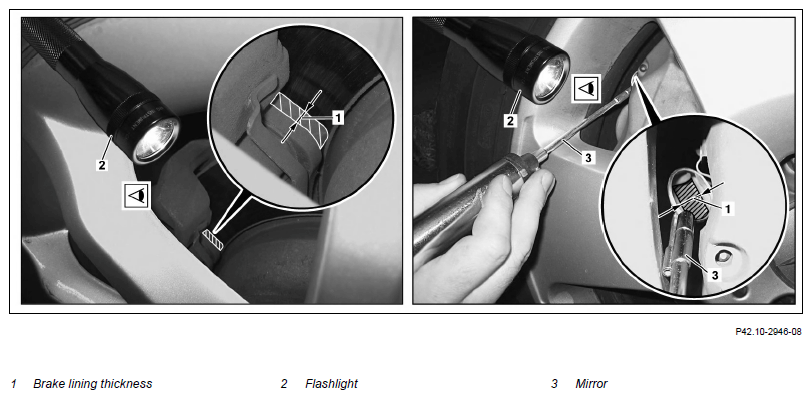

G15371942Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
Topical note  Notes on repairs to brake system   AH42.00-P-0003-01A
Topical note  Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
INSPECT Check
1 Assess brakepad thickness (1) of brakepads on front axle. IMPORTANT If necessary, use a flashlight (2) or a mirror (3). The thickness of the pad backing plate can be used as a reference when assessing the brake lining thickness (1).
Model 238.314/315/318/319/320/323/334/342/343/348/365/366/367/368/377/378/380/383/385/386/ 387/414/415/418/419/420/423/434/442/443/448/465/466/467/468/477/478/480/483/485/487 Model 238.358/359/458/459
Model 238.361/461 Brake lining		 *BE42.10-P-1001-06D
    If, in exceptional cases, assessment through visual inspection is not possible.
↓
Remove front wheels and assess them.
IMPORTANT After obtaining special order.
2 Assess brakepad thickness (1) of brakepads on rear axle. IMPORTANT If necessary, use a flashlight (2) or a mirror (3). The thickness of the pad backing plate can be used as a reference when assessing the brake lining thickness (1).
Model
238.314/315/318/319/320/323/334/342/343/348/358/359/361/365/366/367/368/377/378/380/ 383/385/386/387/414/415/418/419/420/423/434/442/443/448/458/459/461/465/466/467/468/ 477/478/480/483/485/487Brake lining If, in exceptional cases, assessment through visual inspection is not possible.
↓
Remove rear wheels and assess them.
IMPORTANT After obtaining special order.		 *BE42.10-P-1001-18C
3 Determine estimated remaining distance of brakepads. NOTES
If the wear limit for the brakepads has been reached, replace brakepads. After obtaining special order.
Otherwise the braking effect may be impaired and people, property and environmental damage may result.
IMPORTANT To determine the estimated remaining distance for each axle, refer to the brakepad with the least brakepad thickness (1).
In order to avoid an unscheduled workshop visit between services, determine the remaining distance of the existing brakepads.
If the remaining distance determined is less than the next service interval, advise the customer to replace the brakepads before the due service date.		 AP42.10-P-4253-03EW
CHECK VALUES FOR FRONT AXLE BRAKE LINING

Number Designation Model 238.314/315/318/319 /320/323/334/342/34 3/348/365/366/367/3 68/377/378/380/383/ 385/386/387/414/415 /418/419/420/423/43 4/442/443/448/465/4 66/467/468/477/478/ 480/483/485/487 Model 238.358/359/458/459
BE42.10-P-1001-06D Brake lining Brake pad, new mm 13 13
Pad backing plate mm 6 5
Wear limit mm 2 2
Wear indicator activated (if installed) mm 2-3 2-3
CHECK VALUES FOR FRONT AXLE BRAKE LINING

Number Designation Model 238.361/461
BE42.10-P-1001-06D Brake lining Brake pad, new mm 11
Pad backing plate mm 6
Wear limit mm 2
Wear indicator activated (if installed) mm 2-3
CHECK VALUES FOR REAR AXLE BRAKE PAD

Number Designation Model 238.314/315/318/31 9/320/323/334/342/3 43/348/358/359/361/ 365/366/367/368/37 7/378/380/383/385/3 86/387/414/415/418/ 419/420/423/434/44 2/443/448/458/459/4 61/465/466/467/468/ 477/478/480/483/48 5/487
BE42.10-P-1001-18C Brake lining Brake pad, new mm 11
Pad backing plate mm 6
Wear limit mm 2
Wear indicator activated (if installed) mm 2-3
