Remove/Install Complete Sideview Mirror - AR88.70-P-9000LWO
Model 238

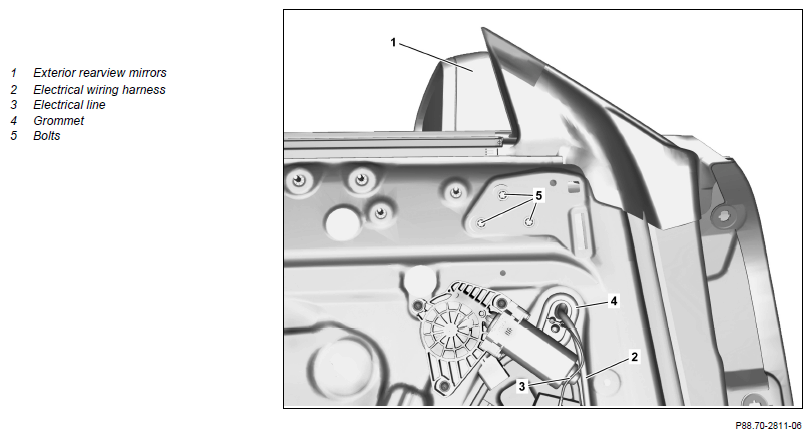

| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, Trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Completely lower side window | ||
| 2 | Remove Front door lining | AR72.10-P-1000LWO | |
| 3 | Expose electrical wiring harness (2) and disconnect from control unit | ||
| 4 | Disconnect electrical line (3) at connecting point | Model 238 with code 899 (Multifunction telephony) | |
| 5 | Press grommet (4) into door | ||
| 6 | Remove adhesive strips above bolts (5) | ||
| 7 | Remove screw/bolts (5) | ||
| 8 | Remove Outside mirror (1) from door | ||
| 9 | Guide electrical line (3) through door | Model 238 with code 899 (Multifunction telephony) | |
| 10 | Guide electrical wiring harness (2) through door | ||
| 11 | Install in the reverse order | ||
| 12.1 | Calibrate 360° camera in Outside mirror (1) with diagnostic system | Model 238 with code 501 (360° camera) If the left or right Outside mirror (1) has been removed. |
|
| AD00.00-P-2000-06LWO | |||
| 12.2 | Calibrate all the cameras for the 360° camera system using the diagnostic system | Model 238 with code 501 (360° camera) If the left or right Outside mirror (1) has been removed. |
|
| AD00.00-P-2000-06LWO | |||
| Check | |||
| 13 | Check Outside mirror (1) for proper function |
