Carry Out Measurements On Structural Components - Ar62.10-P-1110-02LWO

Topical note Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Note on working on aluminum components and vehicles   AH60.00-P-0034-01LW
REFER TO FORMS Checklist for damage diagnosis in the event of an accident, form   OF60.00-P-1000-01LWO
REFER TO SPECIAL TOOLS 000 588 01 23 00 Body straightening system   WS60.00-P-0023K

Model 238

MODIFICATION NOTES

14.09.2017 Screw the cross member to the exhaust Model 238 BA62.30-P-1001-01H
MEASUREMENT OF STRUCTURAL COMPONENTS

Number Designation Model 238.3
BE62.10-P-1001-02A Front end, suspension strut tower Specified value for tolerance range in "X" Point 4, left/right mm ± 2
Specified value for tolerance range in "Y" Point 4, left/right mm ± 2
Specified value for tolerance range in "Z" Point 4, left/right mm ± 2
MEASUREMENT OF STRUCTURAL COMPONENTS

Number Designation Model 238.3
BE62.10-P-1002-02A Front end, connecting flange on suspension strut tower for front module carrier Specified value for tolerance range in "X" Point 5, left/right mm ± 2
Specified value for tolerance range in "Y" Point 5, left/right mm ± 2
Index for measuring point "Z" Point 5, left/right Actual value deviation = OK mm < ± 2
Actual value deviation = restraightening permissible mm ≤ ± 10
Actual value deviation = replace component part mm > ± 10
MEASUREMENT OF STRUCTURAL COMPONENTS

Number Designation Model 238.3
BE62.10-P-1003-02A Rear end, crossmember above rear axle Specified value for tolerance range in "X" Point 6, left/right mm ± 1, 5
Point 7, left/right mm ± 2
Specified value for tolerance range in "Y" Point 6, left/right mm ± 1, 5
Point 7, left/right mm ± 2
Specified value for tolerance range in "Z" Point 6, left/right mm ± 1, 5
Point 7, left/right mm ± 2
MEASUREMENT OF STRUCTURAL COMPONENTS

Number Designation Model 238.3
BE62.10-P-1004-02A Rear end, longitudinal member bracket Specified value for tolerance range in "X" Point 8/9, left/right mm ± 2
Specified value for tolerance range in "Y" Point 8/9, left/right mm ± 2
Specified value for tolerance range in "Z" Point 8/9, left/right mm ± 2
MEASUREMENT OF STRUCTURAL COMPONENTS

Number Designation Model 238.3
BE62.10-P-1005-02A Rear end, suspension strut tower Specified value for tolerance range in "X" Point 10, left/right mm ± 2
Specified value for tolerance range in "Y" Point 10, left/right mm ± 2
Specified value for tolerance range in "Z" Point 10, left/right mm ± 2
FRONT AXLE CARRIER

Number Designation Model 238
BA33.10-P-1001-01Q Bolt, front axle carrier to longitudinal member Nm 180
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 238
BA62.30-P-1001-01H Bolt, cross member to soundproofing M10 Stage 1 Left side Nm 28
Right side Nm 35
Stage 2 ∠° 135
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 238
BA62.30-P-1005-01H Bolt, insulation to longitudinal member M12 Stage 1 Nm 90
Stage 2 ∠° 90

IMPORTANT Measure structural components only in combination with approved electronic measuring systems.

IMPORTANT The following operation steps are shown on model 238.3.

G15466429Courtesy of MERCEDES-BENZ USA

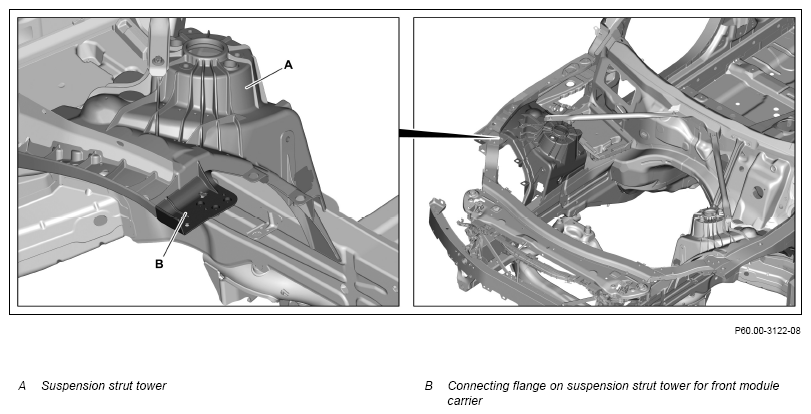

Survey pattern for measurement of structural components of front end, shown on right side of vehicle

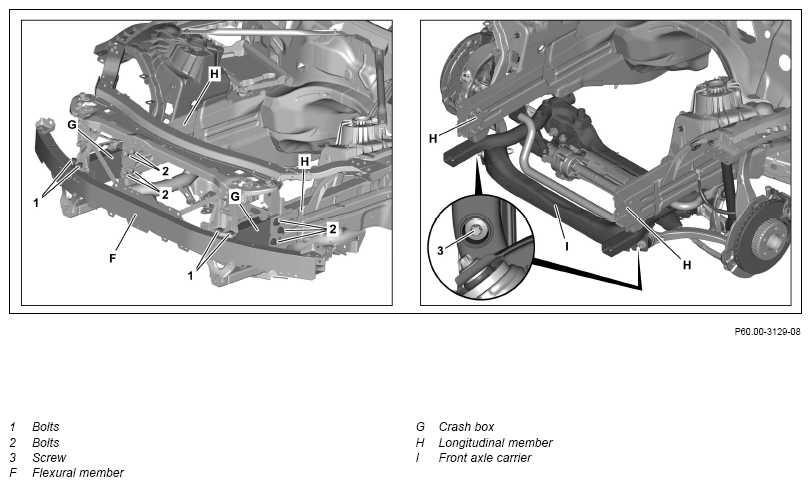

G15466430Courtesy of MERCEDES-BENZ USA
  1. Remove bolts (1, 2).
  2. Loosen front bolts (3).

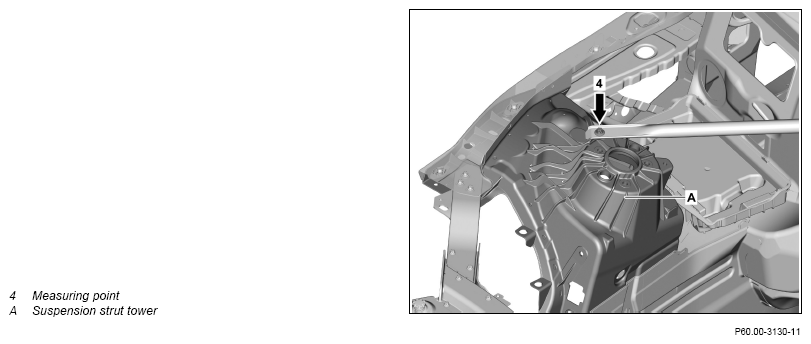

  3. Measure suspension strut tower (A) at measuring point (4), assess and enter measurement value as well as result into check list. Model 238.3

    NOTESAlways  replace spring strut dome (A) in event of cracks, folds or deformation.

    Otherwise the required minimum strength of the structural components is not ensured.

    IMPORTANT Measuring points (4) is always the bolt head when the strut is installed.

    IMPORTANT Reshaping or repairing not  permissible.

    Shown on right side of vehicle

    G15466431Courtesy of MERCEDES-BENZ USA

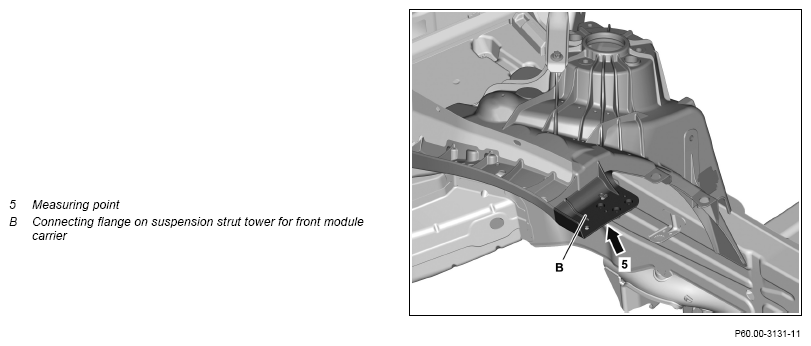

  4. Measure connecting flange on suspension strut tower for front module carrier (B) at measuring point (5) from bottom, assess and enter measurement value as well as result into check list. Model 238.3

    NOTES In event of cracks or folds on the connecting flange on the suspension strut tower for the front module carrier (B) always  suspension strut tower.

    Otherwise the required minimum strength of the structural components is not ensured.

    IMPORTANT Measuring point (5) is always the center thread on the connection flange of the suspension strut tower for the front module carrier (B).

    IMPORTANT Reshaping or repairing is only permissible to a limited extent  .

    Shown on right side of vehicle

    G15466432Courtesy of MERCEDES-BENZ USA

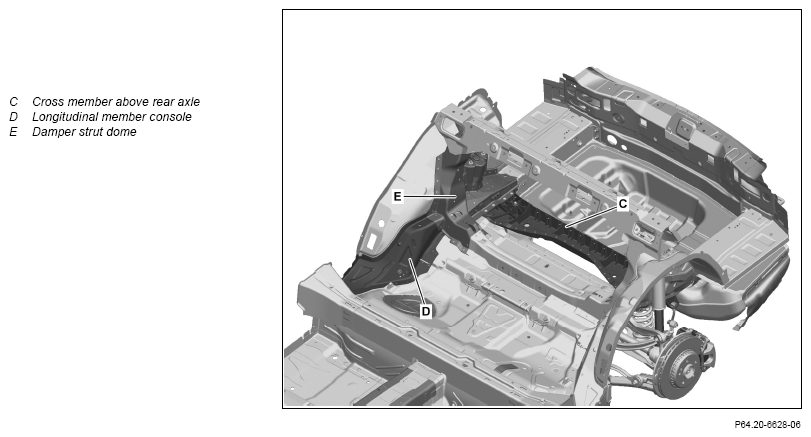

    Survey pattern for measurement of structural components of rear end, shown on right side of vehicle

    G15466433Courtesy of MERCEDES-BENZ USA

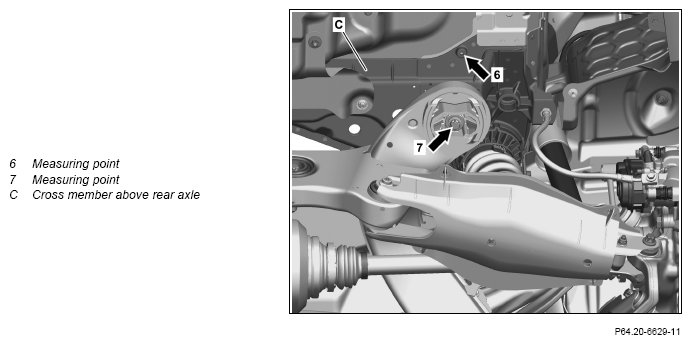

  5. Measure crossmember above rear axle (C) at measuring points (6, 7), assess and enter measurement value as well as result into check list. Model 238.3

    NOTESAlways  replace crossmember above rear axle (C) in event of cracks, folds or deformation.

    Otherwise the required minimum strength of the structural components is not ensured.

    IMPORTANT Measuring point (7) is centered on bolt head.

    IMPORTANT Reshaping or repairing not  permissible.

    Shown on right side of vehicle

    G15466434Courtesy of MERCEDES-BENZ USA

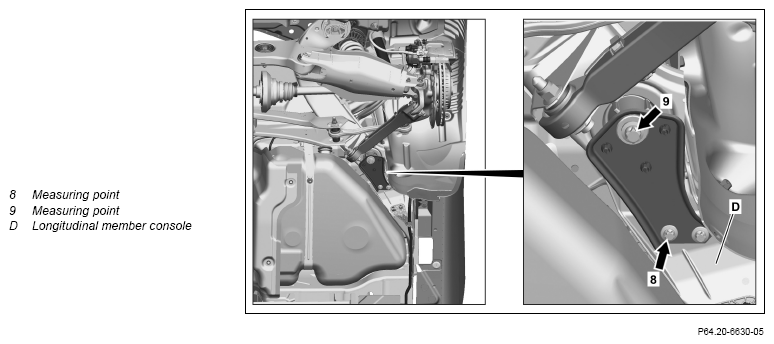

  6. Measure longitudinal member console (D) at measuring points (8, 9), assess and enter measurement value as well as result into check list. Model 238.3

    NOTESAlways  longitudinal member console (D) in event of cracks, folds or deformation. Otherwise the required minimum strength of the structural components is not ensured.

    IMPORTANT Measuring points (8, 9) are centered on bolt heads.

    IMPORTANT Reshaping or repairing not  permissible.

    G15466435Courtesy of MERCEDES-BENZ USA

    Shown on right side of vehicle

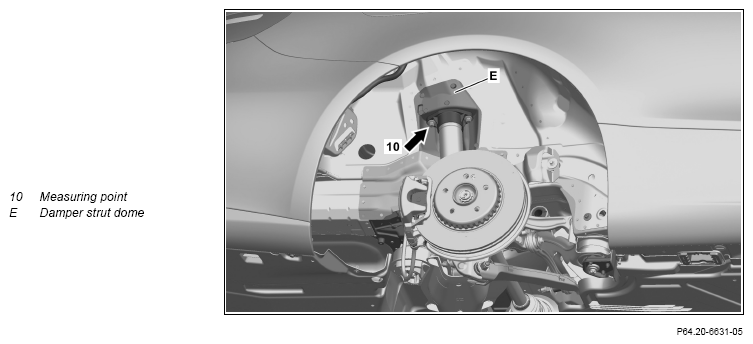

  7. Measure damper dome strut (A) at measuring point (10), assess and enter measurement value as well as result in check list. Model 238.3

    NOTESAlways  replace damper strut dome (E) in event of cracks, folds or deformation. Otherwise the required minimum strength of the structural components is not ensured.

    IMPORTANT Measuring point (10) is center on bolt head of rear bolt.

    IMPORTANT Reshaping or repairing not  permissible.

    G15466436Courtesy of MERCEDES-BENZ USA

    Shown on right side of vehicle

    G15466437Courtesy of MERCEDES-BENZ USA

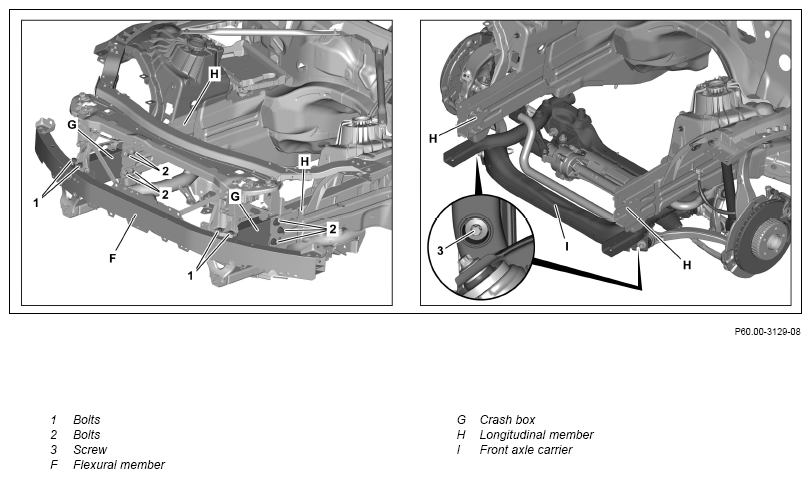

  8. Tighten bolts (1). TORQUE SPECIFICATION

    If no further work is necessary in this area.

  9. Tighten bolts (2). TORQUE SPECIFICATION

    If no further work is necessary in this area.

  10. Tighten bolts (3). TORQUE SPECIFICATION

    If no further work is necessary in this area.
