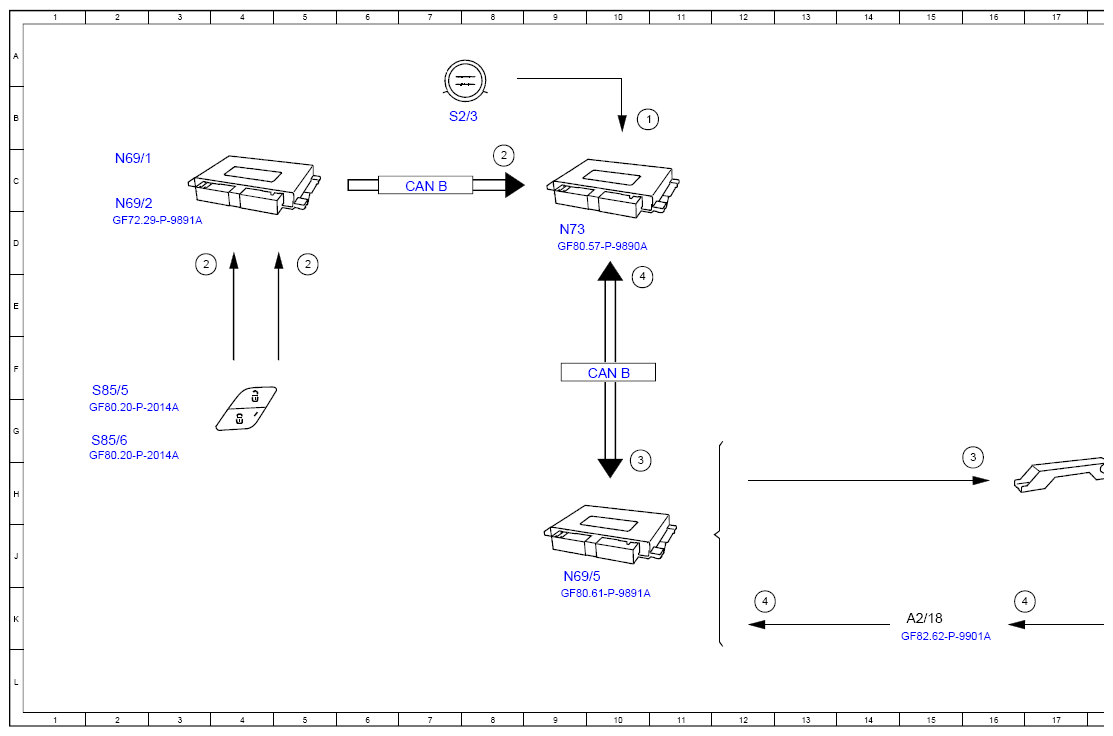

Function Schematic For Detection Of Transmitter Key Position - PE80.20-P-2503-97E
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine start request | 11B |
| 2 | Lock/unlock central locking, request | 4D |
| 2 | Lock/unlock central locking, request | 5D |
| 2 | Lock/unlock central locking, request | 8C |
| 3 | Identification, Request | 10G |
| 3 | Identification, Request | 16G |
| 3 | Identification, Request | 27G |
| 4 | Access authorization code, signal | 11D |
| 4 | Access authorization code, signal | 12K |
| 4 | Access authorization code, signal | 16J |
| 4 | Access authorization code, signal | 21J |
| A2/35 | Antenna KEYLESS-GO trunk | 19H |
| A2/39 | Antenna KEYLESS-GO rear door left | 19H |
| A2/41 | Antenna KEYLESS-GO rear door right | 19H |
| A2/60 | Antenna KEYLESS-GO center console | 19J |
| A8/1 | Channel Key | 28J |
| CAN B | Interior CAN | 10F |
| CAN B | Interior CAN | 7C |
| Code 889 | KEYLESS GO | 18G |
| N69/1 | Control unit front door left | 2C |
| N69/2 | Right front door control unit | 2C |
| N69/5 | KEYLESS-GO control unit | 9J |
| N73 | Electronic ignition lock control unit | 9D |
| S2/3 | Start-stop button KEYLESS-GO | 7B |
| S85/5 | Switch inside operation central locking front door left | 2F |
| S85/6 | Switch inside operation central locking front door right | 2G |
