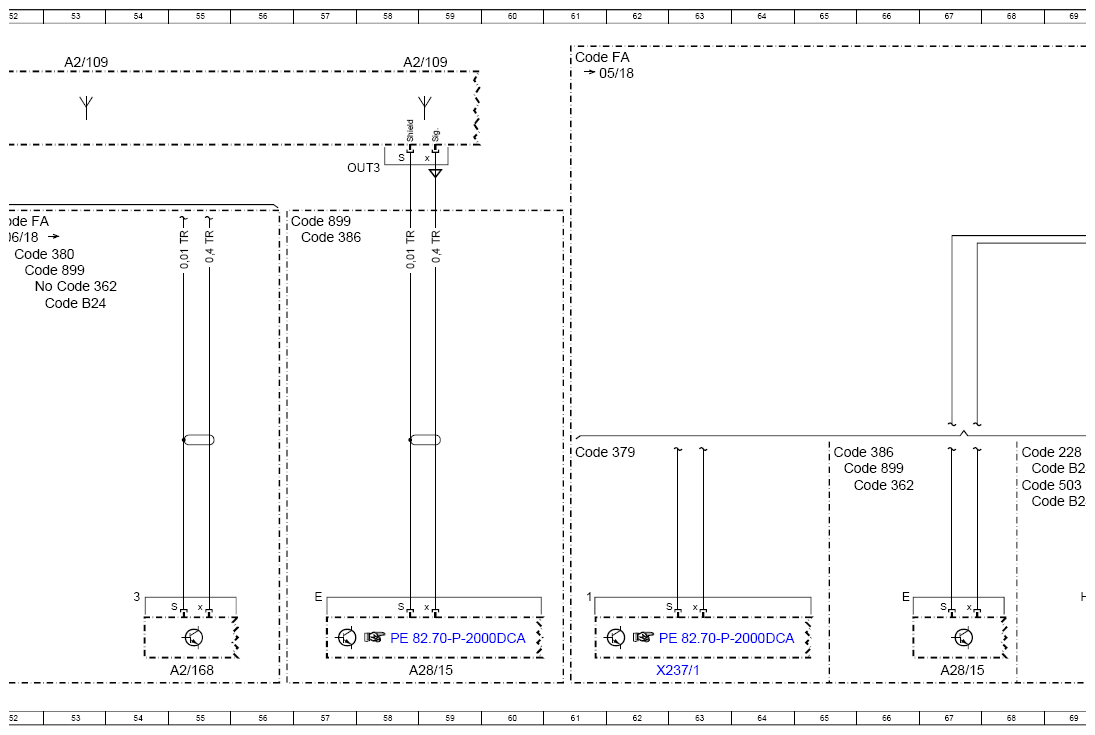

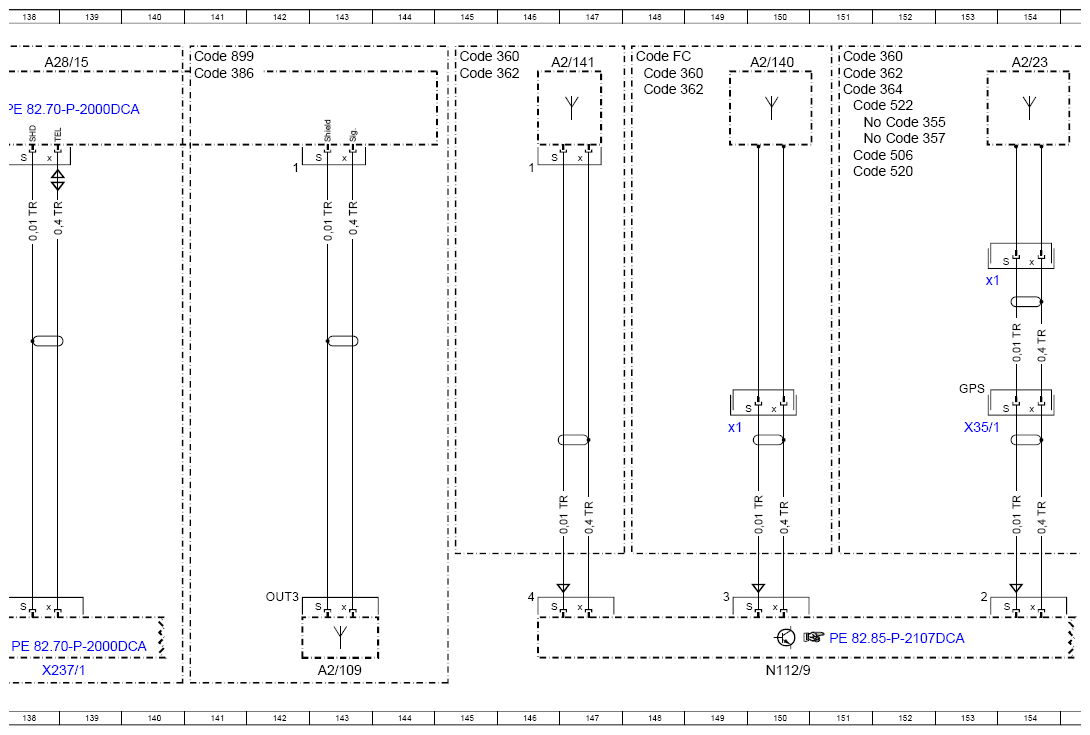

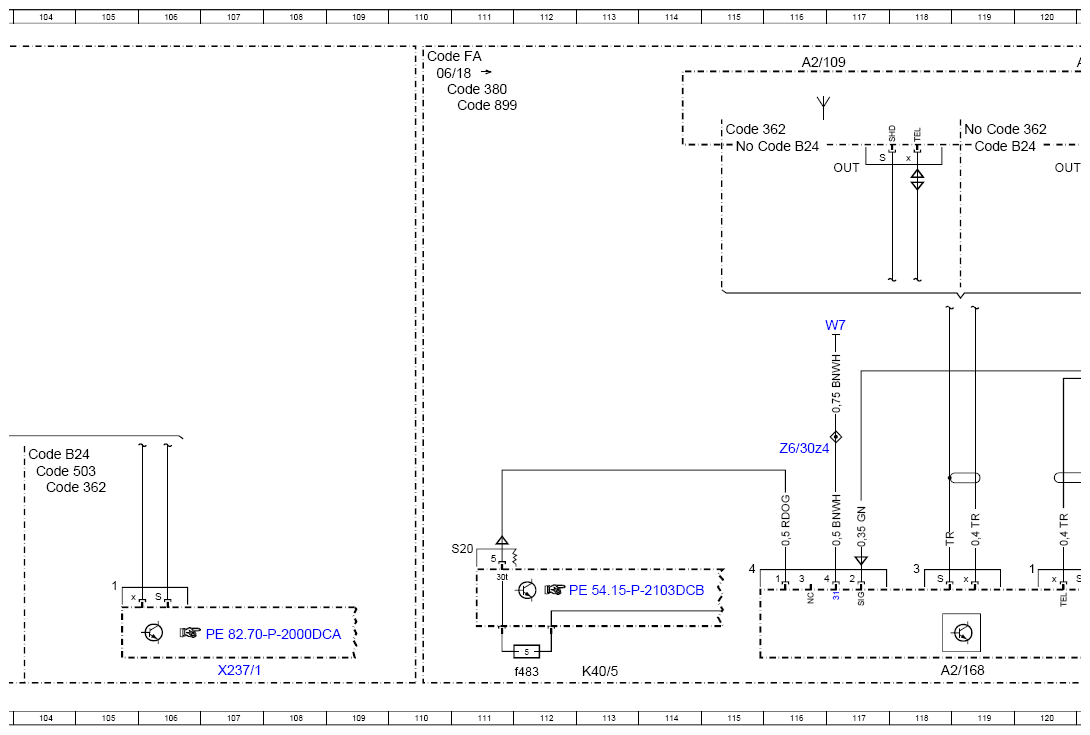

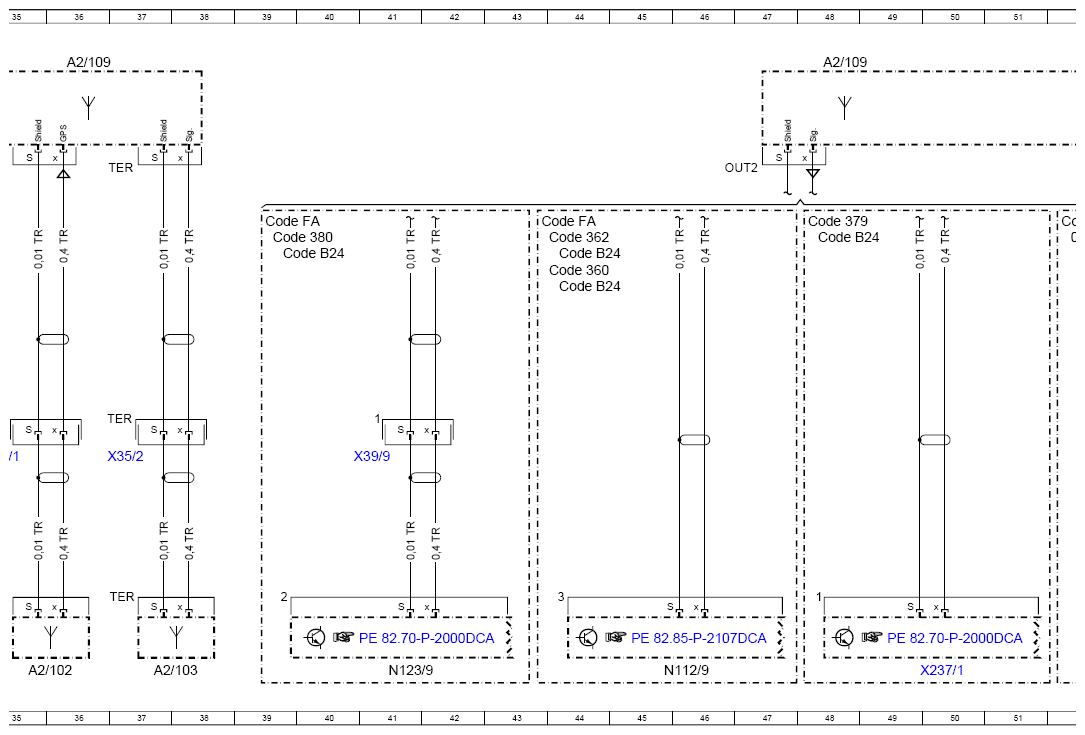

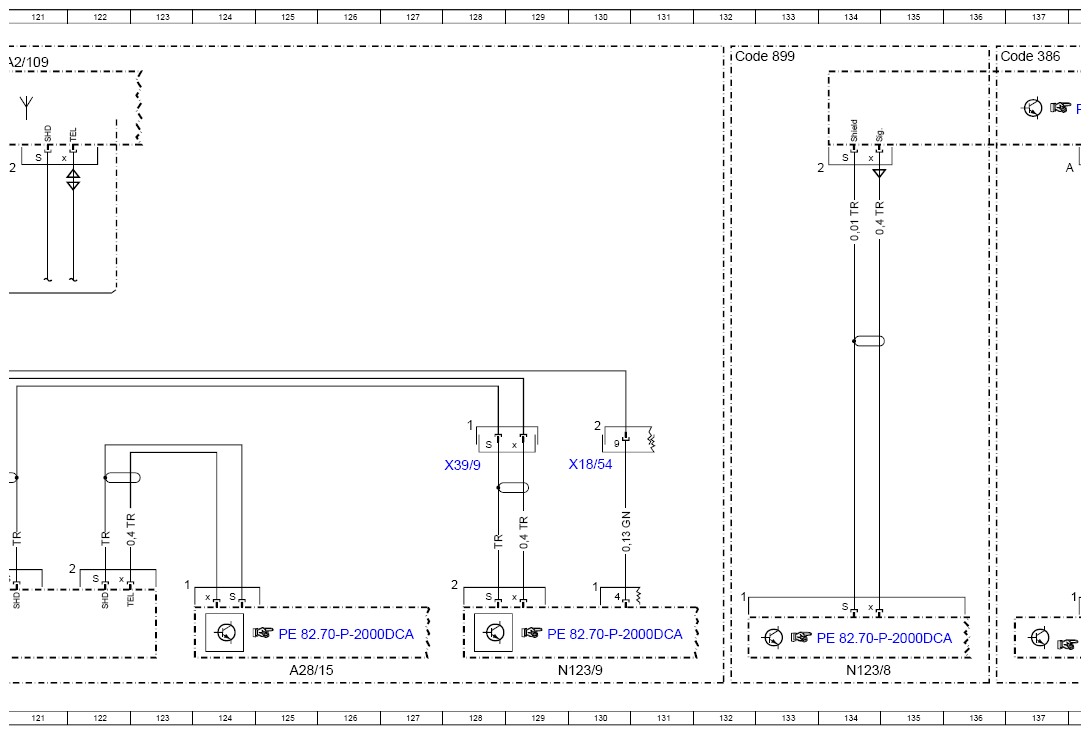

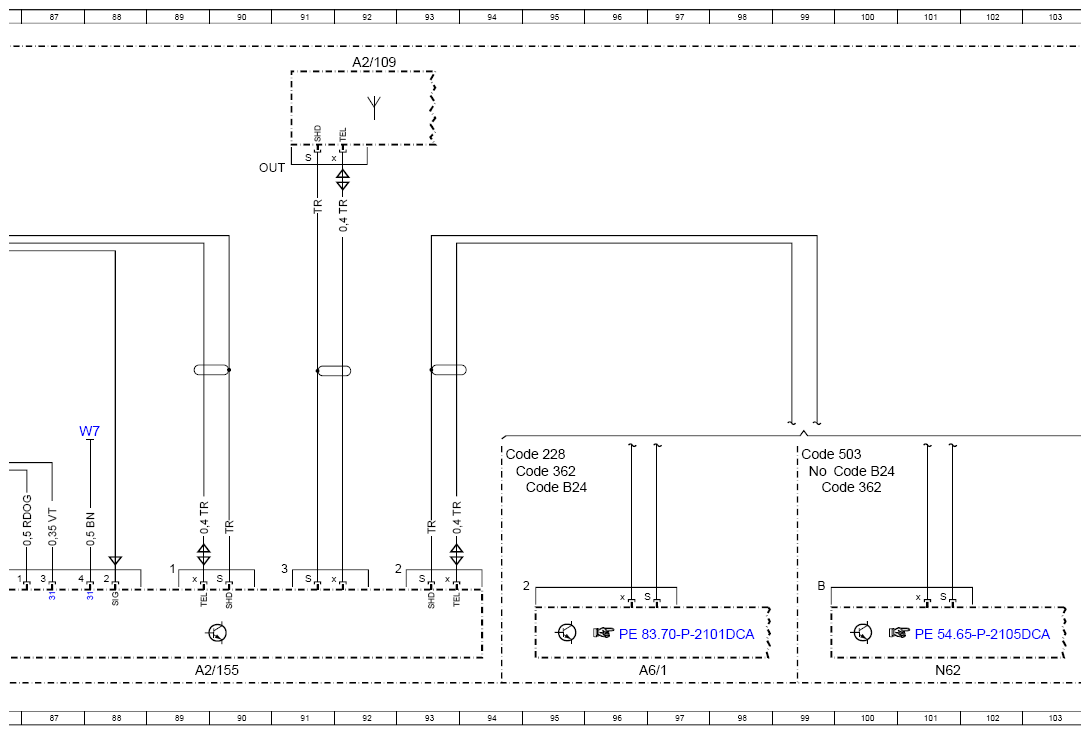

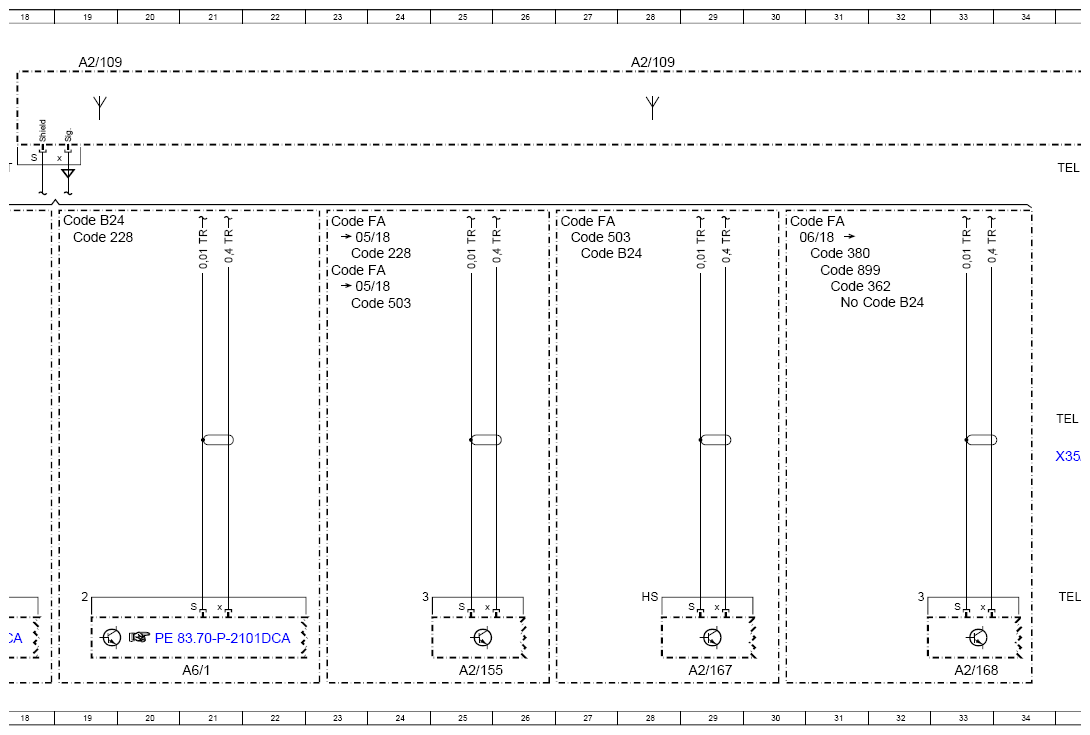

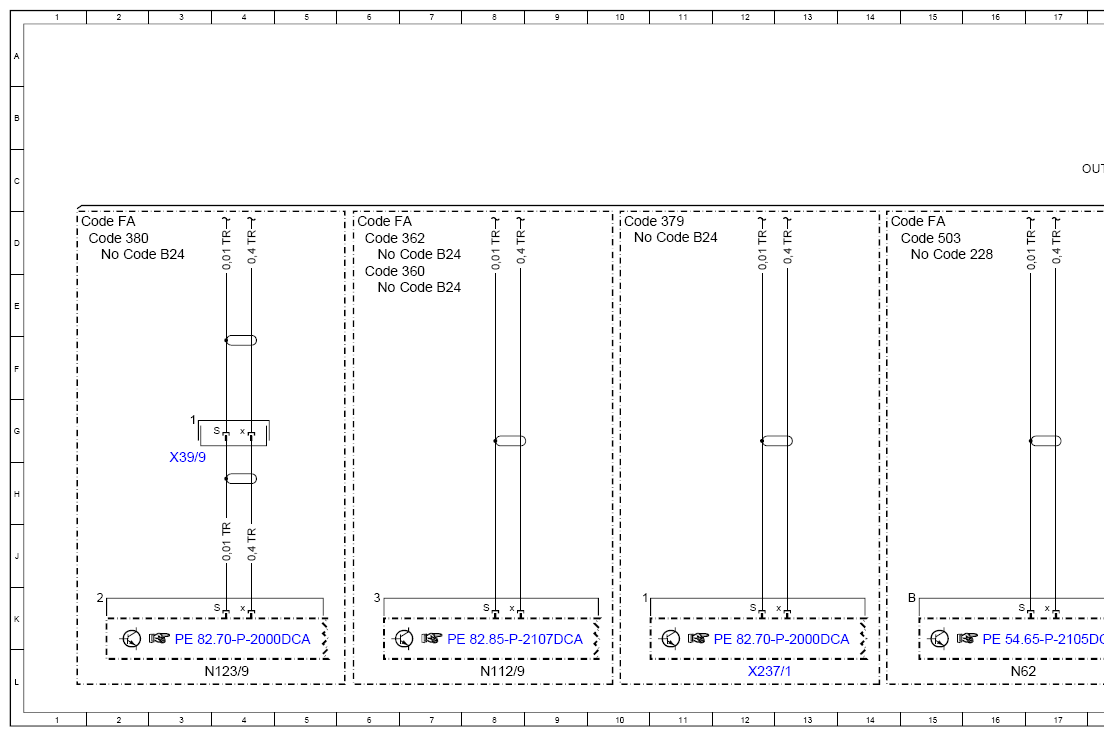

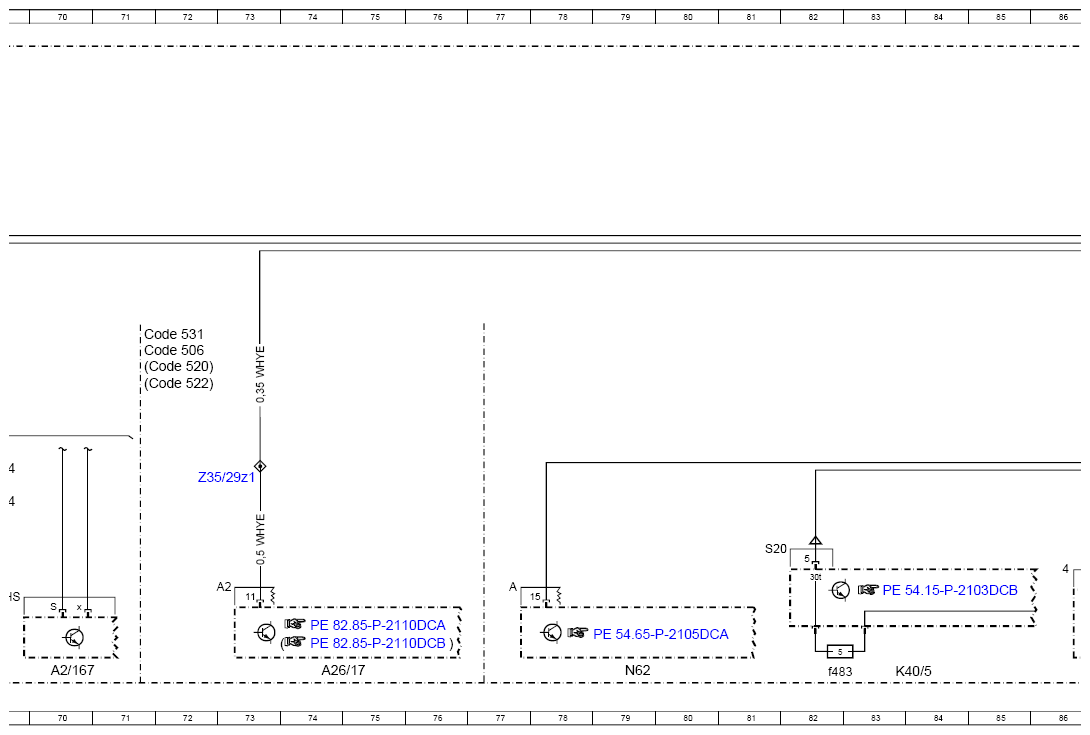

Wiring Diagram For Antennas - PE82.62-P-2106-97DCA
Model 238 up to model year 2021 A2/32, A2/102, A2/103, A2/109, A2/140, A2/141, A2/155, A2/168, A28/15, A94/5, A94/7
| Code: | Designation: | Position: |
|---|---|---|

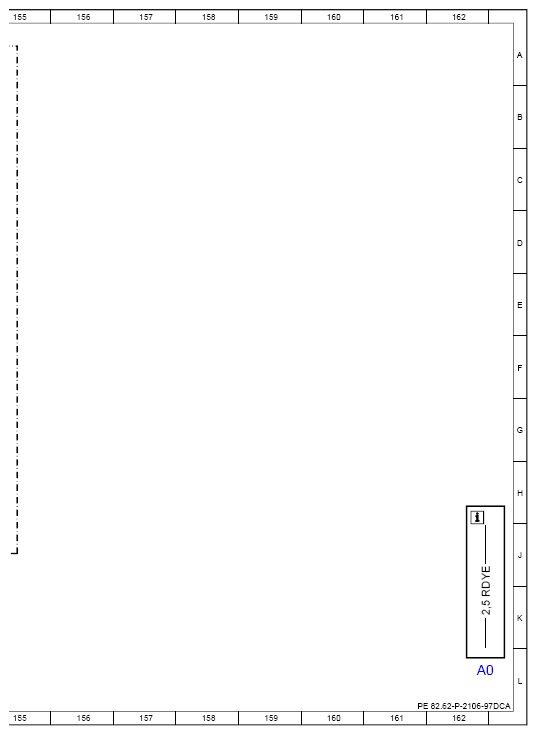

| AO | Use of wiring diagrams | 162L |
| A2/102 | Left telephone antenna | 35L |
| A2/103 | Right telephone antenna | 37L |
| A2/109 | Telephone antenna splitter | 143L |
| A2/109 | Telephone antenna splitter | 19A |
| A2/109 | Telephone antenna splitter | 36A |
| A2/109 | Telephone antenna splitter | 48A |
| A2/109 | Telephone antenna splitter | 58A |
| A2/109 | Telephone antenna splitter | 92A |
| A2/109 | Telephone antenna splitter | 116A |
| A2/109 | Telephone antenna splitter | 121A |
| A2/109 | Telephone antenna splitter | 28A |
| A2/109 | Telephone antenna splitter | 53A |
| A2/140 | Emergency call system antenna 1 | 150A |
| A2/140x1 | Emergency call system antenna electrical connector 1 | 149G |
| A2/141 | Emergency call system antenna 2 | 147A |
| A2/155 | Telephone and Remote Park-Pilot/stationary heater antenna changeover switch | 89L |
| A2/155 | Telephone and Remote Park-Pilot/stationary heater antenna changeover switch | 25L |
| A2/167 | Remote Park-Pi lot/stationary heater antenna splitter | 29L |
| A2/167 | Remote Park-Pi lot/stationary heater antenna splitter | 70L |
| A2/168 | Telephone antenna changeover switch | 55L |
| A2/168 | Telephone antenna changeover switch | 33L |
| A2/168 | Telephone antenna changeover switch | 119L |
| A2/23 | GPS antenna | 154A |
| A2/23x1 | GPS antenna electrical connector | 153E |
| A26/17 | Head unit | 74L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 59L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 67L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 125L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 138A |
| A6/1 | Stationary heater radio remote control receiver | 96L |
| A6/1 | Stationary heater radio remote control receiver | 21L |
| Code 228 | Stationary heater | 94G |
| Code 228 | Stationary heater | 15D |
| Code 228 | Stationary heater | 23D |
| Code 228 | Stationary heater | 19D |
| Code 228 | Stationary heater | 68G |
| Code 355 | Preinstallation for navigation retrofit | 152B |
| Code 357 | Card navigation | 152B |
| Code 360 | HERMES UMTS | 148A |
| Code 360 | HERMES UMTS | 145A |
| Code 360 | HERMES UMTS | 151A |
| Code 360 | HERMES UMTS | 6E |
| Code 360 | HERMES UMTS | 44E |
| Code 362 | HERMES LTE | 94H |
| Code 362 | HERMES LTE | 99H |
| Code 362 | HERMES LTE | 104H |
| Code 362 | HERMES LTE | 31E |
| Code 362 | HERMES LTE | 53E |
| Code 362 | HERMES LTE | 119B |
| Code 362 | HERMES LTE | 11 SB |
| Code 362 | HERMES LTE | 148B |
| Code 362 | HERMES LTE | 151A |
| Code 362 | HERMES LTE | 65H |
| Code 362 | HERMES LTE | 6D |
| Code 362 | HERMES LTE | 44D |
| Code 362 | HERMES LTE | 145A |
| Code 364 | HERMES UMTS communications module for Russia | 151B |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 61G |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 10D |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 48D |
| Code 380 | Car telephony package | 2D |
| Code 380 | Car telephony package | 110B |
| Code 380 | Car telephony package | 31D |
| Code 380 | Car telephony package | 52D |
| Code 380 | Car telephony package | 39D |
| Code 386 | Comfort telephony | 65G |
| Code 386 | Comfort telephony | 57D |
| Code 386 | Comfort telephony | 136A |
| Code 386 | Comfort telephony | 141A |
| Code 503 | Pre-installation for Remote Parking Pilot | 104H |
| Code 503 | Pre-installation for Remote Parking Pilot | 99G |
| Code 503 | Pre-installation for Remote Parking Pilot | 15D |
| Code 503 | Pre-installation for Remote Parking Pilot | 27D |
| Code 503 | Pre-installation for Remote Parking Pilot | 23E |
| Code 503 | Pre-installation for Remote Parking Pilot | 68H |
| Code 506 | Audio 20 NTG 5.5 radio | 71F |
| Code 506 | Audio 20 NTG 5.5 radio | 151C |
| Code 520 | Audio 20 USB | 71F |
| Code 520 | Audio 20 USB | 151C |
| Code 522 | Audio 20 radio | 71F |
| Code 522 | Audio 20 radio | 151B |
| Code 531 | C0MAND APS | 71F |
| Code 899 | Multifunction telephony | 111B |
| Code 899 | Multifunction telephony | 132A |
| Code 899 | Multifunction telephony | 31E |
| Code 899 | Multifunction telephony | 56D |
| Code 899 | Multifunction telephony | 65H |
| Code 899 | Multifunction telephony | 141A |
| Code 899 | Multifunction telephony | 52E |
| Code B24 | Remote control for stationary heater | 99H |
| Code B24 | Remote control for stationary heater | 95H |
| Code B24 | Remote control for stationary heater | 104G |
| Code B24 | Remote control for stationary heater | 31E |
| Code B24 | Remote control for stationary heater | 53E |
| Code B24 | Remote control for stationary heater | 119C |
| Code B24 | Remote control for stationary heater | 115C |
| Code B24 | Remote control for stationary heater | 11D |
| Code B24 | Remote control for stationary heater | 2D |
| Code B24 | Remote control for stationary heater | 48D |
| Code B24 | Remote control for stationary heater | 19D |
| Code B24 | Remote control for stationary heater | 27D |
| Code B24 | Remote control for stationary heater | 68H |
| Code B24 | Remote control for stationary heater | 68H |
| Code B24 | Remote control for stationary heater | 7D |
| Code B24 | Remote control for stationary heater | 39D |
| Code B24 | Remote control for stationary heater | 7E |
| Code B24 | Remote control for stationary heater | 44D |
| Code B24 | Remote control for stationary heater | 44E |
| Code FA | CABRIOLET | 1D |
| Code FA | CABRIOLET | 30D |
| Code FA | CABRIOLET | 14D |
| Code FA | CABRIOLET | 61A |
| Code FA | CABRIOLET | 110A |
| Code FA | CABRIOLET | 23D |
| Code FA | CABRIOLET | 52D |
| Code FA | CABRIOLET | 27D |
| Code FA | CABRIOLET | 23E |
| Code FA | CABRIOLET | 6D |
| Code FA | CABRIOLET | 39D |
| Code FA | CABRIOLET | 43D |
| Code FC | COUPE | 148A |
| K40/5 | Rear fuse and relay module | 83L |
| K40/5 | Rear fuse and relay module | 113L |
| K40/5f483 | Fuse 483 | 82L |
| K40/5f483 | Fuse 483 | 112L |
| N112/9 | HERMES control unit | 150L |
| N112/9 | HERMES control unit | 8L |
| N112/9 | HERMES control unit | 46L |
| N123/8 | Mobile phone cradle control unit | 134L |
| N123/9 | Telephone control unit | 4L |
| N123/9 | Telephone control unit | 130L |
| N123/9 | Telephone control unit | 41L |
| N62 | Parking system control unit | 16L |
| N62 | Parking system control unit | 79L |
| N62 | Parking system control unit | 101L |
| W7 | Right wheel house trunk ground point | 88G |
| W7 | Right wheel house trunk ground point | 117E |
| X18/54 | Passenger-side cockpit/frame floor assembly electrical connector | 130H |
| X237/1 | Mobile phone contact plate | 12L |
| X237/1 | Mobile phone contact plate | 50L |
| X237/1 | Mobile phone contact plate | 62L |
| X237/1 | Mobile phone contact plate | 107L |
| X237/1 | Mobile phone contact plate | 138L |
| X35/1 | Driver door electrical connector | 35H |
| X35/1 | Driver door electrical connector | 153G |
| X35/2 | Front passenger door electrical connector | 37H |
| X39/9 | Passenger side cockpit/frame floor assembly electrical connector | 128H |
| X39/9 | Passenger side cockpit/frame floor assembly electrical connector | 3H |
| X39/9 | Passenger side cockpit/frame floor assembly electrical connector | 41H |
| Z35/29z1 | Telephone wake-up signal connector sleeve | 73H |
| Z6/30z4 | Circuit 31 connector sleeve | 116G |
