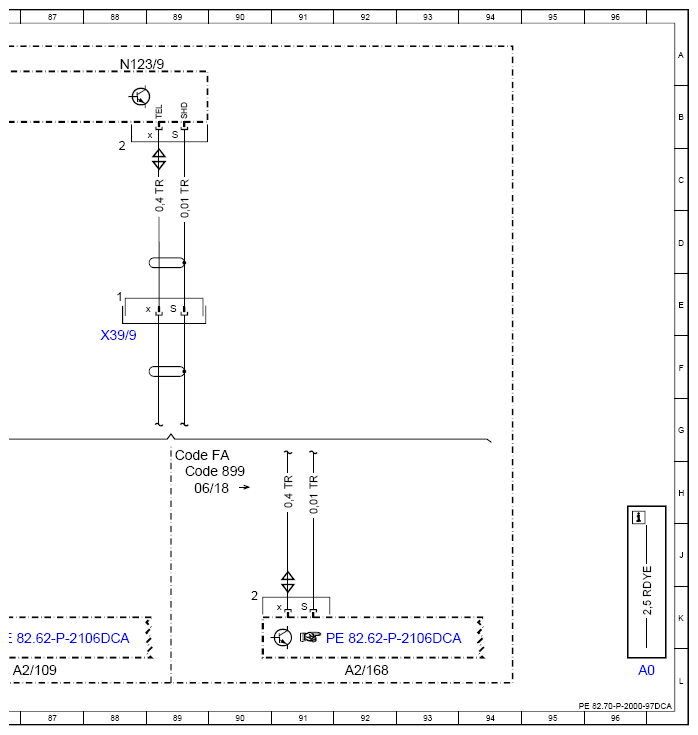

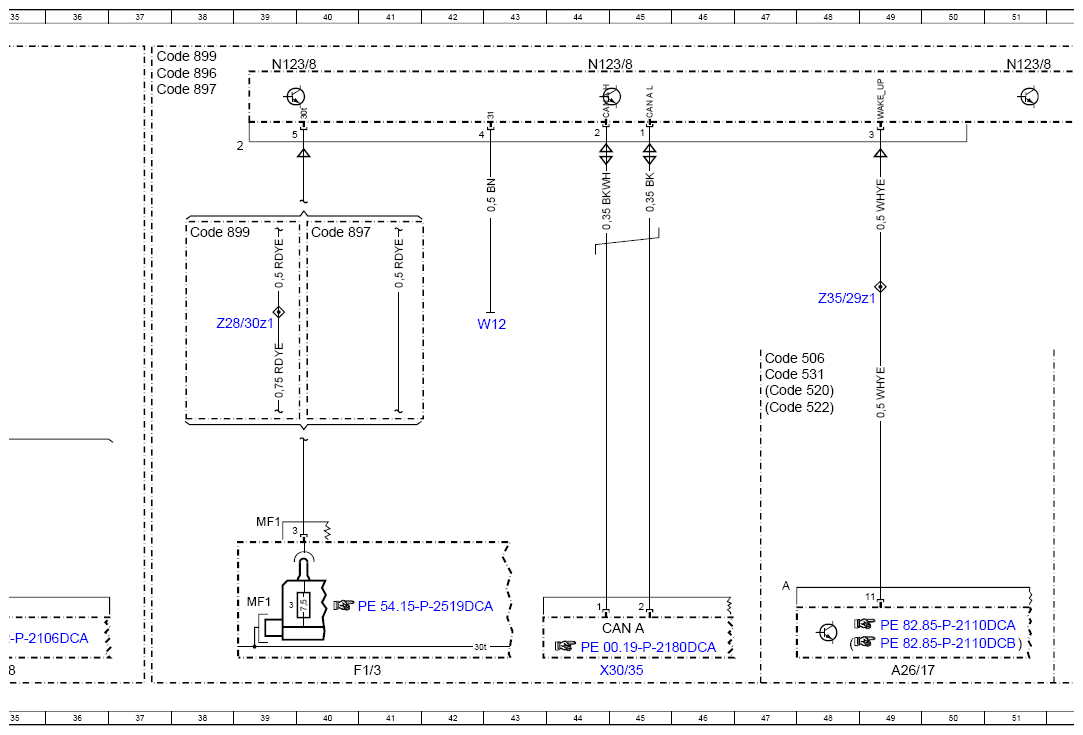

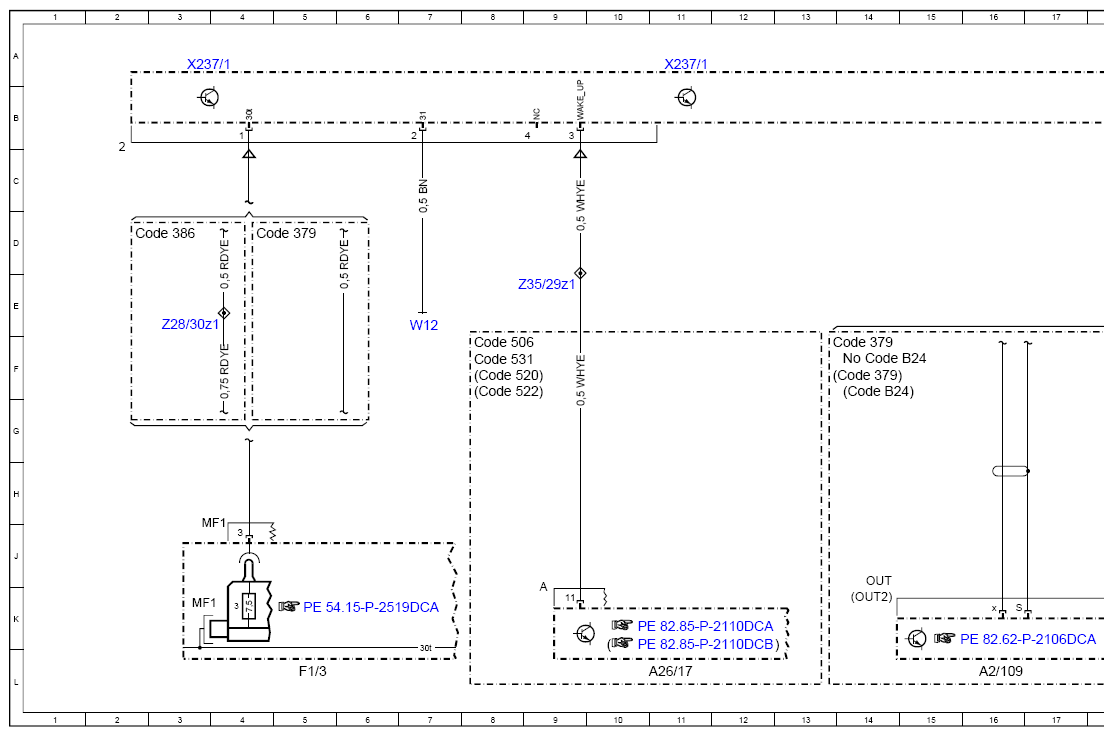

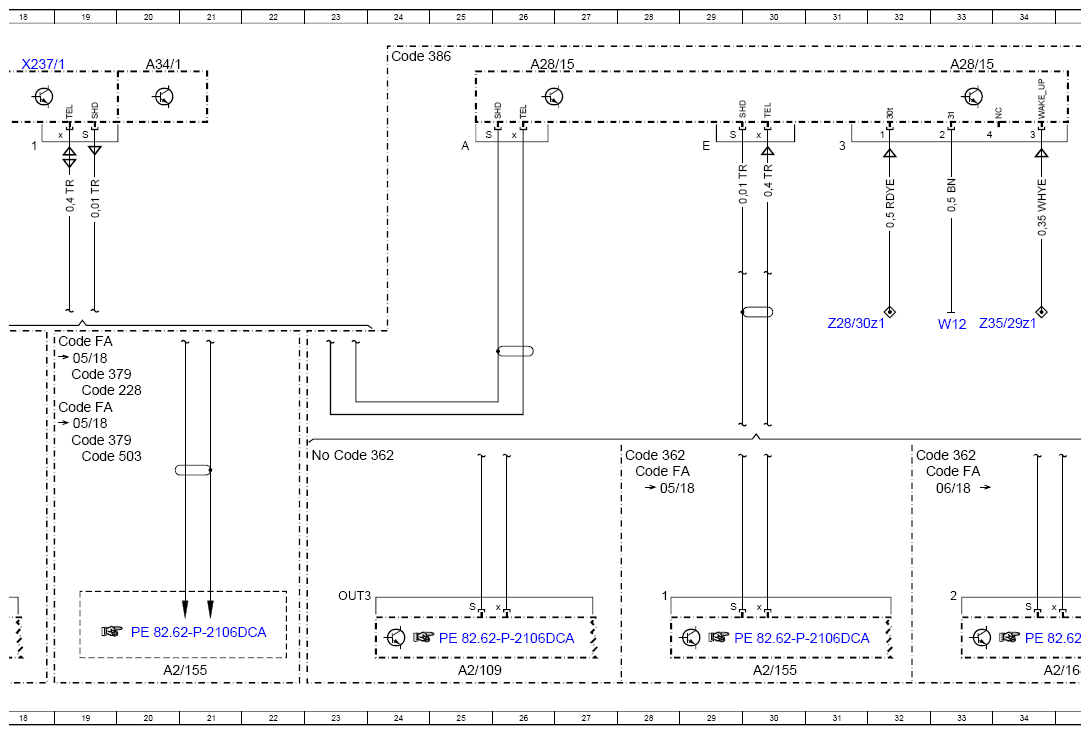

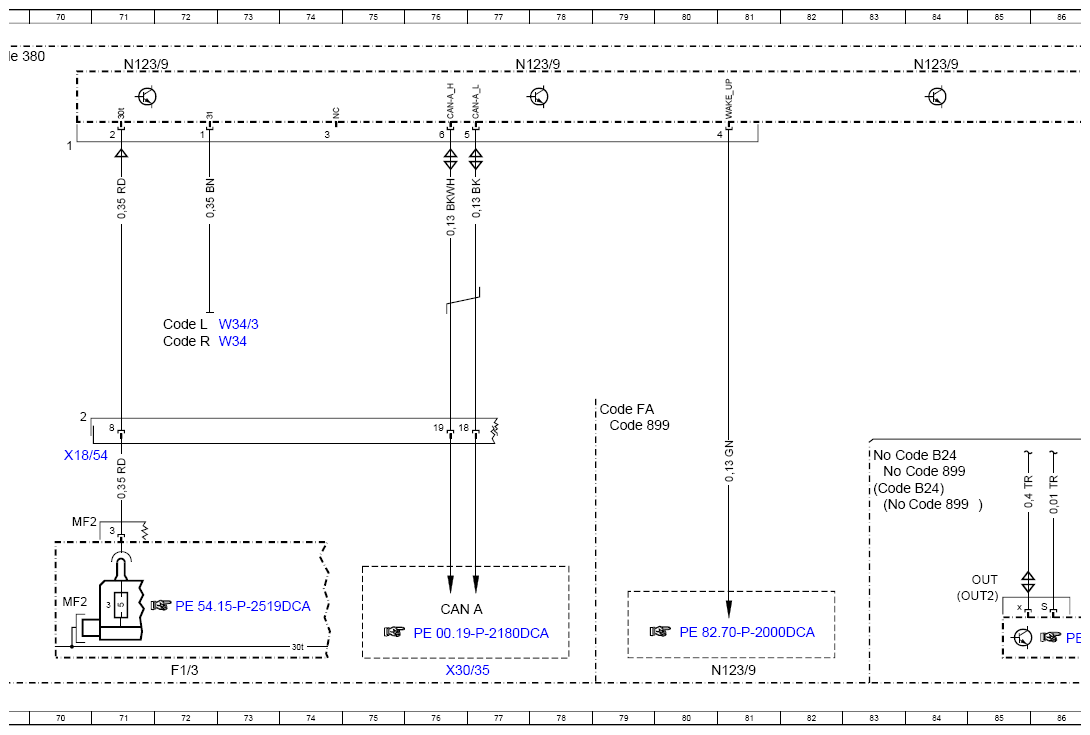

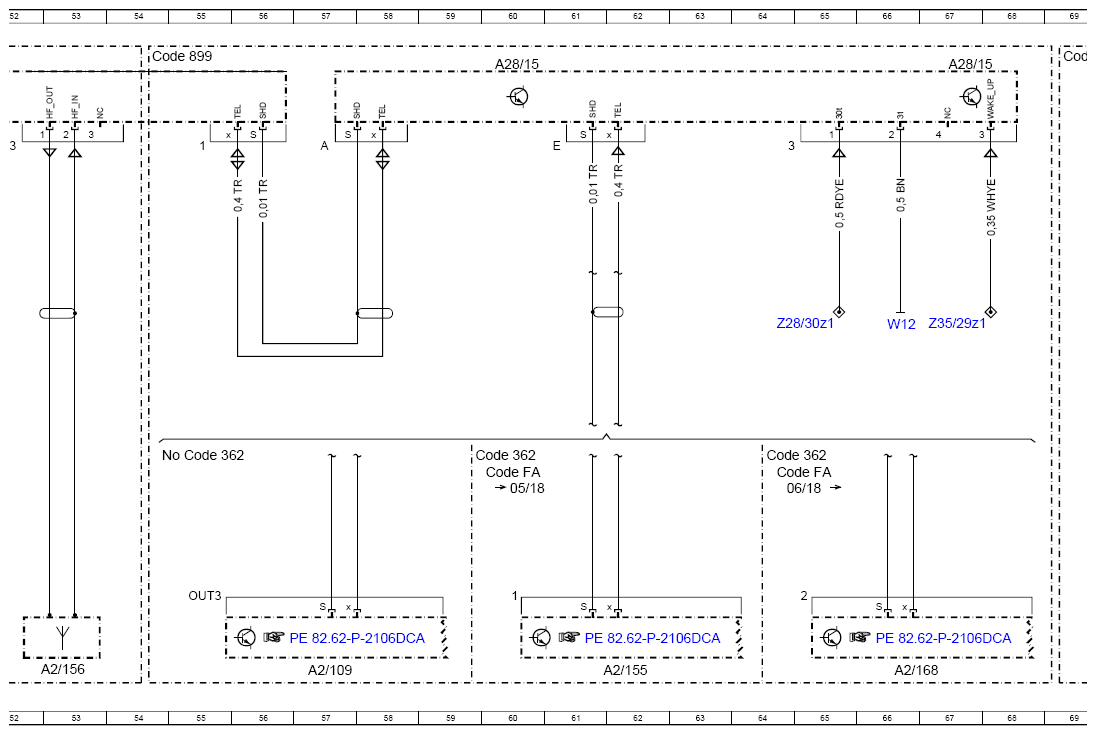

Telephone (TEL) Wiring Diagram - PE82.70-P-2000-97DCA
Model 238 up to model year 2021 Mobile phone cradle control unit N123/8 and antenna amplifier A28/15
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| A2/109 | Telephone antenna splitter | 87L |
| A2/109 | Telephone antenna splitter | 16L |
| A2/109 | Telephone antenna splitter | 25L |
| A2/109 | Telephone antenna splitter | 57L |
| A2/155 | Telephone and Remote Park-Pilot/stationary heater antenna changeover switch | 30L |
| A2/155 | Telephone and Remote Park-Pilot/stationary heater antenna changeover switch | 20L |
| A2/155 | Telephone and Remote Park-Pilot/stationary heater antenna changeover switch | 62L |
| A2/156 | Near Field Communication antenna | 53L |
| A2/168 | Telephone antenna changeover switch | 34L |
| A2/168 | Telephone antenna changeover switch | 66L |
| A2/168 | Telephone antenna changeover switch | 92L |
| A26/17 | Head unit | 11L |
| A26/17 | Head unit | 49L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 26A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 33A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 67A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 60A |
| A34/1 | Telephone module with Bluetooth® (SAP profile) | 20A |
| CAN A | Telematics CAN | 45K |
| CAN A | Telematics CAN | 76K |
| Code 228 | Stationary heater | 19F |
| Code 362 | HERMES LTE | 23G |
| Code 362 | HERMES LTE | 28G |
| Code 362 | HERMES LTE | 32G |
| Code 362 | HERMES LTE | 55G |
| Code 362 | HERMES LTE | 59G |
| Code 362 | HERMES LTE | 64G |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 4D |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 19F |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 19G |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 13F |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 13F |
| Code 380 | Car telephony package | 69A |
| Code 386 | Comfort telephony | 24A |
| Code 386 | Comfort telephony | 2D |
| Code 503 | Pre-installation for Remote Parking Pilot | 19H |
| Code 506 | Audio 20 NTG 5.5 radio | 8F |
| Code 506 | Audio 20 NTG 5.5 radio | 47F |
| Code 520 | Audio 20 USB | 8F |
| Code 520 | Audio 20 USB | 47F |
| Code 522 | Audio 20 radio | 8F |
| Code 522 | Audio 20 radio | 47G |
| Code 531 | COMAND APS | 8F |
| Code 531 | COMAND APS | 47F |
| Code 896 | Vehicle access and drive authorization via mobile phone | 37A |
| Code 897 | Wireless mobile phone charging | 40D |
| Code 897 | Wireless mobile phone charging | 37 B |
| Code 899 | Multifunction telephony | 38D |
| Code 899 | Multifunction telephony | 37A |
| Code 899 | Multifunction telephony | 54A |
| Code 899 | Multifunction telephony | 79G |
| Code 899 | Multifunction telephony | 83H |
| Code 899 | Multifunction telephony | 84H |
| Code 899 | Multifunction telephony | 89H |
| Code B24 | Remote control for stationary heater | 14F |
| Code B24 | Remote control for stationary heater | 14F |
| Code B24 | Remote control for stationary heater | 83H |
| Code B24 | Remote control for stationary heater | 83G |
| Code FA | CABRIOLET | 19F |
| Code FA | CABRIOLET | 19G |
| Code FA | CABRIOLET | 28H |
| Code FA | CABRIOLET | 32H |
| Code FA | CABRIOLET | 60H |
| Code FA | CABRIOLET | 64H |
| Code FA | CABRIOLET | 79G |
| Code FA | CABRIOLET | 89G |
| Code L | LEFT-HAND DRIVE | 72E |
| Code R | RIGHT-HAND DRIVE | 72F |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3 | Passenger-side A-pillar fuse box | 41L |
| F1/3 | Passenger-side A-pillar fuse box | 72L |
| F1/3MF1 | Multiple fuse 1 | 3K |
| F1/3MF1 | Multiple fuse 1 | 39K |
| F1/3MF2 | Multiple fuse 2 | 70K |
| N123/8 | Mobile phone cradle control unit | 44A |
| N123/8 | Mobile phone cradle control unit | 51A |
| N123/8 | Mobile phone cradle control unit | 39A |
| N123/9 | Telephone control unit | 71A |
| N123/9 | Telephone control unit | 88A |
| N123/9 | Telephone control unit | 81L |
| N123/9 | Telephone control unit | 77A |
| N123/9 | Telephone control unit | 84A |
| W12 | Left center console ground point | 7E |
| W12 | Left center console ground point | 33E |
| W12 | Left center console ground point | 42E |
| W12 | Left center console ground point | 66E |
| W34 | Left footwell ground point | 73F |
| W34/3 | Right footwell ground point | 73E |
| X18/54 | Passenger-side cockpit/frame floor assembly electrical connector | 70G |
| X237/1 | Mobile phone contact plate | 3A |
| X237/1 | Mobile phone contact plate | 11A |
| X237/1 | Mobile phone contact plate | 18A |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 45L |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 76L |
| X39/9 | Passenger side cockpit/frame floor assembly electrical connector | 88F |
| Z28/30z1 | Telephone power supply connector sleeve | 31E |
| Z28/30z1 | Telephone power supply connector sleeve | 3E |
| Z28/30z1 | Telephone power supply connector sleeve | 39E |
| Z28/30z1 | Telephone power supply connector sleeve | 65E |
| Z35/29z1 | Telephone wake-up signal connector sleeve | 34E |
| Z35/29z1 | Telephone wake-up signal connector sleeve | 9E |
| Z35/29z1 | Telephone wake-up signal connector sleeve | 48E |
| Z35/29z1 | Telephone wake-up signal connector sleeve | 67E |
