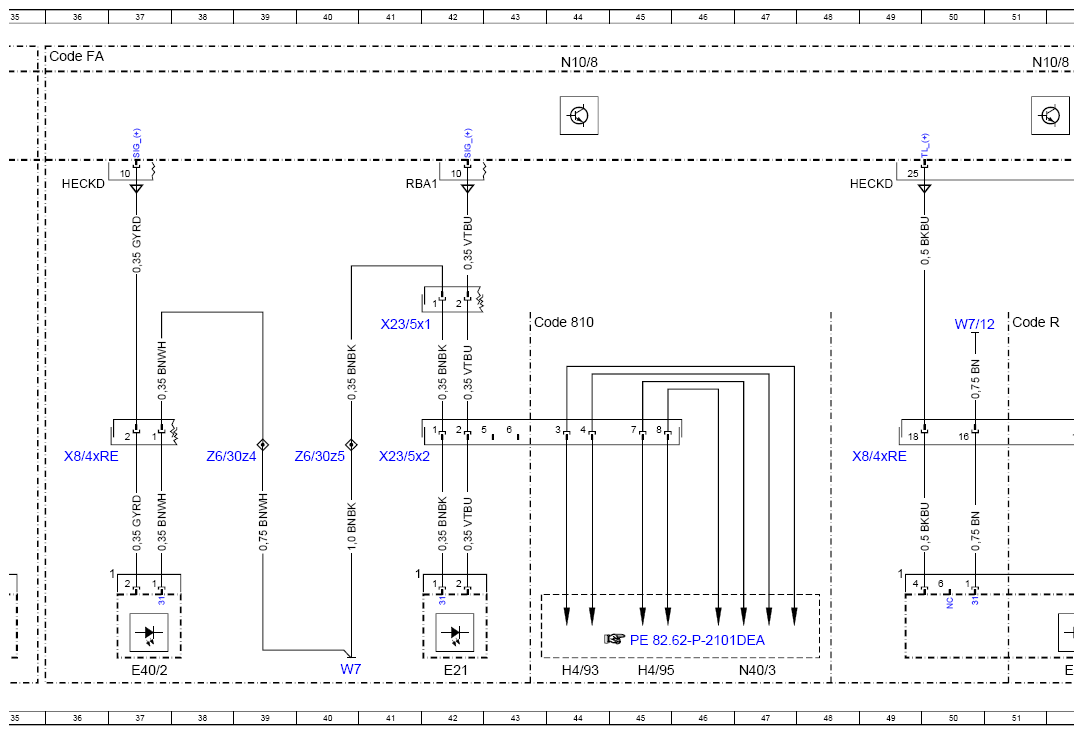

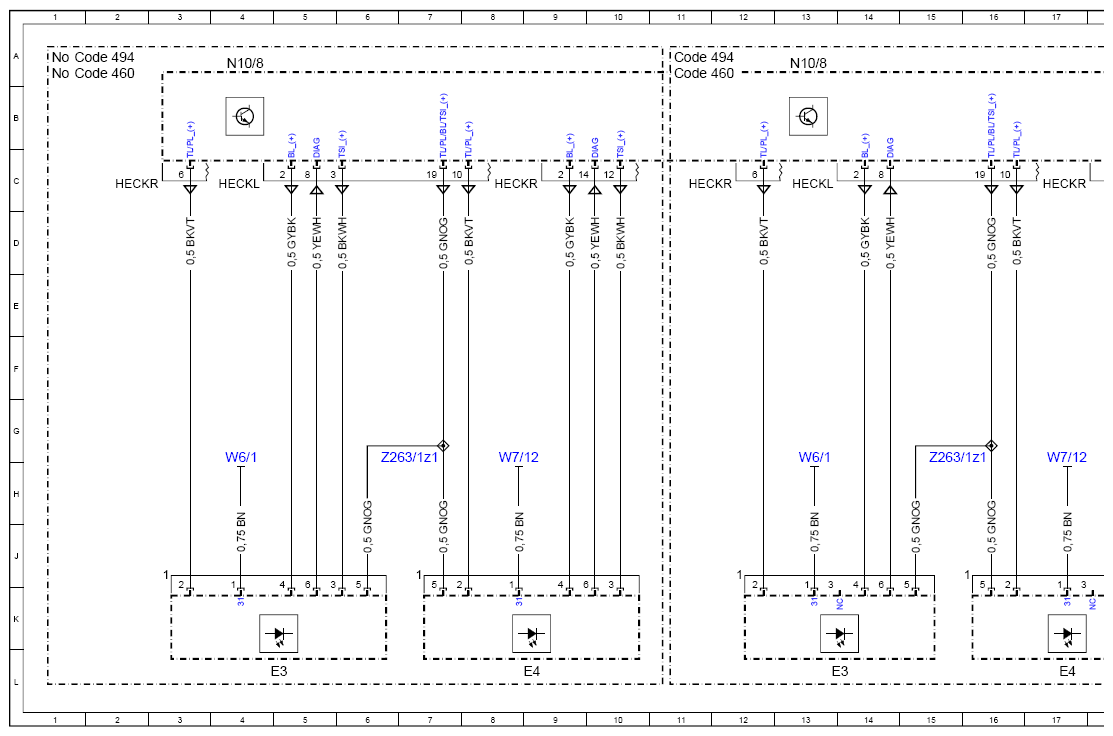

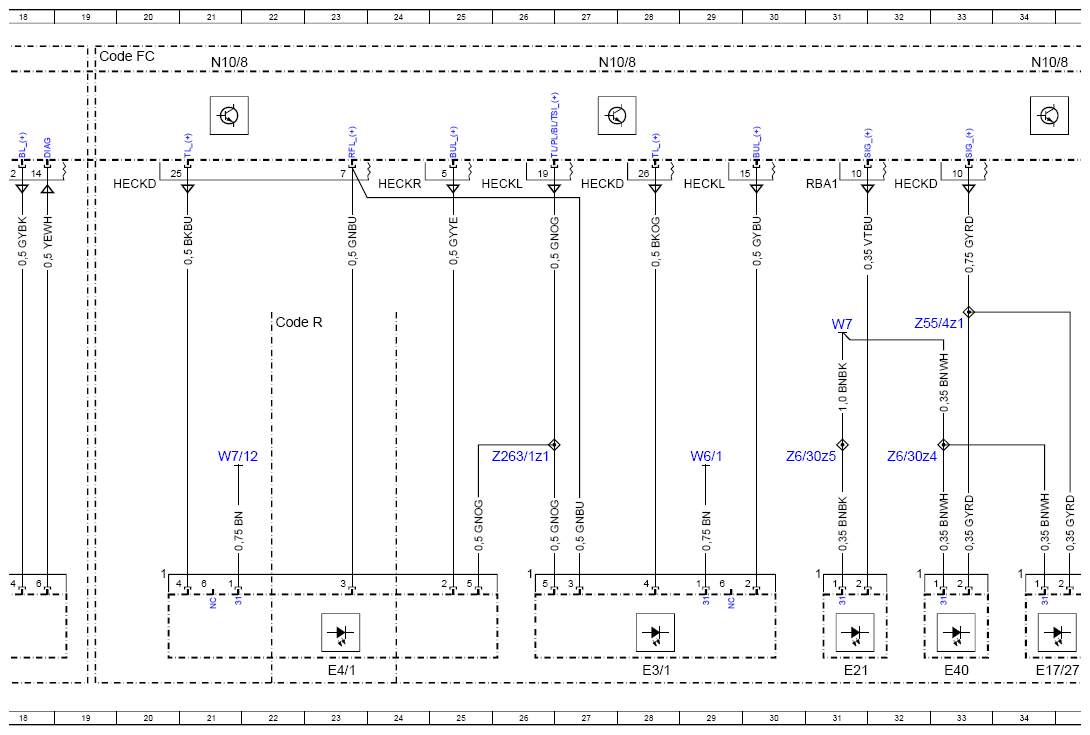

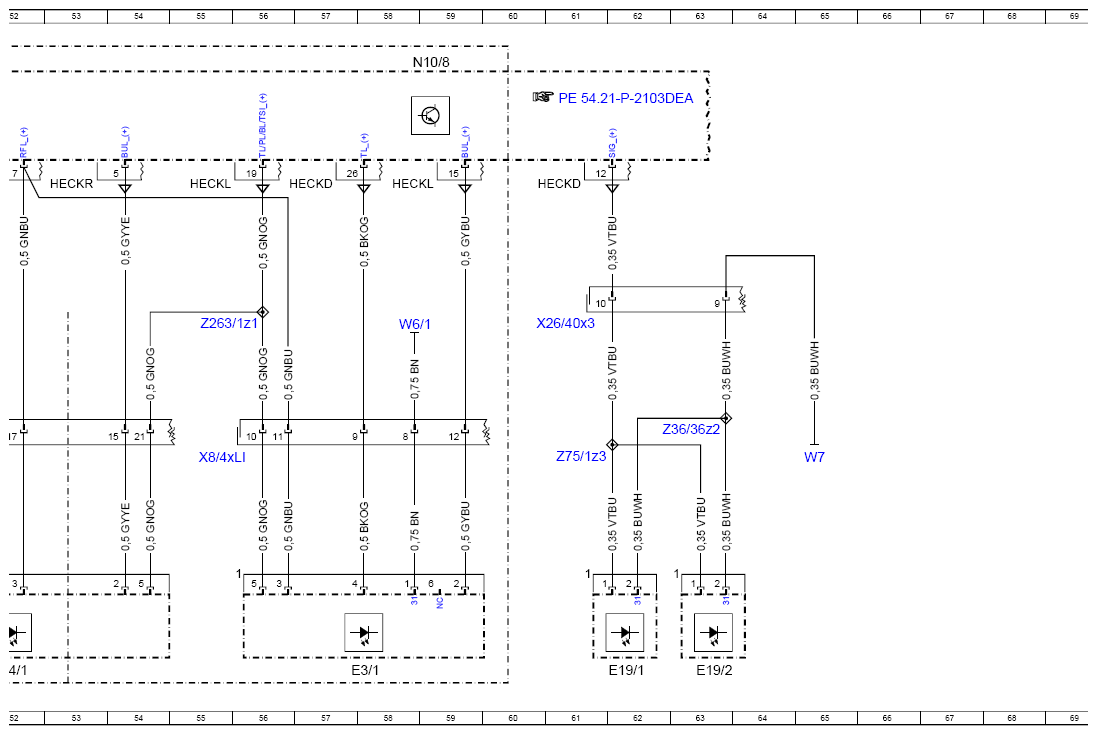

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97DEF
Model 238 as of model year 2021 E3, E3/1, E4, E4/1, E17/27, E19/1, E19/2, E21, E40, E40/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| Code 460 | Canada version | 1A |
| Code 460 | Canada version | 11A |
| Code 494 | USA version | 1A |
| Code 494 | USA version | 11A |
| Code 810 | Sound system | 43E |
| Code FA | CABRIOLET | 36A |
| Code FC | COUPE | 19A |
| Code R | RIGHT-HAND DRIVE | 22E |
| Code R | RIGHT-HAND DRIVE | 51E |
| E17/27 | Trunk lid warning lamp | 34L |
| E19/1 | Left license plate lamp | 62L |
| E19/2 | Right license plate lamp | 63L |
| E21 | Center stop lamp | 31L |
| E21 | Center stop lamp | 42L |
| E3 | Left rear lamp unit | 5L |
| E3 | Left rear lamp unit | 13L |
| E3/1 | Inner left rear lamp unit | 28L |
| E3/1 | Inner left rear lamp unit | 57L |
| E4 | Right rear lamp unit | 9L |
| E4 | Right rear lamp unit | 17L |
| E4/1 | Inner right rear lamp unit | 23L |
| E4/1 | Inner right rear lamp unit | 52L |
| E40 | Trunk lid ambient lamp | 33L |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 37L |
| H4/93 | Left rear surround sound system mid range speaker | 44L |
| H4/95 | Right rear shelf surround sound system midrange speaker | 45L |
| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 13A |
| N10/8 | Rear SAM control unit | 21A |
| N10/8 | Rear SAM control unit | 27A |
| N10/8 | Rear SAM control unit | 34A |
| N10/8 | Rear SAM control unit | 44A |
| N10/8 | Rear SAM control unit | 51A |
| N10/8 | Rear SAM control unit | 59A |
| N40/3 | Sound system amplifier control unit | 47L |
| W6/1 | Left taillamp trunk ground point | 4H |
| W6/1 | Left taillamp trunk ground point | 13H |
| W6/1 | Left taillamp trunk ground point | 29H |
| W6/1 | Left taillamp trunk ground point | 58E |
| W7 | Right wheel house trunk ground point | 31E |
| W7 | Right wheel house trunk ground point | 40L |
| W7 | Right wheel house trunk ground point | 65H |
| W7/12 | Right floor AdBlue® ground point | 8H |
| W7/12 | Right floor AdBlue® ground point | 17H |
| W7/12 | Right floor AdBlue® ground point | 21H |
| W7/12 | Right floor AdBlue® ground point | 50E |
| X23/5x1 | Soft top compartment cover electrical connector 1 | 41E |
| X23/5x2 | Soft top compartment cover electrical connector 2 | 41H |
| X26/40x3 | Rear bumper electrical connector 3 | 61E |
| X8/4xLI | Trunk lid electrical connector | 55H |
| X8/4xRE | Trunk lid electrical connector | 36H |
| X8/4xRE | Trunk lid electrical connector | 49H |
| Z263/1z1 | Light production signal end sleeve | 7G |
| Z263/1z1 | Light production signal end sleeve | 15G |
| Z263/1z1 | Light production signal end sleeve | 26G |
| Z263/1z1 | Light production signal end sleeve | 55E |
| Z36/36z2 | Rear bumper circuit 31 connector sleeve | 63G |
| Z55/4z1 | Connector sleeve, power supply for ambient and warning lamp in trunk lid | 33E |
| Z6/30z4 | Circuit 31 connector sleeve | 32G |
| Z6/30z4 | Circuit 31 connector sleeve | 38G |
| Z6/30z5 | Circuit 31 connector sleeve | 31G |
| Z6/30z5 | Circuit 31 connector sleeve | 40G |
| Z75/1z3 | Rear license plate lamp connector sleeve | 61G |
