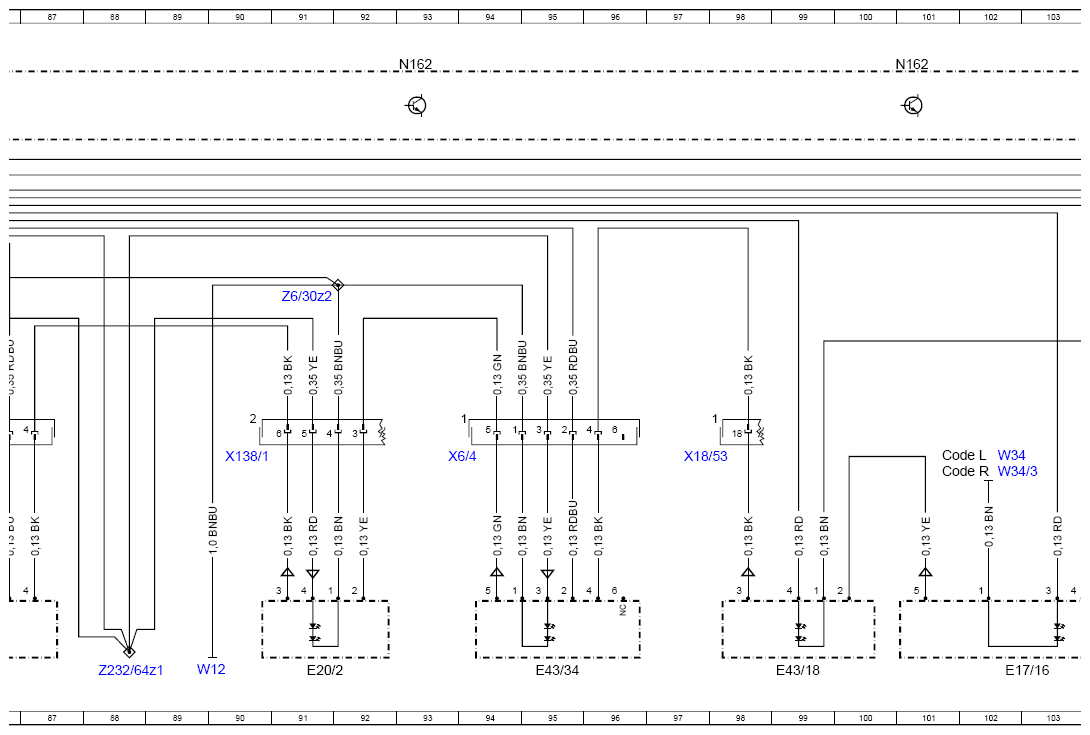

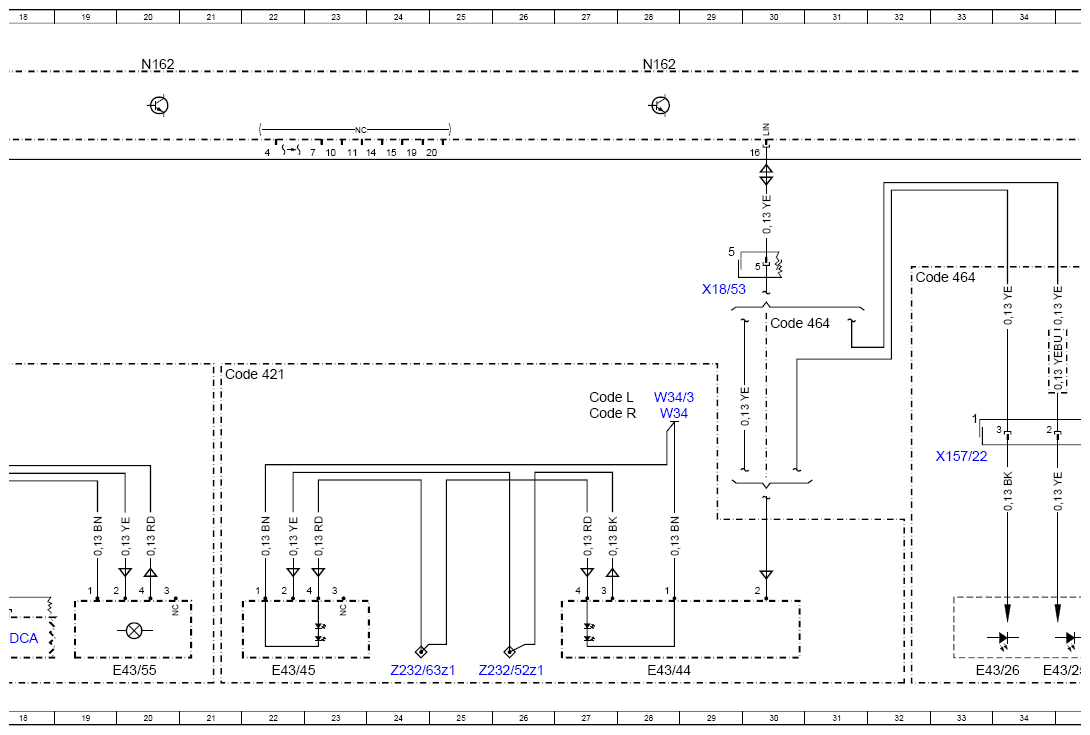

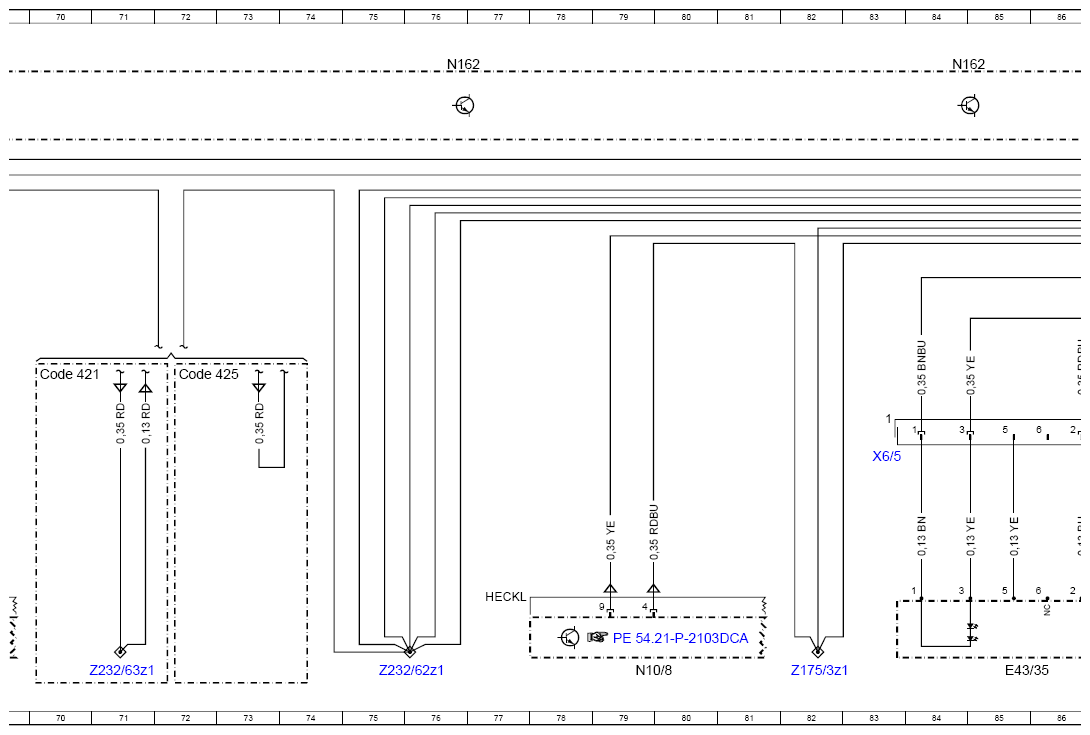

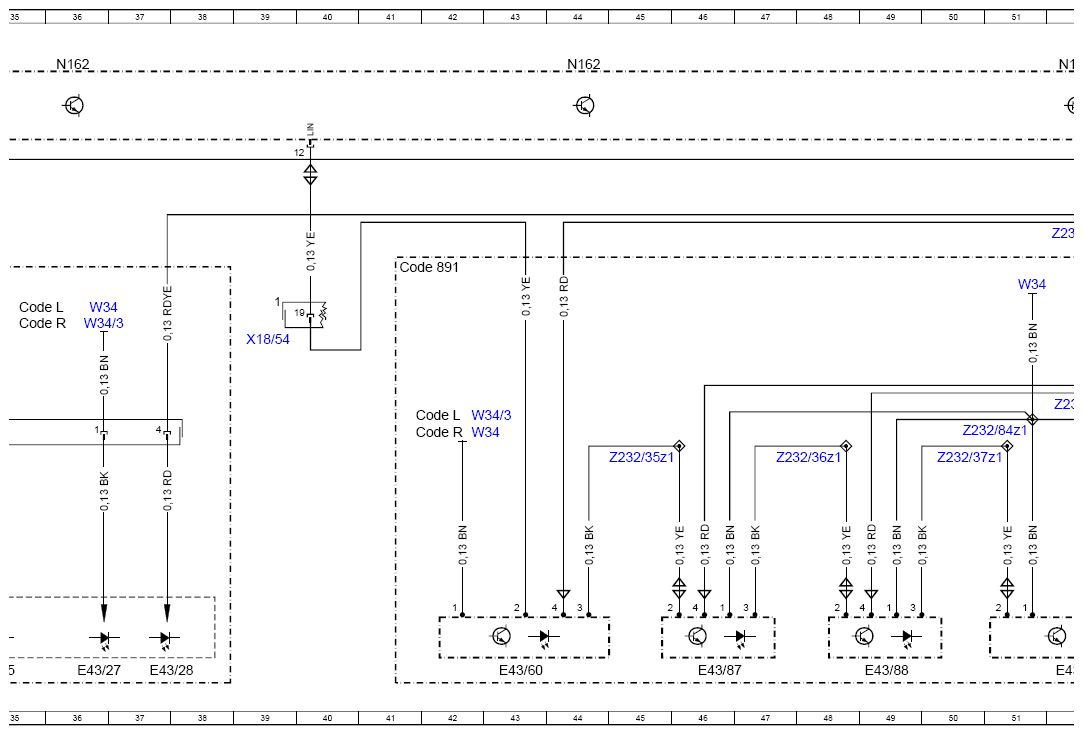

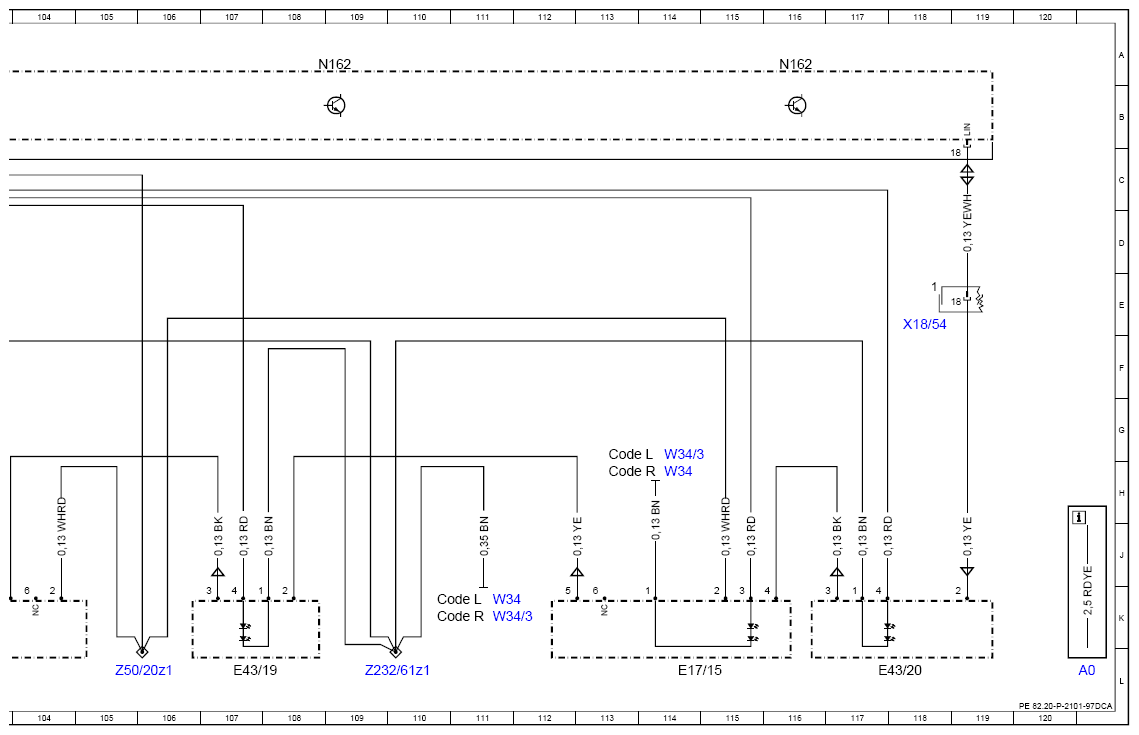

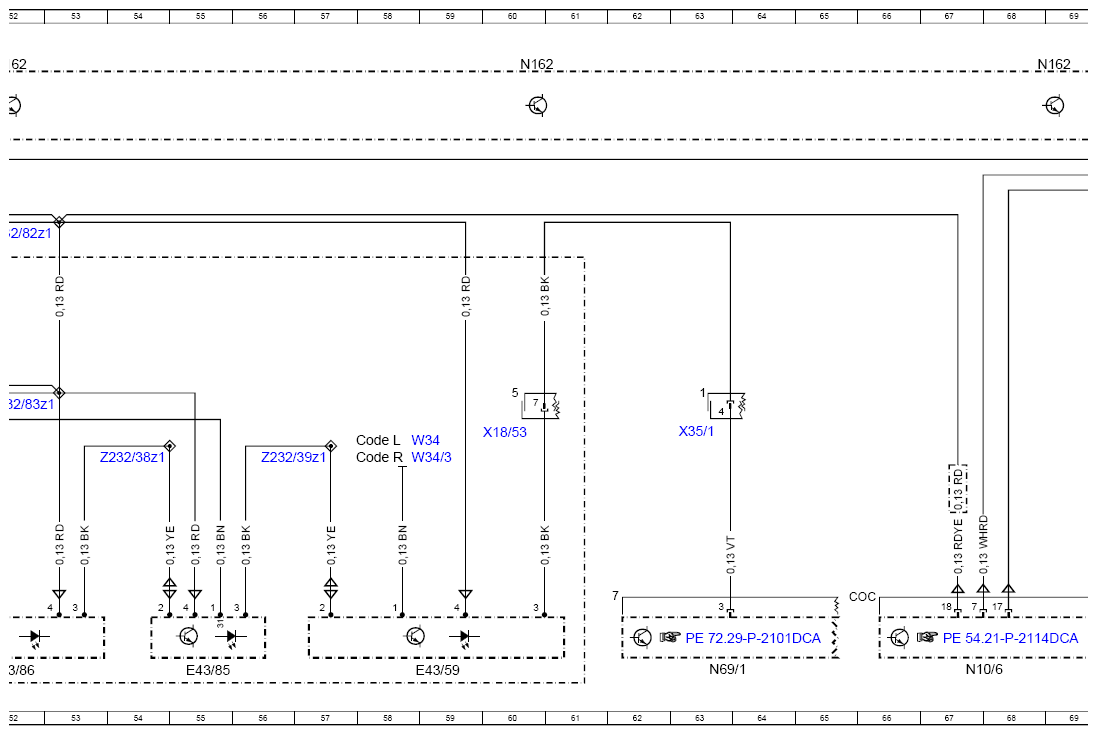

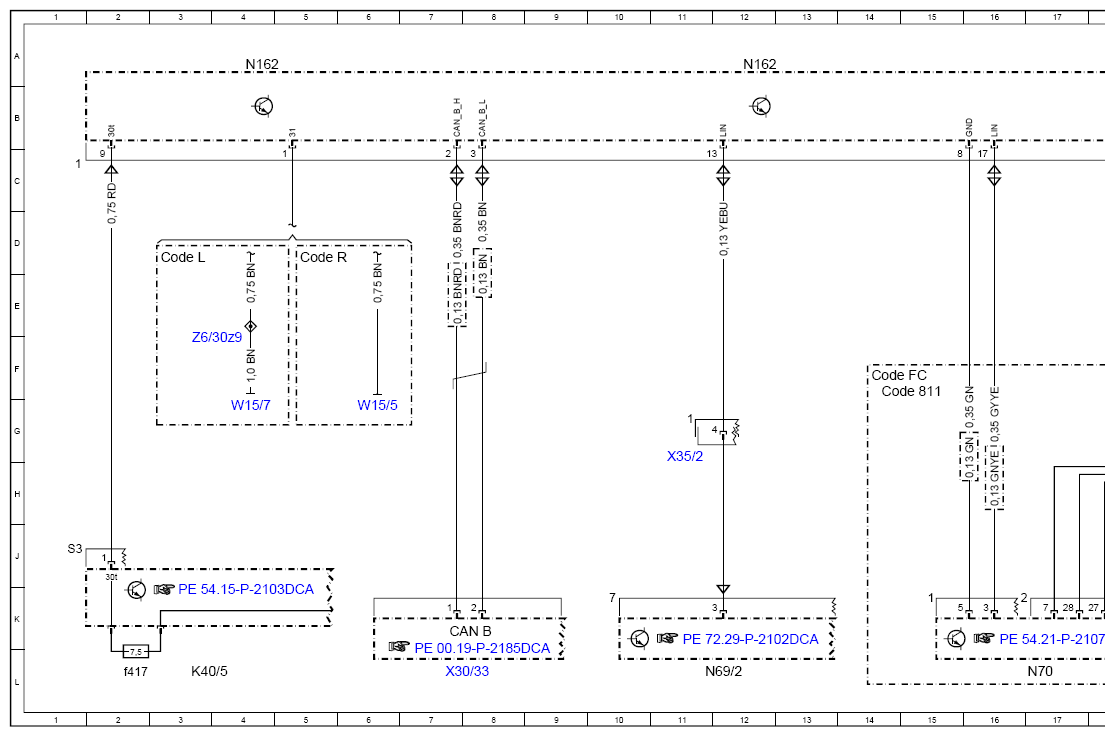

Wiring Diagram Of Ambiance Illumination Control Unit - PE82.20-P-2101-97DCA
Model 238 up to model year 2021 with code 877 (Ambient lighting) Control unit N162
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 121L |
| CAN B | Interior CAN | 7K |
| Code 421 | 9G-TRONIC | 21F |
| Code 421 | 9G-TRONIC | 70F |
| Code 425 | 6-speed manual transmission | 72F |
| Code 464 | Digital instrument cluster full display | 32E |
| Code 464 | Digital instrument cluster full display | 30E |
| Code 811 | Advanced sound system | 14F |
| Code 877 | Ambiance illumination | - |
| Code 891 | Premium ambient lighting | 41D |
| Code 891 | Premium ambient lighting | - |
| Code FC | COUPE | 14F |
| Code L | LEFT-HAND DRIVE | 41G |
| Code L | LEFT-HAND DRIVE | 27G |
| Code L | LEFT-HAND DRIVE | 57G |
| Code L | LEFT-HAND DRIVE | 3D |
| Code L | LEFT-HAND DRIVE | 35E |
| Code L | LEFT-HAND DRIVE | 110K |
| Code L | LEFT-HAND DRIVE | 101G |
| Code L | LEFT-HAND DRIVE | 113G |
| Code R | RIGHT-HAND DRIVE | 41G |
| Code R | RIGHT-HAND DRIVE | 27G |
| Code R | RIGHT-HAND DRIVE | 57H |
| Code R | RIGHT-HAND DRIVE | 5D |
| Code R | RIGHT-HAND DRIVE | 35E |
| Code R | RIGHT-HAND DRIVE | 110K |
| Code R | RIGHT-HAND DRIVE | 101H |
| Code R | RIGHT-HAND DRIVE | 113H |
| E17/15 | Right front footwell lamp | 114L |
| E17/16 | Left front footwell lamp | 102L |
| E20/2 | Front center console cup holder illumination | 91L |
| E43/18 | Driver-side ambiance illumination | 99L |
| E43/19 | Passenger-side interior ambiance illumination | 107L |
| E43/20 | Passenger-side exterior ambiance illumination | 117L |
| E43/25 | Inner upper digital instrument cluster full display ambient lighting | 34L |
| E43/26 | Outer upper digital instrument cluster full display ambient lighting | 33L |
| E43/27 | Inner lower digital instrument cluster full display ambient lighting | 36L |
| E43/28 | Outer lower digital instrument cluster full display ambient lighting | 37L |
| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 95L |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 85L |
| E43/44 | Left upper center console trim plate ambiance illumination (LED) | 28L |
| E43/45 | Right upper center console trim plate ambiance illumination (LED) | 22L |
| E43/55 | Roof center midrange speaker ambiance illumination | 20L |
| E43/59 | Driver side air vent ambiance illumination | 59L |
| E43/60 | Front passenger side air vent ambiance illumination | 43L |
| E43/85 | Driver outside center air vent ambiance illumination | 55L |
| E43/86 | Driver inside center air vent ambiance illumination | 52L |
| E43/87 | Front passenger outside center air vent ambiance illumination | 46L |
| E43/88 | Front passenger inside center air vent ambiance illumination | 49L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f417 | Fuse 417 | 2L |
| N10/6 | Front SAM control unit | 67L |
| N10/8 | Rear SAM control unit | 79L |
| N162 | Ambiance illumination control unit | 4A |
| N162 | Ambiance illumination control unit | 12A |
| N162 | Ambiance illumination control unit | 20A |
| N162 | Ambiance illumination control unit | 28A |
| N162 | Ambiance illumination control unit | 36A |
| N162 | Ambiance illumination control unit | 44A |
| N162 | Ambiance illumination control unit | 52A |
| N162 | Ambiance illumination control unit | 60A |
| N162 | Ambiance illumination control unit | 69A |
| N162 | Ambiance illumination control unit | 76A |
| N162 | Ambiance illumination control unit | 84A |
| N162 | Ambiance illumination control unit | 93A |
| N162 | Ambiance illumination control unit | 109A |
| N162 | Ambiance illumination control unit | 101A |
| N162 | Ambiance illumination control unit | 116A |
| N69/1 | Left front door control unit | 63L |
| N69/2 | Right front door control unit | 12L |
| N70 | Overhead control panel control unit | 17L |
| W12 | Left center console ground point | 89L |
| W15/5 | Left front footwell ground point | 6G |
| W15/7 | Right front footwell ground point | 4G |
| W34 | Left footwell ground point | 28G |
| W34 | Left footwell ground point | 42G |
| W34 | Left footwell ground point | 58G |
| W34 | Left footwell ground point | 36E |
| W34 | Left footwell ground point | 51E |
| W34 | Left footwell ground point | 111K |
| W34 | Left footwell ground point | 102G |
| W34 | Left footwell ground point | 114H |
| W34/3 | Right footwell ground point | 28G |
| W34/3 | Right footwell ground point | 42G |
| W34/3 | Right footwell ground point | 58H |
| W34/3 | Right footwell ground point | 36E |
| W34/3 | Right footwell ground point | 111K |
| W34/3 | Right footwell ground point | 102H |
| W34/3 | Right footwell ground point | 114G |
| X138/1 | Front center console electrical connector | 90H |
| X157/22 | Audio/COMAND display ambiance illumination electrical connector | 33H |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 60G |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 29E |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 97H |
| X18/54 | Passenger-side cockpit/frame floor assembly electrical connector | 39F |
| X18/54 | Passenger-side cockpit/frame floor assembly electrical connector | 118E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 7L |
| X35/1 | Driver door electrical connector | 63G |
| X35/2 | Front passenger door electrical connector | 11G |
| X6/4 | Driver footwell lamp electrical connector | 94H |
| X6/5 | Front passenger footwell lamp electrical connector | 83H |
| Z175/3z1 | Footwell illumination connector sleeve, vehicle interior | 82L |
| Z232/35z1 | LIN B34 connector sleeve | 45H |
| Z232/36z1 | LIN B34 connector sleeve | 48H |
| Z232/37z1 | LIN B34 connector sleeve | 50H |
| Z232/38z1 | LIN B34 connector sleeve | 54H |
| Z232/39z1 | LIN B34 connector sleeve | 56H |
| Z232/52z1 | Upper center console trim plate ambiance illumination LIN connector sleeve | 26L |
| Z232/61z1 | Cockpit ambiance illumination ground connection connector sleeve | 109L |
| Z232/62z1 | Cockpit ambiance illumination power supply 1 connector sleeve | 75L |
| Z232/63z1 | Cockpit ambiance illumination power supply 2 connector sleeve | 24L |
| Z232/63z1 | Cockpit ambiance illumination power supply 2 connector sleeve | 71L |
| Z232/64z1 | Vehicle interior ambiance illumination power supply connector sleeve | 88L |
| Z232/82z1 | Voltage supply connector sleeve | 52D |
| Z232/83z1 | Voltage supply connector sleeve | 52G |
| Z232/84z1 | Circuit 31 connector sleeve | 51G |
| Z50/20z1 | Cockpit connector sleeve, footwell lighting | 105L |
| Z6/30z2 | Circuit 31 connector sleeve | 91E |
| Z6/30z9 | Circuit 31 connector sleeve | 4F |
