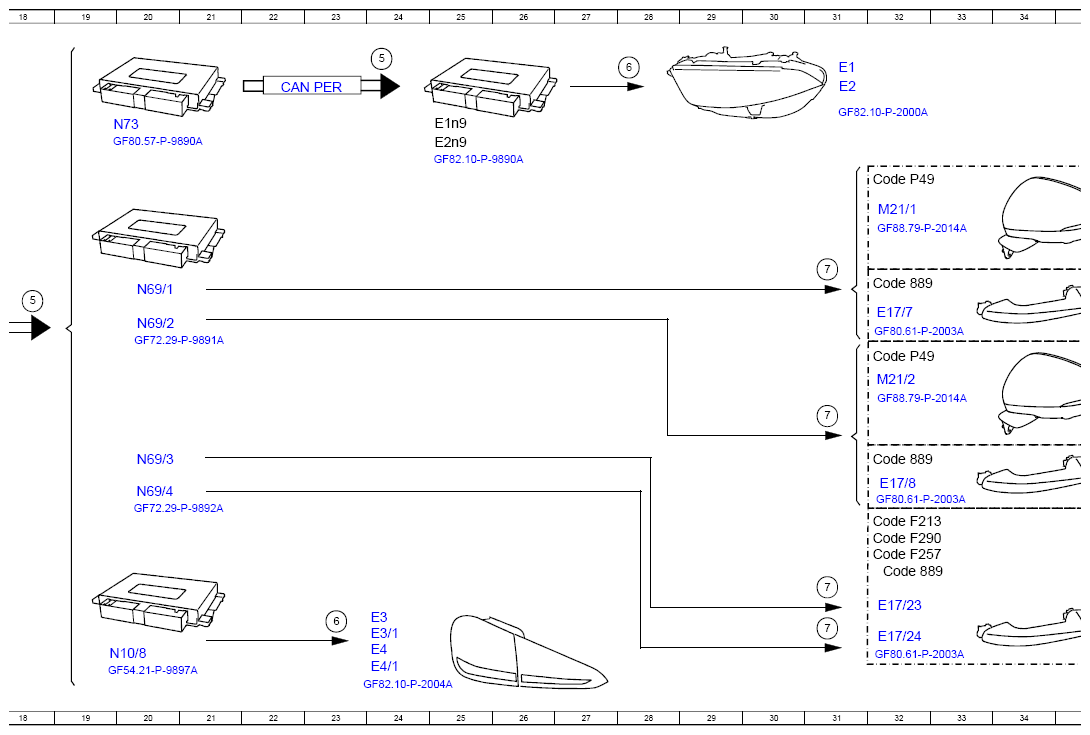

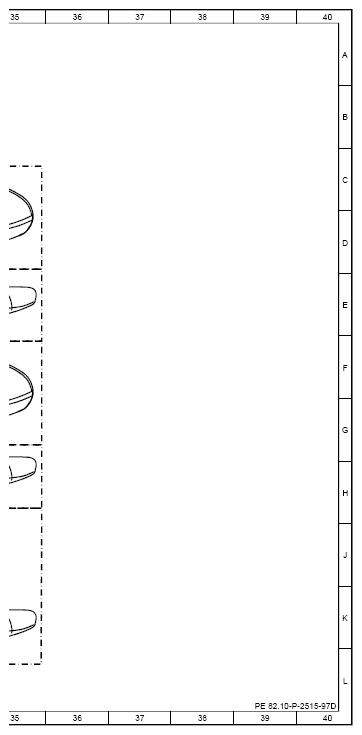

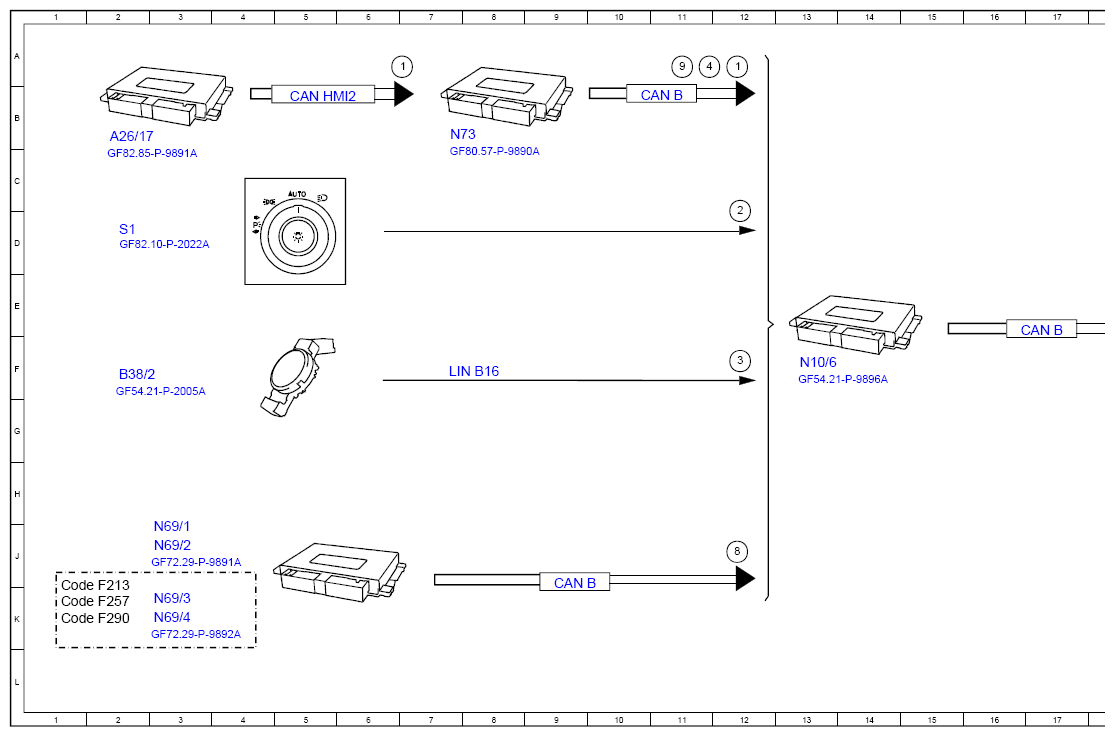

Function Schematic, Illuminate Vehicle Surroundings - PE82.10-P-2515-97D
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Area lighting function, status | 12A |
| 1 | Area lighting function, status | 7A |
| 2 | External light switch, status | 12C |
| 3 | Twilight level, signal | 12F |
| 4 | terminal 15, status | 11A |
| 5 | Area lighting request | 18E |
| 5 | Area lighting request | 24A |
| 6 | Parking light, control | 23K |
| 6 | Parking light, control | 28A |
| 7 | Surrounding light, control | 31K |
| 7 | Surrounding light, control | 31J |
| 7 | Surrounding light, control | 31G |
| 8 | Rotary latch Door switch, status | 12J |
| 9 | Central locking (ZV), status | 11A |
| A26/17 | head unit | 2B |
| B38/2 | Rain and light sensor with additional functions | 2F |
| CAN B | Interior CAN | 17E |
| CAN B | Interior CAN | 9K |
| CAN B | Interior CAN | 11B |
| CAN HMI2 | User Interface-CAN 2 | 5B |
| CAN PER | peripheral CAN | 22B |
| Code 889 | KEYLESS-GO | 32H |
| Code 889 | KEYLESS-GO | 32E |
| Code 889 | KEYLESS-GO | 32J |
| Code F213 | Series 213 | 32J |
| Code F213 | Series 213 | 1K |
| Code F257 | SERIES 257 | 1K |
| Code F257 | SERIES 257 | 32J |
| Code F290 | 290 series | 1K |
| Code F290 | 290 series | 32J |
| Code P49 | mirror package | 32F |
| Code P49 | mirror package | 32C |
| E1 | Lamp unit, front left | 31A |
| E17/23 | Outside rear door left door handle lighting | 32K |
| E17/24 | Outside door handle lighting, right | 32K |
| E17/7 | Door handle lighting outside front door left | 32E |
| E17/8 | Outside front door right door handle lighting | 32H |
| E1n9 | Left headlight control unit | 25B |
| E2 | Lamp unit, front right | 31B |
| E2n9 | Right headlight control unit | 25B |
| E3 | Light unit rear left | 24K |
| E3/1 | Lamp unit inside rear left | 24K |
| E4 | Light unit, rear right | 24L |
| E4/1 | Lamp unit, rear right inside | 24L |
| LIN B16 | Rain and Light Sensor LIN | 7F |
| M21/1 | Left wing mirror | 32D |
| M21/2 | Right wing mirror | 32F |
| N10/6 | Front SAM control unit | 13F |
| N10/8 | Rear SAM control unit | 20L |
| N69/1 | Control unit front door left | 3J |
| N69/1 | Control unit front door left | 20E |
| N69/2 | Right front door control unit | 3J |
| N69/2 | Right front door control unit | 20E |
| N69/3 | Rear door control unit left | 3K |
| N69/3 | Rear door control unit left | 20H |
| N69/4 | Right rear door control unit | 3K |
| N69/4 | Right rear door control unit | 20H |
| N73 | Electronic ignition lock control unit | 7B |
| N73 | Electronic ignition lock control unit | 20B |
| S1 | Exterior lighting switch | 2D |
