Retrofit Touchpad Wiring Harness - AN82.60-P-0017-01LWO

Model 238

Topical note

Information on preventing damage to electronic components due to electrostatic discharge

Depending on the equipment variant, a different number of electrical connector sockets may be present on the touchpad wiring harness.

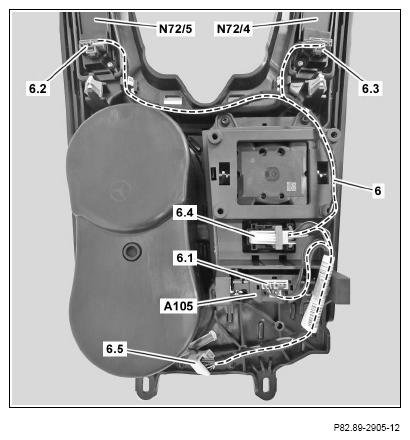

Remove old touchpad wiring harness (6) from center console cover.
The old touchpad wiring harness (6) is no longer required.
Connect white 6-pin connector socket (6.1) of new touchpad wiring harness (6) to touchpad (A105).
Connect blue 6-pin connector socket (6.2) of touchpad wiring harness (6) to right lower control panel (N72/5).
A red/yellow line is installed in contact cavity "1" of blue 6-pin connector socket (6.2).
Connect blue 6-pin connector socket (6.3) of touchpad wiring harness (6) to left lower control panel (N72/4).
A red/white line is installed in contact cavity "1" of blue 6-pin connector socket (6.3).
Connect white 20-pin connector socket (6.4) of touchpad wiring harness (6).
Route wiring harness for touchpad (6) in center console cover.
The white 8-pin connector socket (6.5) is connected when the center console cover is installed.

This establishes the electrical connection for the front center console (X138/1).

Courtesy of MERCEDES-BENZ USA

Shown with code 425 (6-speed manual transmission)
