Wiring Diagram Of HERMES Control Unit - PE82.85-P-2107-97DEA
Model 238 as of model year 2021 with code 362 (HERMES communications module LTE) Control unit N112/9
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 80L |

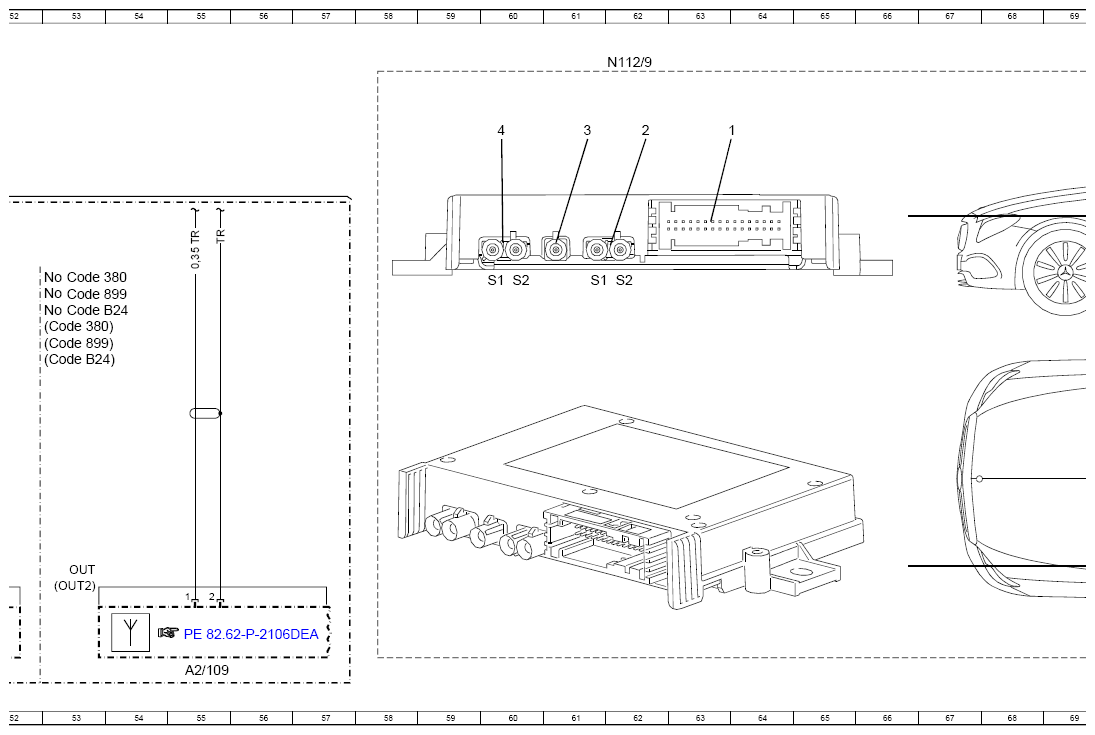

| A2/109 | Telephone antenna splitter | 55L |
| A2/23 | GPS antenna | 38L |
| A2/32 | Rear window antenna | 48L |
| A2/52 | Emergency call system antenna | 51L |
| A2/52 | Emergency call system antenna | 49L |
| A26/17 | Head unit | 32L |
| A26/17 | Head unit | 41L |
| CAN D | Diagnostic CAN | 12K |
| Code 380 | Car telephony package | 53E |
| Code 380 | Car telephony package | 53E |
| Code 548 | Connect 20 MID (NTG6) | 39D |
| Code 810 | Sound system | 20D |
| Code 810 | Sound system | 29D |
| Code 811 | Advanced sound system | 25D |
| Code 811 | Advanced sound system | 29D |
| Code 853 | "Midline" sound system | 20D |
| Code 853 | "Midline" sound system | 29D |
| Code 899 | Wireless phone charging at front and antenna | 53F |
| Code 899 | Wireless phone charging at front and antenna | 53E |
| Code B24 | Remote control for stationary heater | 53E |
| Code B24 | Remote control for stationary heater | 53F |
| Code FA | CABRIOLET | 50D |
| Code FC | COUPE | 46D |
| Code L | LEFT-HAND DRIVE | 17H |
| Code R | RIGHT-HAND DRIVE | 17H |
| F1/3 | Passenger-side A-pillar fuse box | 8L |
| F1/3f307 | Fuse 307 | 7L |

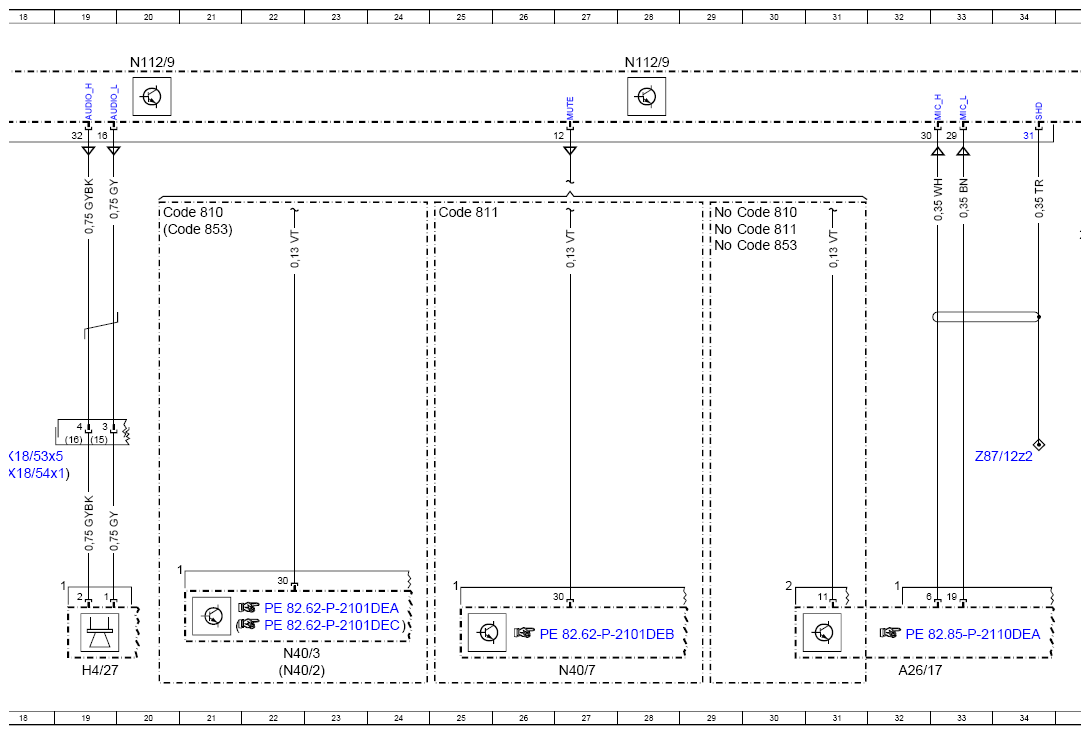

| H4/27 | Center instrument panel speaker | 19L |
| LIN E2 | Seat occupied recognition LIN | 15K |

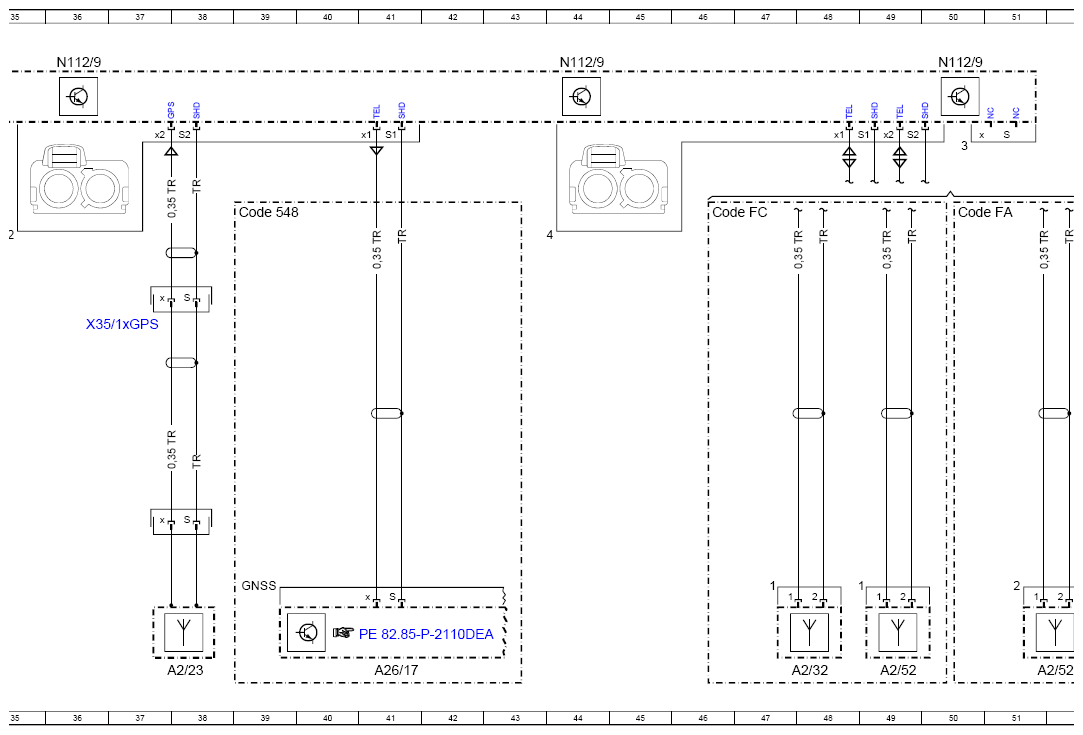

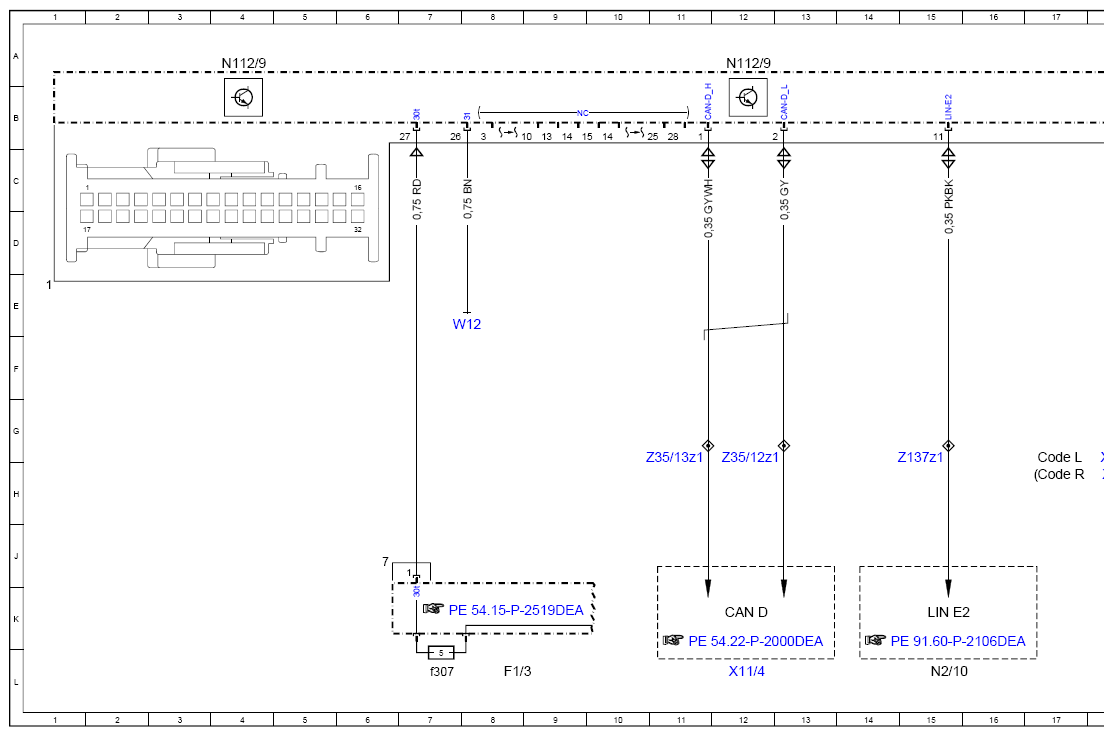

| N112/9 | HERMES control unit | 4A |
| N112/9 | HERMES control unit | 12A |
| N112/9 | HERMES control unit | 28A |
| N112/9 | HERMES control unit | 20A |
| N112/9 | HERMES control unit | 36A |
| N112/9 | HERMES control unit | 44A |
| N112/9 | HERMES control unit | 50A |
| N112/9 | HERMES control unit | 62A |

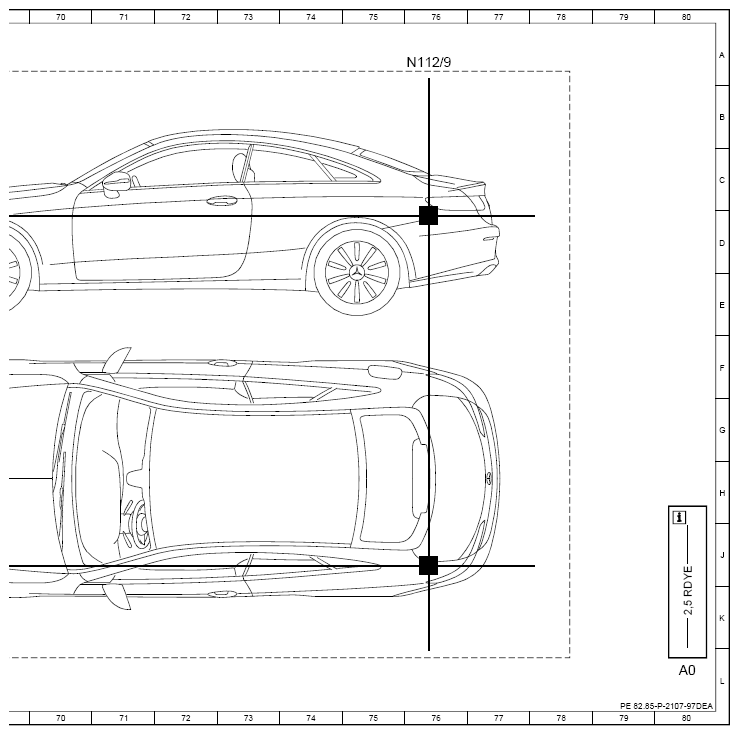

| N112/9 | HERMES control unit | 76A |
| N2/10 | Supplemental restraint system control unit | 15L |
| N40/2 | Sound system midline amplifier control unit | 22L |
| N40/3 | Sound system amplifier control unit | 22L |
| N40/7 | Advanced sound system amplifier control unit | 27L |
| W12 | Left center console ground point | 8E |
| X11/4 | Diagnostic connector | 12L |
| X18/53x5 | Driver cockpit/interior wiring harness electrical connector | 18H |
| X18/54x1 | Front passenger cockpit/interior wiring harness electrical connector | 18H |
| X35/1xGPS | GPS antenna electrical connector | 37E |
| Z137z1 | Left door LIN connector sleeve | 15G |
| Z35/12z1 | Diagnostic CAN (CAN D) low connector sleeve | 12G |
| Z35/13z1 | Diagnostic CAN (CAN D) high connector sleeve | 11G |
| Z87/12z2 | Microphone shielding connector sleeve, emergency call | 34G |
