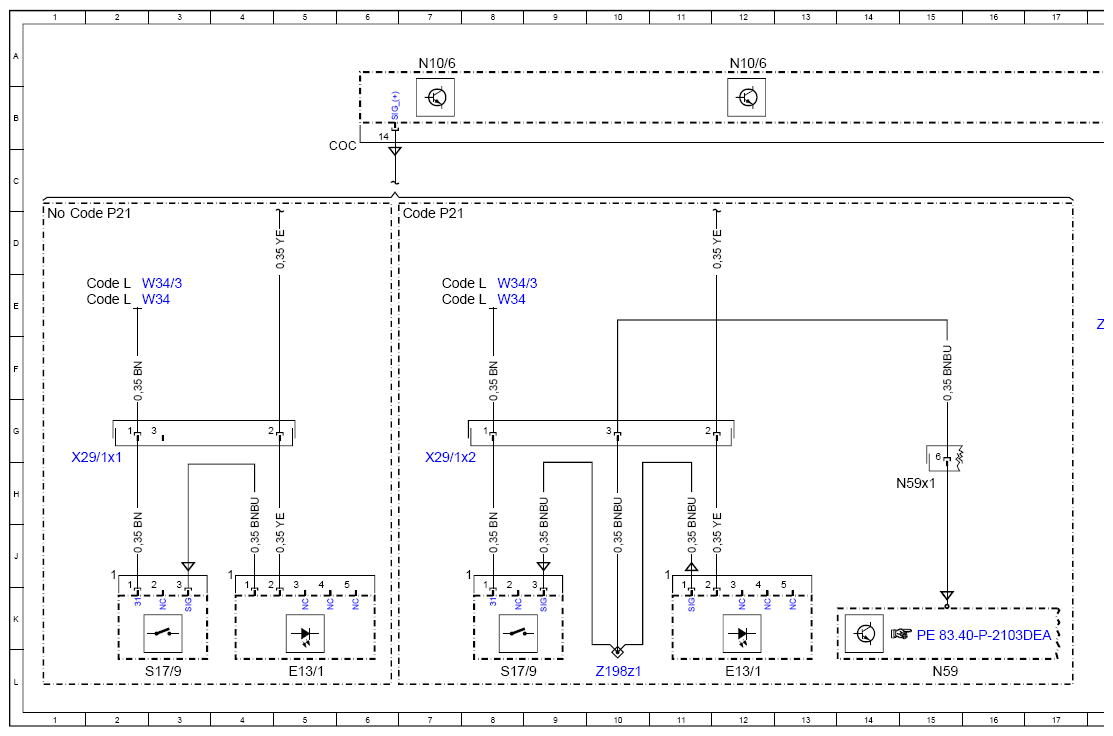

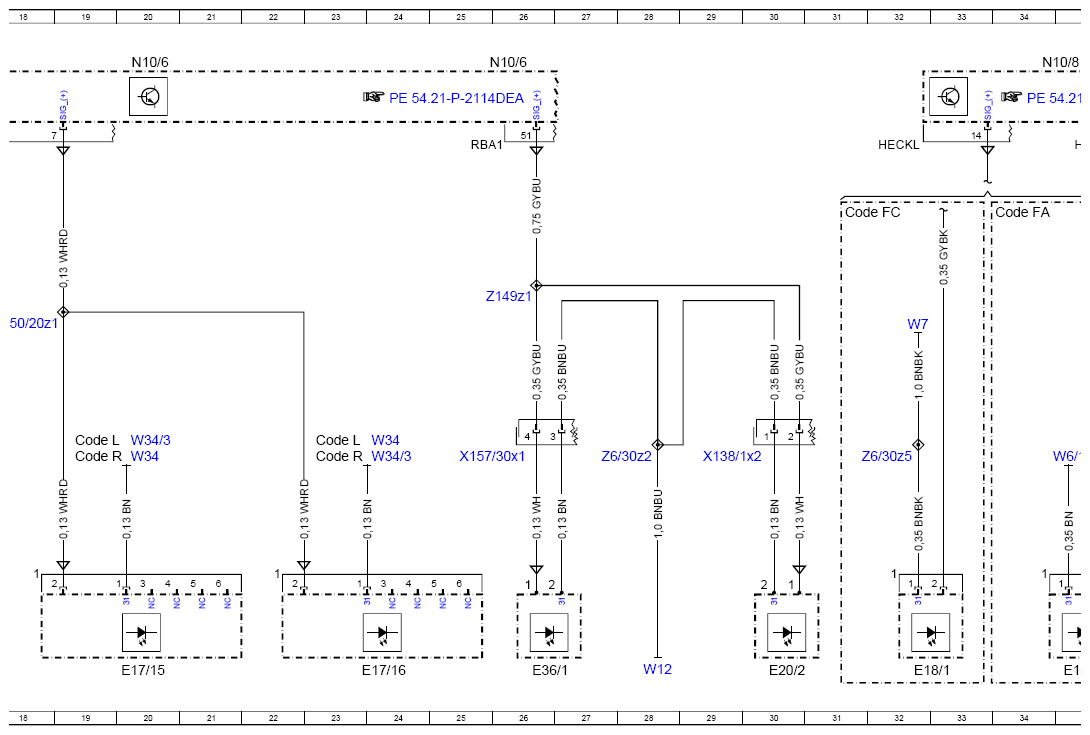

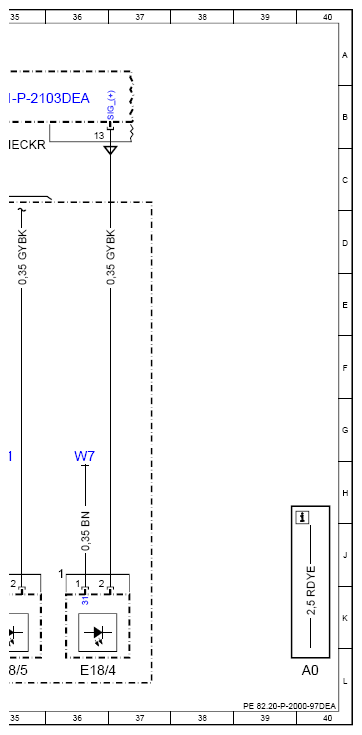

Wiring Diagram Interior Illumination - PE82.20-P-2000-97DEA
Model 238 as of model year 2021 except code U25 (Illuminated door sill panels with "Mercedes-Benz" lettering) Basic illumination
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 40L |
| Code FA | CABRIOLET | 34D |
| Code FC | COUPE | 31D |
| Code L | LEFT-HAND DRIVE | 19G |
| Code L | LEFT-HAND DRIVE | 7E |
| Code L | LEFT-HAND DRIVE | 7E |
| Code L | LEFT-HAND DRIVE | 2E |
| Code L | LEFT-HAND DRIVE | 2E |
| Code L | LEFT-HAND DRIVE | 23G |
| Code P21 | AIR-BALANCE package | 1D |
| Code P21 | AIR-BALANCE package | 7D |
| Code R | RIGHT-HAND DRIVE | 19H |
| Code R | RIGHT-HAND DRIVE | 23H |
| E13/1 | Glove box lamp | 5L |
| E13/1 | Glove box lamp | 12L |
| E17/15 | Right front footwell lamp | 20L |
| E17/16 | Left front footwell lamp | 24L |
| E18/1 | Luggage compartment lamp | 32L |
| E18/4 | Right luggage compartment lamp | 36L |
| E18/5 | Left luggage compartment lamp | 35L |
| E20/2 | Front center console cup holder illumination | 30L |
| E36/1 | Center console armrest stowage compartment switch and controls illumination | 26L |
| N10/6 | Front SAM control unit | 7A |
| N10/6 | Front SAM control unit | 12A |
| N10/6 | Front SAM control unit | 20A |
| N10/6 | Front SAM control unit | 26A |
| N10/8 | Rear SAM control unit | 34A |
| N59 | Perfume atomizer generator | 15L |
| N59x1 | Perfume atomizer generator electrical connector | 15H |
| S17/9 | Glove box lamp switch | 3L |
| S17/9 | Glove box lamp switch | 8L |
| W12 | Left center console ground point | 28L |
| W34 | Left footwell ground point | 20H |
| W34 | Left footwell ground point | 2E |
| W34 | Left footwell ground point | 8E |
| W34 | Left footwell ground point | 24G |
| W34/3 | Right footwell ground point | 20G |
| W34/3 | Right footwell ground point | 2E |
| W34/3 | Right footwell ground point | 8E |
| W34/3 | Right footwell ground point | 24H |
| W6/1 | Left taillamp trunk ground point | 35H |
| W7 | Right wheel house trunk ground point | 36H |
| W7 | Right wheel house trunk ground point | 32E |
| X138/1x2 | Front center console electrical connector | 29H |
| X157/30x1 | Stowage compartment illumination electrical connector | 26H |
| X29/1x1 | Glove compartment electrical connector | 2H |
| X29/1x2 | Glove compartment electrical connector | 7H |
| Z149z1 | Connector sleeve, cigarette lighter with ashtray illumination, rear | 26E |
| Z198z1 | Connector sleeve, glove compartment illumination | 10L |
| Z50/20z1 | Cockpit connector sleeve, footwell lighting | 18E |
| Z6/30z2 | Circuit 31 connector sleeve | 28G |
| Z6/30z5 | Circuit 31 connector sleeve | 32G |
