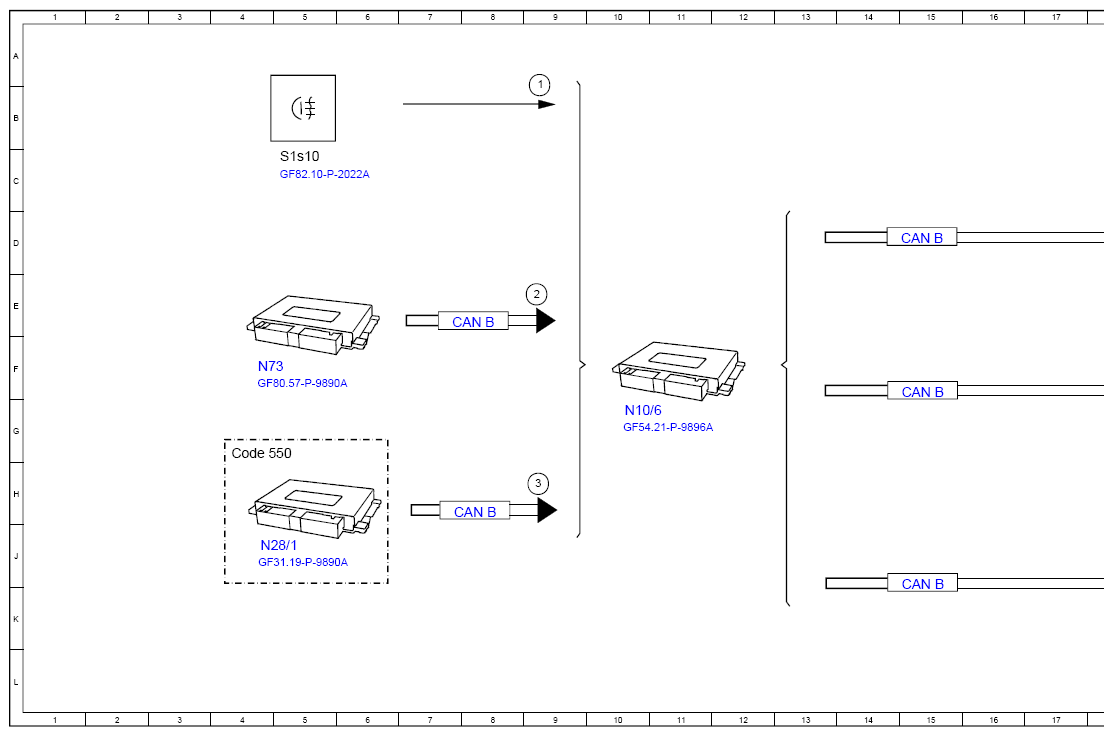

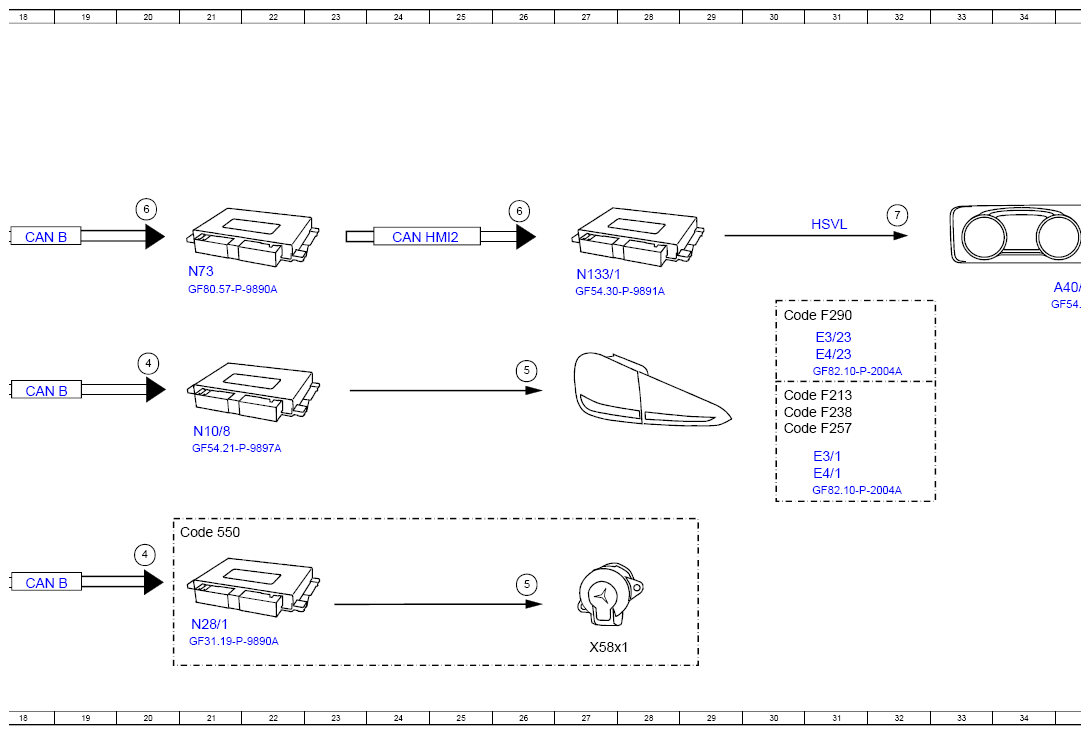

Function Schematic, Actuate Rear Fog Light - PE82.10-P-2514-97D
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Rear fog light button, status | 9B |
| 2 | terminal 15, status | 9E |
| 3 | Trailer detection status | 9H |
| 4 | Rear fog light request | 20Y |
| 4 | Rear fog light request | 20F |
| 5 | Rear fog light, activation | 26J |
| 5 | Rear fog light, activation | 26F |
| 6 | Light, request | 20D |
| 6 | Light, request | 26D |
| 7 | image data, signal | 32D |
| A40/16 | Display group head unit/instrument cluster | 35E |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 15K |
| CAN B | Interior CAN | 18K |
| CAN B | Interior CAN | 15F |
| CAN B | Interior CAN | 18F |
| CAN B | Interior CAN | 8E |
| CAN B | Interior CAN | 15D |
| CAN B | Interior CAN | 18D |
| CAN HMI2 | User Interface-CAN 2 | 24D |
| Code 550 | Hitch | 4G |
| Code 550 | Hitch | 21J |
| Code F213 | Series 213 | 30G |
| Code F238 | Series 238 | 30G |
| Code F257 | SERIES 257 | 30G |
| Code F290 | 290 series | 30E |
| E3/1 | Lamp unit inside rear left | 31H |
| E3/23 | Left rear fog light | 31F |
| E4/1 | Lamp unit, rear right inside | 31H |
| E4/23 | Right rear fog light | 31F |
| HSVL | High Speed Video Link | 31D |
| N10/6 | Front SAM control unit | 10G |
| N10/8 | Rear SAM control unit | 21G |
| N133/1 | Instrument cluster control unit | 27E |
| N28/1 | Trailer detection control unit | 4J |
| N28/1 | Trailer detection control unit | 21K |
| N73 | Electronic ignition lock control unit | 4F |
| N73 | Electronic ignition lock control unit | 21E |
| S1s10 | Rear fog light button | 5C |
| X58x1 | trailer socket | 27L |
