Check Wiper Arms And Adjust - AR82.30-P-6000LWO

Model 238

With Code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)

Courtesy of MERCEDES-BENZ USA

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Notes on wiper arm adjustment		AH82.30-P-0001-01A
	Check
1	Move windshield wiper system to parked position
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
3	Manually move windshield wiper system to reversing position	Do not move the windshield wiper system beyond the reversing position.

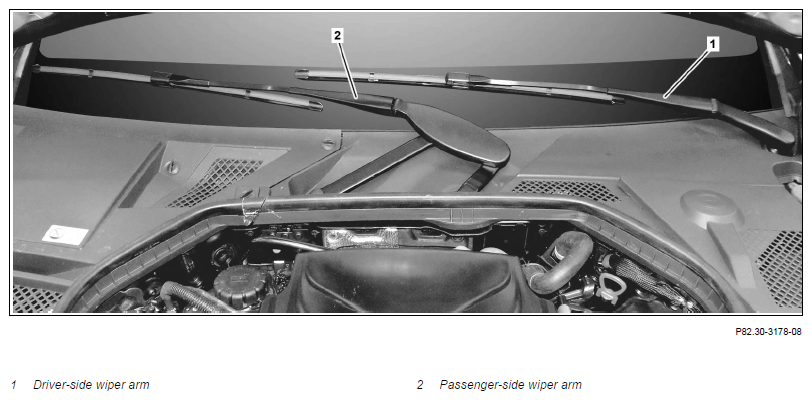

4	Remove wiper blades	When working on the driver-side wiper arm (1) or passenger-side wiper arm (2), ensure that it does not fall on the windshield. Otherwise windshield will be damaged.
5	Clean wiper blade fixtures on driver-side wiper arm (1) and passenger-side wiper arm (2) using a clean cloth
6	Check the angle of incidence of the driver-side wiper arm (1) and passenger-side wiper arm (2) to the windshield	When switching from the reversing position to the parking position, ensure that the wiper arms do not touch the windshield. Otherwise windshield will be damaged.	AR82.30-P-6000-01LW
		Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
		Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Angle of incidence of passenger-side wiper arm in reversing position	*BE82.30-P-1002-01M
		Angle of incidence of driver-side wiper arm in reversing position	*BE82.30-P-1001-01M
		Adapter	Fig 2
		Adjusting tool set	Fig 3
	Adjust
7	Put the angle of incidence of the driver-side wiper arm (1) or passenger-side wiper arm (2) to the parking position	If the test values deviate from the tolerance range in the reversing position or in the parked and reversing position. Distort driver-side wiper arm (1) or passenger-side wiper arm (2) by at least the value of the tolerance deviation in reversing position.	AR82.30-P-6100-01LW
		Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
		Adapter	Fig 2
		Adjusting tool set	Fig 3
8	Adjust windshield wiper system	When the check values of the driver-side wiper arm (1) and passenger-side wiper arm (2) deviate from the tolerance range in the parking position.	AR82.30-P-6400-01LW
		Angle of incidence of passenger-side wiper arm in parked position	*BE82.30-P-1004-01M
		Angle of incidence of driver-side wiper arm in parked position	*BE82.30-P-1003-01M
		Screw/bolt, windshield wiper system bracket to partition wall	*BA82.30-P-1004-01M
		Adapter	Fig 2
		Adjusting tool set	Fig 3
		Extraction hook	Fig 1
9	Install wiper blades

Fig 1: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter (231 589 00 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adjusting Tool Set (211 589 02 21 00)

Courtesy of MERCEDES-BENZ USA
