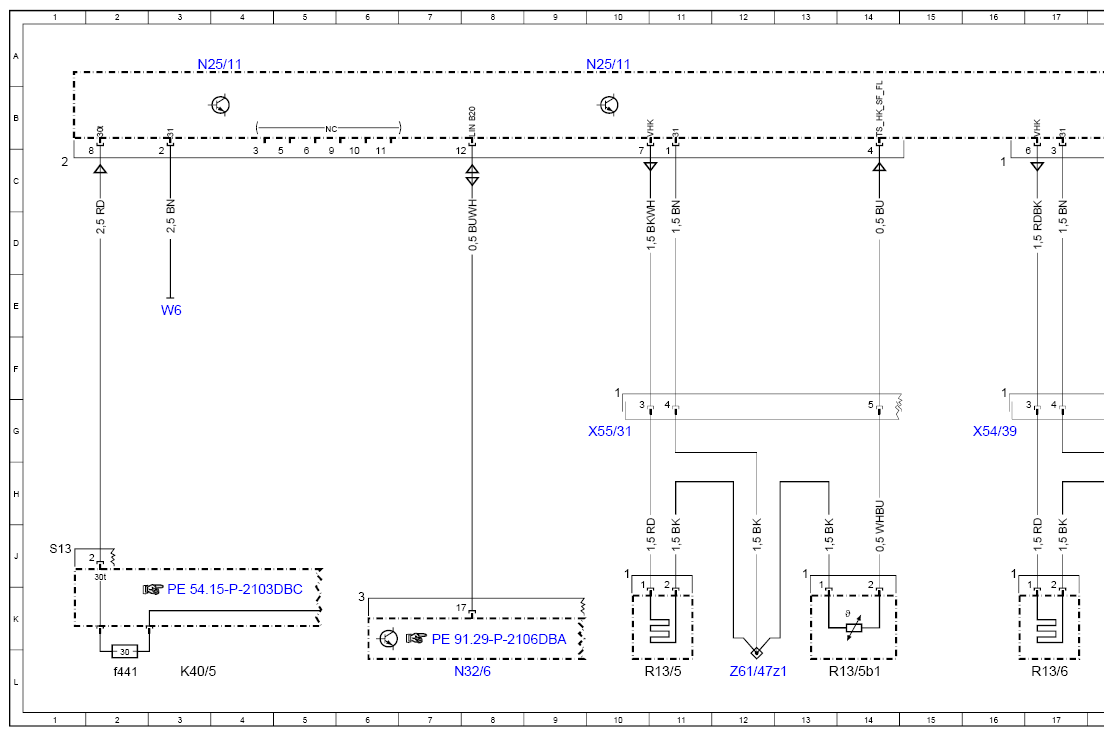

Wiring Diagram For Seat Heater Control Unit - PE91.30-P-2104-97DBE
Model 213 up to model year 2021 with code 903 (Rear comfort seat heating) Control unit N25/11
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f441 | Fuse 441 | 2L |
| N25/11 | Left rear seat heater control unit | 3A |
| N25/11 | Left rear seat heater control unit | 10A |
| N25/11 | Left rear seat heater control unit | 18A |
| N32/6 | Left rear seat control unit | 8L |
| R13/5 | Left rear seat sitting surface heated cushion | 11L |
| R13/5b1 | Left rear seat sitting surface heater pad temperature sensor | 14L |
| R13/6 | Left rear backrest heated cushion | 17L |
| R13/6b1 | Left rear seat backrest heater pad temperature sensor | 20L |
| W6 | Left wheel arch trunk ground point | 3E |
| X54/39 | Left rear seat backrest heater separation point | 16G |
| X55/31 | Left rear seat cushion heater separation point | 10G |
| Z61/47z1 | Left rear cushion seat heater connector sleeve | 12L |
| Z61/51z1 | Left rear backrest seat heater connector sleeve | 18L |
