Remove/Install Throttle Valve Actuator - AR07.70-P-0005MRH
Engine 264 in model 213, 238, 257
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove engine air intake duct upstream of air filter. | ||
| 2 | Remove bracket of charge air cooler from timing case cover. | AR09.41-P-6817MRH | |

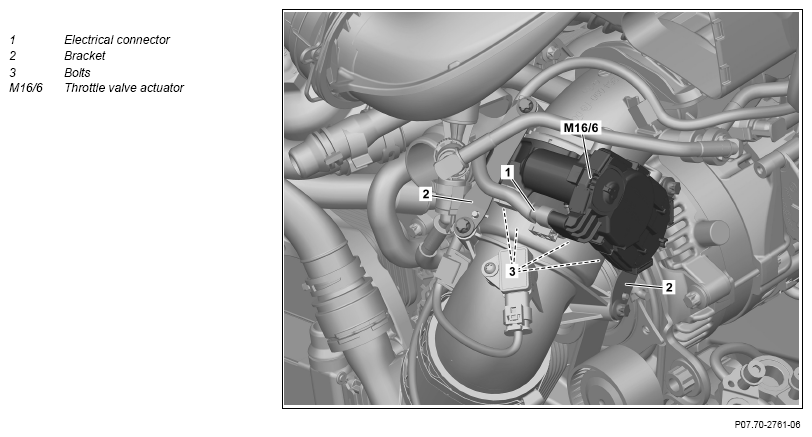

| 3 | Remove brackets (2). | *BA09.41-P-1003-01ZA | |
| 4 | Remove left charge air line and place to one side with lines connected. | ||
| 5 | Release electrical connector (1) and disconnect. | ||
| 6 | Unclip electric line from throttle valve actuator (M16/6). | ||
| 7 | Remove screws (3) and remove throttle valve actuator (M16/6). | ||
| *BA30.20-P-1001-01E | |||
| 8 | Install in the reverse order. | ||
| 9 | Read out and delete fault memory. | ||
| Engine 264 in model 257 | AD00.00-P-2000-06FR | ||
| Engine 264 in model 213 | AD00.00-P-2000-04B | ||
| Engine 264 in model 238 | AD00.00-P-2000-06LWO | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform an engine test run and check the engine for proper function. |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA09.41-P-1003-01ZA | Bolt, bracket for charge air line to charge-air distributor | Nm | 9 |
ELECTRONIC ACCELERATOR ACTUATOR
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA30.20-P-1001-01E | Bolt, throttle valve actuator to charge air distributor | Nm | 6 |
