Remove/Install Right Exhaust Camshaft Hall Sensor - AR15.10-P-2004MND
Engine 276.8 in model 213, 238
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove right air filter housing | AR09.10-P-1152MND | |

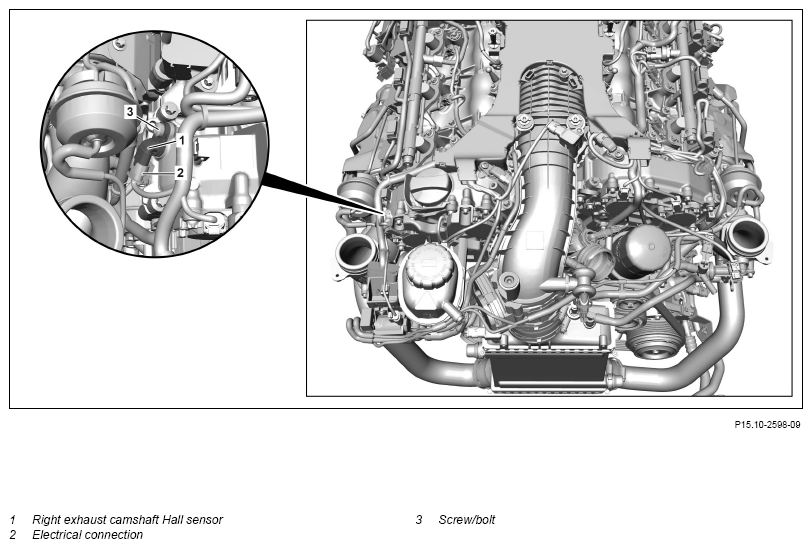

| 3 | Release and disconnect electrical connection (2) | ||
| 4 | Remove screw/bolt (3) | ||
| 5 | Take out right exhaust camshaft Hall sensor (1) | ||
| Install | |||
| 6 | Replace sealing ring on right exhaust camshaft Hall sensor (1) | For reuse of the right exhaust camshaft Hall sensor (1). | |
| 7 | Position right exhaust camshaft Hall sensor (1) on cylinder head cover | ||
| 8 | Screw in screw/bolts (3) | *BA15.10-P-1006-03E | |
| 9 | Plug electrical connection (2) together and lock | ||
| 10 | Install right air filter housing | AR09.10-P-1152MND | |
| 11 | Read out and erase fault memory | ||
| Engine 276.8 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 276.8 in model 213 | AD00.00-P-2000-04B | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Carry out an engine test run, checking the engine for proper operation and leaktightness | ||
| 13 | Install upper engine cover |
POSITION SENSOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.10-P-1006-03E | Bolt, camshaft Hall sensor to cylinder head cover | Nm | 9 |
