Remove/Install Radiator - AR20.20-P-3865OLC
Engine 274, 642, 654 in Model 213
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove fan unit | AR20.40-P-5050OLC | |
| 2 | Drain coolant at radiator (1) | AR20.00-P-1142OLC | |

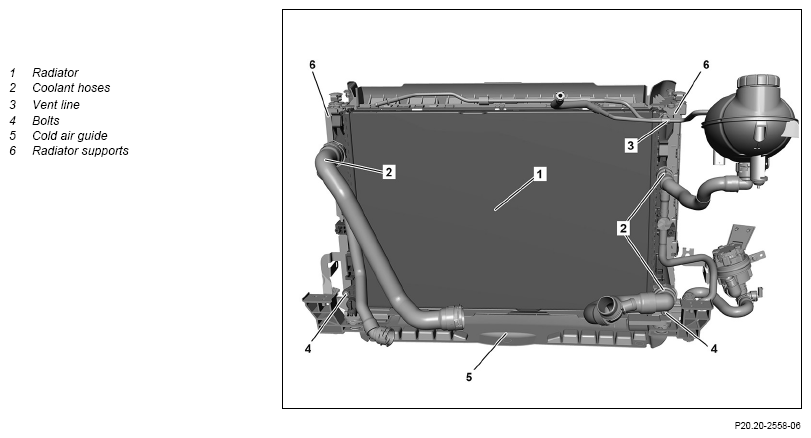

| 3 | Detach coolant hoses (2) on cooler (1) | AR20.20-P-7441-01RQ | |
| 4 | Remove screw/bolts (4) | ||
| 5 | Unclip cold air guide (5) on cooler (1) | ||
| 6 | Pull the cooler (1) downwards to the rear, pull out above on the radiator supports (6) and remove cooler (1) downwards | ||
| 7 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check engine cooling system for leaktightness |
