Remove/Install Low-Temperature Circuit Additional Radiator - AR09.41-P-3001MNE
Engine 177 in model 213
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Drain off coolant | AR09.41-P-6834MNE | |
| 2 | Remove left wheel and tire assembly | AR40.10-P-1102A | |
| 3 | Remove front bumper | AR88.20-P-2000LWE | |

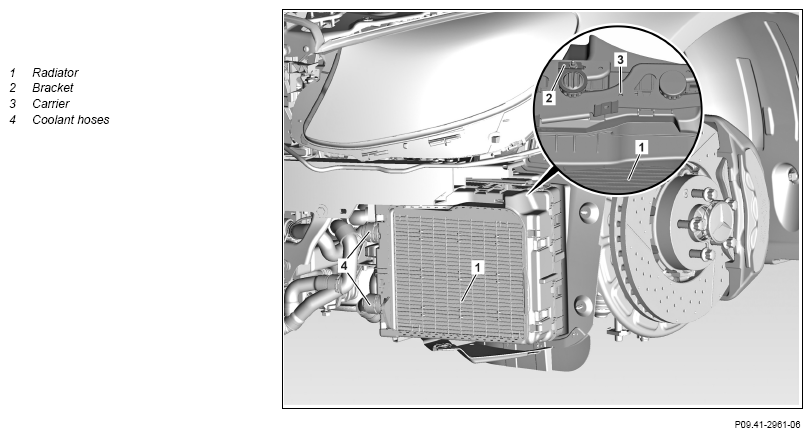

| 4 | Remove coolant hoses (4) from radiator (1) | AR20.20-P-7441-01RQ | |
| 5 | Unscrew nut and remove bracket (2) | *BA00.10-P-1002-04A | |
| 6 | Remove radiator (1) on carrier (3) to the side | ||
| 7 | Install in the reverse order |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6 x 1 | Nm | 9 | 13 |
