(Remove/Install Left Charge Air Pipe - AR09.41-P-1327MMV)
Engine 276.8 in model 205
Engine 276.8 in model 253
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove left engine air intake duct upstream of left air filter | ||

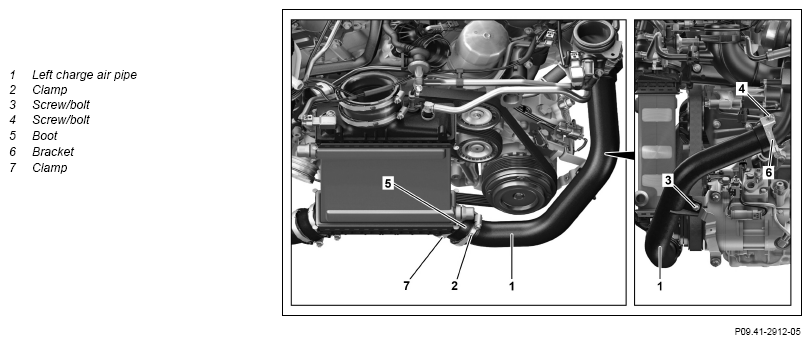

| 3 | Remove screw/bolt (3) | ||
| 4 | Unscrew screw/bolt (4) and remove bracket (6) | ||
| 5 | Loosen clamp (2) | ||
| 6 | Detach left charge air pipe (1) from left ATL and from boot (5) and remove | ||
| 7 | Seal openings on left ATL and charge air cooler with protective cover | Fig 1 | |
| 8 | Check boot (5) and clamps (2, 7) for damage | If damage is present ↓ Replace boot (5) together with clamps (2, 7). |
|
| Install | |||
| 9 | Remove protective covers from openings of the left ATL and the charge air cooler | Fig 1 | |
| 10 | Mount left charge air pipe (1) on left ATL and on boot (5) | ||
| 11 | Tighten clamp (2) | ||
| 12 | Position bracket (6) and tighten screw/bolt (4) | *BA09.41-P-1006-01R | |
| 13 | Tighten screw/bolt (3) | *BA00.10-P-1002-04A | |
| 14 | Install left engine air intake duct upstream of left air filter | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Perform an engine test run, checking the engine for function and leaktightness in the area around left charge air pipe (1) | ||
| 16 | Install upper engine cover |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.41-P-1006-01R | Screw/bolt, charge air pipe to turbocharger | Nm | 9 |
