Wiring Diagram Of Reversing Camera - PE54.65-P-2103-97DBA
Model 213 up to model year 2021 with code 218 (Rear view camera) Reversing camera B84/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A26/17 | Head unit | 14L |
| B84/3x1 | Reversing camera electrical connector 1 | 1E |
| B84/3x2 | Reversing camera electrical connector 2 | 14E |
| CAN HMI | User interface CAN | 9K |
| Code 218 | Backup camera | 26H |
| Code 235 | Parking Pilot | 17A |
| Code 520 | Audio 20 USB | 12A |
| Code 522 | Audio 20 radio | 12A |
| Code FS | STATION WAGON | 4F |
| Code FS | STATION WAGON | 6F |
| Code FV | LONG SEDAN | 2F |
| Code FW | SEDAN | 2F |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f468 | Fuse 468 | 2L |

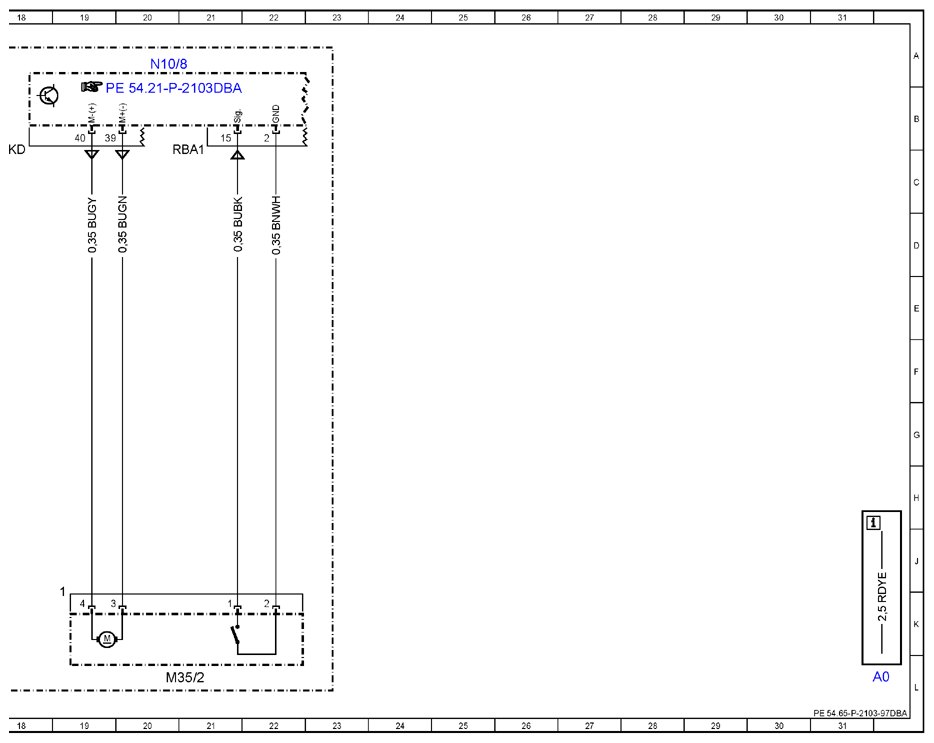

| M35/2 | Rear camera cover motor | 20L |
| N10/8 | Rear SAM control unit | 20A |

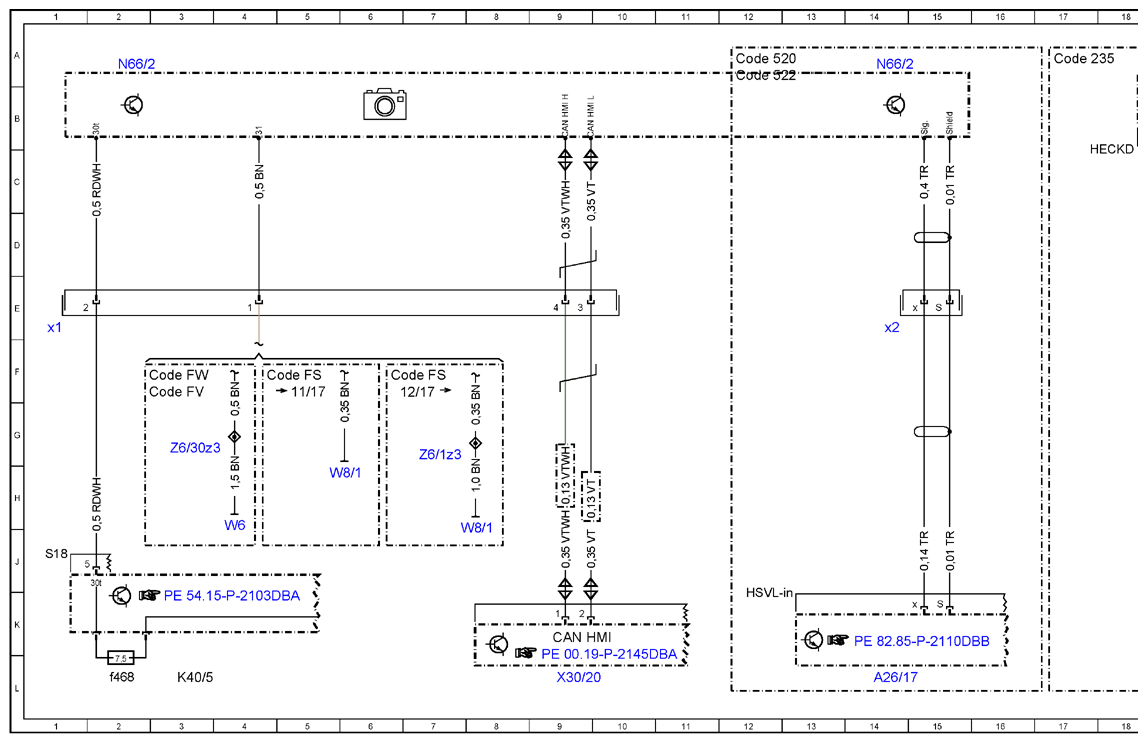

| N66/2 | Backup camera control unit | 2A |
| N66/2 | Backup camera control unit | 14A |
| W6 | Left wheel arch trunk ground point | 4J |
| W8/1 | Left tailgate ground point | 5H |
| W8/1 | Left tailgate ground point | 8J |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 9L |
| Z6/1z3 | Circuit 31 connector sleeve | 7G |
| Z6/30z3 | Circuit 31 connector sleeve | 3G |
