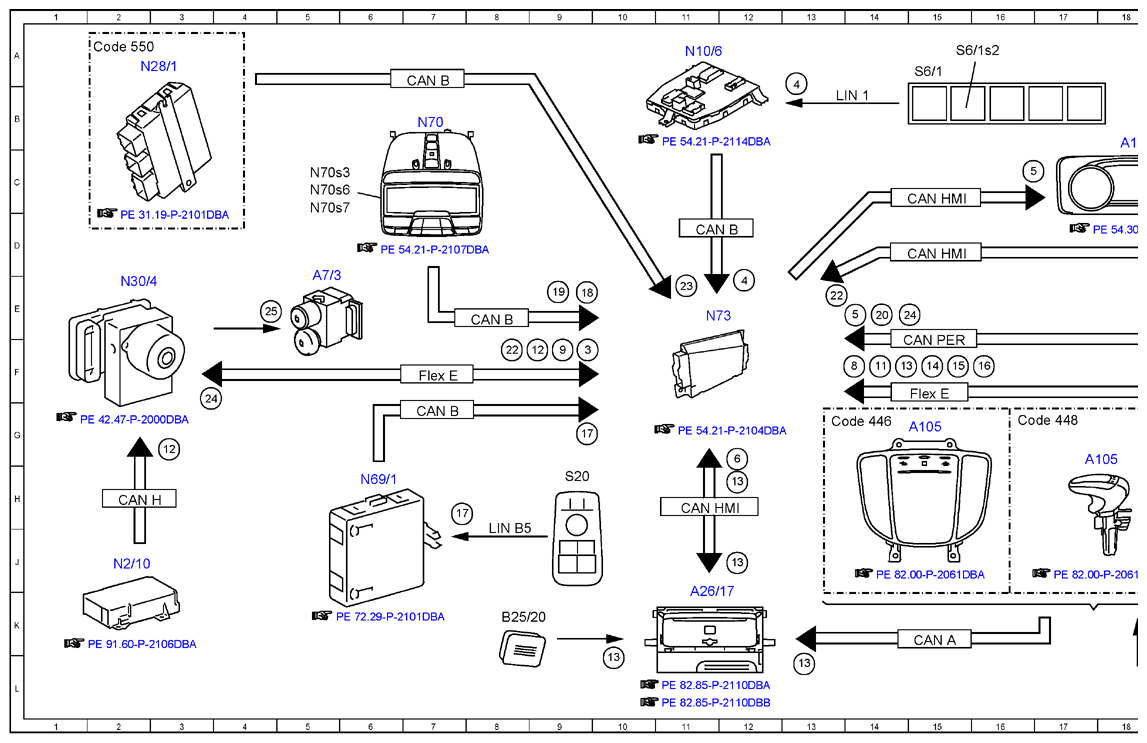

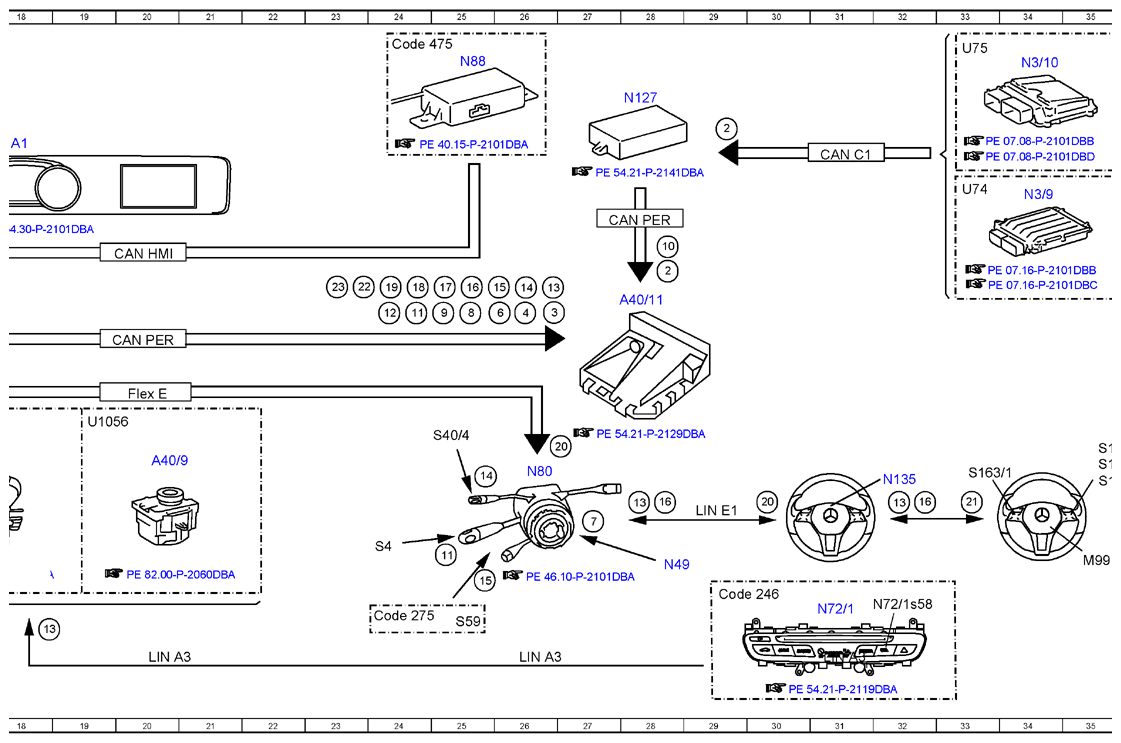

Electrical Function Schematic For Active Lane Keeping Assist - PE54.71-P-2053-97DBB
Model 213 up to model year 2019 with code 243 (Active lane keeping Assist) except code 238 (Active lane keeping Assist)
| Code: | Designation: | Position: |
|---|---|---|
| 10 | Accelerator pedal sensor, signal | 28D |
| 11 | Combination switch, status | 25J |
| 11 | Combination switch, status | 14F |
| 11 | Combination switch, status | 24E |
| 12 | Speed, turn rate and lateral acceleration, signal | 3G |
| 12 | Speed, turn rate and lateral acceleration, signal | 9F |
| 12 | Speed, turn rate and lateral acceleration, signal | 24E |
| 13 | Operation, signal | 26E |
| 13 | Operation, signal | 12H |
| 13 | Operation, signal | 14F |
| 13 | Operation, signal | 28H |
| 13 | Operation, signal | 32H |
| 13 | Operation, signal | 13L |
| 13 | Operation, signal | 10K |
| 13 | Operation, signal | 18K |
| 13 | Operation, signal | 12J |
| 14 | CRUISE CONTROL lever, signal | 25H |
| 14 | CRUISE CONTROL lever, signal | 26E |
| 14 | CRUISE CONTROL lever, signal | 15F |
| 15 | Steering column adjustment switch, status | 25J |
| 15 | Steering column adjustment switch, status | 15F |
| 15 | Steering column adjustment switch, status | 26E |
| 16 | Multifunction steering wheel button group, signal | 16F |
| 16 | Multifunction steering wheel button group, signal | 25E |
| 16 | Multifunction steering wheel button group, signal | 28H |
| 16 | Multifunction steering wheel button group, signal | 32H |
| 17 | Driver-side switch group, status | 9G |
| 17 | Driver-side switch group, status | 25E |
| 17 | Driver-side switch group, status | 7H |
| 18 | Automatic function switch, status | 24E |
| 18 | Automatic function switch, status | 9E |
| 19 | Reading lamp button, status | 24E |
| 19 | Reading lamp button, status | 9E |
| 2 | Drivetrain operational, signal | 28D |
| 2 | Drivetrain operational, signal | 29B |
| 20 | Steering wheel vibration motor, request | 30H |
| 20 | Steering wheel vibration motor, request | 14E |
| 20 | Steering wheel vibration motor, request | 26G |
| 21 | Steering wheel vibration motor, actuation | 33H |
| 22 | Tire pressure sensor, signal | 8F |
| 22 | Tire pressure sensor, signal | 13E |
| 22 | Tire pressure sensor, signal | 23E |
| 23 | Trailer recognition, status | 11E |
| 23 | Trailer recognition, status | 23E |
| 24 | Braking torque increase, request | 4F |
| 24 | Braking torque increase, request | 15E |
| 25 | Traction system hydraulic unit, actuation | 4E |
| 3 | Wheel speed, signal | 9F |
| 3 | Wheel speed, signal | 26E |
| 4 | Active Lane Keeping Assist button, status | 12E |
| 4 | Active Lane Keeping Assist button, status | 13B |
| 4 | Active Lane Keeping Assist button, status | 26E |
| 5 | Lane Keeping Assist, status | 14F |
| 5 | Lane Keeping Assist, status | 17C |
| 6 | Operating mode, request | 26E |
| 6 | Operating mode, request | 12G |
| 7 | Steering wheel angle sensor, signal | 27H |
| 8 | Steering wheel angle, signal | 14F |
| 8 | Steering wheel angle, signal | 25E |
| 9 | Brake pedal, status | 9F |
| 9 | Brake pedal, status | 25E |
| A1 | Instrument cluster | 18B |
| A105 | Touchpad | 17G |
| A105 | Touchpad | 15G |
| A26/17 | Head unit | 11K |
| A40/11 | Mono multifunction camera | 27E |
| A40/9 | Audio/COMMAND control panel | 20G |
| A7/3 | Traction system hydraulic unit | 5E |
| B25/20 | Driver hands-free system microphone | 8K |
| CAN A | Telematics CAN | 15K |
| CAN B | Interior CAN | 11D |
| CAN B | Interior CAN | 7G |
| CAN B | Interior CAN | 8E |
| CAN B | Interior CAN | 7A |
| CAN C1 | Drive train CAN | 31C |
| CAN H | Vehicle dynamics CAN | 2H |
| CAN HMI | User interface CAN | 11H |
| CAN HMI | User interface CAN | 15D |
| CAN HMI | User interface CAN | 20D |
| CAN HMI | User interface CAN | 15C |
| CAN PER | Peripherals CAN | 28D |
| CAN PER | Peripherals CAN | 15F |
| CAN PER | Peripherals CAN | 20F |
| Code 246 | Analog clock | 29K |
| Code 275 | Memory package | 24K |
| Code 446 | Touchpad only | 13G |
| Code 448 | Touchpad | 16G |
| Code 475 | Tire pressure monitor | 24A |
| Code 550 | Trailer hitch | 2A |
| Flex E | Chassis FlexRay | 15F |
| Flex E | Chassis FlexRay | 7F |
| Flex E | Chassis FlexRay | 20F |
| LIN 1 | Instrument panel LIN | 13B |
| LIN A3 | LCP LIN | 20L |
| LIN A3 | LCP LIN | 31L |
| LIN A3 | LCP LIN | 31L |
| LIN B5 | Left front door LIN | 8J |
| LIN E1 | Steering LIN | 29H |
| M99 | Steering wheel vibration motor | 35J |
| N10/6 | Front SAM control unit | 11A |
| N127 | Drivetrain control unit | 28B |
| N135 | Steering wheel electronics | 32H |
| N2/10 | Supplemental restraint system control unit | 2J |
| N28/1 | Trailer recognition control unit | 2A |
| N3/10 | ME-SFI [ME] control unit | 34A |
| N3/9 | CDI control unit | 34C |
| N30/4 | Electronic Stability Program control unit | 2E |
| N49 | Steering wheel angle sensor | 28J |
| N69/1 | Left front door control unit | 6H |
| N70 | Overhead control panel control unit | 7B |
| N70s3 | Interior lamp automatic function button | 5C |
| N70s6 | Left front reading lamp button | 5C |
| N70s7 | Right front reading lamp button | 5C |
| N72/1 | Upper control panel control unit | 31K |
| N72/1s58 | Vehicle button | 31K |
| N73 | Electronic ignition switch control unit | 11E |
| N80 | Steering column module control unit | 26H |
| N88 | Tire pressure monitor control unit | 25A |
| S163/1 | Instrument cluster multifunction steering wheel button group | 33H |
| S163/2 | Head unit multifunction steering wheel button group | 35H |
| S163/2s10 | Head unit finger navigation pad | 35G |
| S163/2s13 | "Back" button | 35H |
| S20 | Driver-side power window and outside mirror adjustment switch group | 9H |
| S4 | Combination switch | 24J |
| S40/4 | Cruise control lever | 25G |
| S59 | Steering column adjustment switch | 25K |
| S6/1 | Driver-side instrument panel button group | 15A |
| S6/1s2 | Lane Keeping Assist button | 15A |
| U1056 | Valid except code 446 (Touchpad only) | 19G |
| U74 | Valid for diesel engines | 33C |
| U75 | Valid for gasoline engines | 33A |
