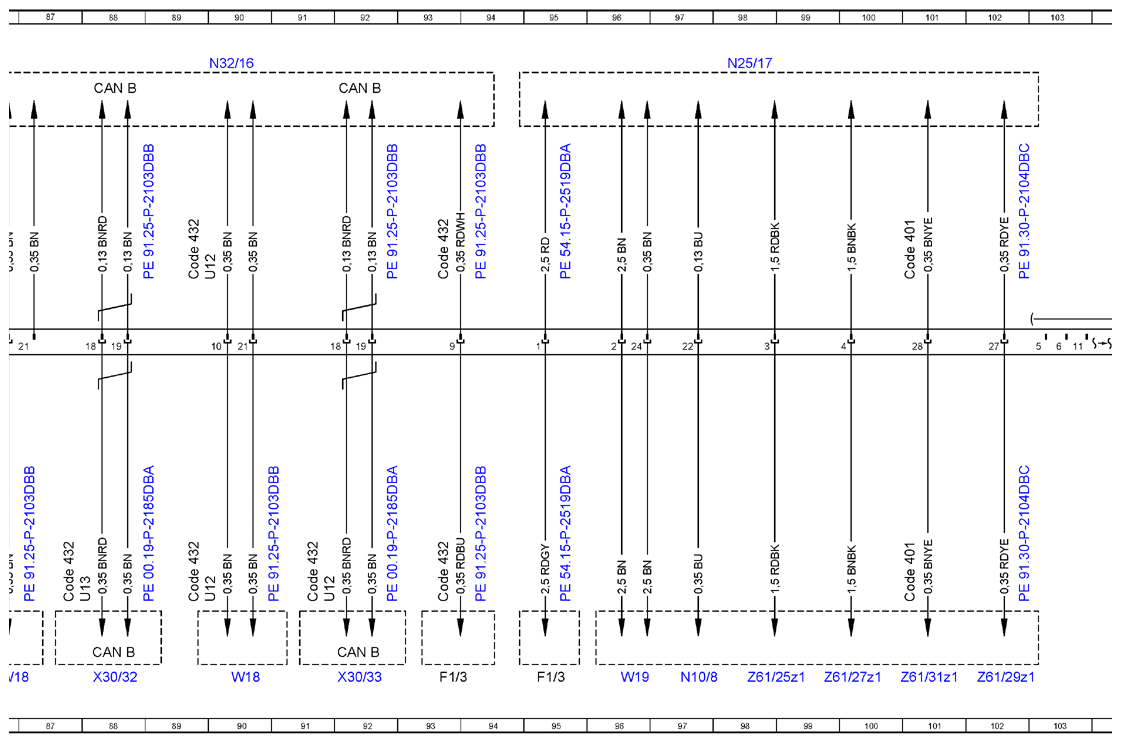

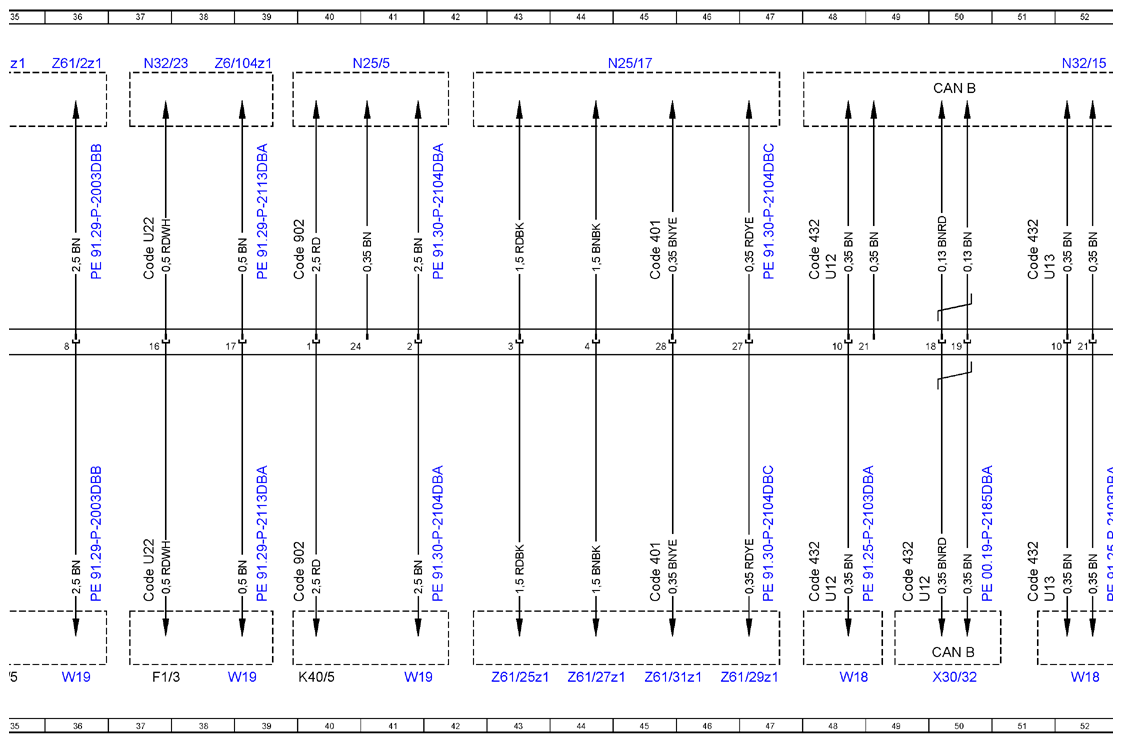

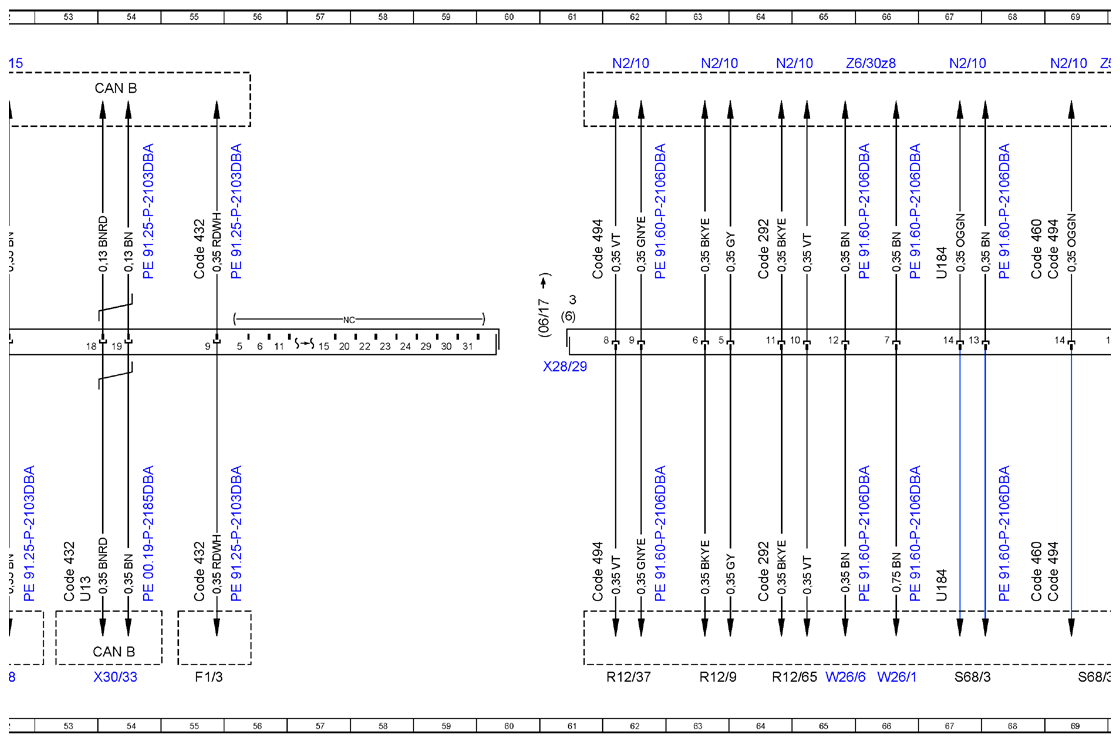

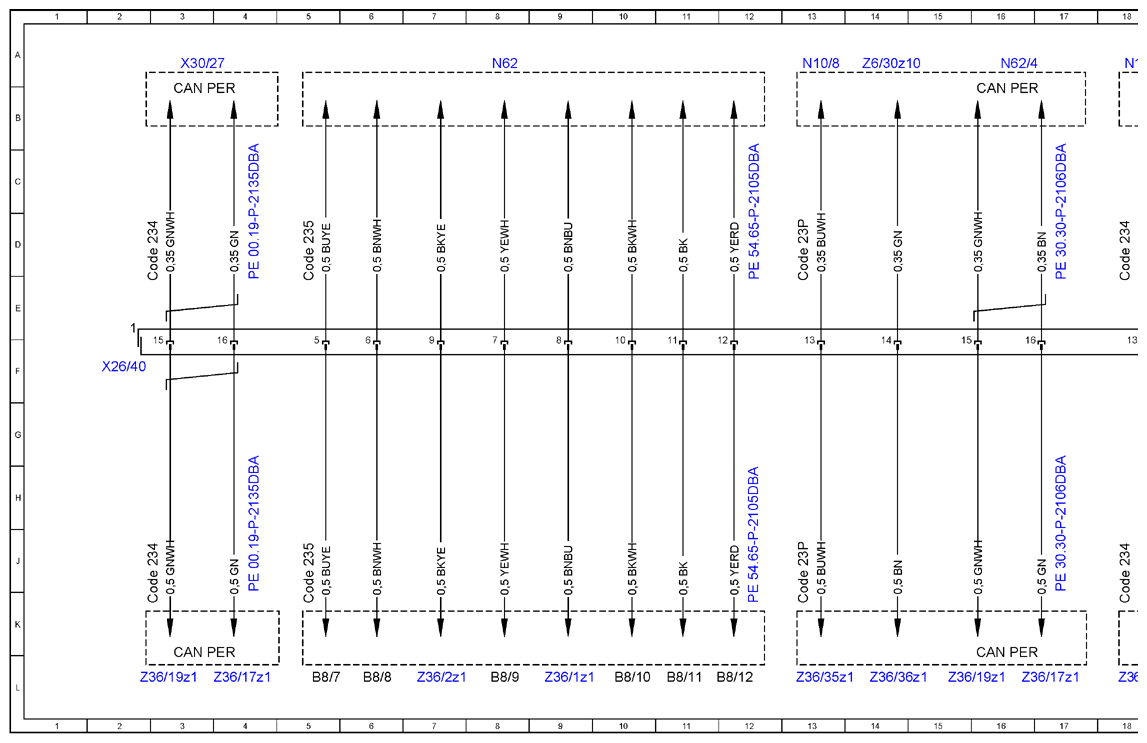

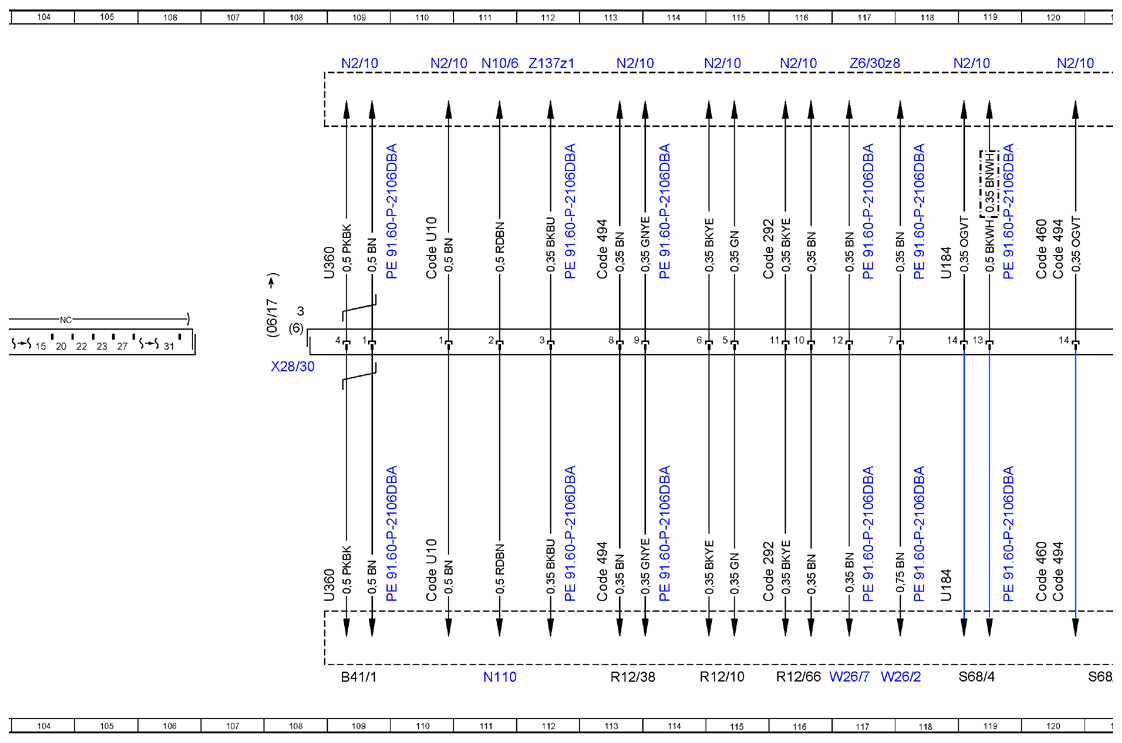

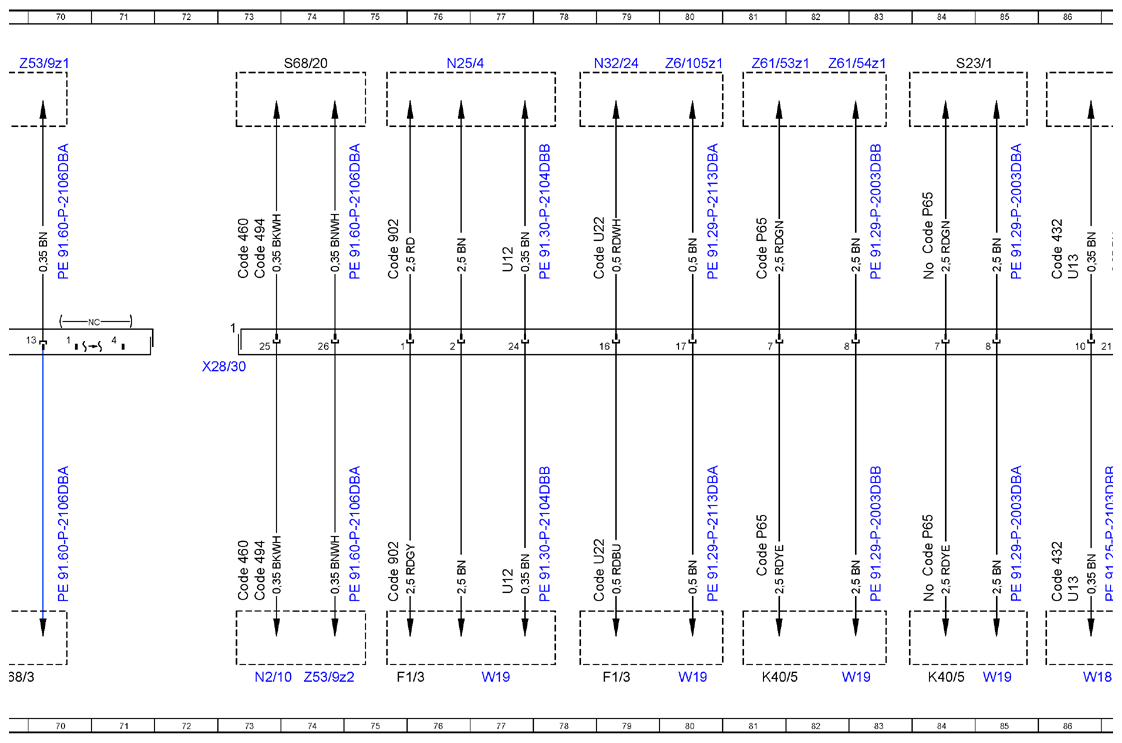

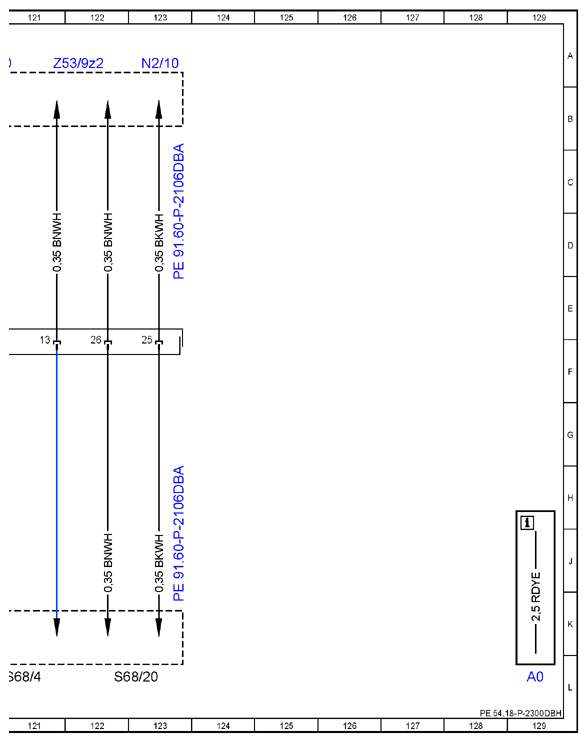

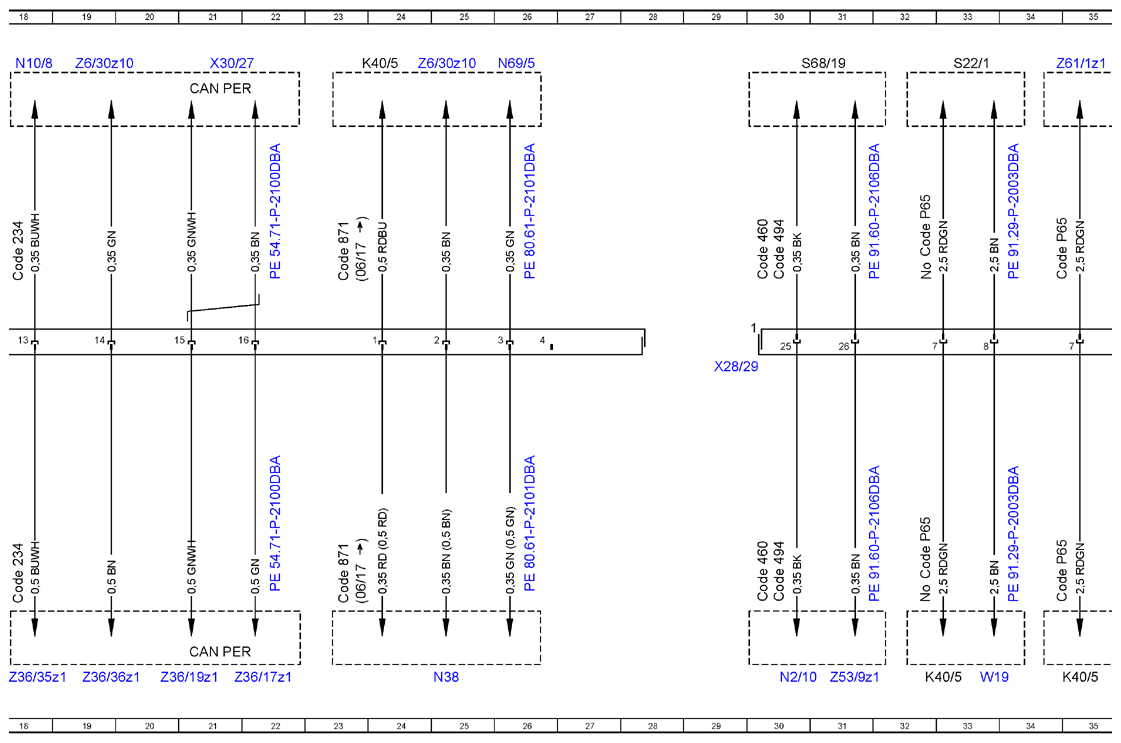

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97DBH
Model 213 up to model year 2021 X26/40(1), X28/29(1), X28/29(3), X28/29(6), X28/30(1), X28/30(3), X28/30(6)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 129L |
| B41/1 | Front passenger seat occupied recognition | 109L |
| B8/10 | Outer left rear parking system distance sensor | 10L |
| B8/11 | Center left rear parking system distance sensor | 11L |
| B8/12 | Center right rear parking system distance sensor | 12L |
| B8/7 | Outer right rear parking system distance sensor | 5L |
| B8/8 | Inner right rear parking system distance sensor | 6L |
| B8/9 | Inner left rear parking system distance sensor | 8L |
| CAN B | Interior CAN | 50L |
| CAN B | Interior CAN | 54L |
| CAN B | Interior CAN | 92L |
| CAN B | Interior CAN | 88L |
| CAN B | Interior CAN | 50B |
| CAN B | Interior CAN | 54B |
| CAN B | Interior CAN | 88B |
| CAN B | Interior CAN | 92B |
| CAN PER | Peripherals CAN | 3L |
| CAN PER | Peripherals CAN | 16L |
| CAN PER | Peripherals CAN | 21L |
| CAN PER | Peripherals CAN | 3B |
| CAN PER | Peripherals CAN | 16B |
| CAN PER | Peripherals CAN | 21B |
| Code 234 | Blind Spot Assist (BSM) | 3K |
| Code 234 | Blind Spot Assist (BSM) | 18K |
| Code 234 | Blind Spot Assist (BSM) | 3E |
| Code 234 | Blind Spot Assist (BSM) | 18E |
| Code 235 | Parking Pilot | 5K |
| Code 235 | Parking Pilot | 5E |
| Code 23P | Driver assistance package PLUS | 13K |
| Code 23P | Driver assistance package PLUS | 13E |
| Code 292 | PRE-SAFE PULSE | 64K |
| Code 292 | PRE-SAFE PULSE | 64E |
| Code 292 | PRE-SAFE PULSE | 116K |
| Code 292 | PRE-SAFE PULSE | 116E |
| Code 401 | Seat climate control for driver and front passenger | 45K |
| Code 401 | Seat climate control for driver and front passenger | 101K |
| Code 401 | Seat climate control for driver and front passenger | 45E |
| Code 401 | Seat climate control for driver and front passenger | 101E |
| Code 432 | Left and right front dynamic multicontour seat | 48K |
| Code 432 | Left and right front dynamic multicontour seat | 49K |
| Code 432 | Left and right front dynamic multicontour seat | 51K |
| Code 432 | Left and right front dynamic multicontour seat | 53K |
| Code 432 | Left and right front dynamic multicontour seat | 55K |
| Code 432 | Left and right front dynamic multicontour seat | 91K |
| Code 432 | Left and right front dynamic multicontour seat | 89K |
| Code 432 | Left and right front dynamic multicontour seat | 87K |
| Code 432 | Left and right front dynamic multicontour seat | 86K |
| Code 432 | Left and right front dynamic multicontour seat | 93K |
| Code 432 | Left and right front dynamic multicontour seat | 48E |
| Code 432 | Left and right front dynamic multicontour seat | 51E |
| Code 432 | Left and right front dynamic multicontour seat | 55E |
| Code 432 | Left and right front dynamic multicontour seat | 89E |
| Code 432 | Left and right front dynamic multicontour seat | 86E |
| Code 432 | Left and right front dynamic multicontour seat | 93E |
| Code 460 | Canada version | 30K |
| Code 460 | Canada version | 73K |
| Code 460 | Canada version | 68K |
| Code 460 | Canada version | 30E |
| Code 460 | Canada version | 73E |
| Code 460 | Canada version | 68E |
| Code 460 | Canada version | 120K |
| Code 460 | Canada version | 120E |
| Code 494 | USA version | 30K |
| Code 494 | USA version | 73K |
| Code 494 | USA version | 69K |
| Code 494 | USA version | 62K |
| Code 494 | USA version | 113K |
| Code 494 | USA version | 30E |
| Code 494 | USA version | 73E |
| Code 494 | USA version | 69E |
| Code 494 | USA version | 62E |
| Code 494 | USA version | 113E |
| Code 494 | USA version | 120K |
| Code 494 | USA version | 120E |
| Code 871 | Sensor system for trunk lid opening/closing | 23K |
| Code 871 | Sensor system for trunk lid opening/closing | 23E |
| Code 902 | Seat heater Plus for driver and front passenger | 40K |
| Code 902 | Seat heater Plus for driver and front passenger | 75K |
| Code 902 | Seat heater Plus for driver and front passenger | 40E |
| Code 902 | Seat heater Plus for driver and front passenger | 75E |
| Code P65 | Seating comfort package | 35K |
| Code P65 | Seating comfort package | 32J |
| Code P65 | Seating comfort package | 84J |
| Code P65 | Seating comfort package | 81J |
| Code P65 | Seating comfort package | 35E |
| Code P65 | Seating comfort package | 32D |
| Code P65 | Seating comfort package | 81E |
| Code P65 | Seating comfort package | 84D |
| Code U10 | Front passenger seat with weight detection | 110K |
| Code U10 | Front passenger seat with weight detection | 110E |
| Code U22 | Lumbar support adjustment | 37K |
| Code U22 | Lumbar support adjustment | 79K |
| Code U22 | Lumbar support adjustment | 37E |
| Code U22 | Lumbar support adjustment | 79E |
| F1/3 | Passenger-side A-pillar fuse box | 37L |
| F1/3 | Passenger-side A-pillar fuse box | 79L |
| F1/3 | Passenger-side A-pillar fuse box | 55L |
| F1/3 | Passenger-side A-pillar fuse box | 75L |
| F1/3 | Passenger-side A-pillar fuse box | 93L |
| F1/3 | Passenger-side A-pillar fuse box | 95L |
| K40/5 | Rear fuse and relay module | 32L |
| K40/5 | Rear fuse and relay module | 35L |
| K40/5 | Rear fuse and relay module | 40L |
| K40/5 | Rear fuse and relay module | 81L |
| K40/5 | Rear fuse and relay module | 84L |
| K40/5 | Rear fuse and relay module | 24A |
| N10/6 | Front SAM control unit | 111A |
| N10/8 | Rear SAM control unit | 97L |
| N10/8 | Rear SAM control unit | 13A |
| N10/8 | Rear SAM control unit | 18A |
| N110 | Weight Sensing System (WSS) control unit | 111L |
| N2/10 | Supplemental restraint system control unit | 30L |
| N2/10 | Supplemental restraint system control unit | 73L |
| N2/10 | Supplemental restraint system control unit | 64A |
| N2/10 | Supplemental restraint system control unit | 63A |
| N2/10 | Supplemental restraint system control unit | 62A |
| N2/10 | Supplemental restraint system control unit | 69A |
| N2/10 | Supplemental restraint system control unit | 67A |
| N2/10 | Supplemental restraint system control unit | 109A |
| N2/10 | Supplemental restraint system control unit | 110A |
| N2/10 | Supplemental restraint system control unit | 113A |
| N2/10 | Supplemental restraint system control unit | 123A |
| N2/10 | Supplemental restraint system control unit | 119A |
| N2/10 | Supplemental restraint system control unit | 115A |
| N2/10 | Supplemental restraint system control unit | 116A |
| N2/10 | Supplemental restraint system control unit | 120A |
| N25/17 | Front seat heater/seat ventilation control unit | 45A |
| N25/17 | Front seat heater/seat ventilation control unit | 98A |
| N25/4 | Front passenger seat heater control unit | 76A |
| N25/5 | Driver seat heater control unit | 41A |
| N32/15 | Left front multicontour seat control unit | 52A |
| N32/16 | Right front multicontour seat control unit | 90A |
| N32/23 | Driver seat lumbar support adjustment control unit | 37A |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 79A |
| N38 | Rear switching module | 25L |
| N62 | Parking system control unit | 8A |
| N62/4 | Intelligent Drive control unit | 16A |
| N69/5 | KEYLESS-GO control unit | 26A |
| R12/10 | Front passenger sidebag squib | 115L |
| R12/37 | Driver-side anchor fitting tensioner squib | 62L |
| R12/38 | Front passenger anchor fitting tensioner squib | 113L |
| R12/65 | Driver seat side PRE-SAFE® Pulse squib | 64L |
| R12/66 | Front passenger seat side PRE-SAFE® Pulse squib | 116L |
| R12/9 | Driver sidebag squib | 63L |
| S22/1 | Driver seat partially electric seat adjustment switch | 33A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 84A |
| S68/19 | Driver seat position detection switch | 31A |
| S68/20 | Front passenger seat position detection switch | 74A |
| S68/20 | Front passenger seat position detection switch | 122L |
| S68/3 | Driver seat belt buckle switch | 67L |
| S68/3 | Driver seat belt buckle switch | 69L |
| S68/4 | Front passenger seat belt buckle switch | 119L |
| S68/4 | Front passenger seat belt buckle switch | 121L |
| U12 | Valid for left-hand drive vehicles | 48K |
| U12 | Valid for left-hand drive vehicles | 50K |
| U12 | Valid for left-hand drive vehicles | 77K |
| U12 | Valid for left-hand drive vehicles | 91K |
| U12 | Valid for left-hand drive vehicles | 90K |
| U12 | Valid for left-hand drive vehicles | 48E |
| U12 | Valid for left-hand drive vehicles | 90E |
| U12 | Valid for left-hand drive vehicles | 77D |
| U13 | Valid for right-hand drive vehicles | 52K |
| U13 | Valid for right-hand drive vehicles | 53K |
| U13 | Valid for right-hand drive vehicles | 88K |
| U13 | Valid for right-hand drive vehicles | 86K |
| U13 | Valid for right-hand drive vehicles | 52E |
| U13 | Valid for right-hand drive vehicles | 86E |
| U184 | Valid without code (494) USA version | 67K |
| U184 | Valid without code (494) USA version | 67E |
| U184 | Valid without code (494) USA version | 118K |
| U184 | Valid without code (494) USA version | 118E |
| U360 | Valid without code (U18) Automatic child seat recognition (ACSR) and without code (U10) Front passenger seat with seat occupancy recognition | 109K |
| U360 | Valid without code (U18) Automatic child seat recognition (ACSR) and without code (U10) Front passenger seat with seat occupancy recognition | 109E |
| W18 | Left front seat crossmember ground point | 52L |
| W18 | Left front seat crossmember ground point | 48L |
| W18 | Left front seat crossmember ground point | 86L |
| W18 | Left front seat crossmember ground point | 90L |
| W19 | Right front seat crossmember ground point | 33L |
| W19 | Right front seat crossmember ground point | 39L |
| W19 | Right front seat crossmember ground point | 36L |
| W19 | Right front seat crossmember ground point | 41L |
| W19 | Right front seat crossmember ground point | 77L |
| W19 | Right front seat crossmember ground point | 80L |
| W19 | Right front seat crossmember ground point | 83L |
| W19 | Right front seat crossmember ground point | 85L |
| W19 | Right front seat crossmember ground point | 96L |
| W26/1 | Driver sidebag ground point | 66L |
| W26/2 | Front passenger sidebag ground point | 117L |
| W26/6 | Driver PrePulse seat ground point | 65L |
| W26/7 | Front passenger PrePulse seat ground point | 117L |
| X26/40 | Rear bumper electrical connector | 2F |
| X28/29 | Frame floor assembly/driver seat electrical connector | 61F |
| X28/29 | Frame floor assembly/driver seat electrical connector | 29F |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 108F |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 73F |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 3A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 21A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 50L |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 88L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 54L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 92L |
| Z137z1 | Left door LIN connector sleeve | 112A |
| Z36/17z1 | Rear sensor CAN (low) connector sleeve | 4L |
| Z36/17z1 | Rear sensor CAN (low) connector sleeve | 17L |
| Z36/17z1 | Rear sensor CAN (low) connector sleeve | 22L |
| Z36/19z1 | Rear sensor CAN (high) connector sleeve | 3L |
| Z36/19z1 | Rear sensor CAN (high) connector sleeve | 15L |
| Z36/19z1 | Rear sensor CAN (high) connector sleeve | 20L |
| Z36/1z1 | Rear parking system sensors ground line connector sleeve | 9L |
| Z36/2z1 | Rear parking system sensors power supply connector sleeve | 7L |
| Z36/35z1 | Rear bumper circuit 15 connector sleeve | 13L |
| Z36/35z1 | Rear bumper circuit 15 connector sleeve | 18L |
| Z36/36z1 | Rear bumper circuit 31 connector sleeve | 14L |
| Z36/36z1 | Rear bumper circuit 31 connector sleeve | 19L |
| Z53/9z1 | Circuit 31 vehicle interior airbag connector sleeve | 31L |
| Z53/9z1 | Circuit 31 vehicle interior airbag connector sleeve | 70A |
| Z53/9z2 | Circuit 31 vehicle interior airbag connector sleeve | 74L |
| Z53/9z2 | Circuit 31 vehicle interior airbag connector sleeve | 121A |
| Z6/104z1 | Driver seat lumbar support ground line connector sleeve | 38A |
| Z6/105z1 | Front passenger seat lumbar support ground line connector sleeve | 80A |
| Z6/30z10 | Circuit 31 connector sleeve | 14A |
| Z6/30z10 | Circuit 31 connector sleeve | 19A |
| Z6/30z10 | Circuit 31 connector sleeve | 25A |
| Z6/30z8 | Circuit 31 connector sleeve | 66A |
| Z6/30z8 | Circuit 31 connector sleeve | 117A |
| Z61/1z1 | Left front seat circuit 30 connector sleeve | 35A |
| Z61/25z1 | Driver seat heater supply connector sleeve | 43L |
| Z61/25z1 | Driver seat heater supply connector sleeve | 98L |
| Z61/27z1 | Driver seat heater ground connection connector sleeve | 44L |
| Z61/27z1 | Driver seat heater ground connection connector sleeve | 99L |
| Z61/29z1 | Driver seat ventilation supply connector sleeve | 46L |
| Z61/29z1 | Driver seat ventilation supply connector sleeve | 102L |
| Z61/2z1 | Left front seat circuit 31 connector sleeve | 36A |
| Z61/31z1 | Driver seat ventilation ground connection connector sleeve | 45L |
| Z61/31z1 | Driver seat ventilation ground connection connector sleeve | 101L |
| Z61/53z1 | Front passenger seat wiring harness connector sleeve, circuit 30 | 81A |
| Z61/54z1 | Front passenger seat wiring harness connector sleeve, circuit 30 | 82A |
