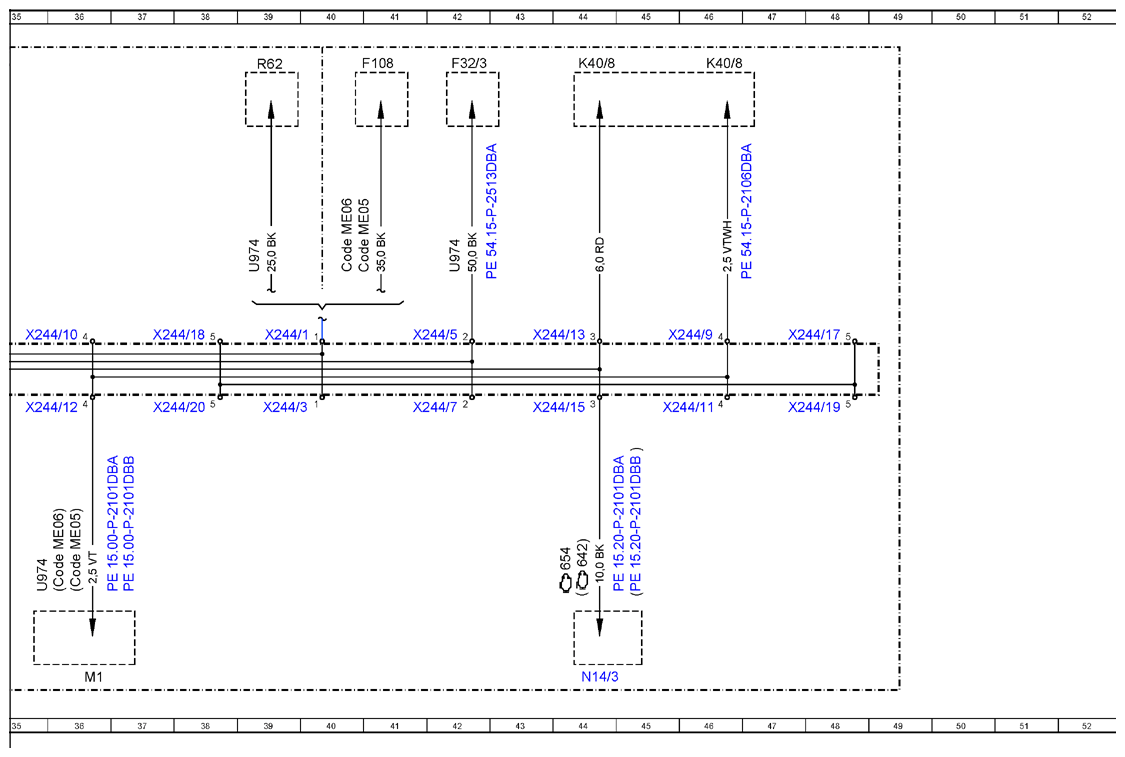

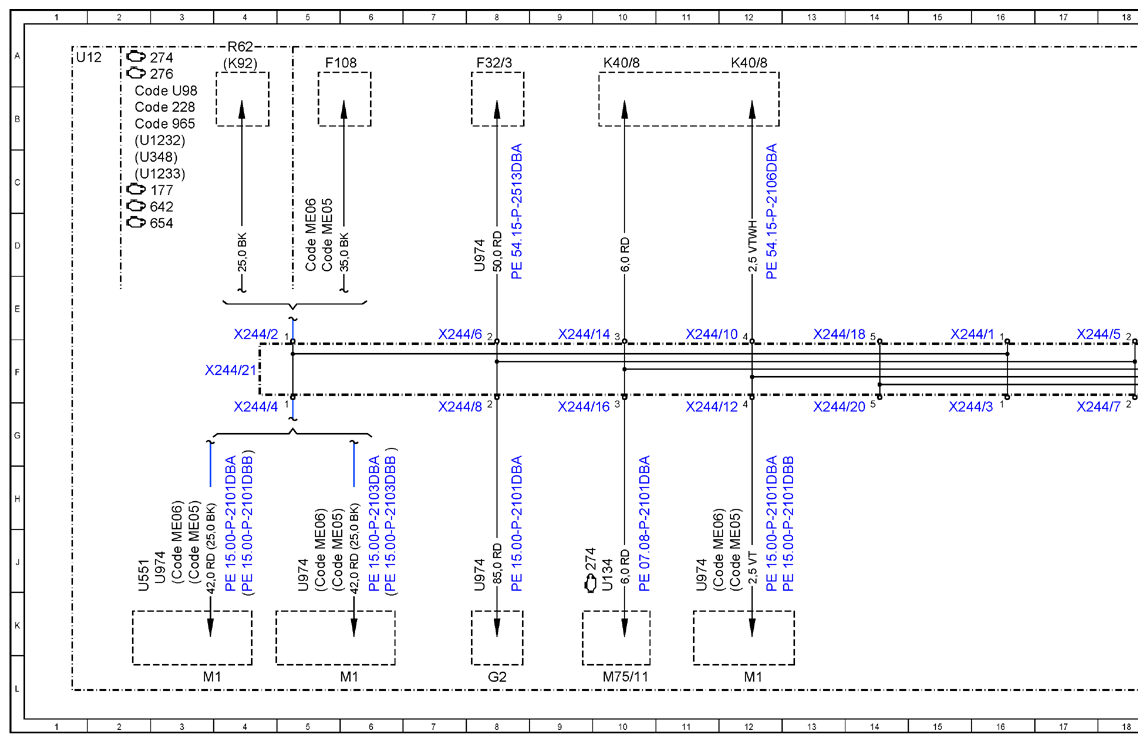

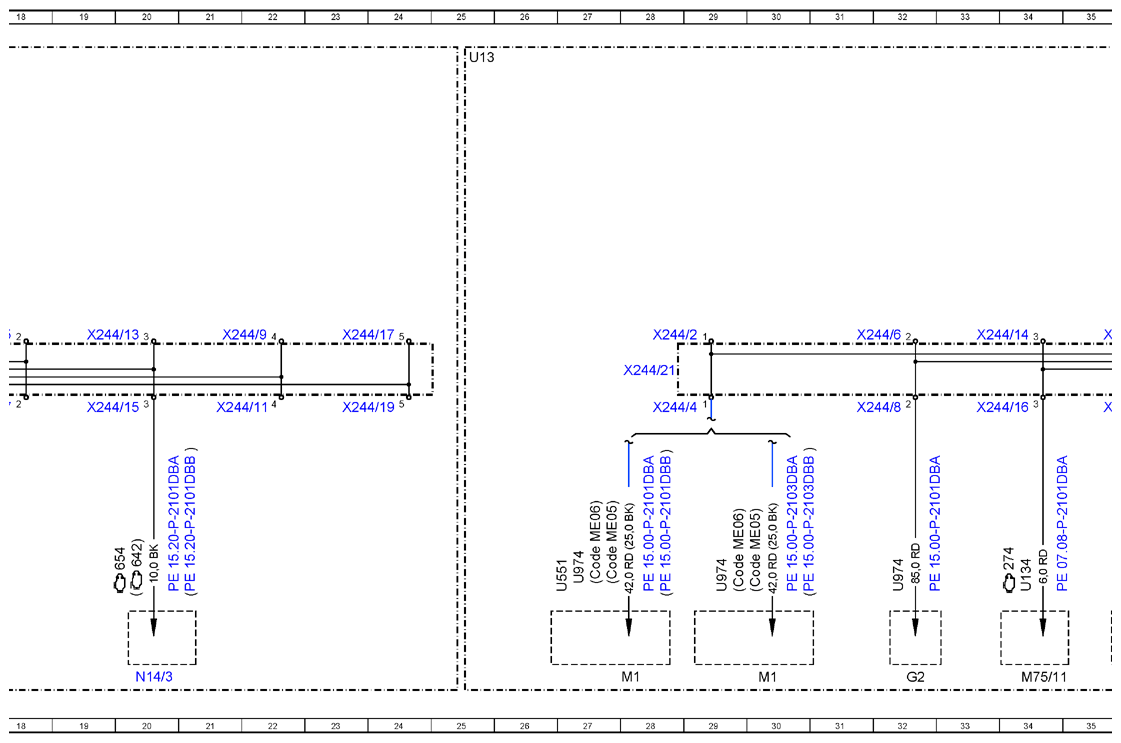

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97DBF
Model 213 up to model year 2021 X244/1, X244/10, X244/11, X244/12, X244/13, X244/14, X244/15, X244/16, X244/17, X244/18, X244/19, X244/2, X244/20, X244/21, X244/3, X244/4, X244/5, X244/6, X244/7, X244/8, X244/9
| Code: | Designation: | Position: |
|---|---|---|

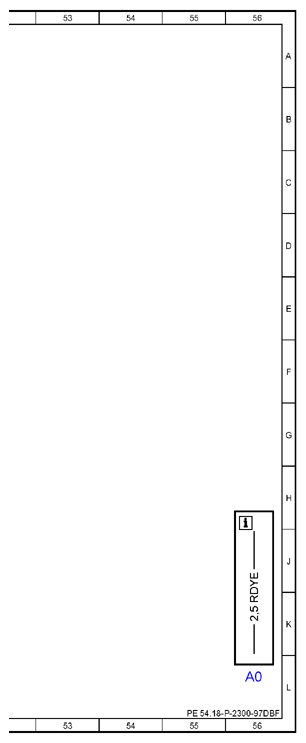

| A0 | Use of wiring diagrams | 56L |
| Code 228 | Stationary heater | 2B |
| Code 965 | Taxi/rental car - Pre-installation | 2B |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG IN) | 5D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 41D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 3J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 6J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 12J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 27J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 30J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 36J |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 3J |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 5J |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 12J |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 27J |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 29J |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 36J |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 5D |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 40D |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 2B |
| F108 | Battery clamp fuse | 5A |
| F108 | Battery clamp fuse | 41A |
| F32/3 | Engine compartment prefuse box | 8A |
| F32/3 | Engine compartment prefuse box | 42A |
| G2 | Alternator | 8L |
| G2 | Alternator | 32L |
| K40/8 | Engine fuse and relay module | 10A |
| K40/8 | Engine fuse and relay module | 12A |
| K40/8 | Engine fuse and relay module | 44A |
| K40/8 | Engine fuse and relay module | 46A |
| K92 | Starter front-end relay | 4A |
| M1 | Starter | 3L |
| M1 | Starter | 6L |
| M1 | Starter | 12L |
| M1 | Starter | 28L |
| M1 | Starter | 30L |
| M1 | Starter | 36L |
| M75/11 | Electric coolant pump | 10L |
| M75/11 | Electric coolant pump | 34L |
| N14/3 | Glow output stage | 20L |
| N14/3 | Glow output stage | 44L |
| R62 | Voltage dip limiter | 4A |
| R62 | Voltage dip limiter | 39A |
| U12 | Valid for left-hand drive vehicles | 1A |
| U1232 | Not valid for code U98 (LITHIUM-ION STARTER BATTERY (LISB)) | 2B |
| U1233 | Not valid for code (965) Electr. preinstallation for taxi and rental car | 2C |
| U13 | Valid for right-hand drive vehicles | 25A |
| U134 | Not valid for M274 (180 kW) | 10J |
| U134 | Not valid for M274 (180 kW) | 34J |
| U348 | Valid without code 228 Stationary heater | 2C |
| U551 | Valid without code (ME06) Hybrid drive 50 KW VARIANT (INCLUDING plug-in) | 2J |
| U551 | Valid without code (ME06) Hybrid drive 50 KW VARIANT (INCLUDING plug-in) | 27J |
| U974 | Not valid for hybrid drive | 8D |
| U974 | Not valid for hybrid drive | 3J |
| U974 | Not valid for hybrid drive | 5J |
| U974 | Not valid for hybrid drive | 8J |
| U974 | Not valid for hybrid drive | 11J |
| U974 | Not valid for hybrid drive | 27J |
| U974 | Not valid for hybrid drive | 29J |
| U974 | Not valid for hybrid drive | 32J |
| U974 | Not valid for hybrid drive | 36J |
| U974 | Not valid for hybrid drive | 39D |
| U974 | Not valid for hybrid drive | 42D |
| X244/1 | Left vehicle-end busbar stud 1 | 16E |
| X244/1 | Left vehicle-end busbar stud 1 | 39E |
| X244/10 | Right vehicle-end busbar stud 4 | 11E |
| X244/10 | Right vehicle-end busbar stud 4 | 36E |
| X244/11 | Left engine-end busbar stud 4 | 22G |
| X244/11 | Left engine-end busbar stud 4 | 46G |
| X244/12 | Right engine-end busbar stud 4 | 11G |
| X244/12 | Right engine-end busbar stud 4 | 36G |
| X244/13 | Left vehicle-end busbar stud 3 | 19E |
| X244/13 | Left vehicle-end busbar stud 3 | 44E |
| X244/14 | Right vehicle-end busbar stud 3 | 9E |
| X244/14 | Right vehicle-end busbar stud 3 | 34E |
| X244/15 | Left engine-end busbar stud 3 | 19G |
| X244/15 | Left engine-end busbar stud 3 | 44G |
| X244/16 | Right engine-end busbar stud 3 | 9G |
| X244/16 | Right engine-end busbar stud 3 | 34G |
| X244/17 | Left vehicle-end busbar stud 5 | 24E |
| X244/17 | Left vehicle-end busbar stud 5 | 48E |
| X244/18 | Right vehicle-end busbar stud 5 | 13E |
| X244/18 | Right vehicle-end busbar stud 5 | 38E |
| X244/19 | Left engine-end busbar stud 5 | 24G |
| X244/19 | Left engine-end busbar stud 5 | 48G |
| X244/2 | Right vehicle-end busbar stud 1 | 4E |
| X244/2 | Right vehicle-end busbar stud 1 | 28E |
| X244/20 | Right engine-end busbar stud 5 | 13G |
| X244/20 | Right engine-end busbar stud 5 | 38G |
| X244/21 | Partition wall busbar | 4F |
| X244/21 | Partition wall busbar | 28F |
| X244/3 | Left engine-end busbar stud 1 | 16G |
| X244/3 | Left engine-end busbar stud 1 | 39G |
| X244/4 | Right engine-end busbar stud 1 | 4G |
| X244/4 | Right engine-end busbar stud 1 | 28G |
| X244/5 | Left vehicle-end busbar stud 2 | 18E |
| X244/5 | Left vehicle-end busbar stud 2 | 42E |
| X244/6 | Right vehicle-end busbar stud 2 | 7E |
| X244/6 | Right vehicle-end busbar stud 2 | 32E |
| X244/7 | Left engine-end busbar stud 2 | 18G |
| X244/7 | Left engine-end busbar stud 2 | 42G |
| X244/8 | Right engine-end busbar stud 2 | 7G |
| X244/8 | Right engine-end busbar stud 2 | 32G |
| X244/9 | Left vehicle-end busbar stud 4 | 22E |
| X244/9 | Left vehicle-end busbar stud 4 | 46E |
