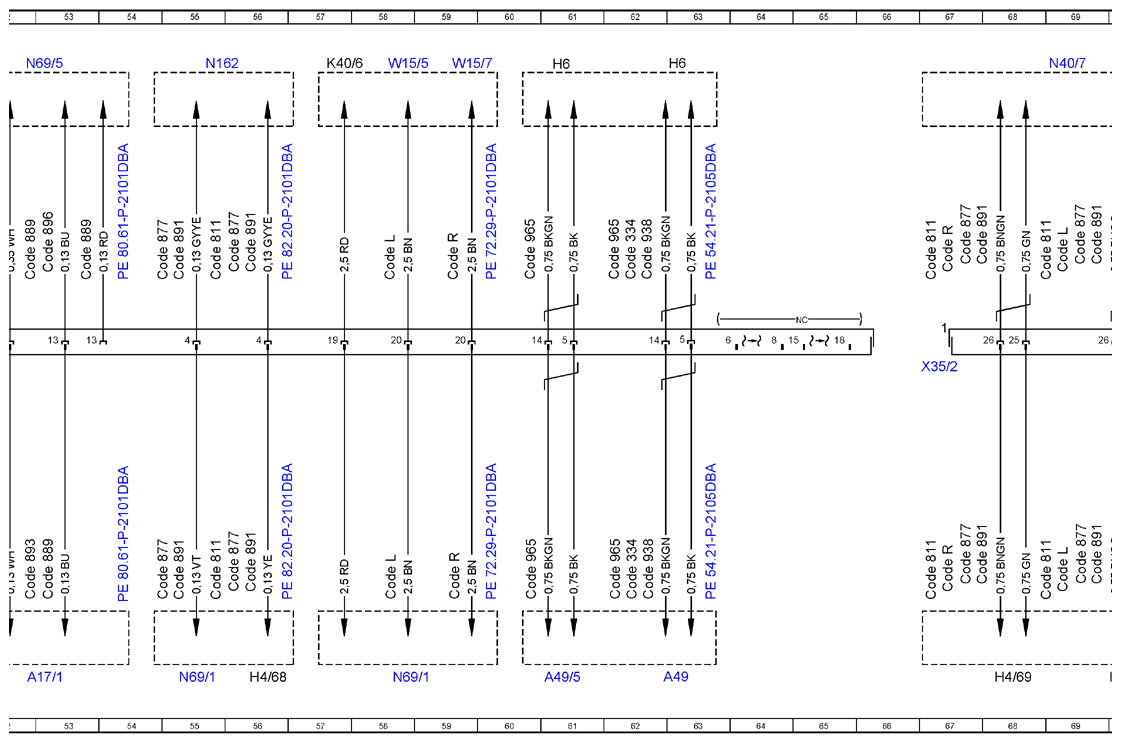

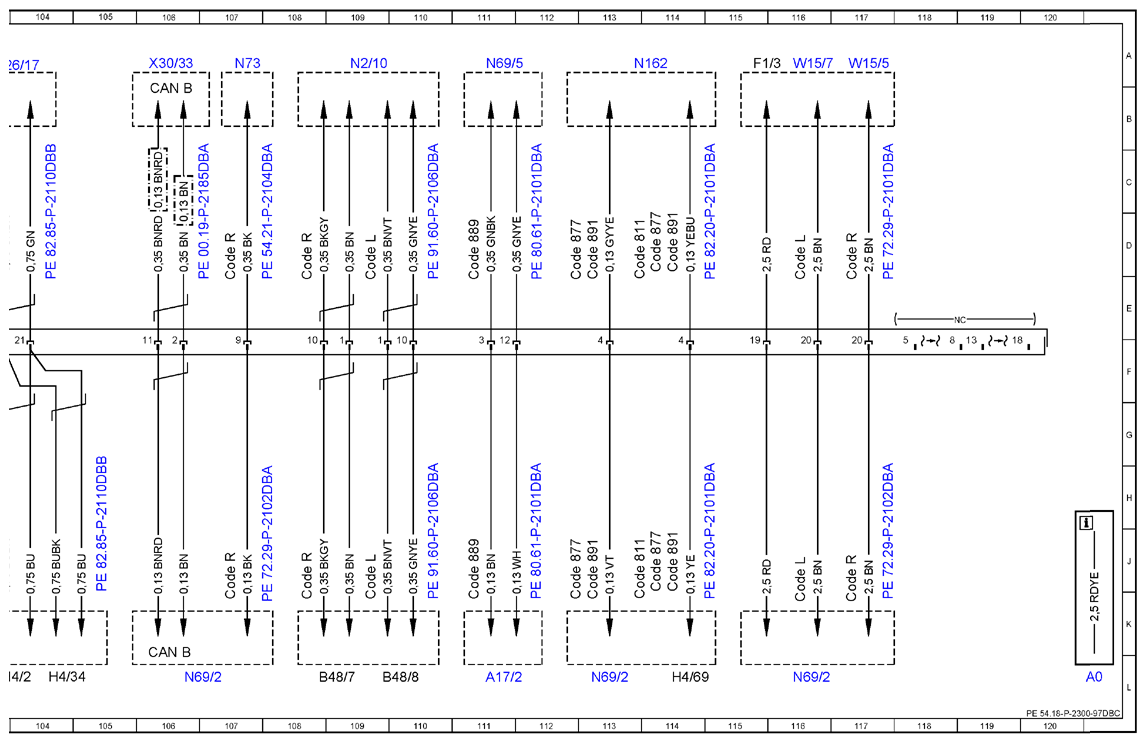

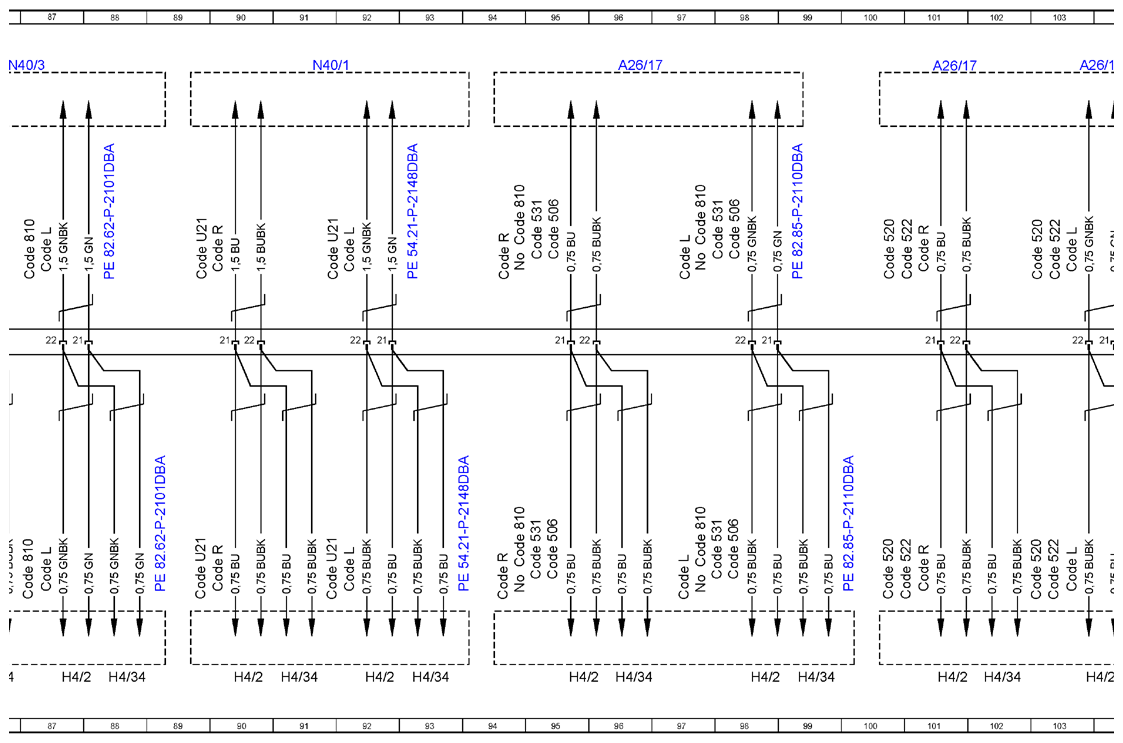

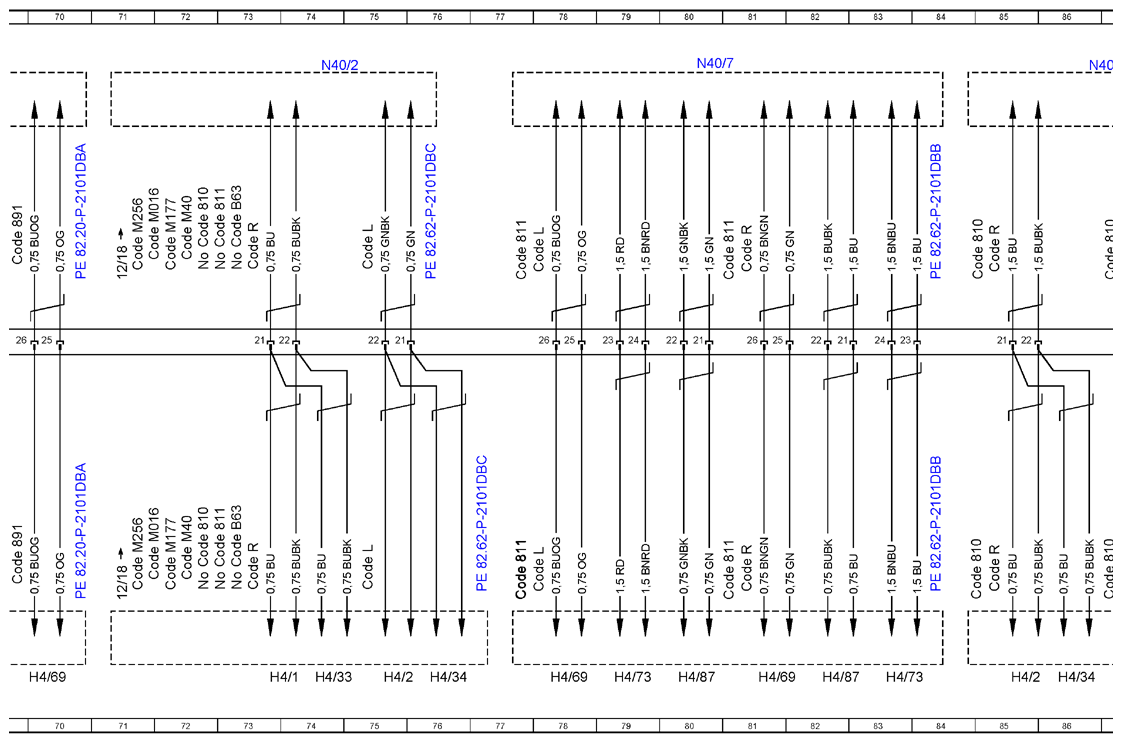

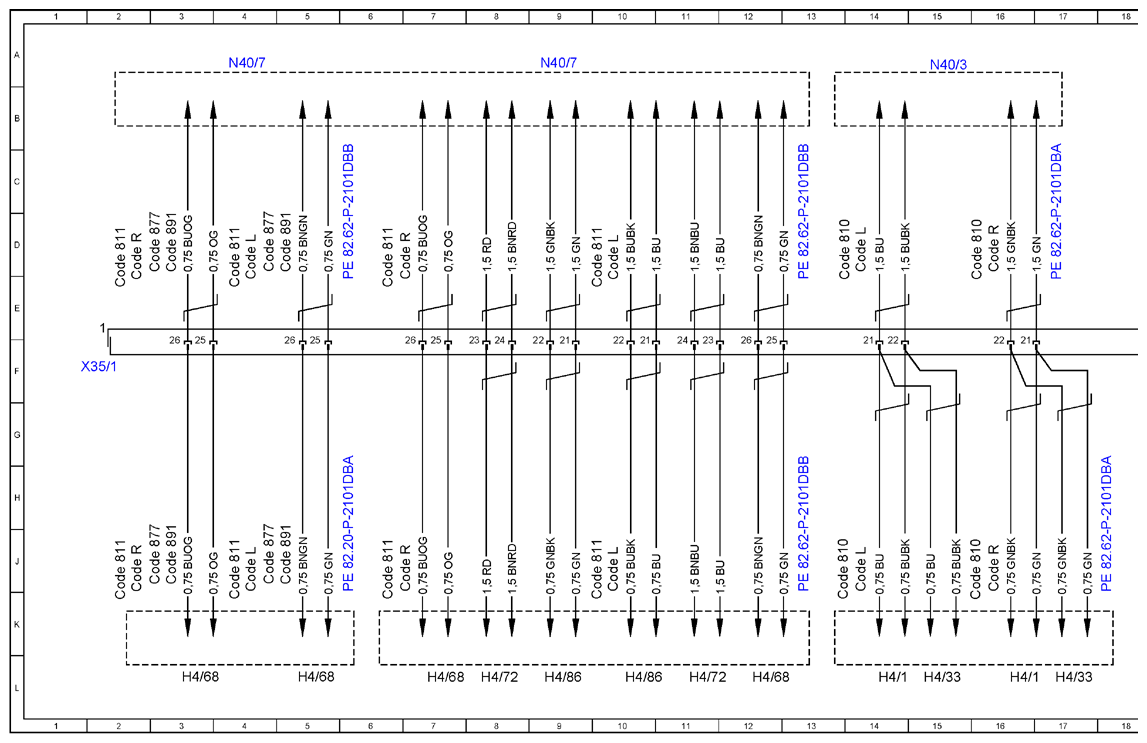

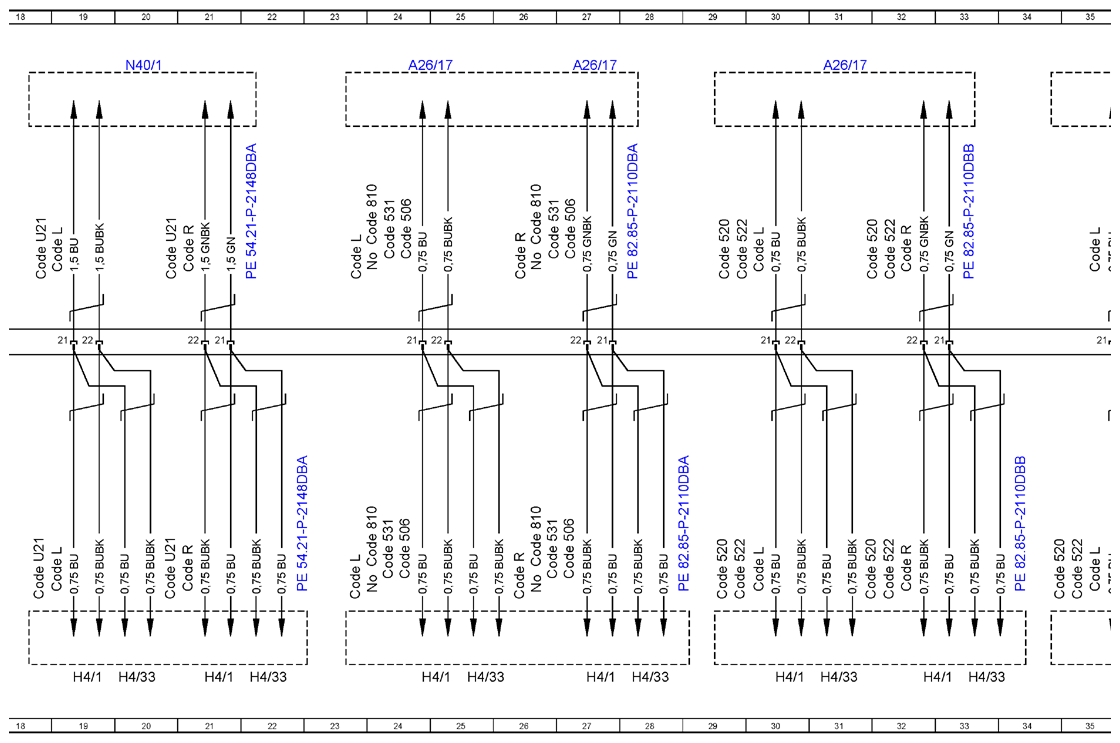

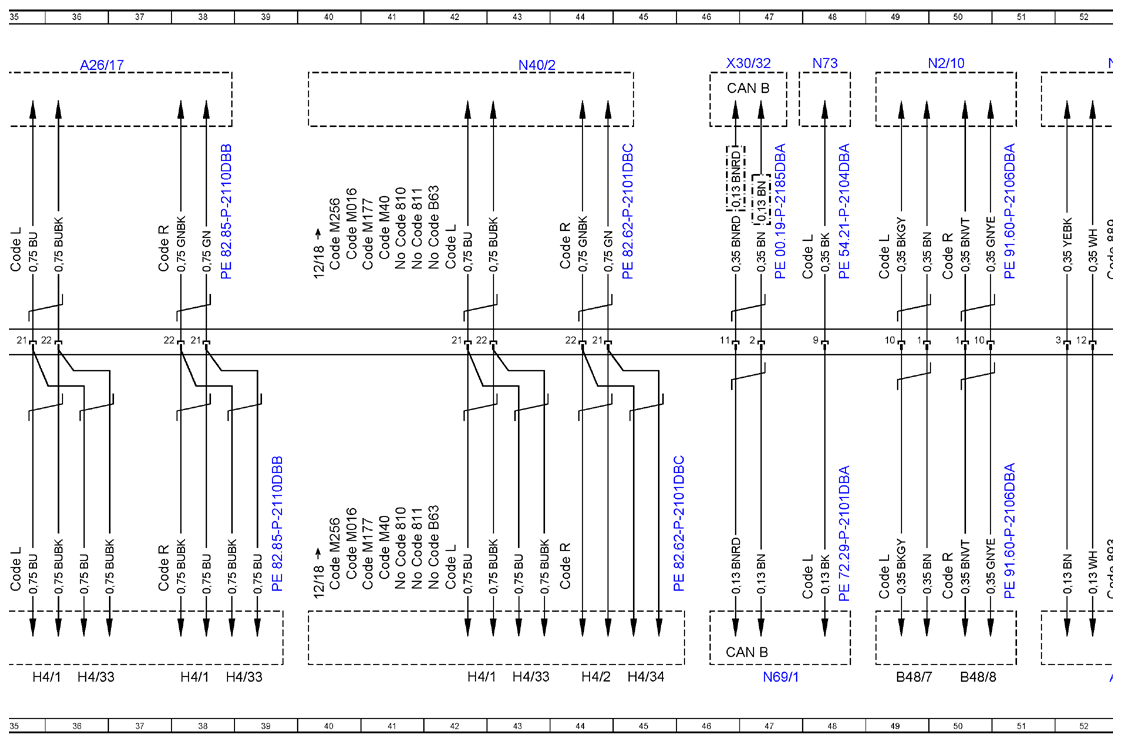

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97DBC
Model 213 up to model year 2021 X35/1(1), X35/2(1)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 121L |
| A17/1 | Left front KEYLESS GO door handle | 52L |
| A17/2 | Right front KEYLESS GO door handle | 111L |
| A26/17 | Head unit | 24A |
| A26/17 | Head unit | 31A |
| A26/17 | Head unit | 96A |
| A26/17 | Head unit | 103A |
| A26/17 | Head unit | 27A |
| A26/17 | Head unit | 101A |
| A26/17 | Head unit | 36A |
| A49 | Two-way radio | 63L |
| A49/5 | Radio data transmission two-way radio | 61L |
| B48/7 | Left front door pressure sensor | 49L |
| B48/7 | Left front door pressure sensor | 109L |
| B48/8 | Right front door pressure sensor | 50L |
| B48/8 | Right front door pressure sensor | 110L |
| CAN B | Interior CAN | 46L |
| CAN B | Interior CAN | 47B |
| CAN B | Interior CAN | 106L |
| CAN B | Interior CAN | 106B |
| Code 334 | Two-way radio bracket in glove compartment | 62E |
| Code 334 | Two-way radio bracket in glove compartment | 62K |
| Code 506 | Audio 20 NTG 5.5 radio | 24J |
| Code 506 | Audio 20 NTG 5.5 radio | 24D |
| Code 506 | Audio 20 NTG 5.5 radio | 27 J |
| Code 506 | Audio 20 NTG 5.5 radio | 27D |
| Code 506 | Audio 20 NTG 5.5 radio | 95D |
| Code 506 | Audio 20 NTG 5.5 radio | 95J |
| Code 506 | Audio 20 NTG 5.5 radio | 98D |
| Code 506 | Audio 20 NTG 5.5 radio | 98J |
| Code 520 | Audio 20 USB | 29K |
| Code 520 | Audio 20 USB | 29E |
| Code 520 | Audio 20 USB | 100K |
| Code 520 | Audio 20 USB | 100E |
| Code 520 | Audio 20 USB | 32K |
| Code 520 | Audio 20 USB | 32E |
| Code 520 | Audio 20 USB | 103E |
| Code 520 | Audio 20 USB | 103K |
| Code 520 | Audio 20 USB | 35K |
| Code 522 | Audio 20 radio | 30K |
| Code 522 | Audio 20 radio | 30E |
| Code 522 | Audio 20 radio | 101K |
| Code 522 | Audio 20 radio | 101E |
| Code 522 | Audio 20 radio | 32K |
| Code 522 | Audio 20 radio | 32E |
| Code 522 | Audio 20 radio | 103E |
| Code 522 | Audio 20 radio | 103K |
| Code 522 | Audio 20 radio | 35K |
| Code 531 | COMMAND APS | 24D |
| Code 531 | COMMAND APS | 24J |
| Code 531 | COMMAND APS | 27J |
| Code 531 | COMMAND APS | 27D |
| Code 531 | COMMAND APS | 95D |
| Code 531 | COMMAND APS | 95J |
| Code 531 | COMMAND APS | 98D |
| Code 531 | COMMAND APS | 98J |
| Code 810 | Sound system | 14K |
| Code 810 | Sound system | 14E |
| Code 810 | Sound system | 85K |
| Code 810 | Sound system | 85E |
| Code 810 | Sound system | 16K |
| Code 810 | Sound system | 16E |
| Code 810 | Sound system | 87K |
| Code 810 | Sound system | 87 E |
| Code 810 | Sound system | 24D |
| Code 810 | Sound system | 24J |
| Code 810 | Sound system | 26J |
| Code 810 | Sound system | 26D |
| Code 810 | Sound system | 94D |
| Code 810 | Sound system | 94J |
| Code 810 | Sound system | 97D |
| Code 810 | Sound system | 97J |
| Code 810 | Sound system | 41J |
| Code 810 | Sound system | 41D |
| Code 810 | Sound system | 72J |
| Code 810 | Sound system | 72D |
| Code 811 | Advanced sound system | 4K |
| Code 811 | Advanced sound system | 4E |
| Code 811 | Advanced sound system | 6K |
| Code 811 | Advanced sound system | 6E |
| Code 811 | Advanced sound system | 10K |
| Code 811 | Advanced sound system | 10E |
| Code 811 | Advanced sound system | 55K |
| Code 811 | Advanced sound system | 55E |
| Code 811 | Advanced sound system | 69K |
| Code 811 | Advanced sound system | 69E |
| Code 811 | Advanced sound system | 77K |
| Code 811 | Advanced sound system | 77K |
| Code 811 | Advanced sound system | 77E |
| Code 811 | Advanced sound system | 81K |
| Code 811 | Advanced sound system | 81E |
| Code 811 | Advanced sound system | 114K |
| Code 811 | Advanced sound system | 114E |
| Code 811 | Advanced sound system | 67K |
| Code 811 | Advanced sound system | 67E |
| Code 811 | Advanced sound system | 2E |
| Code 811 | Advanced sound system | 2K |
| Code 811 | Advanced sound system | 41J |
| Code 811 | Advanced sound system | 41D |
| Code 811 | Advanced sound system | 73J |
| Code 877 | Ambiance illumination | 56J |
| Code 877 | Ambiance illumination | 55K |
| Code 877 | Ambiance illumination | 55E |
| Code 877 | Ambiance illumination | 113K |
| Code 877 | Ambiance illumination | 114J |
| Code 877 | Ambiance illumination | 113E |
| Code 877 | Ambiance illumination | 69J |
| Code 877 | Ambiance illumination | 4J |
| Code 877 | Ambiance illumination | 4D |
| Code 877 | Ambiance illumination | 56D |
| Code 877 | Ambiance illumination | 114D |
| Code 877 | Ambiance illumination | 69D |
| Code 877 | Ambiance illumination | 67J |
| Code 877 | Ambiance illumination | 67D |
| Code 877 | Ambiance illumination | 3D |
| Code 877 | Ambiance illumination | 3J |
| Code 889 | KEYLESS-GO | 53K |
| Code 889 | KEYLESS-GO | 52E |
| Code 889 | KEYLESS-GO | 111K |
| Code 889 | KEYLESS-GO | 111E |
| Code 889 | KEYLESS-GO | 53E |
| Code 891 | Premium ambient lighting | 69D |
| Code 891 | Premium ambient lighting | 114J |
| Code 891 | Premium ambient lighting | 114D |
| Code 891 | Premium ambient lighting | 113E |
| Code 891 | Premium ambient lighting | 113K |
| Code 891 | Premium ambient lighting | 69J |
| Code 891 | Premium ambient lighting | 68J |
| Code 891 | Premium ambient lighting | 68D |
| Code 891 | Premium ambient lighting | 55K |
| Code 891 | Premium ambient lighting | 55E |
| Code 891 | Premium ambient lighting | 56D |
| Code 891 | Premium ambient lighting | 56J |
| Code 891 | Premium ambient lighting | 5D |
| Code 891 | Premium ambient lighting | 5J |
| Code 891 | Premium ambient lighting | 3D |
| Code 891 | Premium ambient lighting | 3J |
| Code 893 | KEYLESS-GO start function | 52K |
| Code 896 | Vehicle access and drive authorization via mobile phone | 53D |
| Code 938 | Hands-free system | 62K |
| Code 938 | Hands-free system | 62E |
| Code 965 | Taxi/rental car - Pre-installation | 60K |
| Code 965 | Taxi/rental car - Pre-installation | 60E |
| Code 965 | Taxi/rental car - Pre-installation | 62E |
| Code 965 | Taxi/rental car - Pre-installation | 62K |
| Code B63 | Sporty engine sound | 42J |
| Code B63 | Sporty engine sound | 42D |
| Code B63 | Sporty engine sound | 73J |
| Code B63 | Sporty engine sound | 73D |
| Code L | LEFT-HAND DRIVE | 14J |
| Code L | LEFT-HAND DRIVE | 19J |
| Code L | LEFT-HAND DRIVE | 30J |
| Code L | LEFT-HAND DRIVE | 14D |
| Code L | LEFT-HAND DRIVE | 19D |
| Code L | LEFT-HAND DRIVE | 30D |
| Code L | LEFT-HAND DRIVE | 48K |
| Code L | LEFT-HAND DRIVE | 49K |
| Code L | LEFT-HAND DRIVE | 87J |
| Code L | LEFT-HAND DRIVE | 92J |
| Code L | LEFT-HAND DRIVE | 48E |
| Code L | LEFT-HAND DRIVE | 49E |
| Code L | LEFT-HAND DRIVE | 87D |
| Code L | LEFT-HAND DRIVE | 92D |
| Code L | LEFT-HAND DRIVE | 103J |
| Code L | LEFT-HAND DRIVE | 109K |
| Code L | LEFT-HAND DRIVE | 103D |
| Code L | LEFT-HAND DRIVE | 109E |
| Code L | LEFT-HAND DRIVE | 116E |
| Code L | LEFT-HAND DRIVE | 58E |
| Code L | LEFT-HAND DRIVE | 58K |
| Code L | LEFT-HAND DRIVE | 4J |
| Code L | LEFT-HAND DRIVE | 4E |
| Code L | LEFT-HAND DRIVE | 10J |
| Code L | LEFT-HAND DRIVE | 10E |
| Code L | LEFT-HAND DRIVE | 69J |
| Code L | LEFT-HAND DRIVE | 69D |
| Code L | LEFT-HAND DRIVE | 78J |
| Code L | LEFT-HAND DRIVE | 78D |
| Code L | LEFT-HAND DRIVE | 23E |
| Code L | LEFT-HAND DRIVE | 23K |
| Code L | LEFT-HAND DRIVE | 97E |
| Code L | LEFT-HAND DRIVE | 97K |
| Code L | LEFT-HAND DRIVE | 116K |
| Code L | LEFT-HAND DRIVE | 35J |
| Code L | LEFT-HAND DRIVE | 35D |
| Code L | LEFT-HAND DRIVE | 42J |
| Code L | LEFT-HAND DRIVE | 42D |
| Code L | LEFT-HAND DRIVE | 75J |
| Code L | LEFT-HAND DRIVE | 75D |
| Code M016 | 40J | |
| Code M016 | 40D | |
| Code M016 | 72J | |
| Code M016 | 72D | |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 41J |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 41D |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 72J |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 72D |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 40J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 40D |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 71J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 71D |
| Code M40 | 41J | |
| Code M40 | 41D | |
| Code M40 | 72J | |
| Code M40 | 72D | |
| Code R | RIGHT-HAND DRIVE | 16J |
| Code R | RIGHT-HAND DRIVE | 21J |
| Code R | RIGHT-HAND DRIVE | 16D |
| Code R | RIGHT-HAND DRIVE | 21D |
| Code R | RIGHT-HAND DRIVE | 50K |
| Code R | RIGHT-HAND DRIVE | 85J |
| Code R | RIGHT-HAND DRIVE | 90J |
| Code R | RIGHT-HAND DRIVE | 50E |
| Code R | RIGHT-HAND DRIVE | 59E |
| Code R | RIGHT-HAND DRIVE | 85D |
| Code R | RIGHT-HAND DRIVE | 90D |
| Code R | RIGHT-HAND DRIVE | 101J |
| Code R | RIGHT-HAND DRIVE | 107K |
| Code R | RIGHT-HAND DRIVE | 108K |
| Code R | RIGHT-HAND DRIVE | 101D |
| Code R | RIGHT-HAND DRIVE | 107E |
| Code R | RIGHT-HAND DRIVE | 108E |
| Code R | RIGHT-HAND DRIVE | 59K |
| Code R | RIGHT-HAND DRIVE | 117E |
| Code R | RIGHT-HAND DRIVE | 7J |
| Code R | RIGHT-HAND DRIVE | 7E |
| Code R | RIGHT-HAND DRIVE | 32J |
| Code R | RIGHT-HAND DRIVE | 32D |
| Code R | RIGHT-HAND DRIVE | 81J |
| Code R | RIGHT-HAND DRIVE | 81D |
| Code R | RIGHT-HAND DRIVE | 26K |
| Code R | RIGHT-HAND DRIVE | 26E |
| Code R | RIGHT-HAND DRIVE | 94E |
| Code R | RIGHT-HAND DRIVE | 94K |
| Code R | RIGHT-HAND DRIVE | 117K |
| Code R | RIGHT-HAND DRIVE | 67J |
| Code R | RIGHT-HAND DRIVE | 67D |
| Code R | RIGHT-HAND DRIVE | 2E |
| Code R | RIGHT-HAND DRIVE | 2J |
| Code R | RIGHT-HAND DRIVE | 37J |
| Code R | RIGHT-HAND DRIVE | 37D |
| Code R | RIGHT-HAND DRIVE | 44J |
| Code R | RIGHT-HAND DRIVE | 44D |
| Code R | RIGHT-HAND DRIVE | 73J |
| Code R | RIGHT-HAND DRIVE | 73D |
| Code U21 | AMG Performance exhaust system | 18K |
| Code U21 | AMG Performance exhaust system | 18E |
| Code U21 | AMG Performance exhaust system | 89K |
| Code U21 | AMG Performance exhaust system | 89E |
| Code U21 | AMG Performance exhaust system | 20K |
| Code U21 | AMG Performance exhaust system | 20E |
| Code U21 | AMG Performance exhaust system | 92E |
| Code U21 | AMG Performance exhaust system | 92K |
| F1/3 | Passenger-side A-pillar fuse box | 115A |
| H4/1 | Left front door midrange speaker | 14L |
| H4/1 | Left front door midrange speaker | 16L |
| H4/1 | Left front door midrange speaker | 19L |
| H4/1 | Left front door midrange speaker | 21L |
| H4/1 | Left front door midrange speaker | 24L |
| H4/1 | Left front door midrange speaker | 27L |
| H4/1 | Left front door midrange speaker | 30L |
| H4/1 | Left front door midrange speaker | 32L |
| H4/1 | Left front door midrange speaker | 35L |
| H4/1 | Left front door midrange speaker | 38L |
| H4/1 | Left front door midrange speaker | 42L |
| H4/1 | Left front door midrange speaker | 73L |
| H4/2 | Right front door midrange speaker | 85L |
| H4/2 | Right front door midrange speaker | 95L |
| H4/2 | Right front door midrange speaker | 87L |
| H4/2 | Right front door midrange speaker | 90L |
| H4/2 | Right front door midrange speaker | 92L |
| H4/2 | Right front door midrange speaker | 98L |
| H4/2 | Right front door midrange speaker | 101L |
| H4/2 | Right front door midrange speaker | 103L |
| H4/2 | Right front door midrange speaker | 44L |
| H4/2 | Right front door midrange speaker | 75L |
| H4/33 | Left front door tweeter | 33L |
| H4/33 | Left front door tweeter | 17L |
| H4/33 | Left front door tweeter | 15L |
| H4/33 | Left front door tweeter | 20L |
| H4/33 | Left front door tweeter | 22L |
| H4/33 | Left front door tweeter | 25L |
| H4/33 | Left front door tweeter | 28L |
| H4/33 | Left front door tweeter | 31L |
| H4/33 | Left front door tweeter | 36L |
| H4/33 | Left front door tweeter | 39L |
| H4/33 | Left front door tweeter | 43L |
| H4/33 | Left front door tweeter | 74L |
| H4/34 | Right front door tweeter | 88L |
| H4/34 | Right front door tweeter | 86L |
| H4/34 | Right front door tweeter | 96L |
| H4/34 | Right front door tweeter | 93L |
| H4/34 | Right front door tweeter | 91L |
| H4/34 | Right front door tweeter | 99L |
| H4/34 | Right front door tweeter | 102L |
| H4/34 | Right front door tweeter | 104L |
| H4/34 | Right front door tweeter | 45L |
| H4/34 | Right front door tweeter | 76L |
| H4/68 | Left front door sound system tweeter | 56L |
| H4/68 | Left front door sound system tweeter | 3L |
| H4/68 | Left front door sound system tweeter | 5L |
| H4/68 | Left front door sound system tweeter | 7L |
| H4/68 | Left front door sound system tweeter | 12L |
| H4/69 | Right front door sound system tweeter | 114L |
| H4/69 | Right front door sound system tweeter | 70L |
| H4/69 | Right front door sound system tweeter | 68L |
| H4/69 | Right front door sound system tweeter | 78L |
| H4/69 | Right front door sound system tweeter | 81L |
| H4/72 | Left front door sound system woofer/midrange speaker | 8L |
| H4/72 | Left front door sound system woofer/midrange speaker | 11L |
| H4/73 | Right front door sound system woofer/midrange speaker | 79L |
| H4/73 | Right front door sound system woofer/midrange speaker | 83L |
| H4/86 | Left front door midrange speaker | 9L |
| H4/86 | Left front door midrange speaker | 10L |
| H4/87 | Right front door midrange speaker | 80L |
| H4/87 | Right front door midrange speaker | 82L |
| H6 | Taxi two-way radio speaker | 61A |
| H6 | Taxi two-way radio speaker | 63A |
| K40/6 | Driver-side fuse and relay module | 57A |
| N162 | Ambiance illumination control unit | 55A |
| N162 | Ambiance illumination control unit | 114A |
| N2/10 | Supplemental restraint system control unit | 50A |
| N2/10 | Supplemental restraint system control unit | 109A |
| N40/1 | Engine sound control unit | 20A |
| N40/1 | Engine sound control unit | 91A |
| N40/2 | Sound system mid line amplifier control unit | 43A |
| N40/2 | Sound system mid line amplifier control unit | 74A |
| N40/3 | Sound system amplifier control unit | 15A |
| N40/3 | Sound system amplifier control unit | 86A |
| N40/7 | Advanced sound system amplifier control unit | 9A |
| N40/7 | Advanced sound system amplifier control unit | 69A |
| N40/7 | Advanced sound system amplifier control unit | 4A |
| N40/7 | Advanced sound system amplifier control unit | 80A |
| N69/1 | Left front door control unit | 47L |
| N69/1 | Left front door control unit | 55L |
| N69/1 | Left front door control unit | 58L |
| N69/2 | Right front door control unit | 106L |
| N69/2 | Right front door control unit | 113L |
| N69/2 | Right front door control unit | 116L |
| N69/5 | KEYLESS-GO control unit | 52A |
| N69/5 | KEYLESS-GO control unit | 111A |
| N73 | Electronic ignition switch control unit | 48A |
| N73 | Electronic ignition switch control unit | 107A |
| W15/5 | Left front footwell ground point | 117A |
| W15/5 | Left front footwell ground point | 58A |
| W15/7 | Right front footwell ground point | 59A |
| W15/7 | Right front footwell ground point | 116A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 46A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 106A |
| X35/1 | Driver door electrical connector | 2F |
| X35/2 | Front passenger door electrical connector | 67F |
