Wiring Diagram Of Head Unit - PE82.85-P-2110-97DBB
Model 213 up to model year 2021
with code 520 (Audio 20 USB)
except code 522 (Audio 20 radio)
except code 531 (COMAND APS) Head unit A26/17
Model 213 up to model year 2021
with code 522 (Audio 20 radio)
except code 520 (Audio 20 USB)
except code 531 (COMAND APS) Head unit A26/17
| Code: | Designation: | Position: |
|---|---|---|

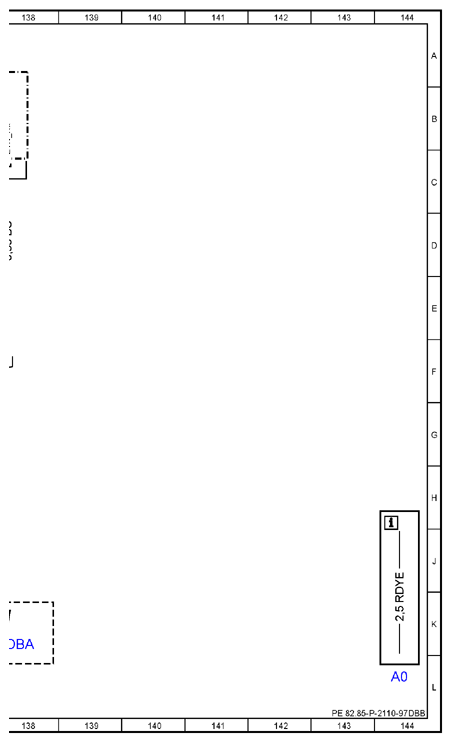

| A0 | Use of wiring diagrams | 144L |
| A2/108 | FM 2 and DAB band III antenna amplifier | 131L |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 128L |

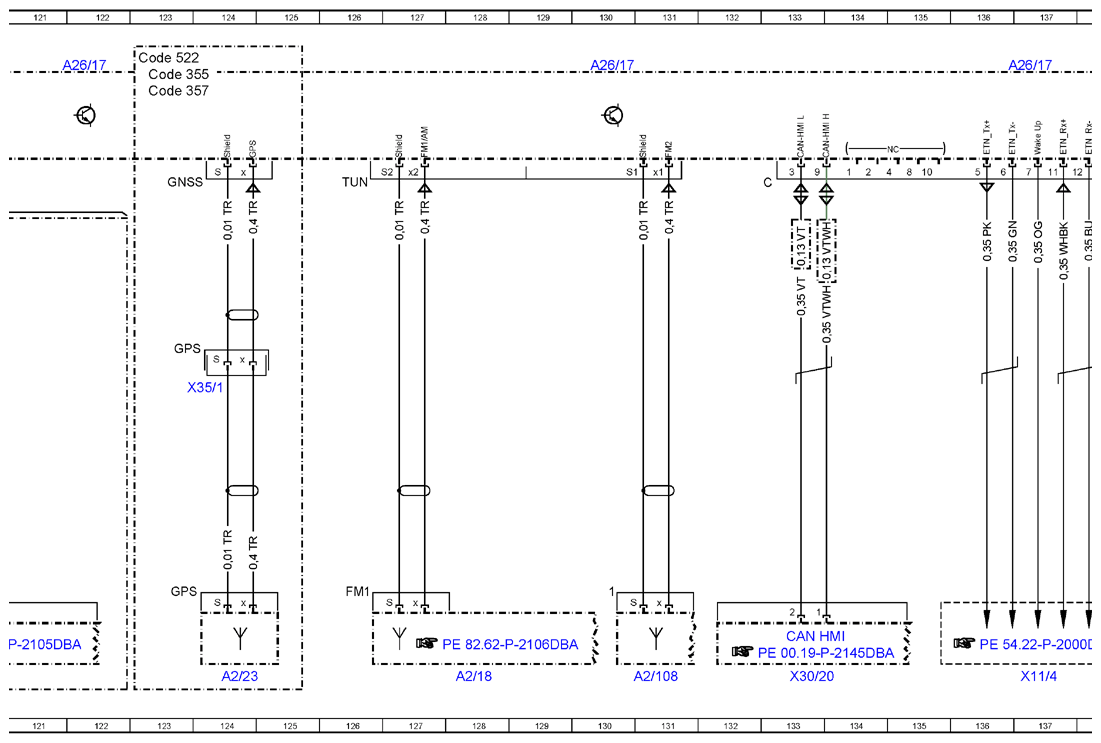

| A2/23 | GPS antenna | 124L |

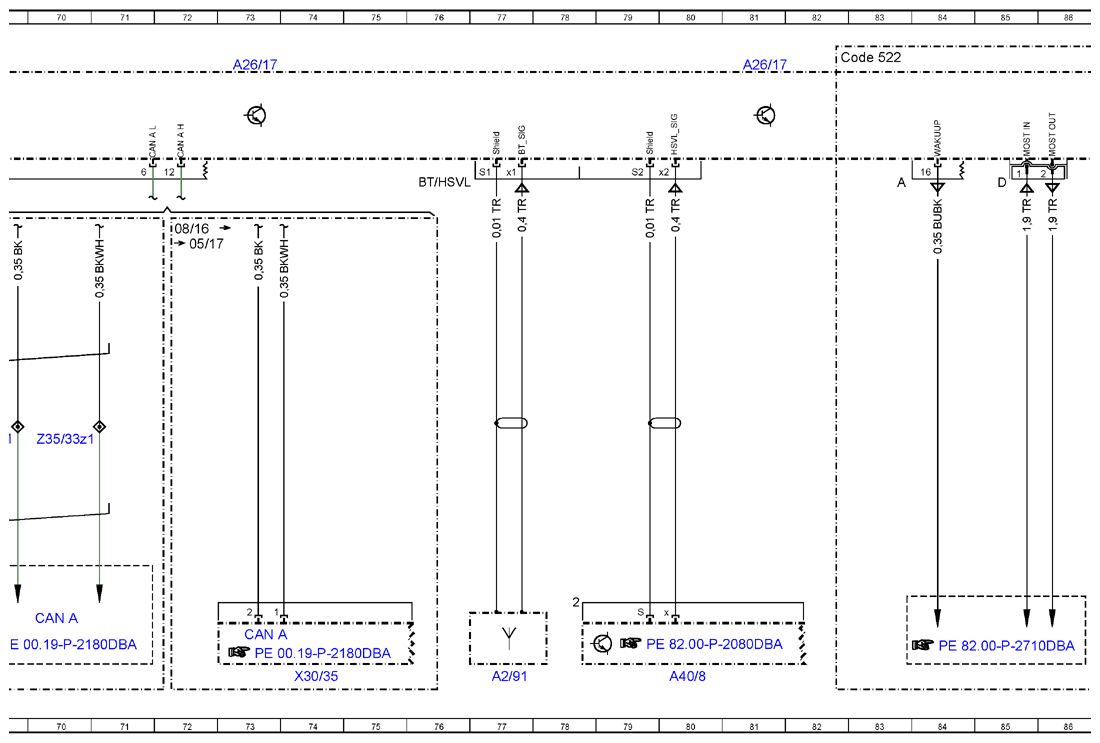

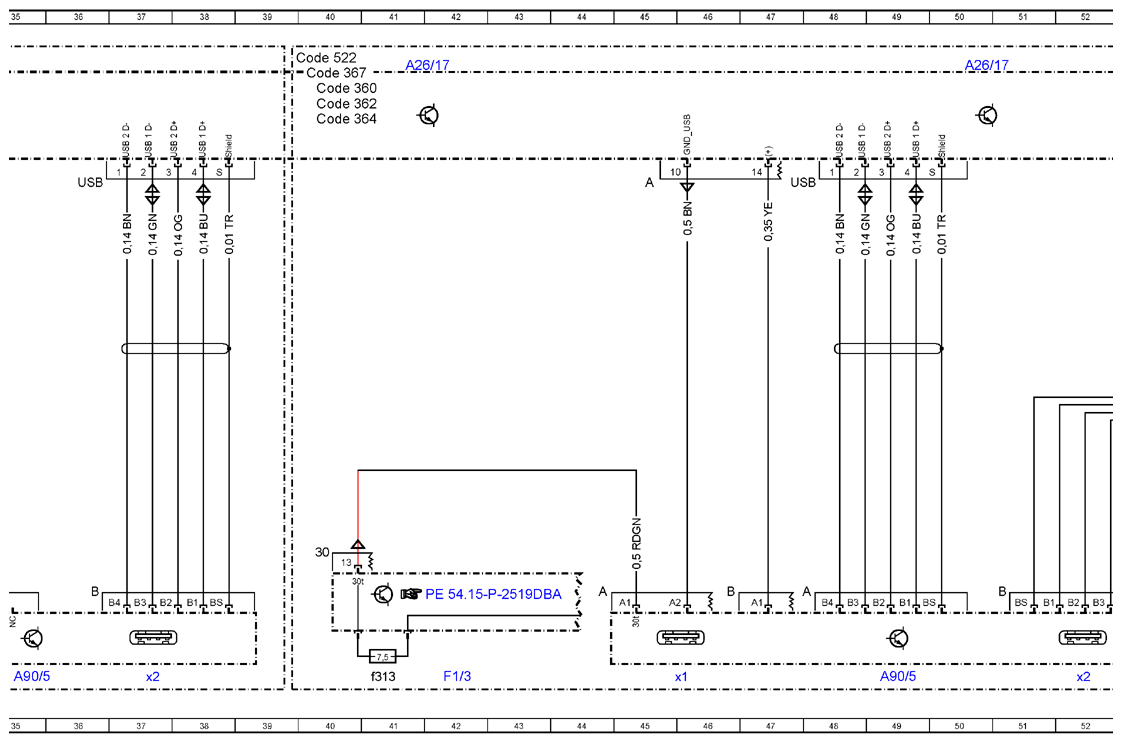

| A2/91 | Bluetooth® antenna | 77L |
| A26/17 | Head unit | 4A |
| A26/17 | Head unit | 14A |
| A26/17 | Head unit | 24A |
| A26/17 | Head unit | 32A |
| A26/17 | Head unit | 41A |
| A26/17 | Head unit | 50A |
| A26/17 | Head unit | 58A |
| A26/17 | Head unit | 73A |
| A26/17 | Head unit | 66A |
| A26/17 | Head unit | 97A |
| A26/17 | Head unit | 81A |
| A26/17 | Head unit | 89A |
| A26/17 | Head unit | 105A |
| A26/17 | Head unit | 114A |
| A26/17 | Head unit | 130A |
| A26/17 | Head unit | 122A |
| A26/17 | Head unit | 137A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 13L |
| A40/8 | Audio/COMMAND display | 80L |
| A90/5 | Multimedia connection unit | 23L |
| A90/5 | Multimedia connection unit | 35L |
| A90/5 | Multimedia connection unit | 49L |

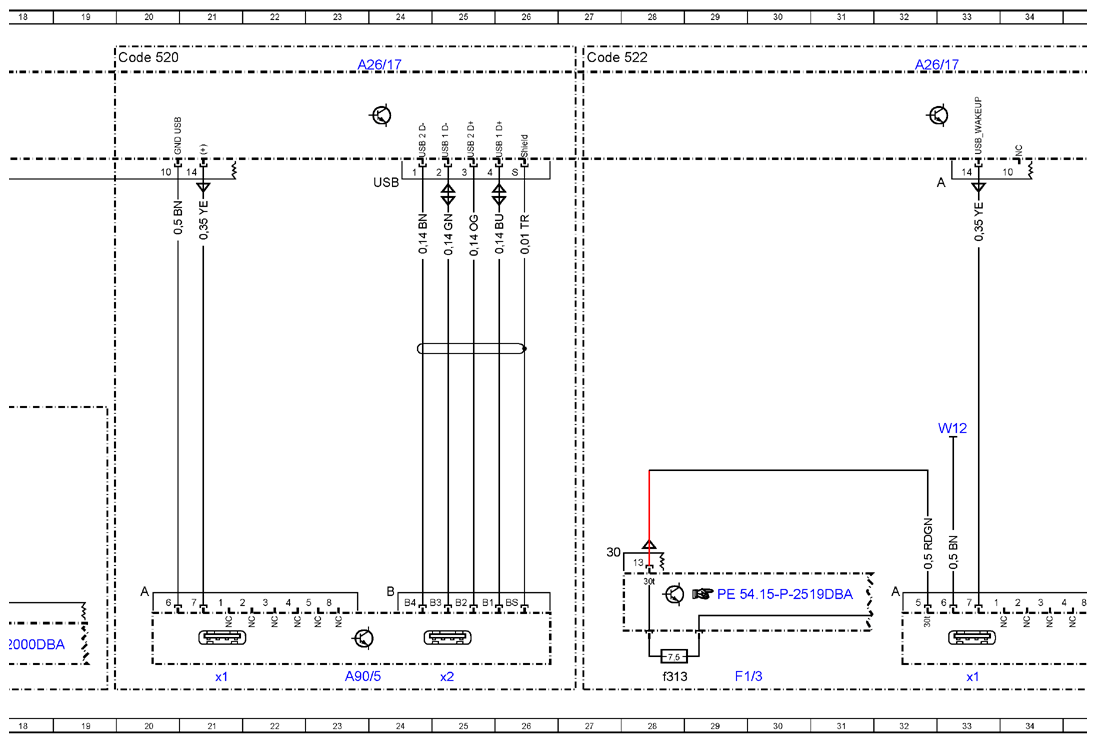

| A90/5x1 | USB connector 1 | 21L |
| A90/5x1 | USB connector 1 | 33L |
| A90/5x1 | USB connector 1 | 45L |
| A90/5x2 | USB connector 2 | 25L |
| A90/5x2 | USB connector 2 | 37L |
| A90/5x2 | USB connector 2 | 52L |

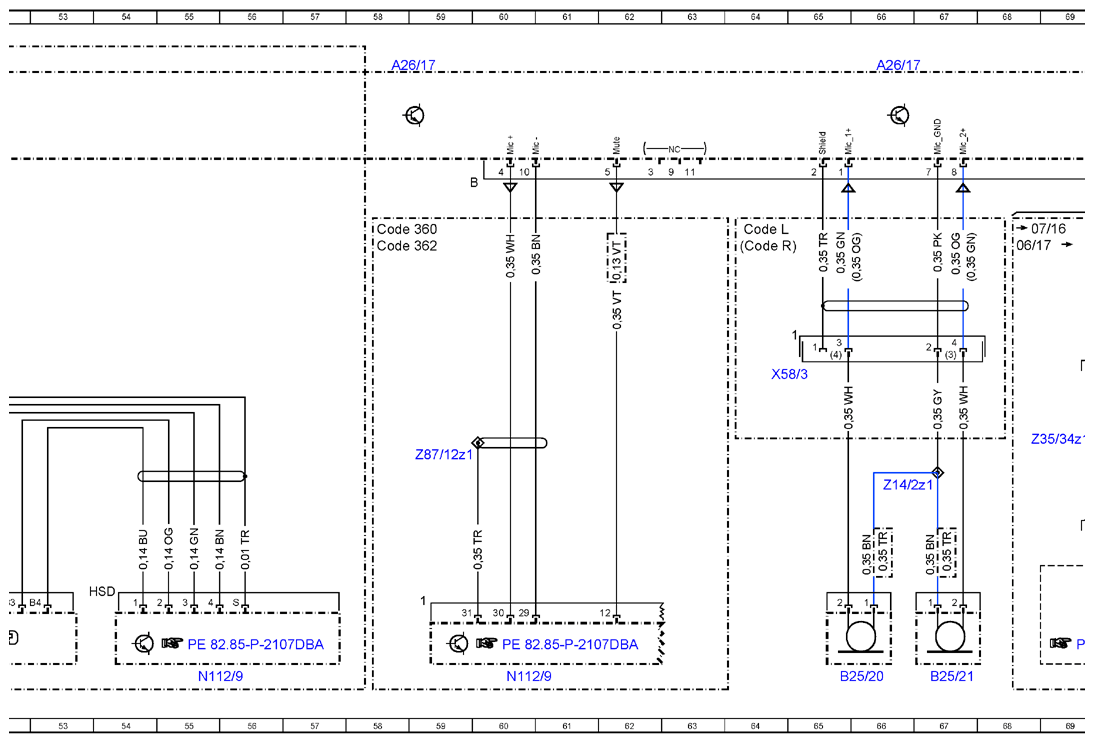

| B25/20 | Driver hands-free system microphone | 66L |
| B25/21 | Front passenger hands-free system microphone | 67L |
| B84/3x2 | Reversing camera electrical connector 2 | 115H |
| CAN A | Telematics CAN | 70K |
| CAN A | Telematics CAN | 73K |
| CAN HMI | User interface CAN | 133K |
| Code 218 | Backup camera | 114D |
| Code 235 | Active Park Assist | 118D |
| Code 355 | Preinstallation for navigation retrofit | 123A |
| Code 357 | Card navigation | 123B |
| Code 360 | HERMES UMTS | 58D |
| Code 360 | HERMES UMTS | 40B |
| Code 362 | HERMES LTE | 58D |
| Code 362 | HERMES LTE | 40B |
| Code 364 | HERMES UMTS communications module for Russia | 40B |
| Code 367 | Live Traffic Information | 40A |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 7G |
| Code 386 | Comfort telephony | 7G |
| Code 386 | Comfort telephony | 11G |
| Code 501 | Surround View camera | 118D |
| Code 520 | Audio 20 USB | 20A |
| Code 522 | Audio 20 radio | 27A |
| Code 522 | Audio 20 radio | 39A |
| Code 522 | Audio 20 radio | 82A |
| Code 522 | Audio 20 radio | 123A |
| Code 810 | Sound system | 108D |
| Code 811 | Advanced sound system | 108D |
| Code 897 | Wireless mobile phone charging | 15G |
| Code 899 | Wireless phone charging at front and antenna | 15G |
| Code 899 | Wireless phone charging at front and antenna | 11G |

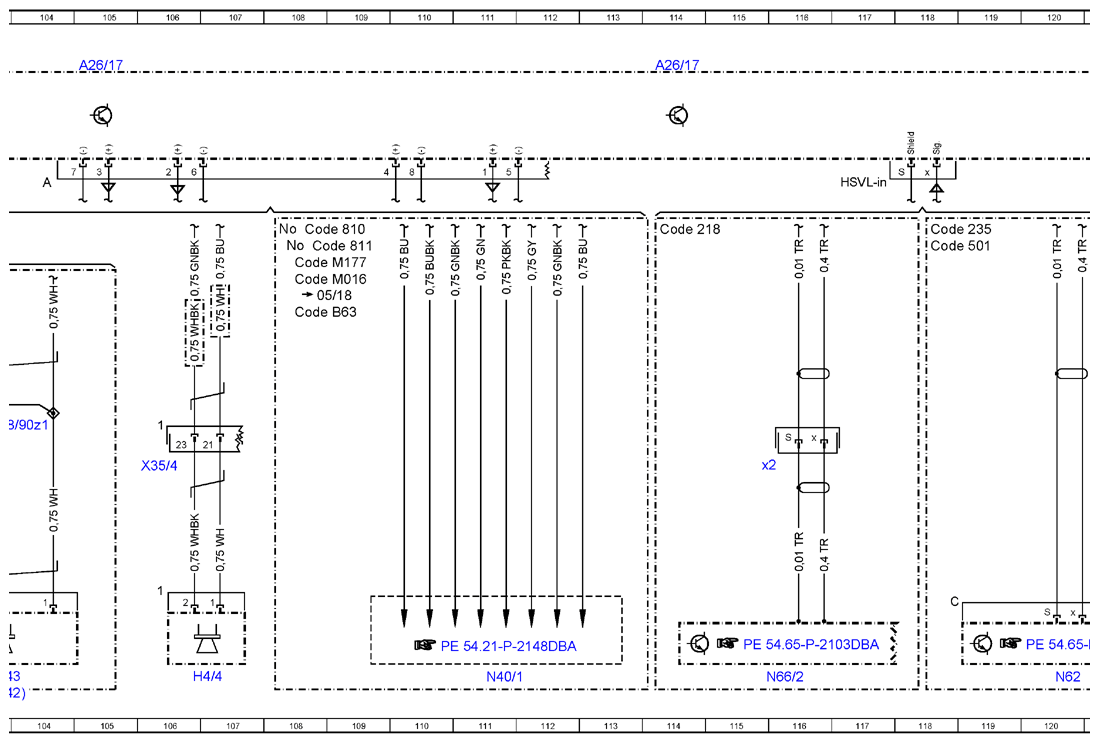

| Code B63 | Sporty engine sound | 108E |
| Code L | LEFT-HAND DRIVE | 102H |
| Code L | LEFT-HAND DRIVE | 64D |
| Code L | LEFT-HAND DRIVE | 87D |
| Code L | LEFT-HAND DRIVE | 97F |
| Code M016 | Uprated high-performance engine | 108E |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 108D |
| Code R | RIGHT-HAND DRIVE | 102H |
| Code R | RIGHT-HAND DRIVE | 64D |
| Code R | RIGHT-HAND DRIVE | 87D |
| Code R | RIGHT-HAND DRIVE | 97F |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3 | Passenger-side A-pillar fuse box | 29L |
| F1/3 | Passenger-side A-pillar fuse box | 42L |
| F1/3f313 | Fuse 313 | 28L |
| F1/3f313 | Fuse 313 | 41L |
| F1/3f317 | Fuse 317 | 3L |

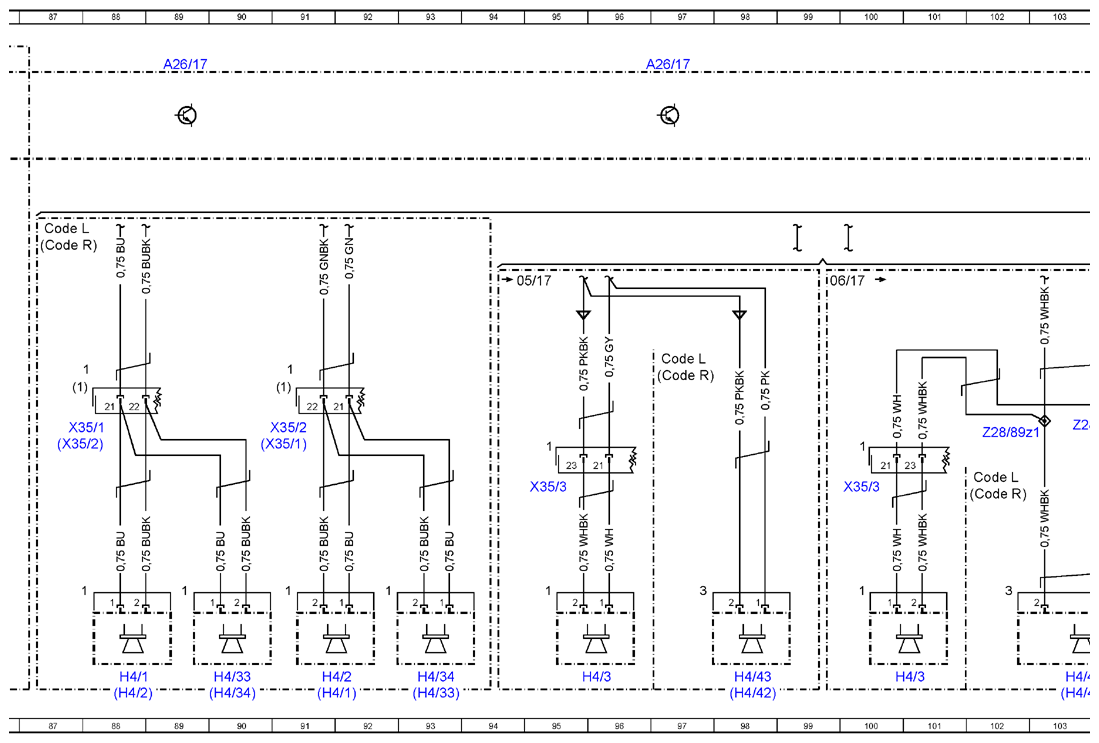

| H4/1 | Left front door midrange speaker | 91L |
| H4/1 | Left front door midrange speaker | 88L |
| H4/2 | Right front door midrange speaker | 91L |
| H4/2 | Right front door midrange speaker | 88L |
| H4/3 | Left rear door midrange speaker | 96L |
| H4/3 | Left rear door midrange speaker | 100L |
| H4/33 | Left front door tweeter | 90L |
| H4/33 | Left front door tweeter | 93L |
| H4/34 | Right front door tweeter | 90L |
| H4/34 | Right front door tweeter | 93L |
| H4/4 | Right rear door midrange speaker | 106L |
| H4/42 | Left front footwell woofer | 98L |
| H4/42 | Left front footwell woofer | 103L |
| H4/43 | Right front footwell woofer | 98L |
| H4/43 | Right front footwell woofer | 103L |
| N112/9 | HERMES control unit | 55L |
| N112/9 | HERMES control unit | 60L |
| N123/8 | Front mobile phone cradle control unit | 17L |
| N40/1 | Engine sound control unit | 111L |
| N62 | Parking system control unit | 120L |
| N66/2 | Backup camera control unit | 116L |
| W12 | Left center console ground point | 3G |
| W12 | Left center console ground point | 33G |
| X11/4 | Diagnostic connector | 137L |
| X237/1 | Mobile phone contact plate | 9L |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 133L |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 74L |
| X35/1 | Driver door electrical connector | 91G |
| X35/1 | Driver door electrical connector | 88G |
| X35/1 | Driver door electrical connector | 124F |
| X35/2 | Front passenger door electrical connector | 87G |
| X35/2 | Front passenger door electrical connector | 91G |
| X35/3 | Left rear door electrical connector | 95H |
| X35/3 | Left rear door electrical connector | 100H |
| X35/4 | Right rear door electrical connector | 106H |
| X58/3 | Microphone electrical connector | 65F |
| Z14/2z1 | Microphone connector sleeve (-) | 66H |
| Z28/89z1 | Right front woofer connector sleeve (+) | 102G |
| Z28/90z1 | Right front woofer connector sleeve (-) | 104G |

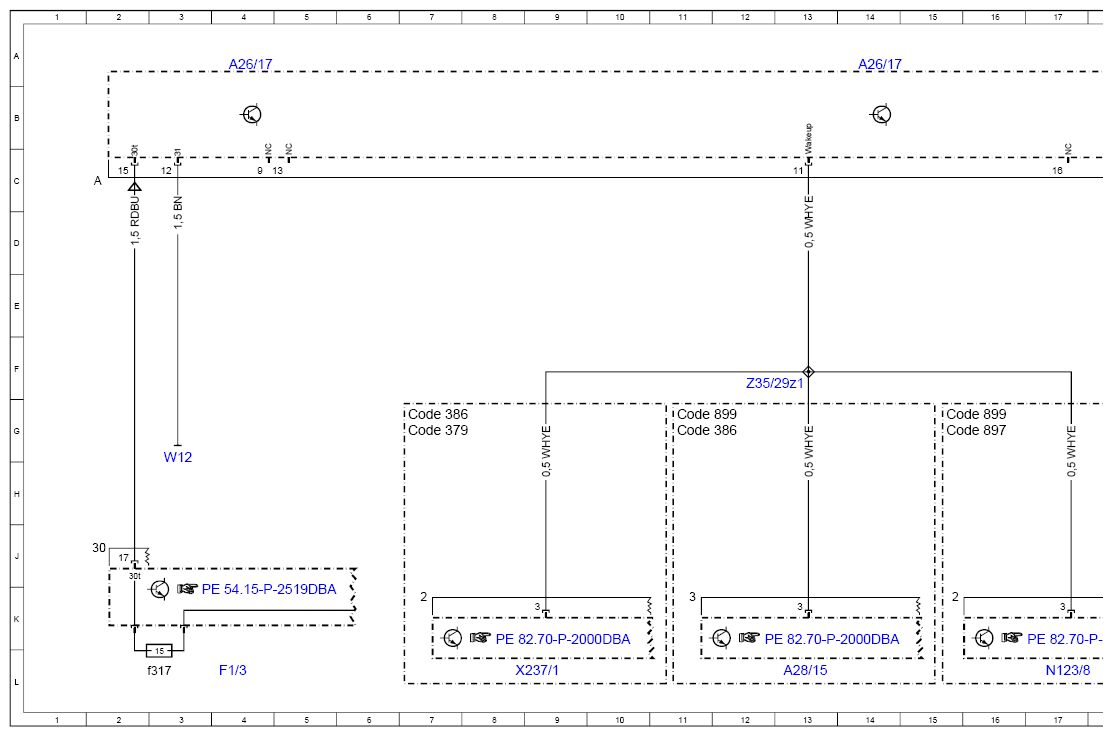

| Z35/29z1 | Telephone wake-up signal connector sleeve | 13F |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 70G |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 69G |
| Z87/12z1 | Microphone shielding connector sleeve, emergency call | 59G |
