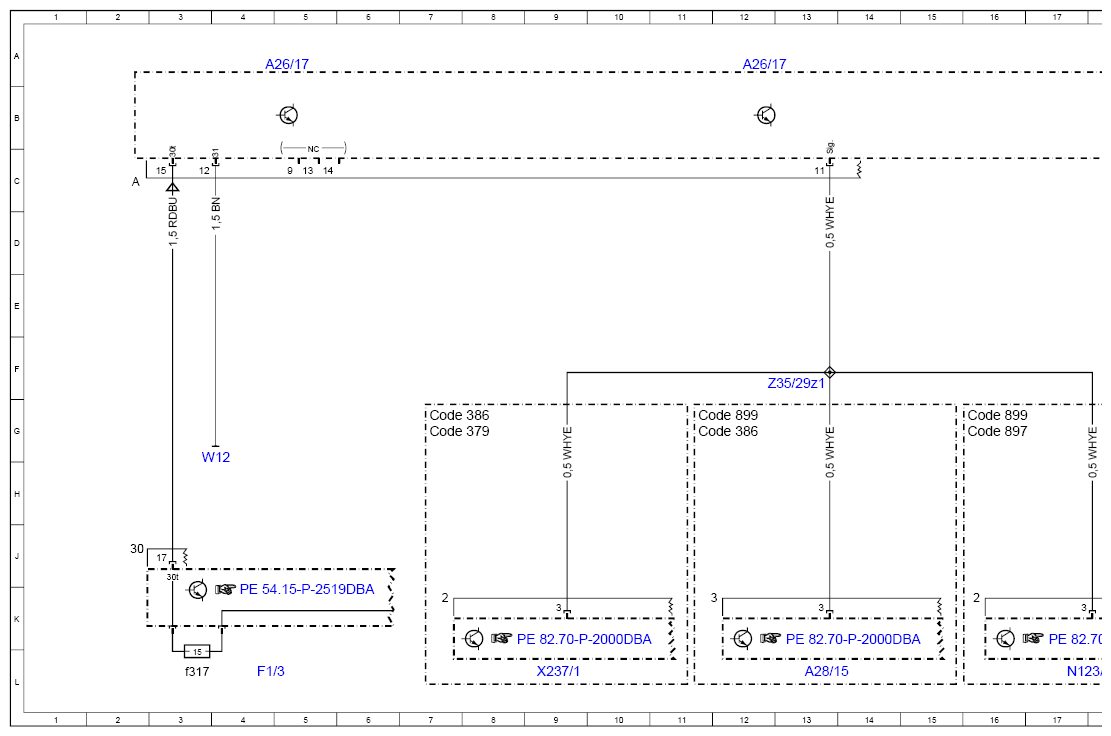

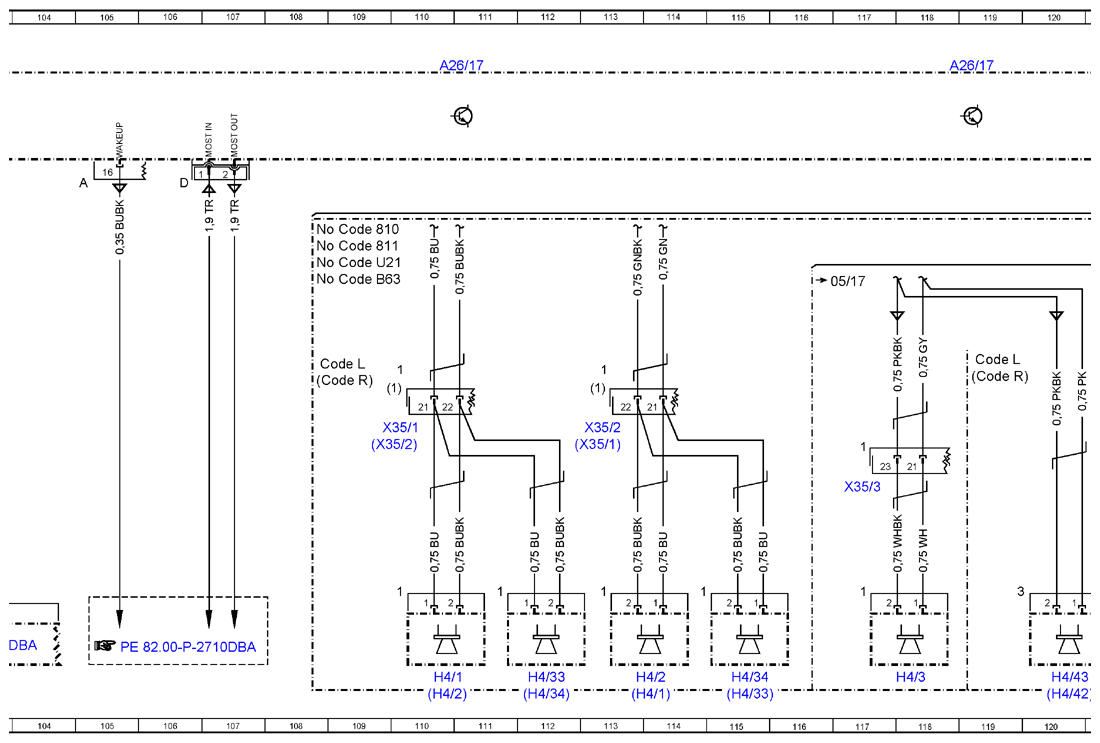

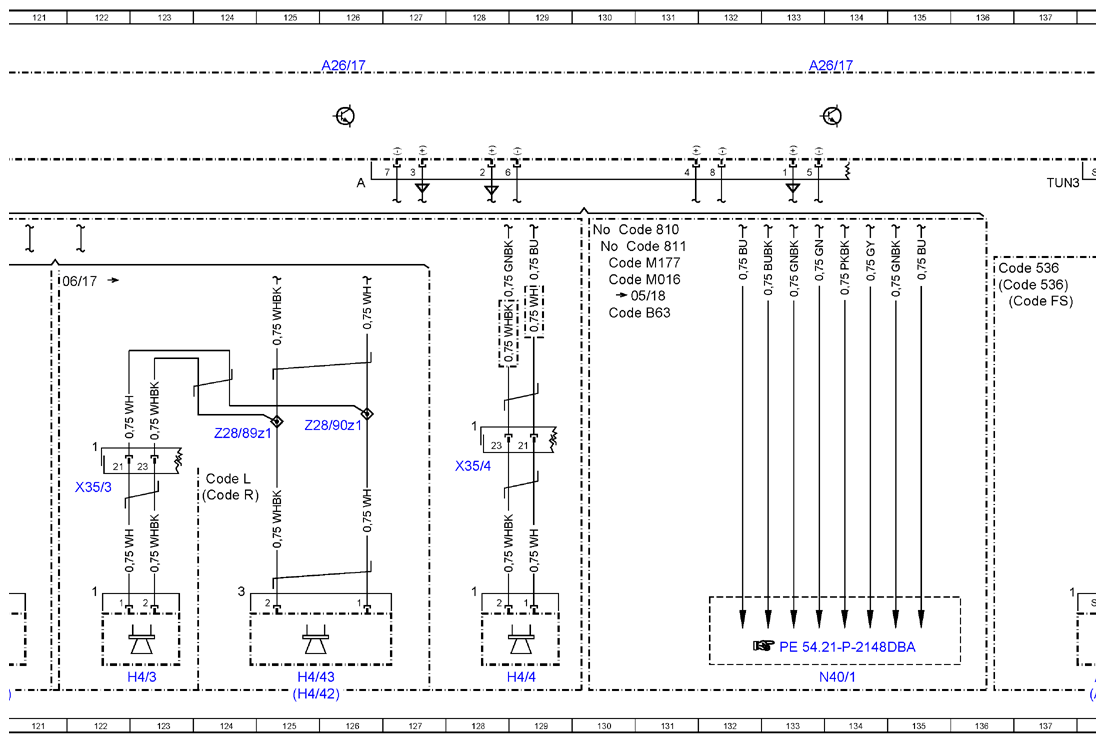

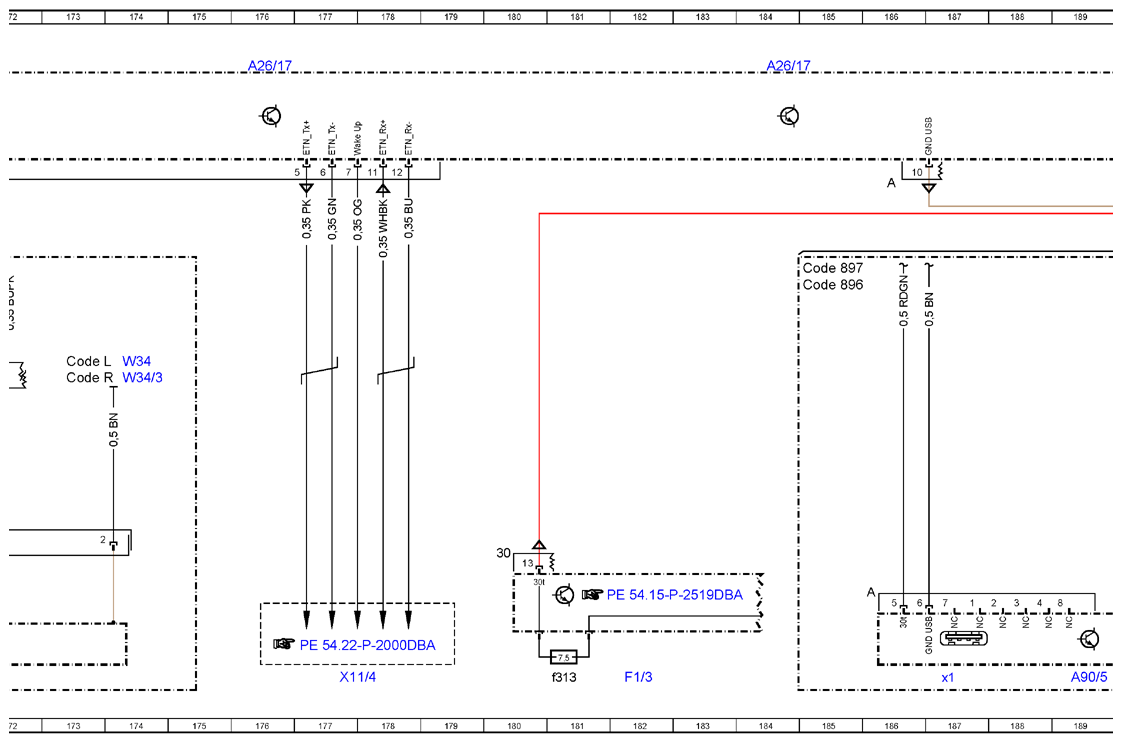

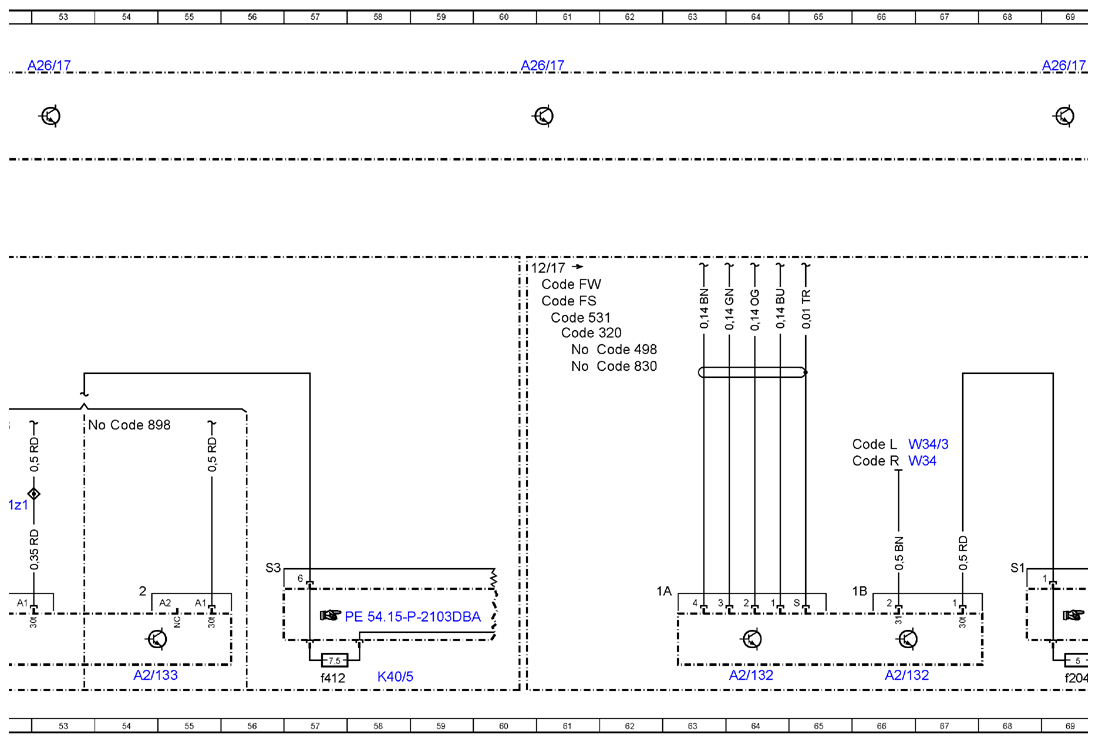

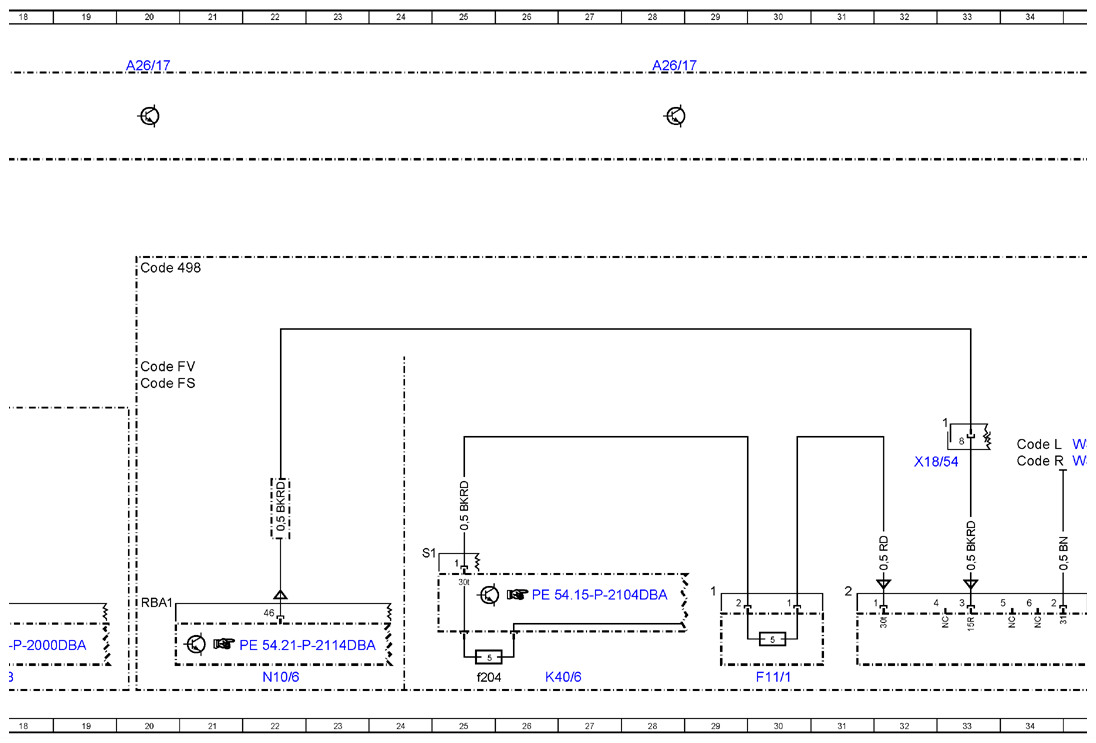

Wiring Diagram Of Head Unit - PE82.85-P-2110-97DBA
Model 213 up to model year 2021
with code 506 (Audio 20 NTG 5.5 radio)
with code 531 (COMAND APS)
except code 520 (Audio 20 USB)
except code 522 (Audio 20 radio) Head unit A26/17
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 226L |
| A1 | Instrument cluster | 98L |
| A2/105 | SDARS antenna | 138L |
| A2/105 | SDARS antenna | 138L |
| A2/108 | FM 2 and DAB band III antenna amplifier | 154L |
| A2/132 | External CD drive | 66L |
| A2/132 | External CD drive | 64L |

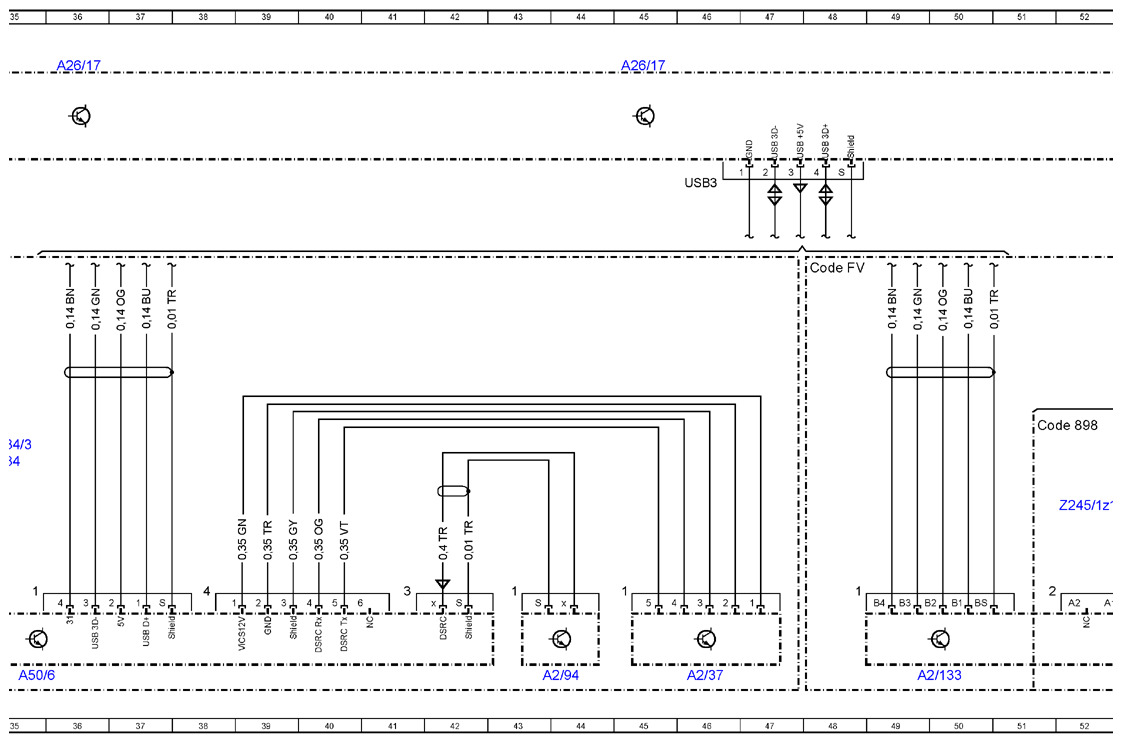

| A2/133 | Rear USB connector 3 | 54L |
| A2/133 | Rear USB connector 3 | 49L |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 159L |

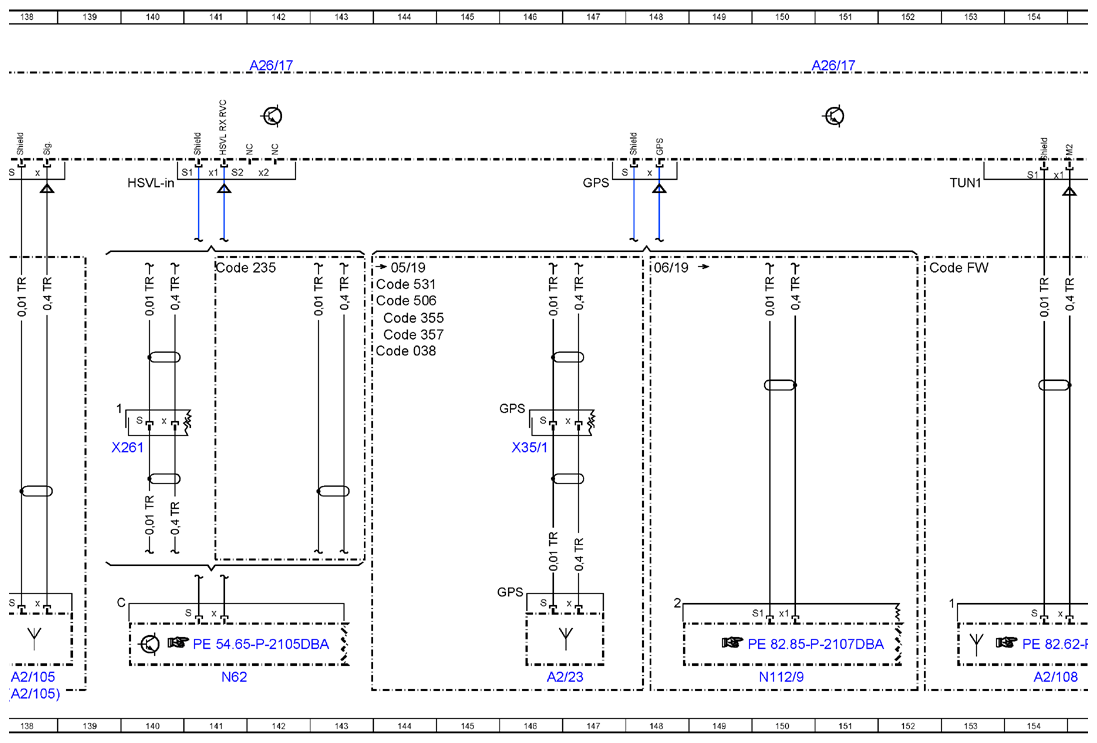

| A2/23 | GPS antenna | 146L |
| A2/37 | Vehicle Information and Communication System (VICS) control unit | 46L |

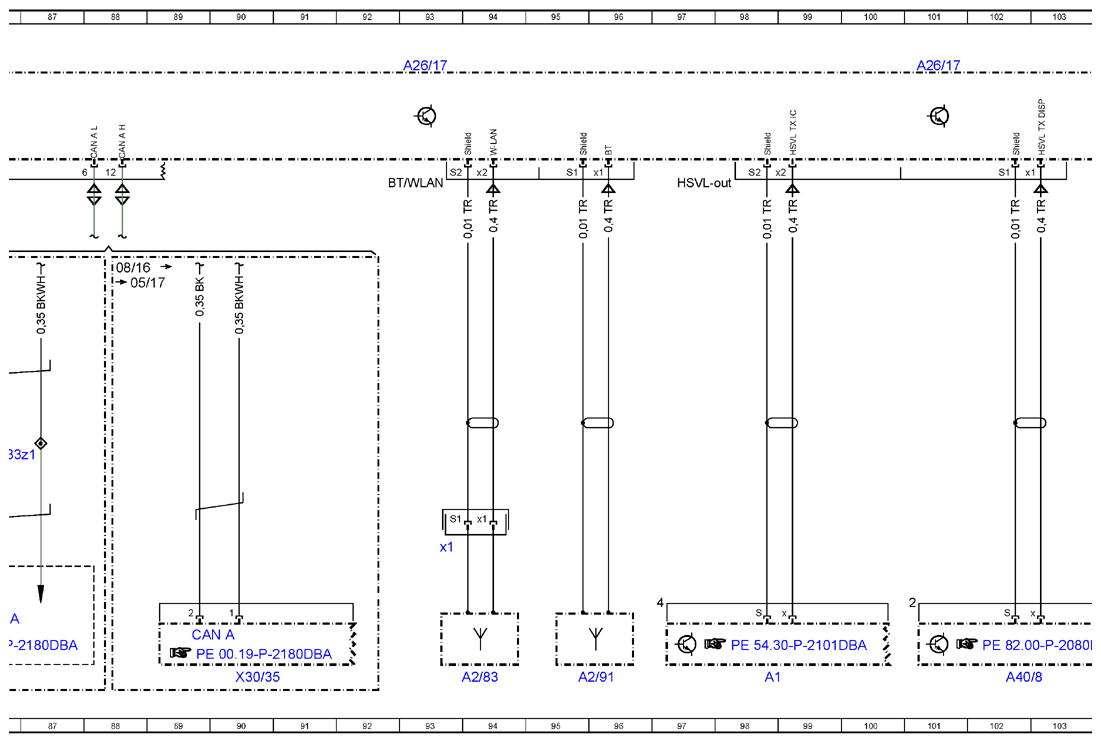

| A2/83 | WiFi antenna | 94L |
| A2/83x1 | WiFi antenna electrical connector | 93J |
| A2/91 | Bluetooth® antenna | 95L |
| A2/94 | DSRC antenna | 44L |
| A26/17 | Head unit | 5A |
| A26/17 | Head unit | 12A |
| A26/17 | Head unit | 20A |
| A26/17 | Head unit | 28A |
| A26/17 | Head unit | 36A |
| A26/17 | Head unit | 60A |
| A26/17 | Head unit | 45A |
| A26/17 | Head unit | 53A |
| A26/17 | Head unit | 69A |
| A26/17 | Head unit | 77A |
| A26/17 | Head unit | 85A |
| A26/17 | Head unit | 93A |
| A26/17 | Head unit | 101A |
| A26/17 | Head unit | 110A |
| A26/17 | Head unit | 119A |
| A26/17 | Head unit | 126A |
| A26/17 | Head unit | 133A |
| A26/17 | Head unit | 142A |
| A26/17 | Head unit | 151A |
| A26/17 | Head unit | 160A |
| A26/17 | Head unit | 168A |
| A26/17 | Head unit | 176A |
| A26/17 | Head unit | 184A |
| A26/17 | Head unit | 192A |
| A26/17 | Head unit | 201A |
| A26/17 | Head unit | 209A |
| A26/17 | Head unit | 217A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 13L |
| A40/8 | Audio/COMMAND display | 102L |
| A50/6 | Dedicated Short-Range Communications control unit | 35L |

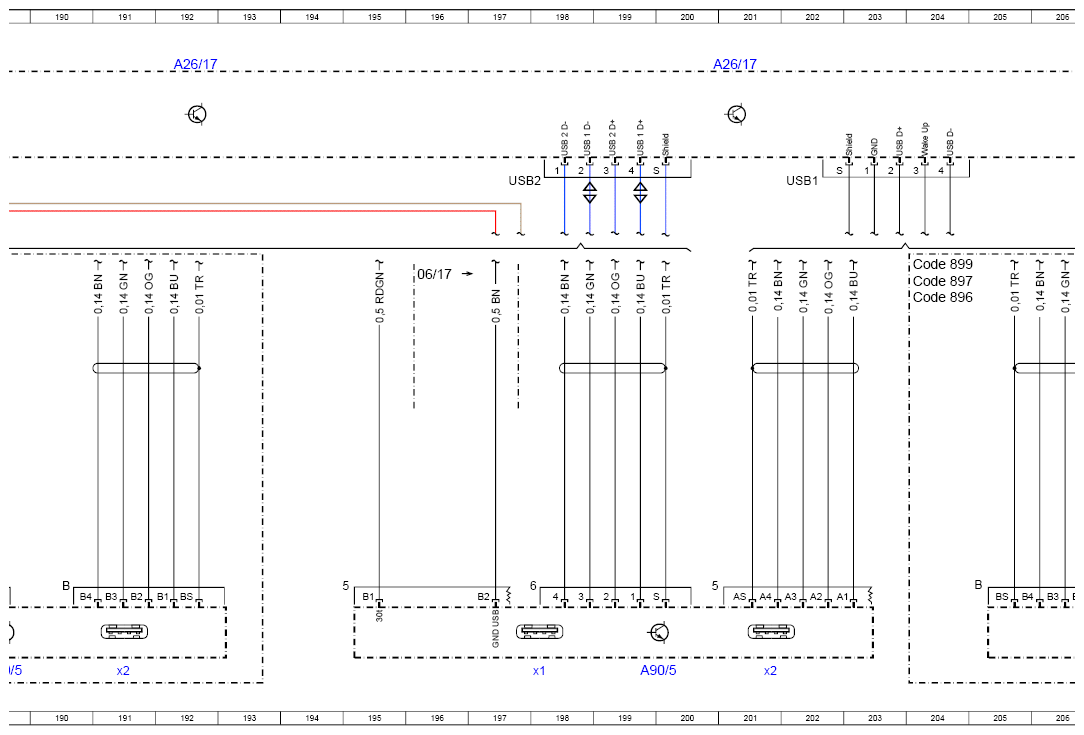

| A90/5 | Multimedia connection unit | 189L |
| A90/5 | Multimedia connection unit | 199L |
| A90/5x1 | USB connector 1 | 187L |
| A90/5x1 | USB connector 1 | 198L |
| A90/5x2 | USB connector 2 | 191L |
| A90/5x2 | USB connector 2 | 201L |

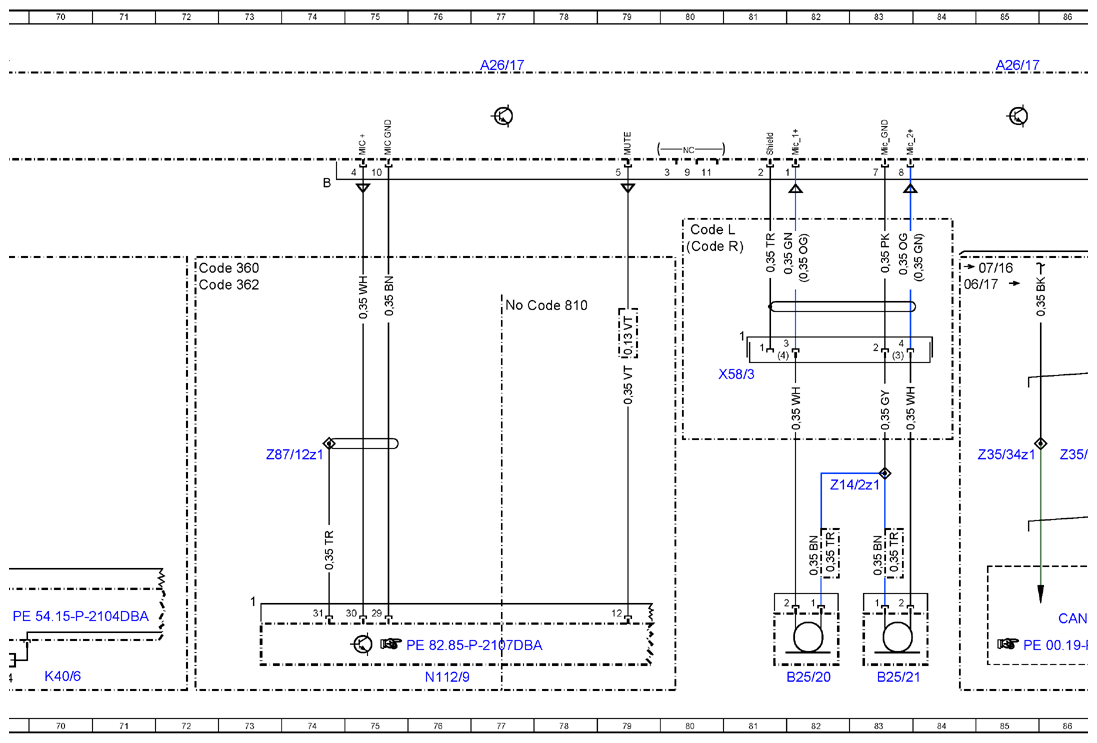

| B25/20 | Driver hands-free system microphone | 82L |
| B25/21 | Front passenger hands-free system microphone | 83L |
| CAN A | Telematics CAN | 86K |
| CAN A | Telematics CAN | 89K |

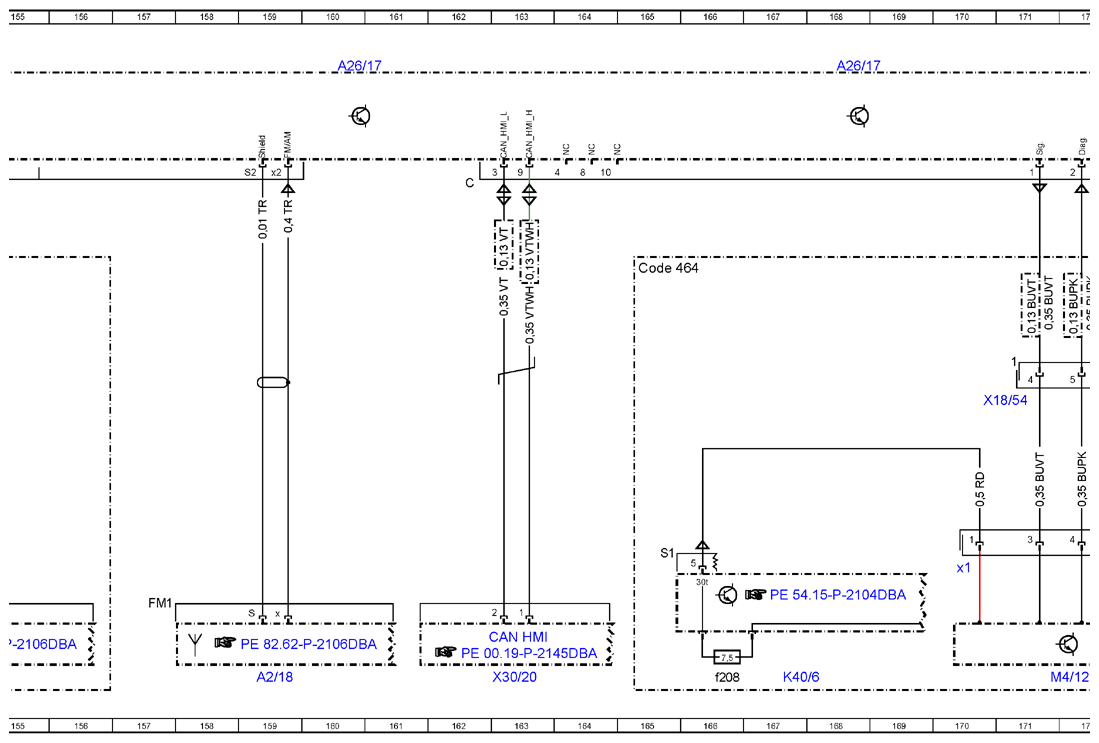

| CAN HMI | User interface CAN | 163K |
| Code 038 | Control code - Adaptation of GPS signal of NTG 5.5 | 144F |
| Code 235 | Active Park Assist | 141D |
| Code 320 | Single CD drive pre-installation | 61E |
| Code 355 | Preinstallation for navigation retrofit | 144E |
| Code 357 | Card navigation | 144E |
| Code 360 | HERMES UMTS | 72D |
| Code 362 | HERMES LTE | 72E |
| Code 362 | HERMES LTE | 219E |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 7G |
| Code 386 | Comfort telephony | 7G |
| Code 386 | Comfort telephony | 11G |
| Code 464 | Digital instrument cluster full display | 165D |
| Code 498 | Japan version | 20D |
| Code 498 | Japan version | 61F |
| Code 506 | Audio 20 NTG 5.5 radio | 144E |
| Code 531 | COMMAND APS | 61E |
| Code 531 | COMMAND APS | 144E |
| Code 536 | SIRIUS satellite radio | 136E |
| Code 536 | SIRIUS satellite radio | 136D |
| Code 810 | Sound system | 77E |
| Code 810 | Sound system | 109D |
| Code 810 | Sound system | 130D |
| Code 811 | Advanced sound system | 109D |
| Code 811 | Advanced sound system | 130D |
| Code 830 | Additional parts for China vehicles | 61F |
| Code 896 | Vehicle access and drive authorization via mobile phone | 185E |
| Code 896 | Vehicle access and drive authorization via mobile phone | 204E |
| Code 897 | Wireless mobile phone charging | 16G |
| Code 897 | Wireless mobile phone charging | 185D |
| Code 897 | Wireless mobile phone charging | 204E |
| Code 898 | Wireless charging in rear passenger compartment | 51G |
| Code 898 | Wireless charging in rear passenger compartment | 54G |
| Code 899 | Wireless phone charging at front and antenna | 16G |
| Code 899 | Wireless phone charging at front and antenna | 11G |
| Code 899 | Wireless phone charging at front and antenna | 204D |
| Code B63 | Sporty engine sound | 109E |
| Code B63 | Sporty engine sound | 130E |
| Code FS | STATION WAGON | 20F |
| Code FS | STATION WAGON | 61E |
| Code FS | STATION WAGON | 136E |
| Code FV | LONG SEDAN | 20F |
| Code FV | LONG SEDAN | 48D |
| Code FW | SEDAN | 61E |
| Code FW | SEDAN | 152D |
| Code L | LEFT-HAND DRIVE | 34G |
| Code L | LEFT-HAND DRIVE | 65G |
| Code L | LEFT-HAND DRIVE | 108F |
| Code L | LEFT-HAND DRIVE | 80D |
| Code L | LEFT-HAND DRIVE | 124H |
| Code L | LEFT-HAND DRIVE | 119F |
| Code L | LEFT-HAND DRIVE | 173F |
| Code M016 | Uprated high-performance engine | 130E |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 130D |
| Code R | RIGHT-HAND DRIVE | 108F |
| Code R | RIGHT-HAND DRIVE | 34G |
| Code R | RIGHT-HAND DRIVE | 65G |
| Code R | RIGHT-HAND DRIVE | 80D |
| Code R | RIGHT-HAND DRIVE | 173F |
| Code R | RIGHT-HAND DRIVE | 119F |
| Code R | RIGHT-HAND DRIVE | 124H |
| Code U21 | AMG Performance exhaust system | 109D |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3 | Passenger-side A-pillar fuse box | 182L |
| F1/3f313 | Fuse 313 | 181L |
| F1/3f317 | Fuse 317 | 3L |
| F11/1 | Cockpit fuse block | 30L |
| H4/1 | Left front door midrange speaker | 110L |
| H4/1 | Left front door midrange speaker | 113L |
| H4/2 | Right front door midrange speaker | 113L |
| H4/2 | Right front door midrange speaker | 110L |
| H4/3 | Left rear door midrange speaker | 123L |
| H4/3 | Left rear door midrange speaker | 118L |
| H4/33 | Left front door tweeter | 112L |
| H4/33 | Left front door tweeter | 115L |
| H4/34 | Right front door tweeter | 112L |
| H4/34 | Right front door tweeter | 115L |
| H4/4 | Right rear door midrange speaker | 129L |
| H4/42 | Left front footwell woofer | 120L |
| H4/42 | Left front footwell woofer | 125L |
| H4/43 | Right front footwell woofer | 125L |
| H4/43 | Right front footwell woofer | 120L |
| K40/5 | Rear fuse and relay module | 58L |
| K40/5f412 | Fuse 412 | 57L |
| K40/6 | Driver-side fuse and relay module | 26L |
| K40/6 | Driver-side fuse and relay module | 70L |
| K40/6 | Driver-side fuse and relay module | 167L |
| K40/6 | Driver-side fuse and relay module | 211L |
| K40/6f204 | Fuse 204 | 25L |
| K40/6f204 | Fuse 204 | 69L |
| K40/6f206 | Fuse 206 | 210L |
| K40/6f208 | Fuse 208 | 166L |
| M4/12 | Digital instrument cluster full display fan motor | 171L |
| M4/12x1 | Head unit fan motor electrical connector | 170J |
| N10/6 | Front SAM control unit | 22L |
| N10/6 | Front SAM control unit | 217L |
| N112/9 | HERMES control unit | 76L |
| N112/9 | HERMES control unit | 150L |
| N112/9 | HERMES control unit | 221L |
| N123/8 | Front mobile phone cradle control unit | 17L |
| N40/1 | Engine sound control unit | 134L |
| N62 | Parking system control unit | 141L |
| W12 | Left center console ground point | 3H |
| W34 | Left footwell ground point | 35G |
| W34 | Left footwell ground point | 66G |
| W34 | Left footwell ground point | 174F |
| W34/3 | Right footwell ground point | 35G |
| W34/3 | Right footwell ground point | 66G |
| W34/3 | Right footwell ground point | 174F |
| X11/4 | Diagnostic connector | 177L |

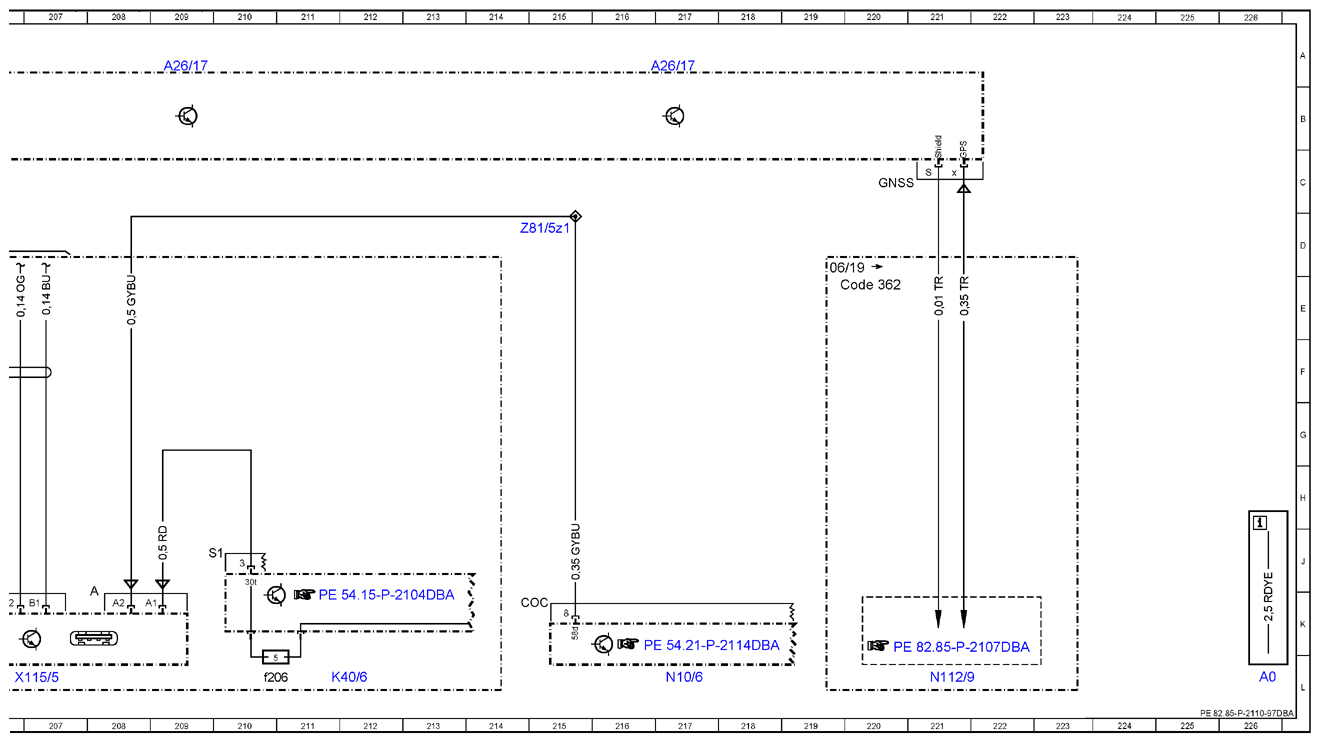

| X115/5 | Front center console USB connector | 207L |
| X18/54 | Passenger-side cockpit/frame floor assembly electrical connector | 33H |
| X18/54 | Passenger-side cockpit/frame floor assembly electrical connector | 171G |
| X237/1 | Mobile phone contact plate | 9L |
| X261 | Video-in electrical connector | 140G |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 163L |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 90L |
| X35/1 | Driver door electrical connector | 113G |
| X35/1 | Driver door electrical connector | 110G |
| X35/1 | Driver door electrical connector | 146G |
| X35/2 | Front passenger door electrical connector | 110G |
| X35/2 | Front passenger door electrical connector | 113G |
| X35/3 | Left rear door electrical connector | 117H |
| X35/3 | Left rear door electrical connector | 122H |
| X35/4 | Right rear door electrical connector | 128H |
| X58/3 | Microphone electrical connector | 81F |
| Z14/2z1 | Microphone connector sleeve (-) | 83H |
| Z245/1z1 | Universal serial bus connector sleeve, power supply | 52H |
| Z28/89z1 | Right front woofer connector sleeve (+) | 124G |
| Z28/90z1 | Right front woofer connector sleeve (-) | 126G |
| Z35/29z1 | Telephone wake-up signal connector sleeve | 13F |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 86G |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 85G |
| Z81/5z1 | Cockpit terminal 58d connector sleeve | 215D |
| Z87/12z1 | Microphone shielding connector sleeve, emergency call | 74G |
