Sound Amplifier Control Unit Wiring Diagram - PE82.62-P-2101-97DDB

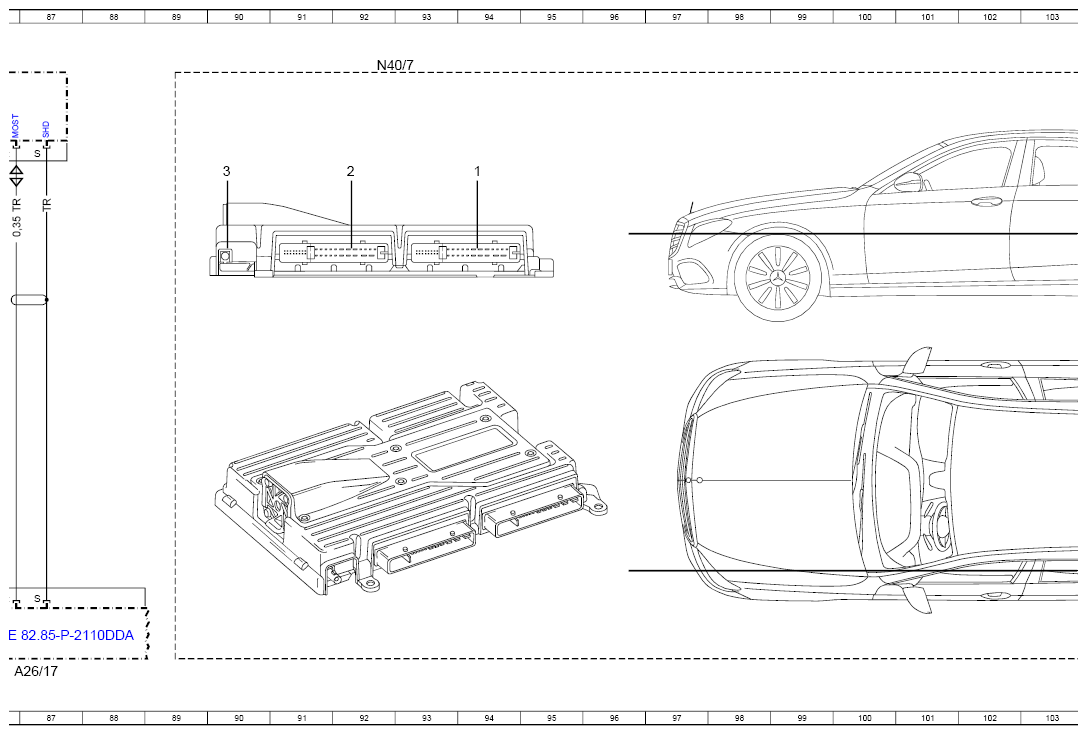

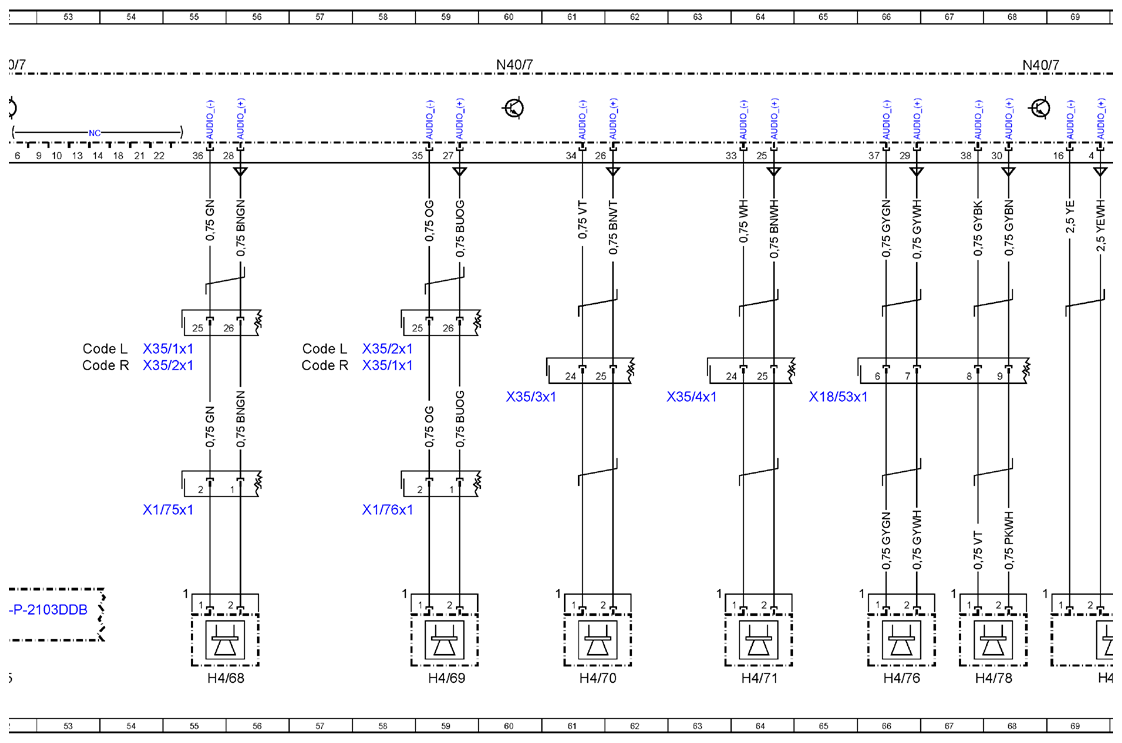

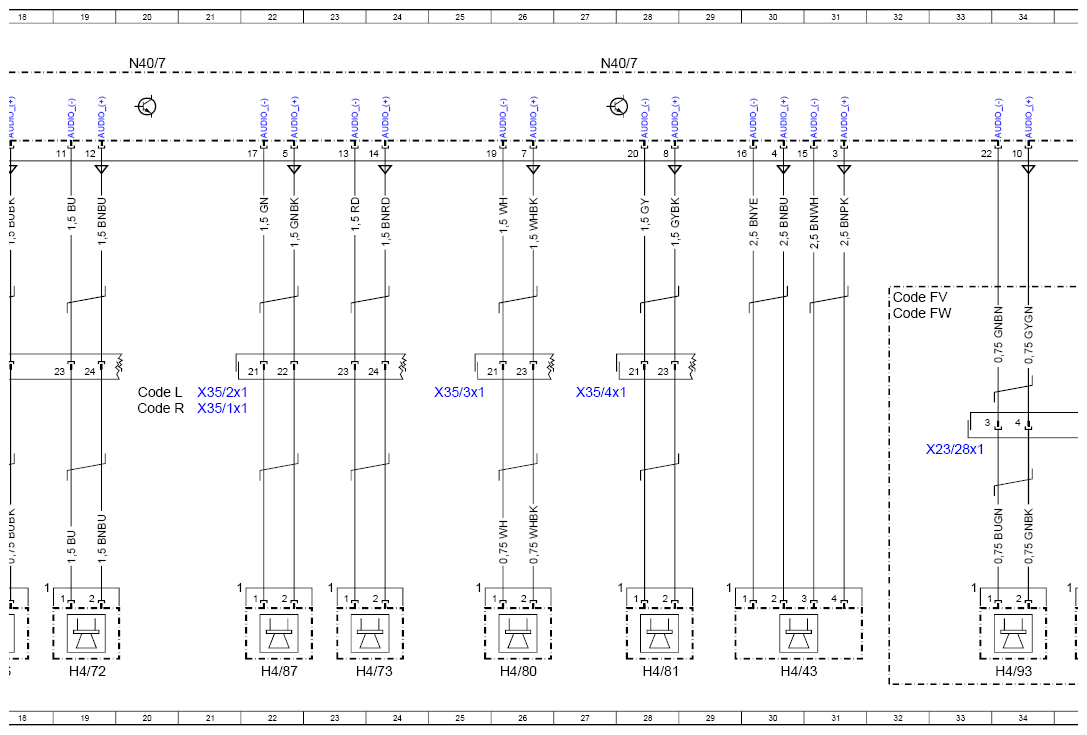

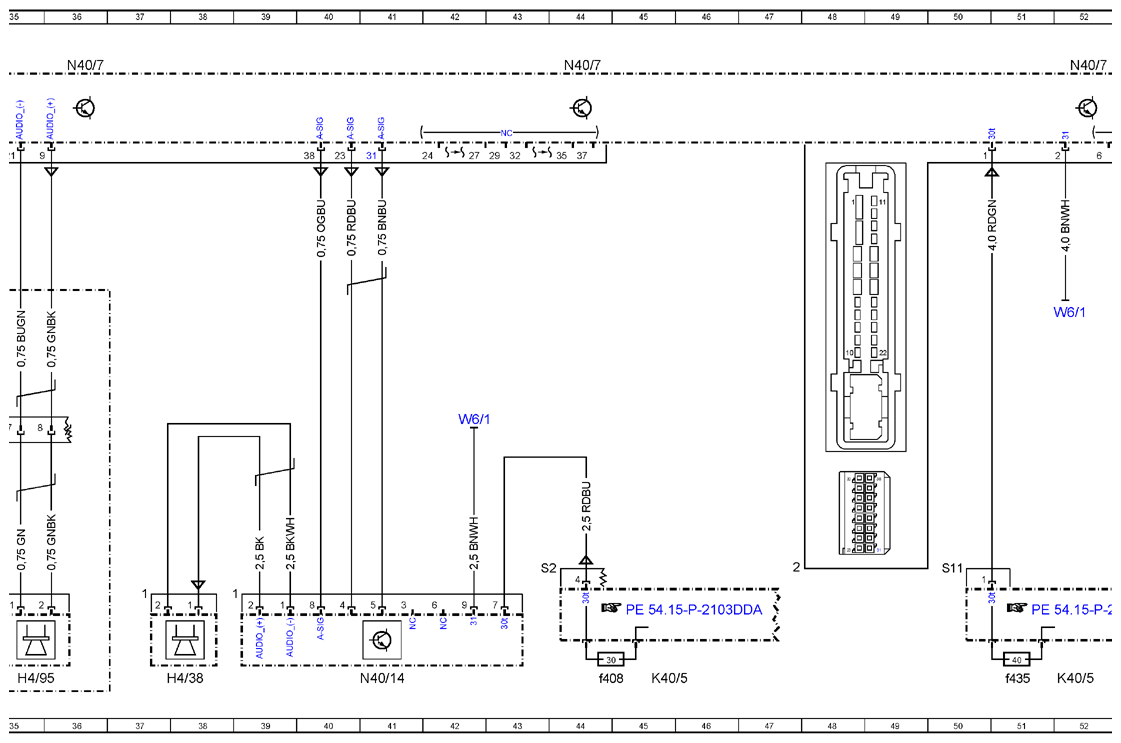

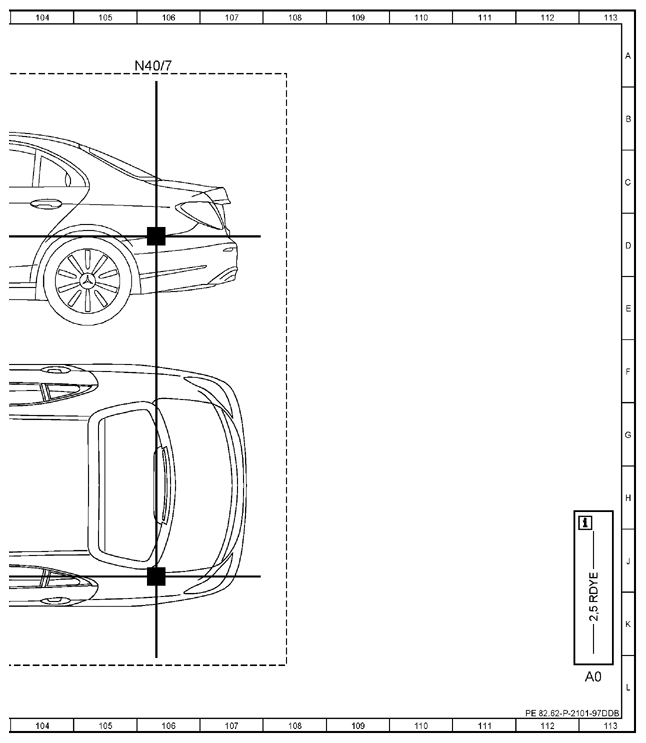

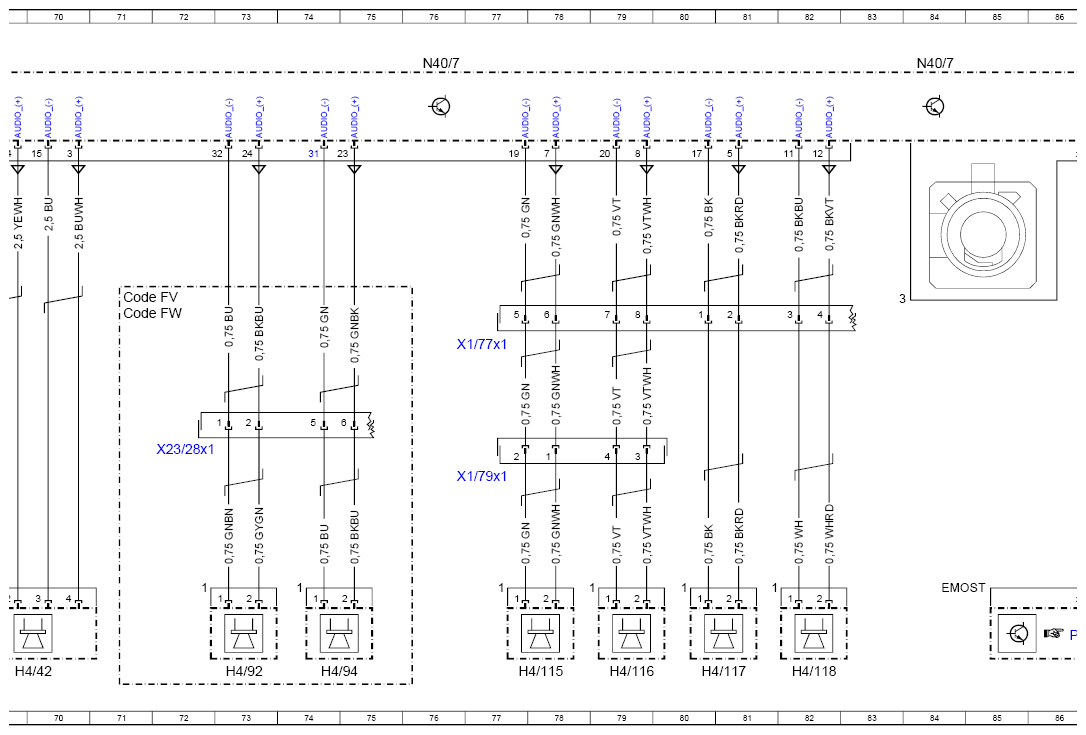

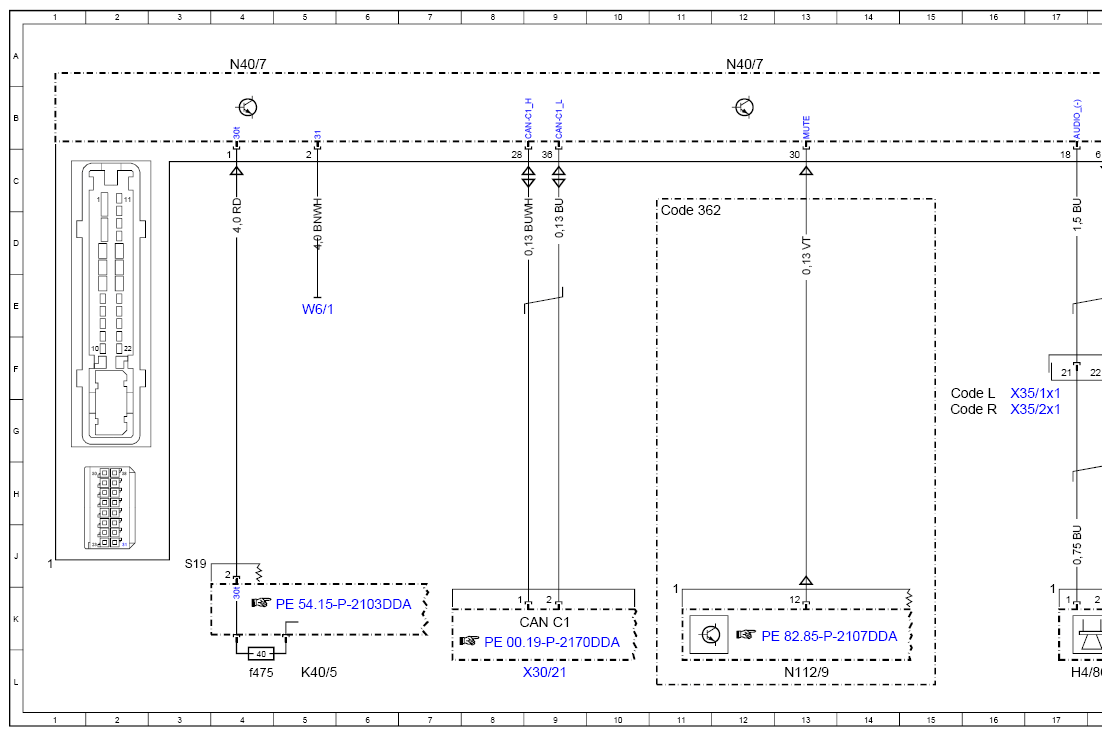

Model 213 as of model year 2021 with code 811 (High-End sound system) Control unit N40/7
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 113L |
| A26/17 | Head unit | 87L |
| CAN C1 | Drive train CAN | 9K |
| Code 362 | HERMES LTE | 11D |
| Code FV | LONG SEDAN | 32E |
| Code FV | LONG SEDAN | 71E |
| Code FW | SEDAN | 32E |
| Code FW | SEDAN | 71E |
| Code L | LEFT-HAND DRIVE | 15F |
| Code L | LEFT-HAND DRIVE | 20F |
| Code L | LEFT-HAND DRIVE | 53F |
| Code L | LEFT-HAND DRIVE | 57F |
| Code R | RIGHT-HAND DRIVE | 15G |
| Code R | RIGHT-HAND DRIVE | 20G |
| Code R | RIGHT-HAND DRIVE | 53F |
| Code R | RIGHT-HAND DRIVE | 57F |
| H4/115 | Left front center overhead control panel midrange speaker (3D sound) | 78L |
| H4/116 | Right front center overhead control panel midrange speaker (3D sound) | 79L |
| H4/117 | Left center rear center midrange speaker (3D sound) | 80L |
| H4/118 | Right center rear center midrange speaker (3D sound) | 82L |
| H4/38 | Rear woofer | 38L |
| H4/42 | Left front footwell woofer | 69L |
| H4/43 | Right front footwell woofer | 30L |
| H4/68 | Left front door sound system tweeter | 55L |
| H4/69 | Right front door sound system tweeter | 59L |
| H4/70 | Left rear door sound system tweeter | 61L |
| H4/71 | Right rear door sound system tweeter | 64L |
| H4/72 | Left front door sound system woofer/midrange speaker | 19L |
| H4/73 | Right front door sound system woofer/midrange speaker | 23L |
| H4/76 | Center instrument panel tweeter | 66L |
| H4/78 | Center instrument panel midrange speaker | 68L |
| H4/80 | Left rear door sound system midrange speaker | 26L |
| H4/81 | Right rear door sound system midrange speaker | 28L |
| H4/86 | Left front door midrange speaker | 17L |
| H4/87 | Right front door midrange speaker | 22L |
| H4/92 | Left rear surround sound system tweeter | 73L |
| H4/93 | Left rear surround sound system midrange speaker | 34L |
| H4/94 | Right rear surround sound system tweeter | 74L |
| H4/95 | Right rear surround sound system midrange speaker | 35L |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5 | Rear fuse and relay module | 52L |
| K40/5 | Rear fuse and relay module | 45L |
| K40/5f408 | Fuse 408 | 44L |
| K40/5f435 | Fuse 435 | 51L |
| K40/5f475 | Fuse 475 | 4L |
| N112/9 | HERMES control unit | 13L |
| N40/14 | Rear woofer amplifier | 41L |
| N40/7 | Advanced sound system amplifier control unit | 4A |
| N40/7 | Advanced sound system amplifier control unit | 12A |
| N40/7 | Advanced sound system amplifier control unit | 20A |
| N40/7 | Advanced sound system amplifier control unit | 27A |
| N40/7 | Advanced sound system amplifier control unit | 36A |
| N40/7 | Advanced sound system amplifier control unit | 44A |
| N40/7 | Advanced sound system amplifier control unit | 52A |
| N40/7 | Advanced sound system amplifier control unit | 60A |
| N40/7 | Advanced sound system amplifier control unit | 68A |
| N40/7 | Advanced sound system amplifier control unit | 76A |
| N40/7 | Advanced sound system amplifier control unit | 84A |
| N40/7 | Advanced sound system amplifier control unit | 92A |
| N40/7 | Advanced sound system amplifier control unit | 106A |
| W6/1 | Left taillamp trunk ground point | 42G |
| W6/1 | Left taillamp trunk ground point | 5E |
| W6/1 | Left taillamp trunk ground point | 51E |
| X1/75x1 | Left front door mirror triangle tweeter electrical connector | 55H |
| X1/76x1 | Right front door mirror triangle tweeter electrical connector | 58H |
| X1/77x1 | Left midrange speaker electrical connector | 77F |
| X1/79x1 | Mid-range speaker/glasses compartment electrical connector | 77H |
| X18/53x1 | Driver cockpit/interior wiring harness electrical connector | 65F |
| X23/28x1 | Rear shelf surround sound system electrical connector | 33G |
| X23/28x1 | Rear shelf surround sound system electrical connector | 72G |
| X30/21 | Drive train CAN (CAN CD potential distributor electrical connector | 9L |
| X35/1x1 | Driver door electrical connector | 17F |
| X35/1x1 | Driver door electrical connector | 21G |
| X35/1x1 | Driver door electrical connector | 55F |
| X35/1x1 | Driver door electrical connector | 58F |
| X35/2x1 | Front passenger door electrical connector | 17G |
| X35/2x1 | Front passenger door electrical connector | 21F |
| X35/2x1 | Front passenger door electrical connector | 55F |
| X35/2x1 | Front passenger door electrical connector | 58F |
| X35/3x1 | Left rear door electrical connector | 25F |
| X35/3x1 | Left rear door electrical connector | 60F |
| X35/4x1 | Right rear door electrical connector | 27F |
| X35/4x1 | Right rear door electrical connector | 63F |
