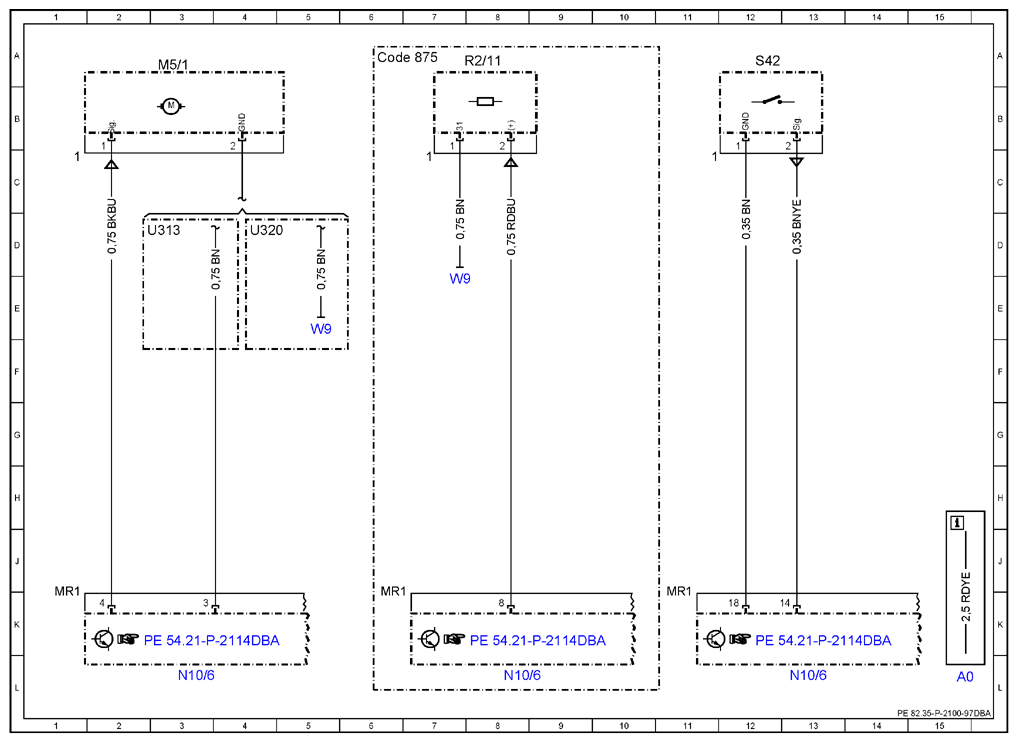

Wiring Diagram Of Windshield Washer System - PE82.35-P-2100-97DBA
Model 213 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 15L |
| Code 875 | Heated windshield washer system | 6A |
| M5/1 | Windshield washer system pump | 3A |
| N10/6 | Front SAM control unit | 8L |
| N10/6 | Front SAM control unit | 3L |
| N10/6 | Front SAM control unit | 13L |
| R2/11 | Spray nozzle hose heater | 8A |
| S42 | Windshield washer fluid level indicator switch | 12A |
| U313 | Valid for washer fluid pump (mono) | 2D |
| U320 | Valid for washer fluid pump (dual) | 4D |
| W9 | Left front ground point (at lamp unit) | 5E |
| W9 | Left front ground point (at lamp unit) | 7E |
