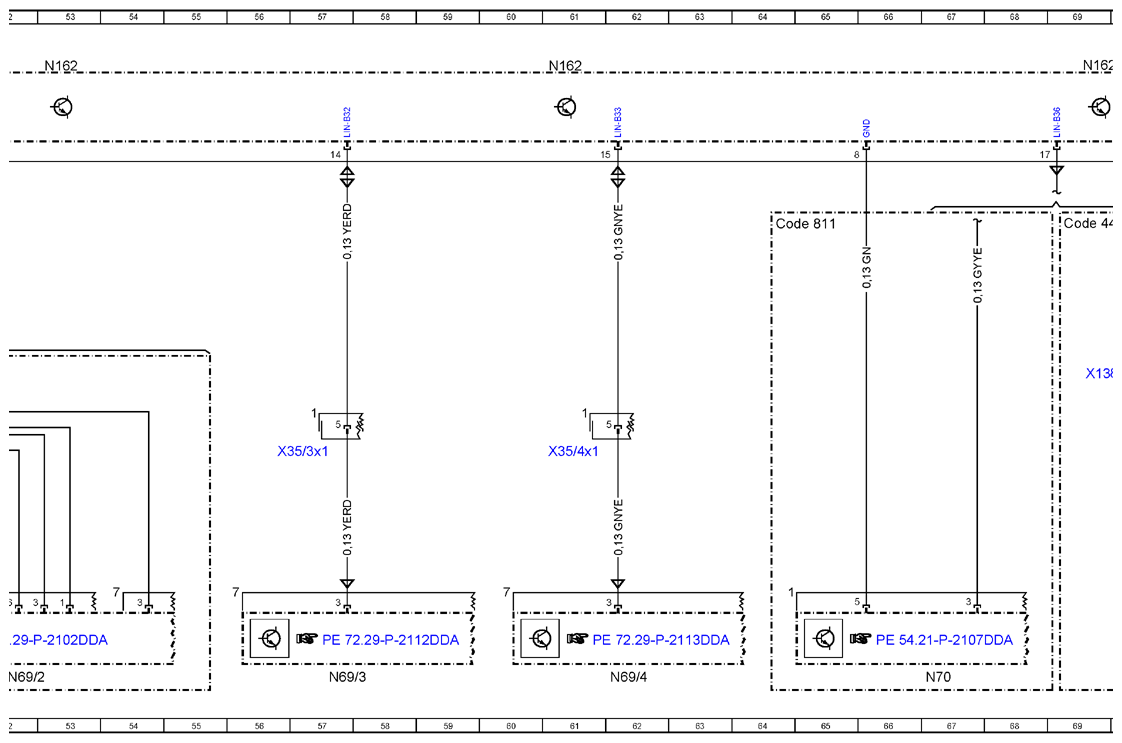

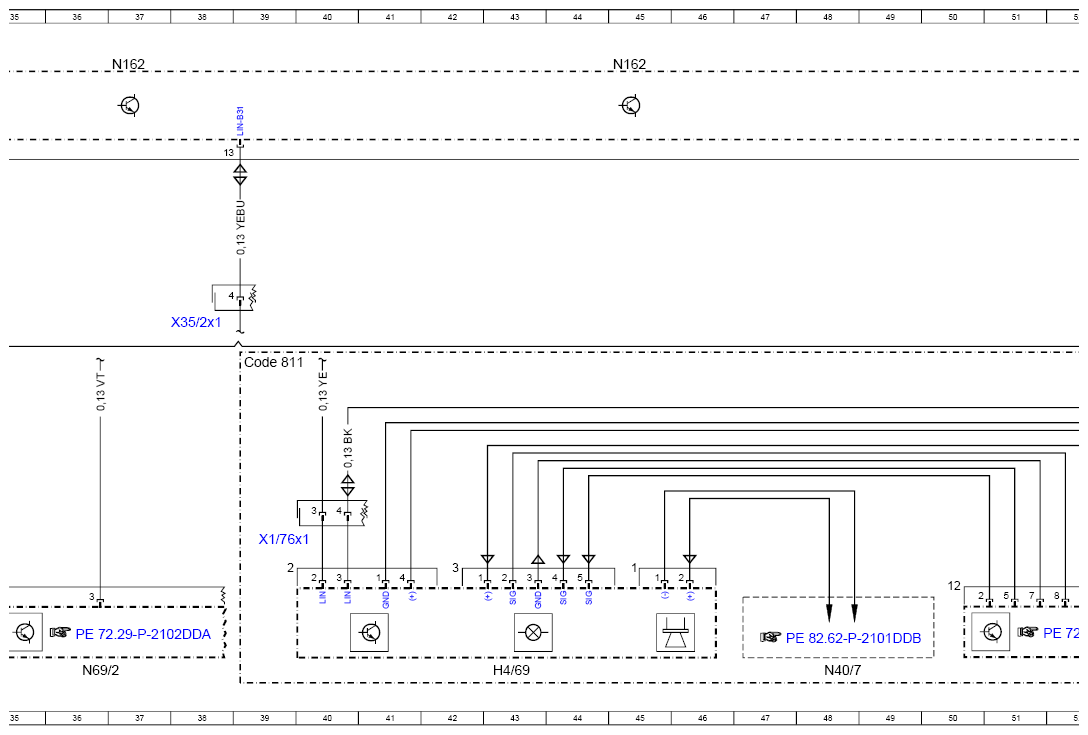

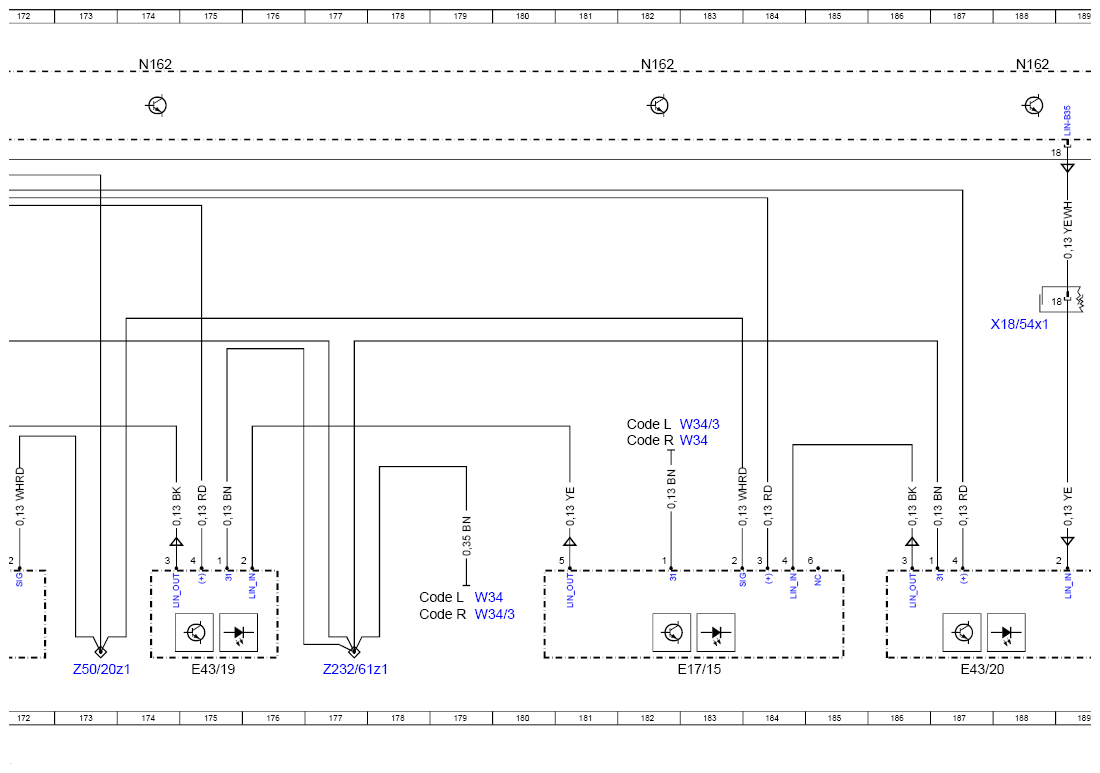

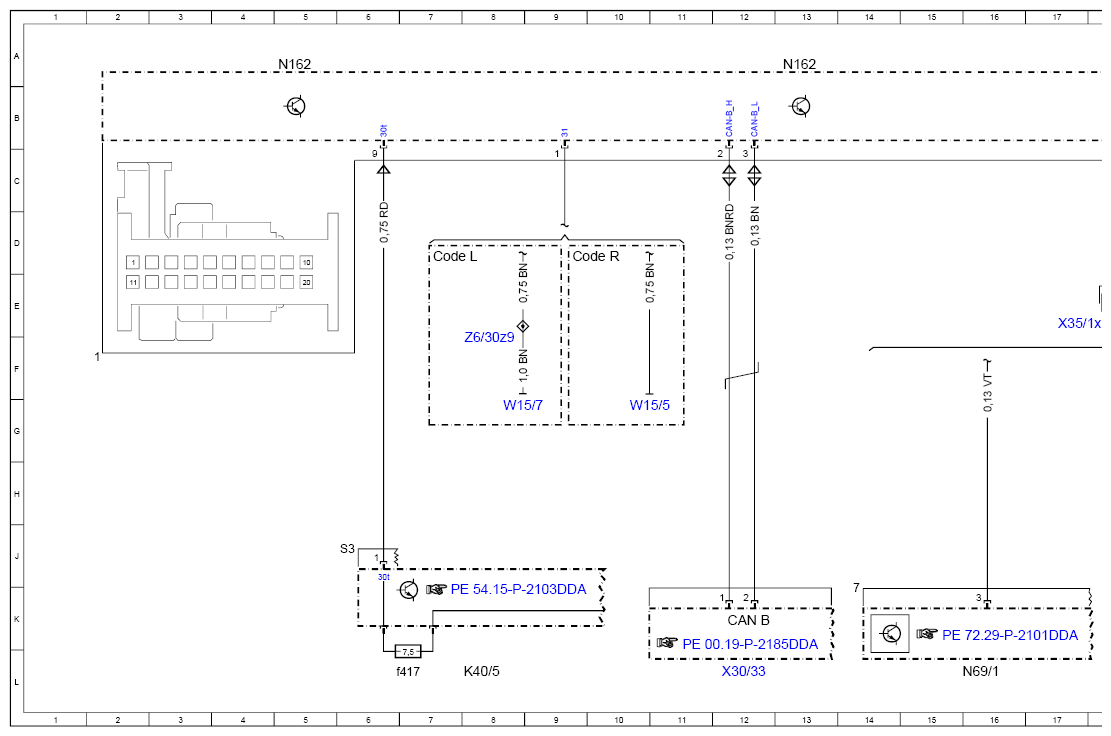

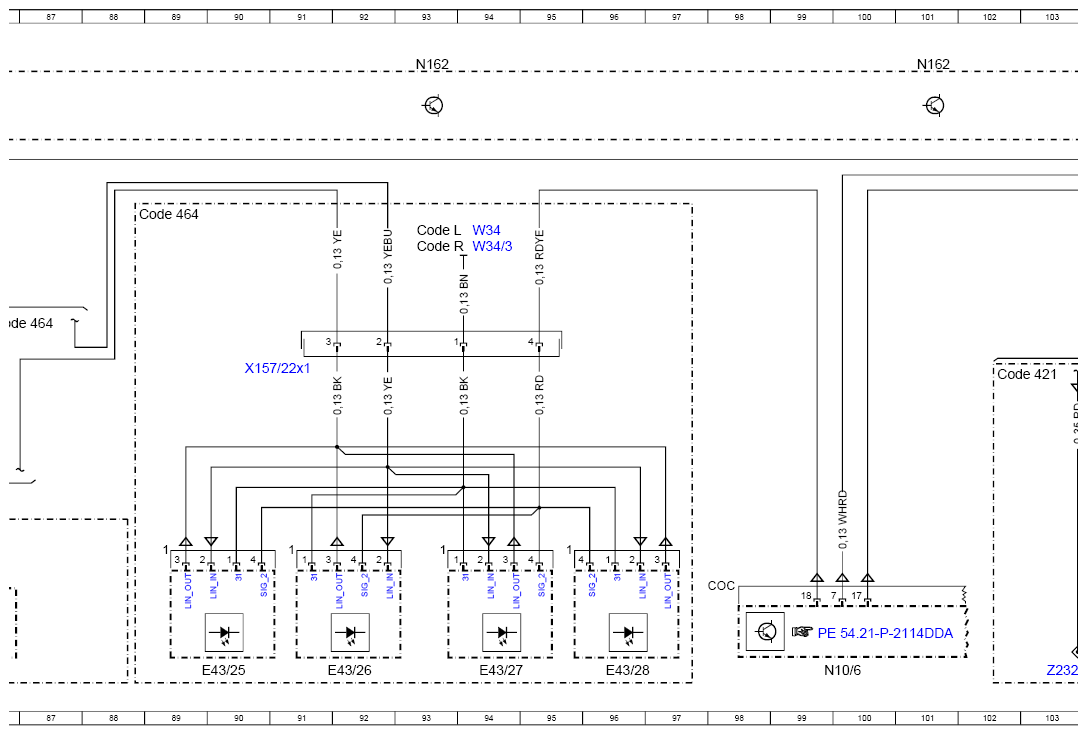

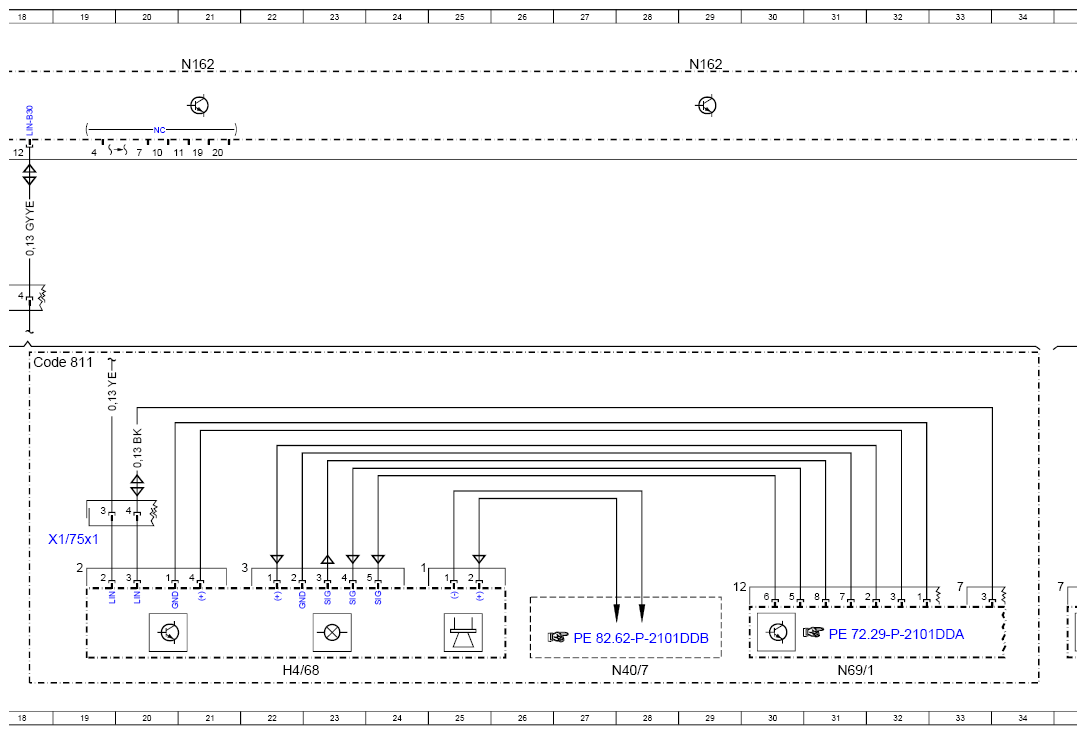

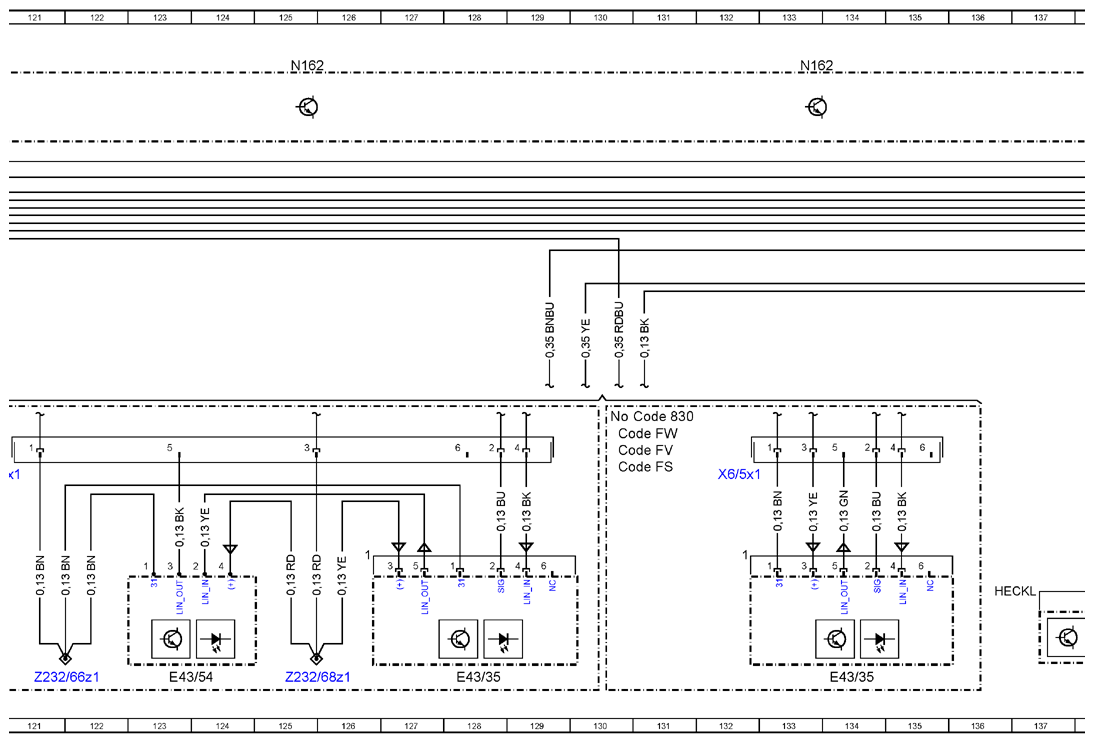

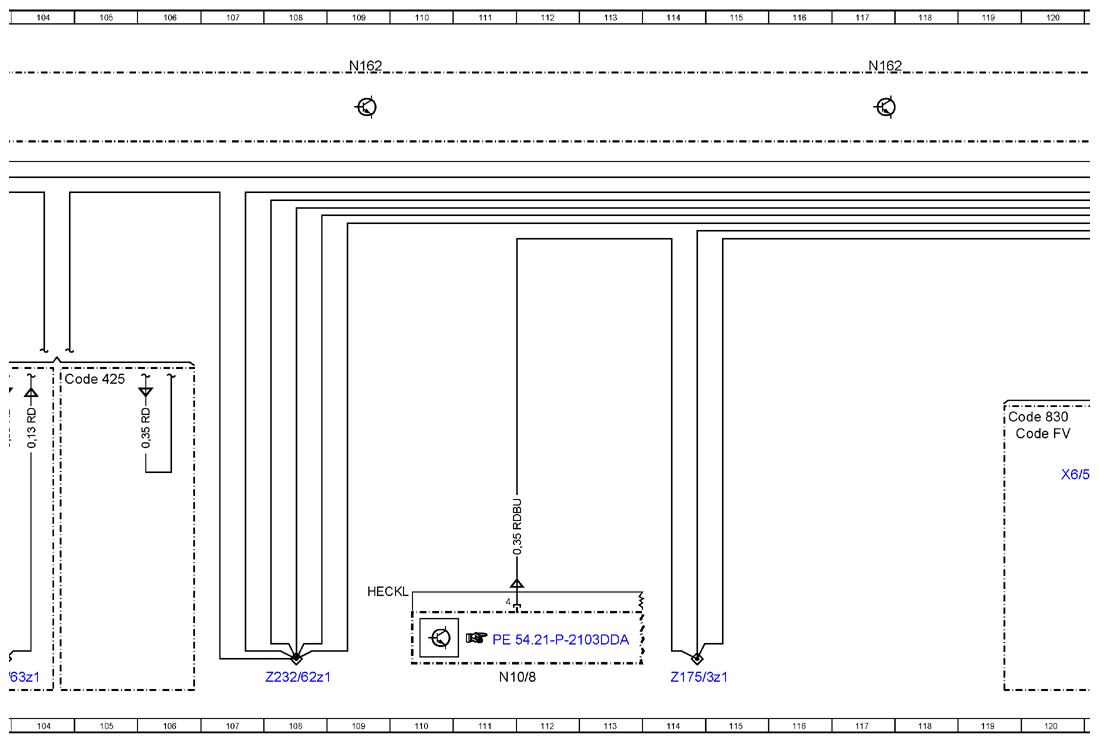

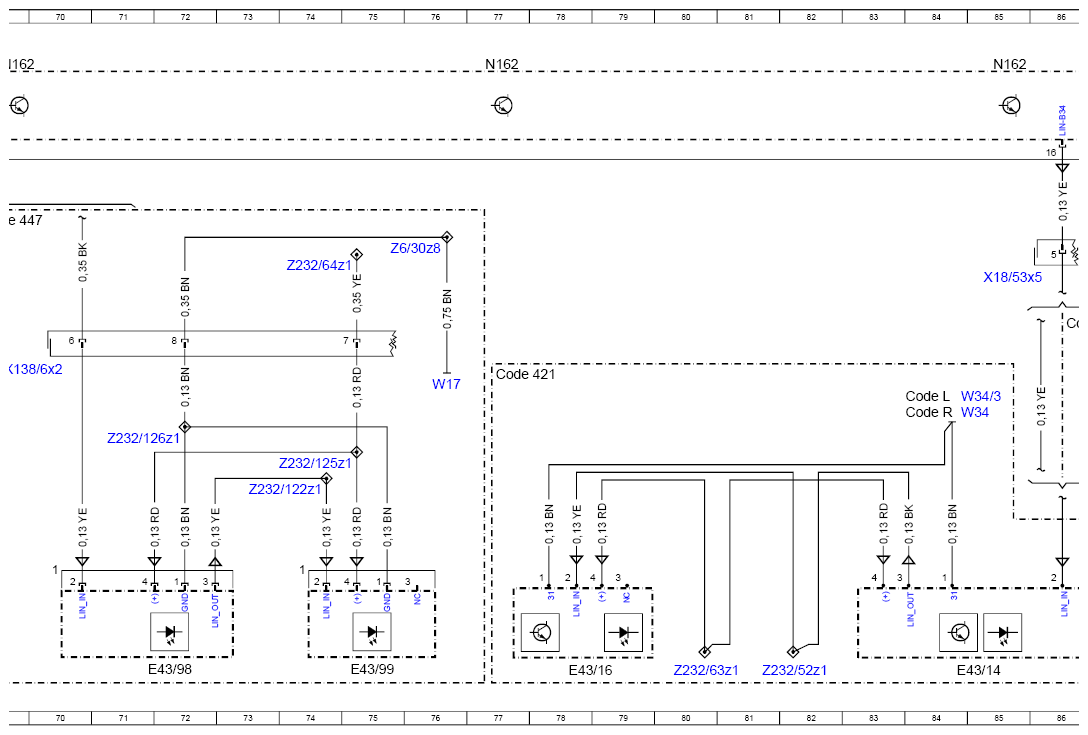

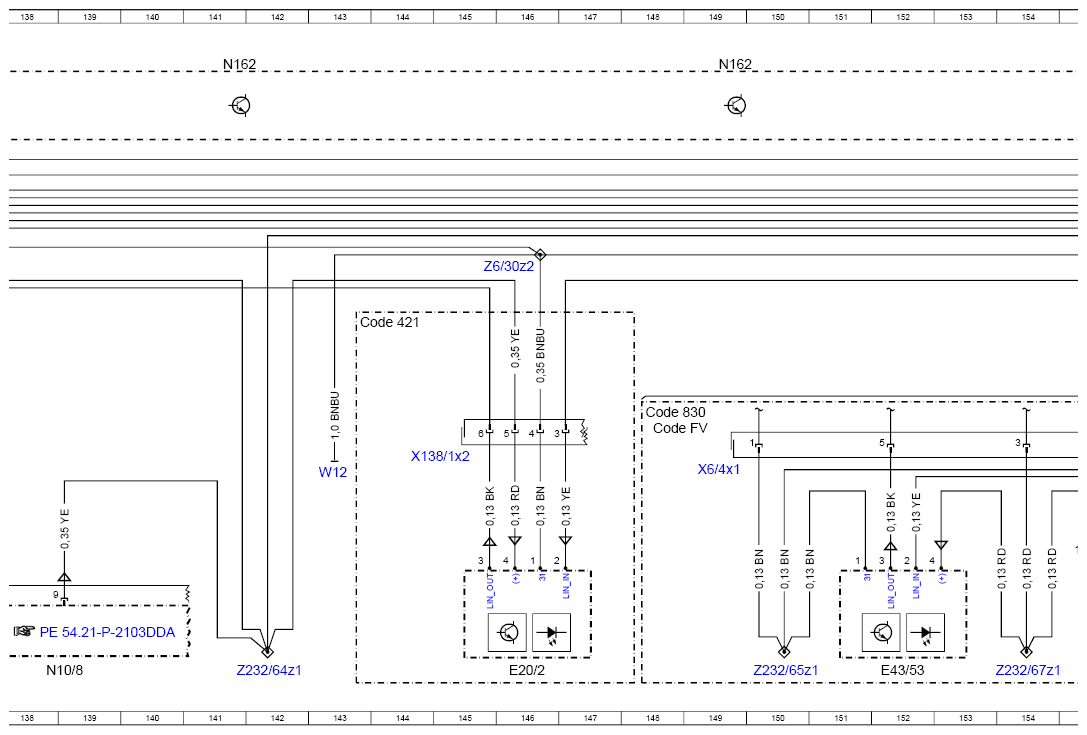

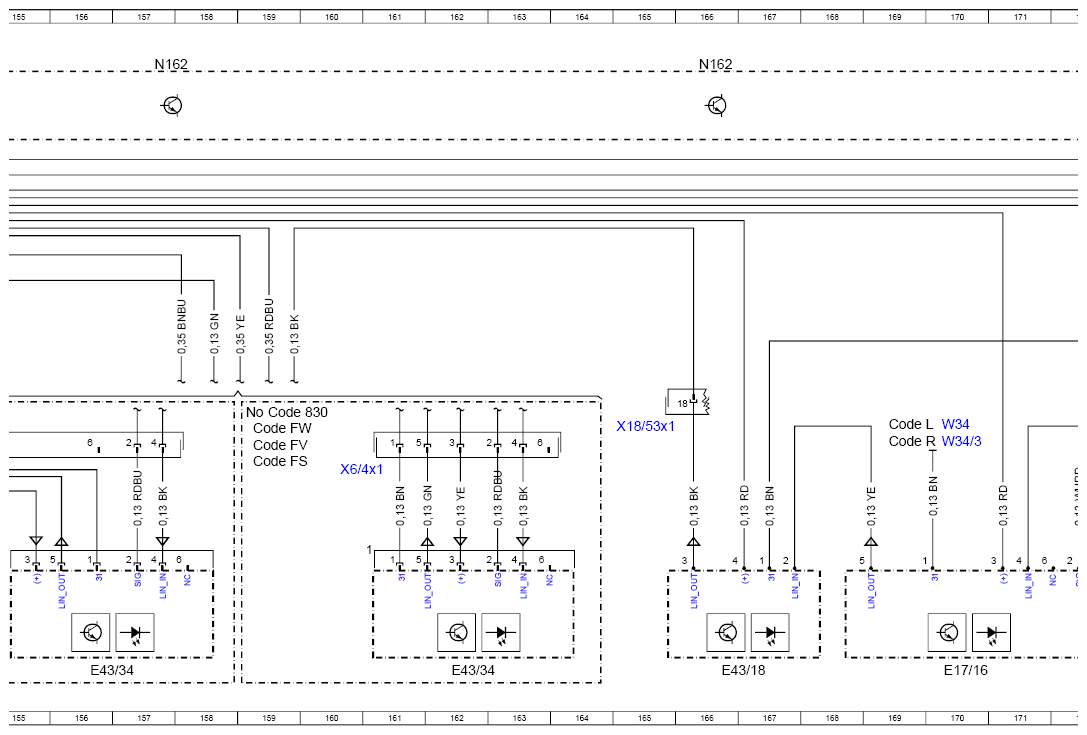

Wiring Diagram Of Ambiance Illumination Control Unit - PE82.20-P-2101-97DDA
Model 213 as of model year 2021
with code 877 (Ambient lighting)
with code 891 (Premium ambiance illumination) Control unit N162
| Code: | Designation: | Position: |
|---|---|---|

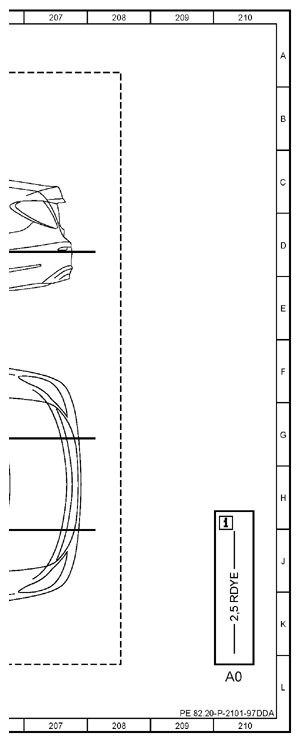

| AO | Use of wiring diagrams | 210L |
| CAN B | Interior CAN | 12K |
| Code 421 | 9G-TRONIC | 77F |
| Code 421 | 9G-TRONIC | 102F |
| Code 421 | 9G-TRONIC | 143E |
| Code 425 | 6-speed manual transmission | 104F |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 69D |
| Code 464 | Digital instrument cluster full display | 88D |
| Code 464 | Digital instrument cluster full display | 86E |
| Code 811 | Advanced sound system | 18F |
| Code 811 | Advanced sound system | 39F |
| Code 811 | Advanced sound system | 64D |
| Code 830 | Additional parts for China vehicles | 119G |
| Code 830 | Additional parts for China vehicles | 130G |
| Code 830 | Additional parts for China vehicles | 148G |
| Code 830 | Additional parts for China vehicles | 159G |
| Code FS | STATION WAGON | 130H |
| Code FS | STATION WAGON | 159H |
| Code FV | LONG SEDAN | 119G |
| Code FV | LONG SEDAN | 130G |
| Code FV | LONG SEDAN | 148G |
| Code FV | LONG SEDAN | 159G |
| Code FW | SEDAN | 130G |
| Code FW | SEDAN | 159G |
| Code L | LEFT-HAND DRIVE | 7D |
| Code L | LEFT-HAND DRIVE | 84G |
| Code L | LEFT-HAND DRIVE | 93D |
| Code L | LEFT-HAND DRIVE | 178K |
| Code L | LEFT-HAND DRIVE | 169G |
| Code L | LEFT-HAND DRIVE | 182G |
| Code L | LEFT-HAND DRIVE | 196G |
| Code R | RIGHT-HAND DRIVE | 9D |
| Code R | RIGHT-HAND DRIVE | 84G |
| Code R | RIGHT-HAND DRIVE | 93D |
| Code R | RIGHT-HAND DRIVE | 178K |
| Code R | RIGHT-HAND DRIVE | 169G |
| Code R | RIGHT-HAND DRIVE | 182G |
| Code R | RIGHT-HAND DRIVE | 196J |
| E17/15 | Right front footwell lamp | 183L |
| E17/16 | Left front footwell lamp | 170L |
| E20/2 | Front center console cup holder illumination | 146L |
| E43/14 | Left front center console ambiance illumination | 85L |
| E43/16 | Right front center console ambiance illumination | 78L |
| E43/18 | Driver-side ambiance illumination | 166L |
| E43/19 | Passenger-side interior ambiance illumination | 175L |
| E43/20 | Passenger-side exterior ambiance illumination | 187L |
| E43/25 | Inner upper digital instrument cluster full display ambient lighting | 90L |
| E43/26 | Outer upper digital instrument cluster full display ambient lighting | 92L |
| E43/27 | Inner lower digital instrument cluster full display ambient lighting | 94L |
| E43/28 | Outer lower digital instrument cluster full display ambient lighting | 96L |
| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 162L |
| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 156L |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 128L |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 134L |
| E43/53 | Driver seat contour illumination ambiance illumination (LED) | 152L |
| E43/54 | Front passenger seat contour illumination ambiance illumination (LED) | 123L |
| E43/98 | Left rear armrest ambient lamp | 72L |
| E43/99 | Right rear armrest ambient lamp | 75L |
| H4/68 | Left front door sound system tweeter | 22L |
| H4/69 | Right front door sound system tweeter | 43L |
| K40/5 | Rear fuse and relay module | 8L |
| K40/5f417 | Fuse 417 | 7L |
| N10/6 | Front SAM control unit | 100L |
| N10/8 | Rear SAM control unit | 111L |
| N10/8 | Rear SAM control unit | 138L |

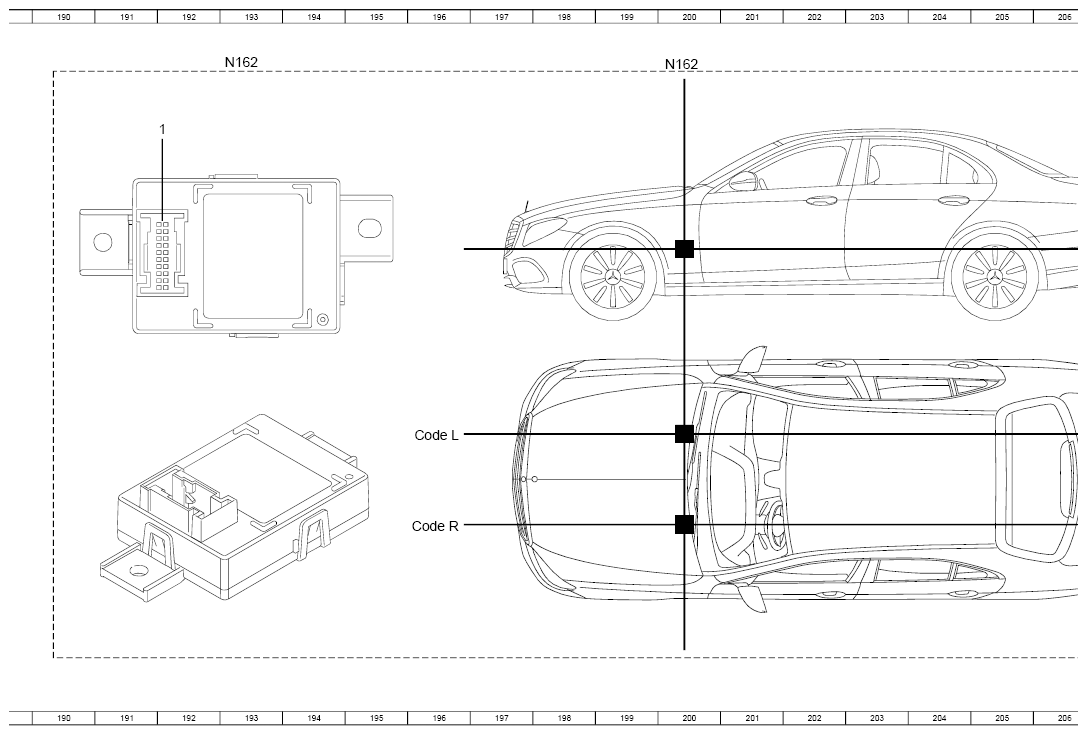

| N162 | Ambiance illumination control unit | 5A |
| N162 | Ambiance illumination control unit | 13A |
| N162 | Ambiance illumination control unit | 21A |
| N162 | Ambiance illumination control unit | 29A |
| N162 | Ambiance illumination control unit | 37A |
| N162 | Ambiance illumination control unit | 45A |
| N162 | Ambiance illumination control unit | 53A |
| N162 | Ambiance illumination control unit | 61A |
| N162 | Ambiance illumination control unit | 77A |
| N162 | Ambiance illumination control unit | 85A |
| N162 | Ambiance illumination control unit | 93A |
| N162 | Ambiance illumination control unit | 101A |
| N162 | Ambiance illumination control unit | 109A |
| N162 | Ambiance illumination control unit | 149A |
| N162 | Ambiance illumination control unit | 117A |
| N162 | Ambiance illumination control unit | 125A |
| N162 | Ambiance illumination control unit | 133A |
| N162 | Ambiance illumination control unit | 141A |
| N162 | Ambiance illumination control unit | 157A |
| N162 | Ambiance illumination control unit | 166A |
| N162 | Ambiance illumination control unit | 174A |
| N162 | Ambiance illumination control unit | 182A |
| N162 | Ambiance illumination control unit | 193A |
| N162 | Ambiance illumination control unit | 200A |
| N162 | Ambiance illumination control unit | 69A |
| N162 | Ambiance illumination control unit | 188A |
| N40/7 | Advanced sound system amplifier control unit | 28L |
| N40/7 | Advanced sound system amplifier control unit | 48L |
| N69/1 | Left front door control unit | 16L |
| N69/1 | Left front door control unit | 31L |
| N69/2 | Right front door control unit | 36L |
| N69/2 | Right front door control unit | 52L |
| N69/3 | Left rear door control unit | 57L |
| N69/4 | Right rear door control unit | 62L |
| N70 | Overhead control panel control unit | 67L |
| W12 | Left center console ground point | 143H |
| W15/5 | Left front footwell ground point | 10G |
| W15/7 | Right front footwell ground point | 8G |
| W17 | Right rear seat ground point | 76F |
| W34 | Left footwell ground point | 84G |
| W34 | Left footwell ground point | 94D |
| W34 | Left footwell ground point | 179K |
| W34 | Left footwell ground point | 170G |
| W34 | Left footwell ground point | 182G |
| W34/3 | Right footwell ground point | 84G |
| W34/3 | Right footwell ground point | 94D |
| W34/3 | Right footwell ground point | 179K |
| W34/3 | Right footwell ground point | 170G |
| W34/3 | Right footwell ground point | 182G |
| X1/75x1 | Left front door mirror triangle tweeter electrical connector | 19J |
| X1/76x1 | Right front door mirror triangle tweeter electrical connector | 39J |
| X138/1x2 | Front center console electrical connector | 145H |
| X138/6x2 | Rear center console electrical connector | 70F |
| X157/22x1 | Audio/COMAND display ambiance illumination electrical connector | 91F |
| X18/53x1 | Driver cockpit/interior wiring harness electrical connector | 165G |
| X18/53x5 | Driver cockpit/interior wiring harness electrical connector | 85E |
| X18/54x1 | Front passenger cockpit/interior wiring harness electrical connector | 188E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 12L |
| X35/1x1 | Driver door electrical connector | 17E |
| X35/2x1 | Front passenger door electrical connector | 38E |
| X35/3x1 | Left rear door electrical connector | 57G |
| X35/4x1 | Right rear door electrical connector | 61G |
| X6/4x1 | Driver footwell lamp electrical connector | 149H |
| X6/4x1 | Driver footwell lamp electrical connector | 160H |
| X6/5x1 | Front passenger footwell lamp electrical connector | 120H |
| X6/5x1 | Front passenger footwell lamp electrical connector | 132H |
| Z175/3z1 | Footwell illumination connector sleeve, vehicle interior | 114L |
| Z232/122z1 | LIN for overhead ambient lighting | 74H |
| Z232/125z1 | Voltage supply connector sleeve | 74H |
| Z232/126z1 | Ground connection connector sleeve | 71G |
| Z232/52z1 | Upper center console trim plate ambiance illumination LIN connector sleeve | 81L |
| Z232/61z1 | Cockpit ambiance illumination ground connection connector sleeve | 177L |
| Z232/62z1 | Cockpit ambiance illumination power supply 1 connector sleeve | 108L |
| Z232/63z1 | Cockpit ambiance illumination power supply 2 connector sleeve | 80L |
| Z232/63z1 | Cockpit ambiance illumination power supply 2 connector sleeve | 103L |
| Z232/64z1 | Vehicle interior ambiance illumination power supply connector sleeve | 142L |
| Z232/64z1 | Vehicle interior ambiance illumination power supply connector sleeve | 74D |
| Z232/65z1 | Driver seat contour illumination ground connection connector sleeve | 150L |
| Z232/66z1 | Front passenger seat contour illumination ground connection connector sleeve | 121L |
| Z232/67z1 | Driver seat contour illumination power supply connector sleeve | 154L |
| Z232/68z1 | Front passenger seat contour illumination power supply connector sleeve | 125L |
| Z50/20z1 | Cockpit connector sleeve, footwell lighting | 173L |
| Z6/30z2 | Circuit 31 connector sleeve | 146D |
| Z6/30z8 | Circuit 31 connector sleeve | 76D |
| Z6/30z9 | Circuit 31 connector sleeve | 8F |
