Wiring Diagram Of Ambiance Illumination Control Unit - PE82.20-P-2101-97DBA
Model 213 up to model year 2021
with code 877 (Ambient lighting) Control unit N162
Model 213 up to model year 2021
with code 891 (Premium ambiance illumination) Control unit N162

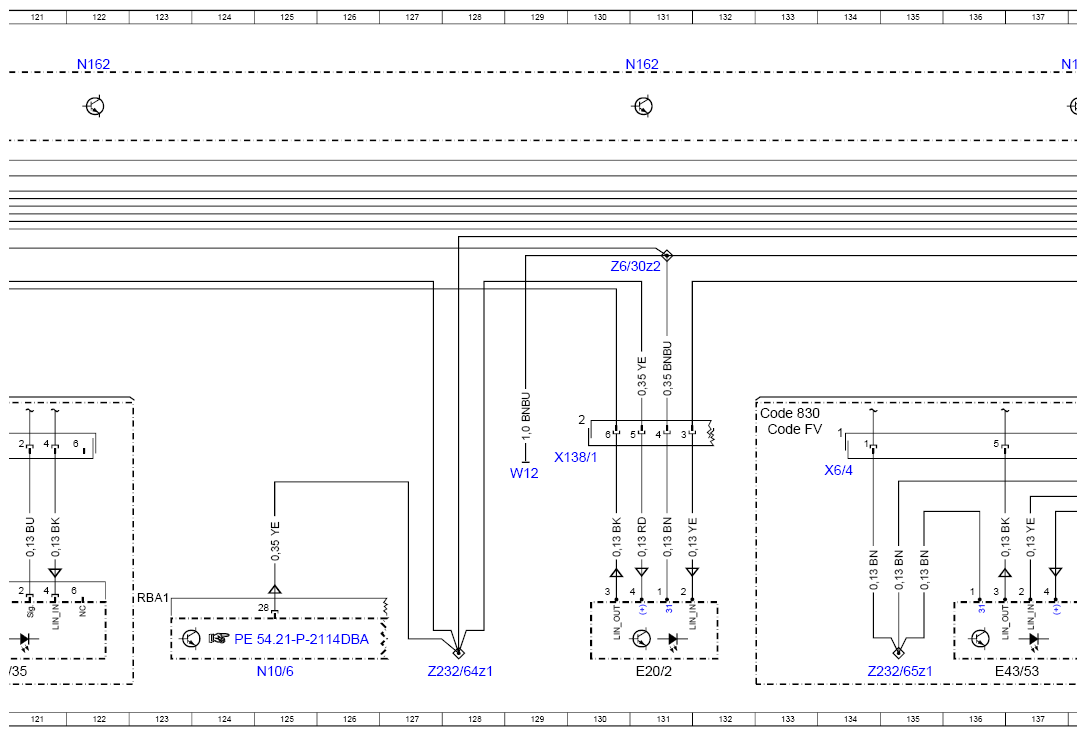

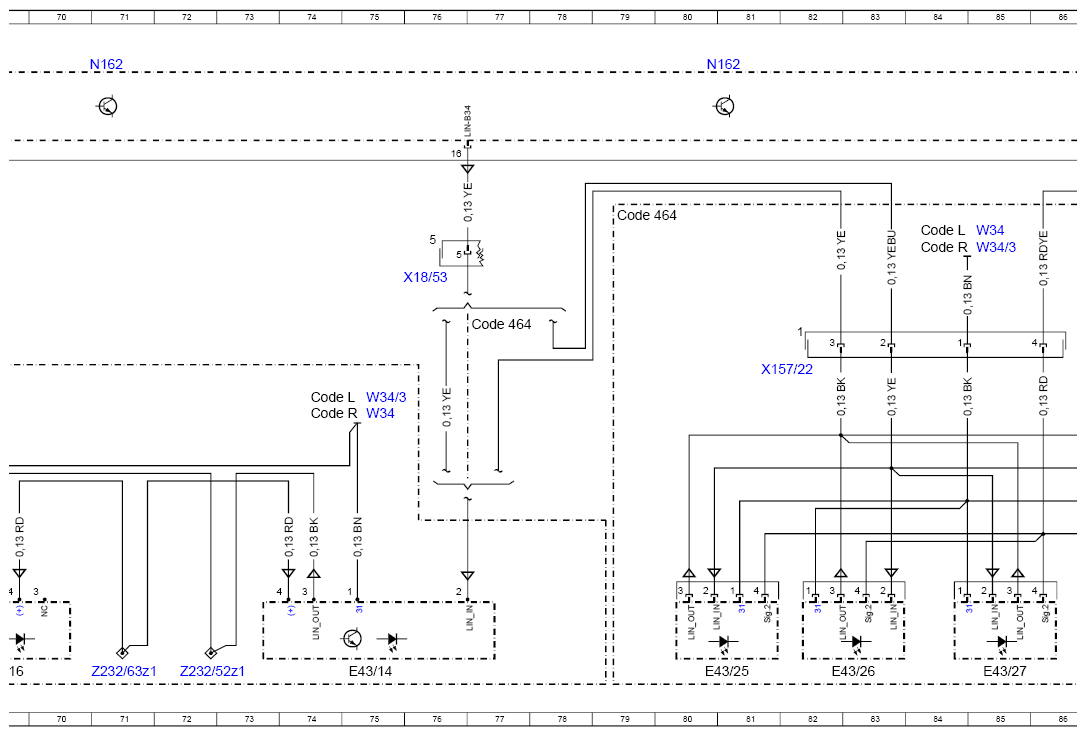

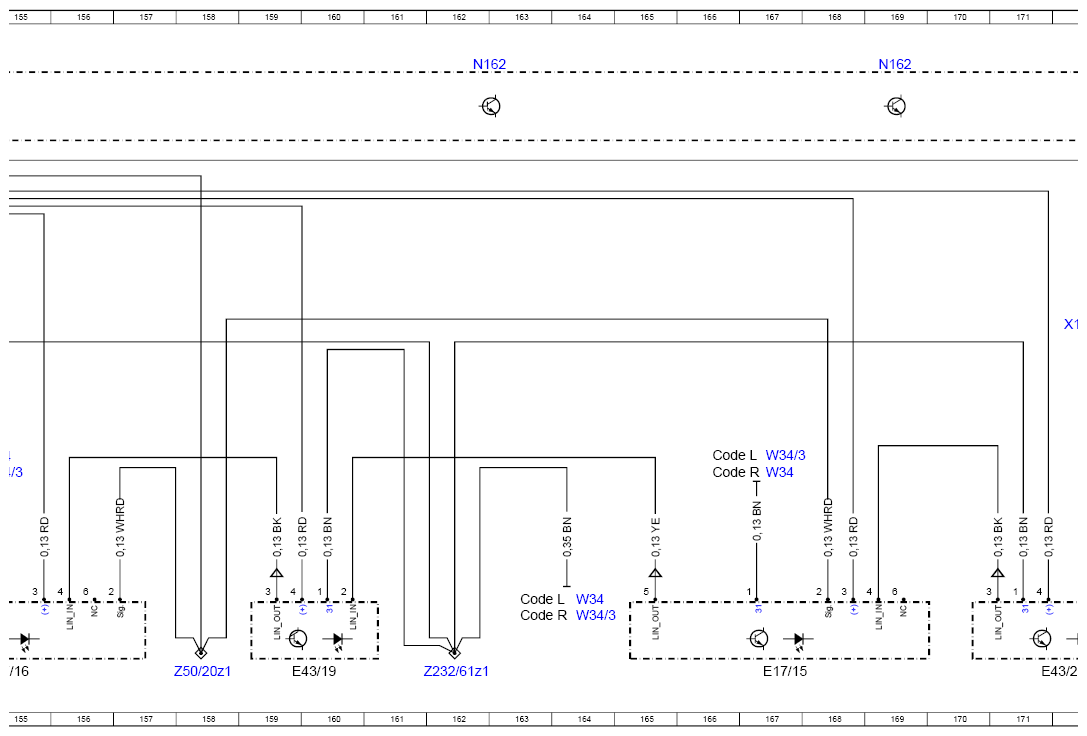

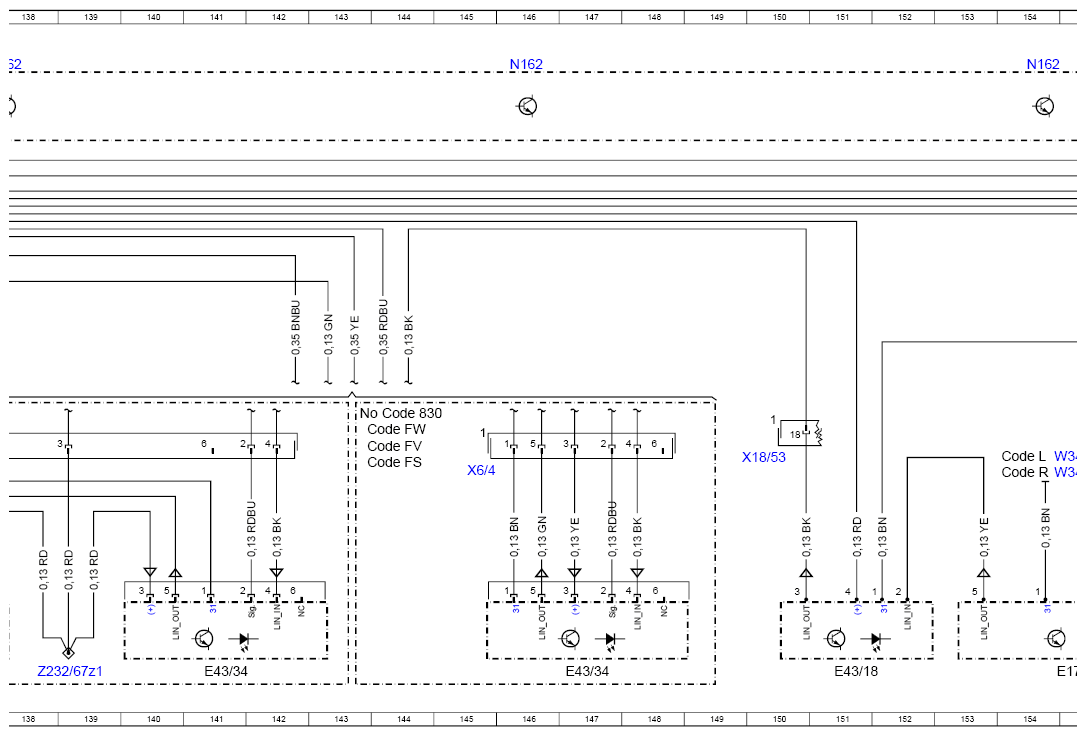

| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 184L |
| CAN B | Interior CAN | 8K |
| Code 421 | 9G-TRONIC | 93F |
| Code 421 | 9G-TRONIC | 68F |
| Code 425 | 6-speed manual transmission | 96F |
| Code 464 | Digital instrument cluster full display | 77E |
| Code 464 | Digital instrument cluster full display | 79D |
| Code 811 | Advanced sound system | 60F |
| Code 811 | Advanced sound system | 14F |
| Code 811 | Advanced sound system | 35F |
| Code 830 | Additional parts for China vehicles | 106G |
| Code 830 | Additional parts for China vehicles | 118G |
| Code 830 | Additional parts for China vehicles | 133G |
| Code 830 | Additional parts for China vehicles | 144G |
| Code FS | STATION WAGON | 117H |
| Code FS | STATION WAGON | 143H |
| Code FV | LONG SEDAN | 174C |
| Code FV | LONG SEDAN | 107G |
| Code FV | LONG SEDAN | 117G |
| Code FV | LONG SEDAN | 133G |
| Code FV | LONG SEDAN | 143G |
| Code FW | SEDAN | 117G |
| Code FW | SEDAN | 143G |
| Code L | LEFT-HAND DRIVE | 3D |
| Code L | LEFT-HAND DRIVE | 74G |
| Code L | LEFT-HAND DRIVE | 154G |
| Code L | LEFT-HAND DRIVE | 163K |
| Code L | LEFT-HAND DRIVE | 166G |
| Code L | LEFT-HAND DRIVE | 84D |
| Code R | RIGHT-HAND DRIVE | 5D |
| Code R | RIGHT-HAND DRIVE | 74G |
| Code R | RIGHT-HAND DRIVE | 154H |
| Code R | RIGHT-HAND DRIVE | 163K |
| Code R | RIGHT-HAND DRIVE | 166H |
| Code R | RIGHT-HAND DRIVE | 84D |
| E17/15 | Right front footwell lamp | 167L |
| E17/16 | Left front footwell lamp | 155L |
| E20/2 | Front center console cup holder illumination | 131L |
| E36/7 | Rear armrest folding compartment illumination | 176L |
| E43/14 | Left front center console ambiance illumination | 75L |
| E43/16 | Right front center console ambiance illumination | 69L |
| E43/18 | Driver-side ambiance illumination | 151L |
| E43/19 | Passenger-side interior ambiance illumination | 160L |
| E43/20 | Passenger-side exterior ambiance illumination | 171L |
| E43/25 | Inner upper digital instrument cluster full display ambient lighting | 80L |
| E43/26 | Outer upper digital instrument cluster full display ambient lighting | 83L |
| E43/27 | Inner lower digital instrument cluster full display ambient lighting | 85L |
| E43/28 | Outer lower digital instrument cluster full display ambient lighting | 87L |
| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 141L |
| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 147L |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 115L |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 120L |

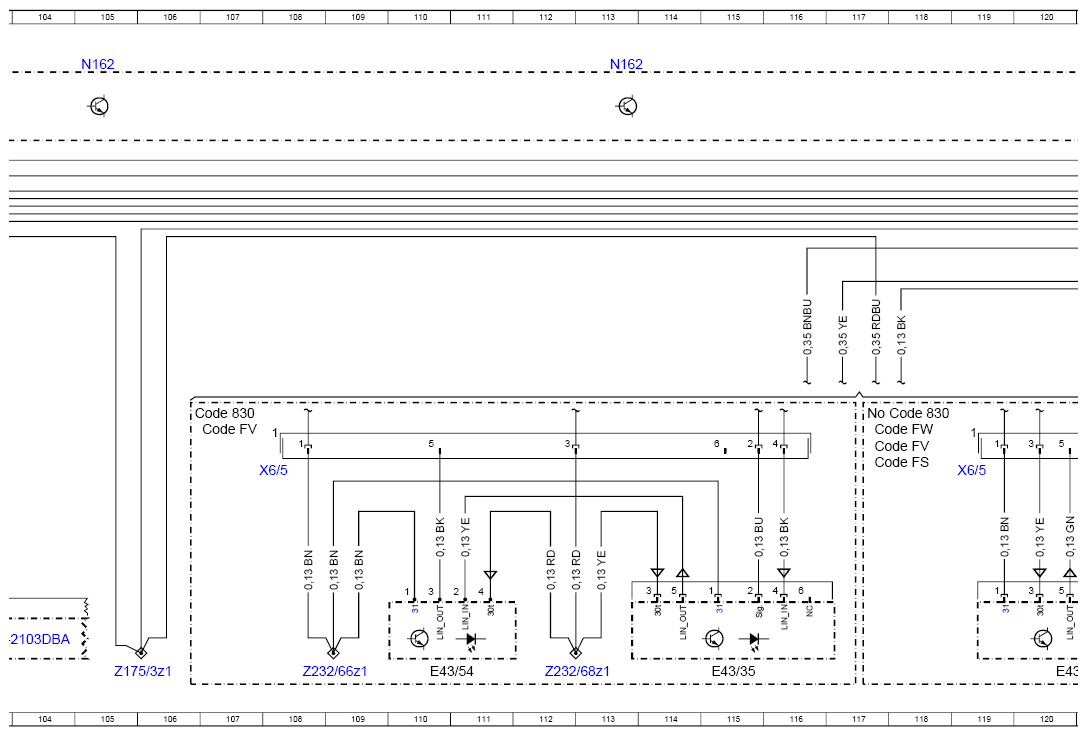

| E43/53 | Driver seat contour illumination ambiance illumination (LED) | 137L |
| E43/54 | Front passenger seat contour illumination ambiance illumination (LED) | 110L |
| E43/55 | Roof center midrange speaker ambiance illumination | 66L |

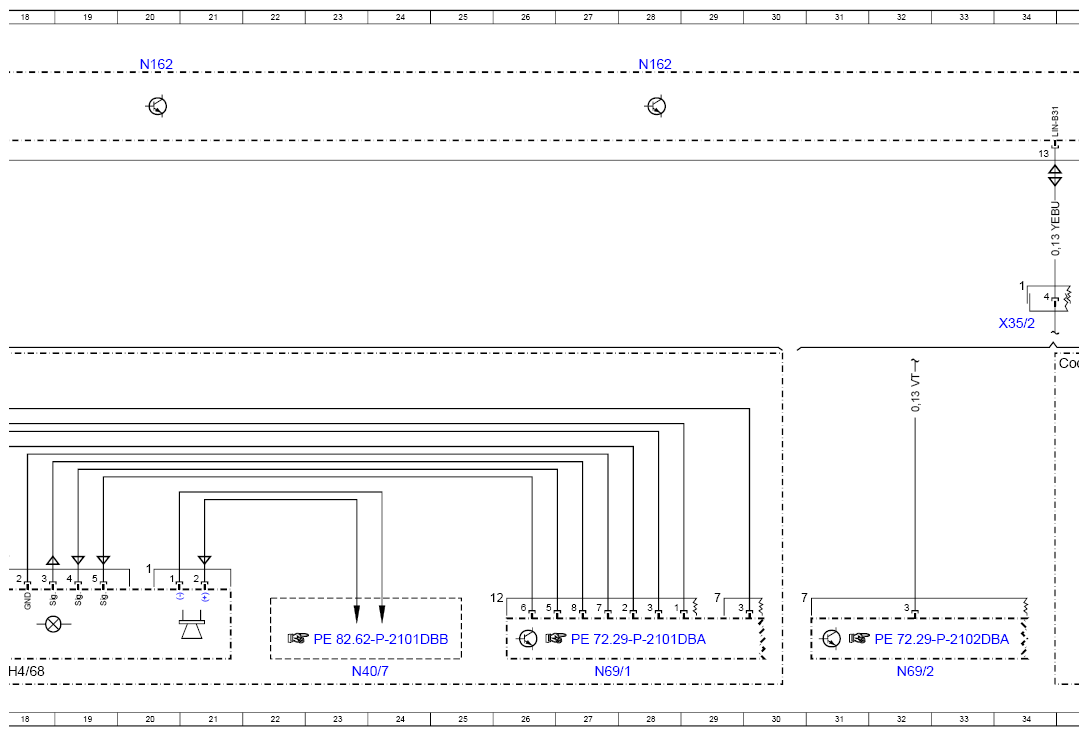

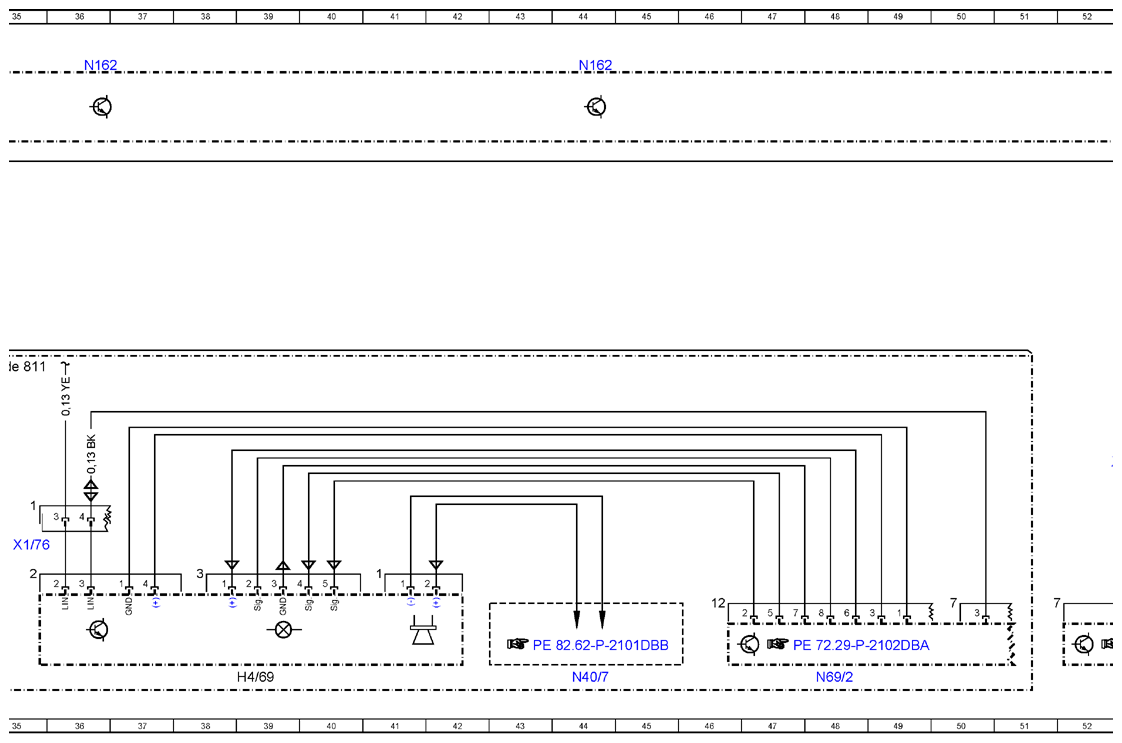

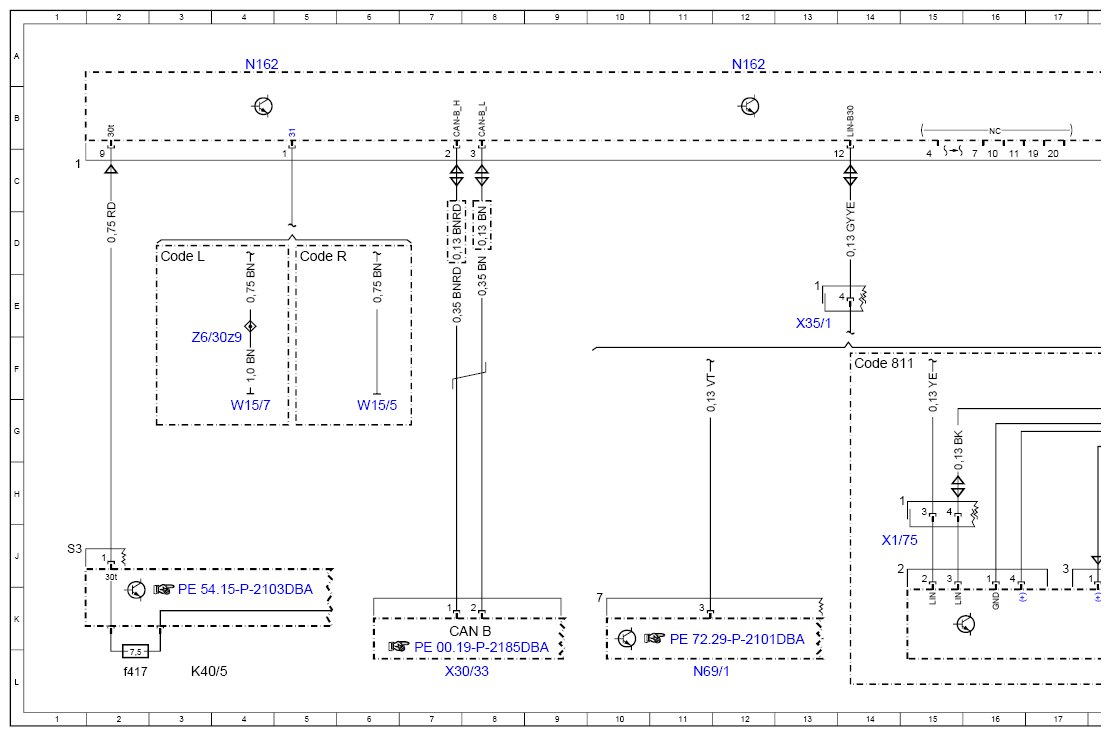

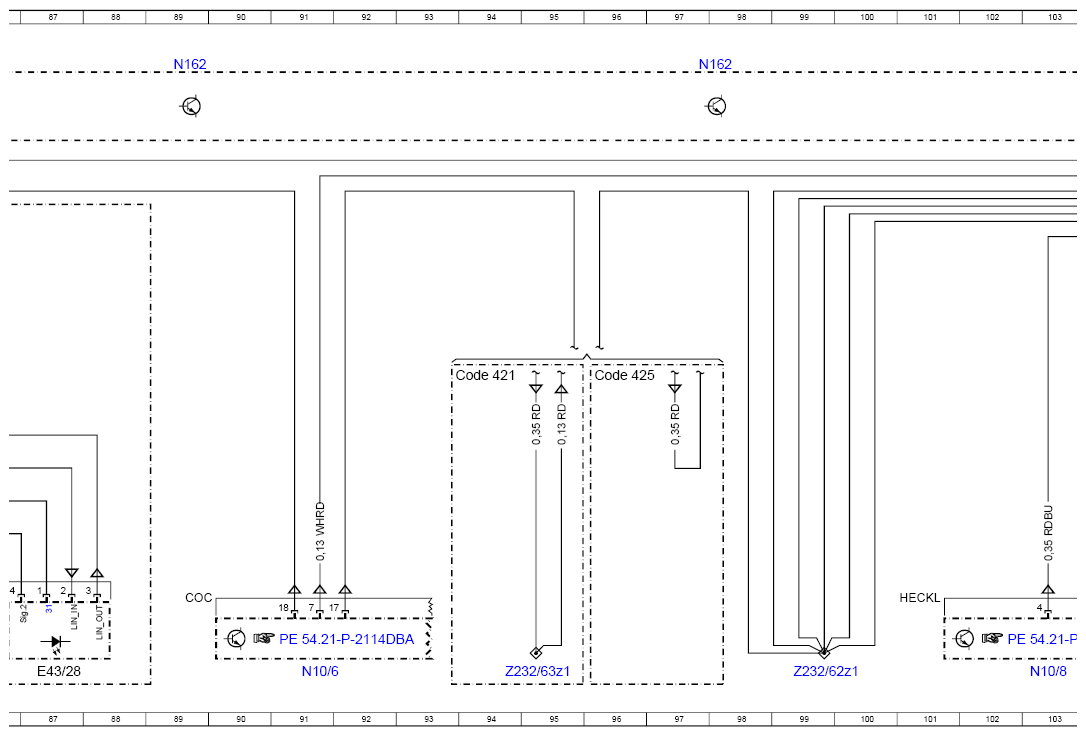

| H4/68 | Left front door sound system tweeter | 18L |
| H4/69 | Right front door sound system tweeter | 39L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f417 | Fuse 417 | 2L |
| N10/6 | Front SAM control unit | 91L |
| N10/6 | Front SAM control unit | 125L |
| N10/6 | Front SAM control unit | 176A |
| N10/8 | Rear SAM control unit | 103L |

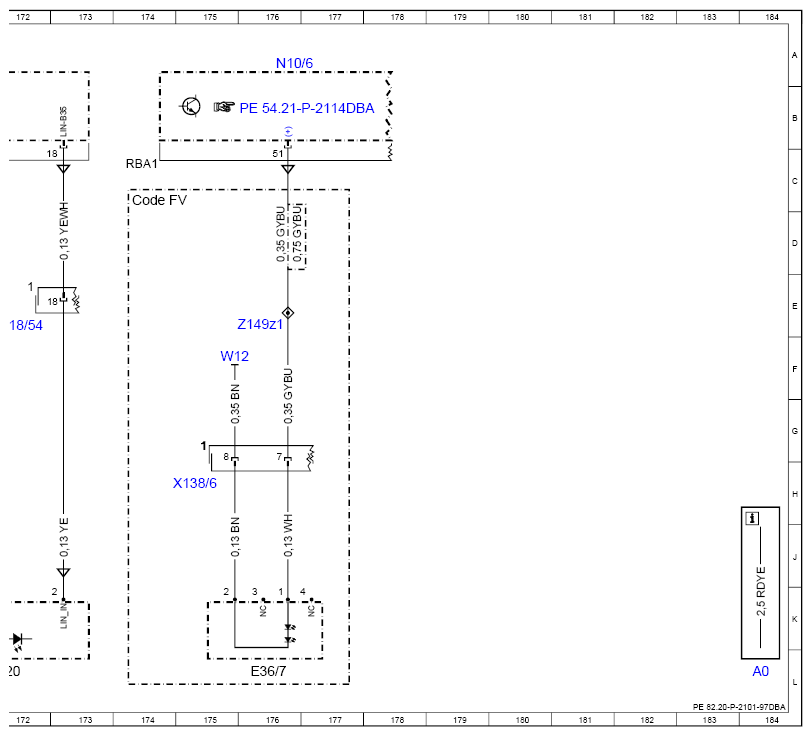

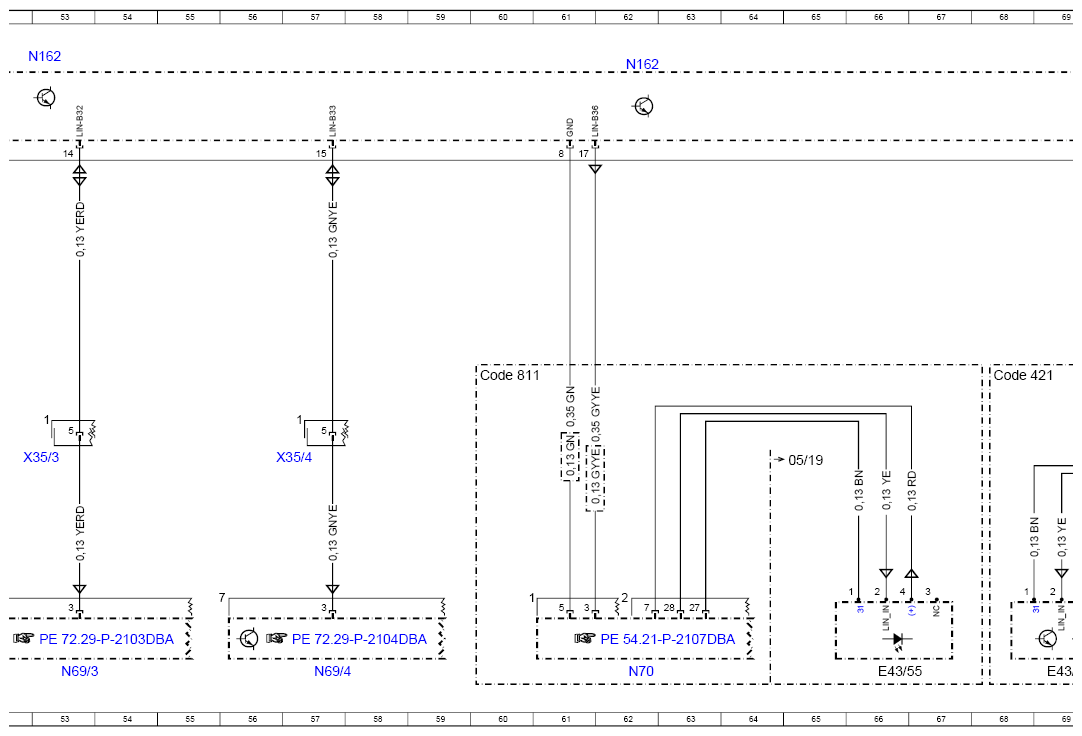

| N162 | Ambiance illumination control unit | 4A |
| N162 | Ambiance illumination control unit | 12A |
| N162 | Ambiance illumination control unit | 20A |
| N162 | Ambiance illumination control unit | 28A |
| N162 | Ambiance illumination control unit | 62A |
| N162 | Ambiance illumination control unit | 36A |
| N162 | Ambiance illumination control unit | 44A |
| N162 | Ambiance illumination control unit | 53A |
| N162 | Ambiance illumination control unit | 71A |
| N162 | Ambiance illumination control unit | 80A |
| N162 | Ambiance illumination control unit | 89A |
| N162 | Ambiance illumination control unit | 122A |
| N162 | Ambiance illumination control unit | 97A |
| N162 | Ambiance illumination control unit | 105A |
| N162 | Ambiance illumination control unit | 113A |
| N162 | Ambiance illumination control unit | 131A |
| N162 | Ambiance illumination control unit | 138A |
| N162 | Ambiance illumination control unit | 146A |
| N162 | Ambiance illumination control unit | 162A |
| N162 | Ambiance illumination control unit | 154A |
| N162 | Ambiance illumination control unit | 169A |
| N40/7 | Advanced sound system amplifier control unit | 23L |
| N40/7 | Advanced sound system amplifier control unit | 44L |
| N69/1 | Left front door control unit | 11L |
| N69/1 | Left front door control unit | 27L |
| N69/2 | Right front door control unit | 32L |
| N69/2 | Right front door control unit | 48L |
| N69/3 | Left rear door control unit | 53L |
| N69/4 | Right rear door control unit | 57L |
| N70 | Overhead control panel control unit | 62L |
| W12 | Left center console ground point | 129H |
| W12 | Left center console ground point | 175F |
| W15/5 | Left front footwell ground point | 6G |
| W15/7 | Right front footwell ground point | 4G |
| W34 | Left footwell ground point | 75G |
| W34 | Left footwell ground point | 154G |
| W34 | Left footwell ground point | 164K |
| W34 | Left footwell ground point | 167H |
| W34 | Left footwell ground point | 85D |
| W34/3 | Right footwell ground point | 75G |
| W34/3 | Right footwell ground point | 154H |
| W34/3 | Right footwell ground point | 164K |
| W34/3 | Right footwell ground point | 167G |
| W34/3 | Right footwell ground point | 85D |
| X1/75 | Left front door mirror triangle tweeter electrical connector | 15J |
| X1/76 | Right front door mirror triangle tweeter electrical connector | 35J |
| X138/1 | Front center console electrical connector | 130H |
| X138/6 | Rear center console electrical connector | 175H |
| X157/22 | Audio/COMAND display ambiance illumination electrical connector | 82F |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 76E |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 150H |
| X18/54 | Passenger-side cockpit/frame floor assembly electrical connector | 172E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 7L |
| X35/1 | Driver door electrical connector | 13E |
| X35/2 | Front passenger door electrical connector | 34E |
| X35/3 | Left rear door electrical connector | 53H |
| X35/4 | Right rear door electrical connector | 57H |
| X6/4 | Driver footwell lamp electrical connector | 134H |
| X6/4 | Driver footwell lamp electrical connector | 145H |
| X6/5 | Front passenger footwell lamp electrical connector | 108H |
| X6/5 | Front passenger footwell lamp electrical connector | 119H |
| Z149z1 | Connector sleeve, cigarette lighter with ashtray illumination, rear | 176E |
| Z175/3z1 | Footwell illumination connector sleeve, vehicle interior | 105L |
| Z232/52z1 | Upper center console trim plate ambiance illumination LIN connector sleeve | 72L |
| Z232/61z1 | Cockpit ambiance illumination ground connection connector sleeve | 162L |
| Z232/62z1 | Cockpit ambiance illumination power supply 1 connector sleeve | 99L |
| Z232/63z1 | Cockpit ambiance illumination power supply 2 connector sleeve | 94L |
| Z232/63z1 | Cockpit ambiance illumination power supply 2 connector sleeve | 71L |
| Z232/64z1 | Vehicle interior ambiance illumination power supply connector sleeve | 128L |
| Z232/65z1 | Driver seat contour illumination ground connection connector sleeve | 135L |
| Z232/66z1 | Front passenger seat contour illumination ground connection connector sleeve | 108L |
| Z232/67z1 | Driver seat contour illumination power supply connector sleeve | 138L |
| Z232/68z1 | Front passenger seat contour illumination power supply connector sleeve | 112L |
| Z50/20z1 | Cockpit connector sleeve, footwell lighting | 158L |
| Z6/30z2 | Circuit 31 connector sleeve | 131D |
| Z6/30z9 | Circuit 31 connector sleeve | 4F |
