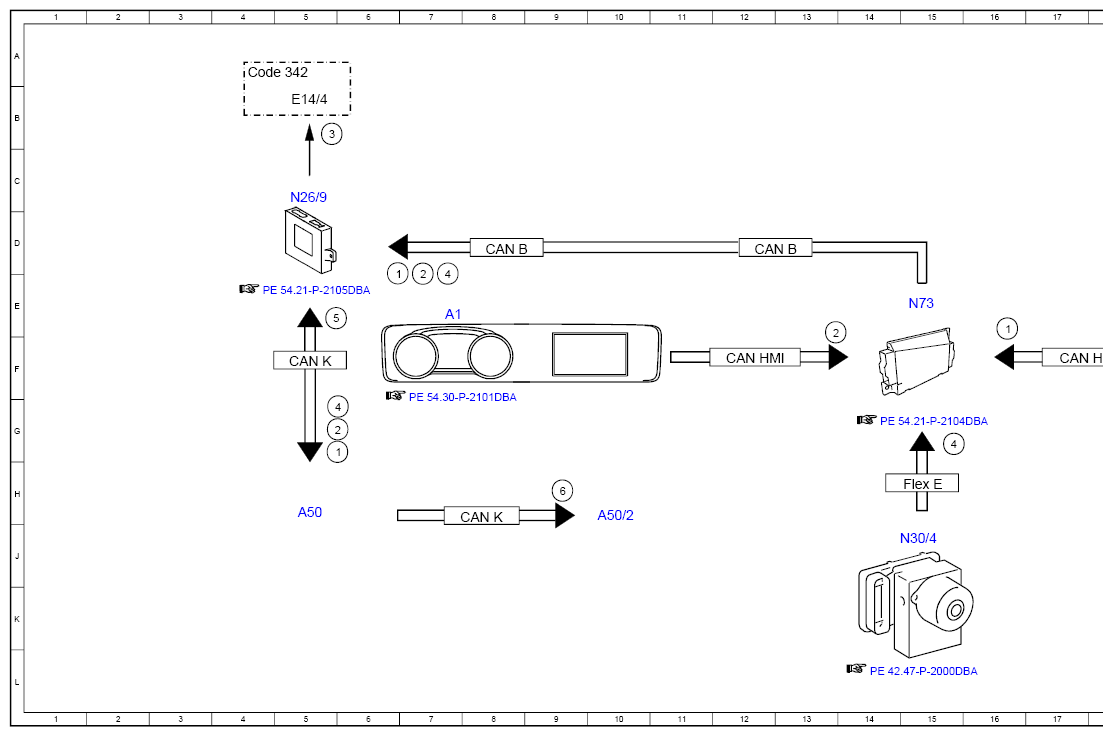

Electrical Function Schematic For Taximeter - PE82.25-P-2065-97DBA
Model 213 up to model year 2021
with code 336 (Taximeter console in OCP)
with code 965 (Taxi/rental car - electrical pre-installation)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Front passenger seat occupied recognition, status | 5G |
| 1 | Front passenger seat occupied recognition, status | 6E |
| 1 | Front passenger seat occupied recognition, status | 16E |
| 2 | Vehicle speed, signal | 5G |
| 2 | Vehicle speed, signal | 7E |
| 2 | Vehicle speed, signal | 13E |
| 3 | Roof sign lamp, actuation | 5B |
| 4 | Wheel speed, signal | 5G |
| 4 | Wheel speed, signal | 15G |
| 4 | Wheel speed, signal | 7E |
| 5 | Mirror taximeter button 1, status | 5E |
| 6 | Card reader and printer, request | 9H |
| A1 | Instrument cluster | 7E |
| A50 | Taximeter | 5H |
| A50/2 | Card reader and printer | 10H |
| CAN B | Interior CAN | 12D |
| CAN B | Interior CAN | 8D |
| CAN HMI | User interface CAN | 17F |
| CAN HMI | User interface CAN | 12F |
| CAN K | Multifunction CAN | 8H |
| CAN K | Multifunction CAN | 5F |
| Code 342 | Roof sign connection for taxi | 4A |
| E14/4 | Roof sign lamp | 5B |
| Flex E | Chassis FlexRay | 15H |
| N2/10 | Supplemental restraint system control unit | 20E |
| N26/9 | Special-purpose vehicle multifunction control unit | 5C |
| N30/4 | Electronic Stability Program control unit | 15J |
| N73 | Electronic ignition switch control unit | 15E |
