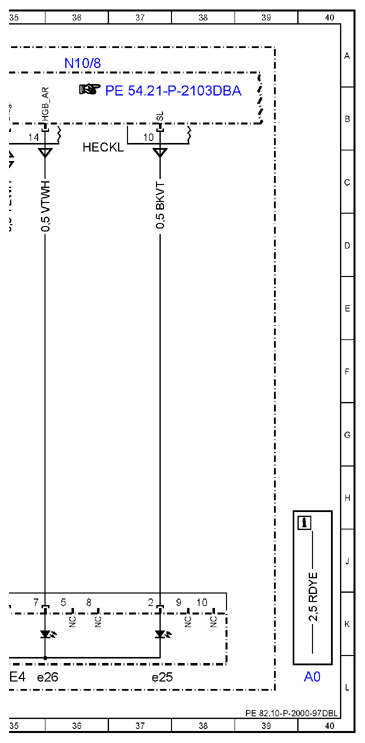

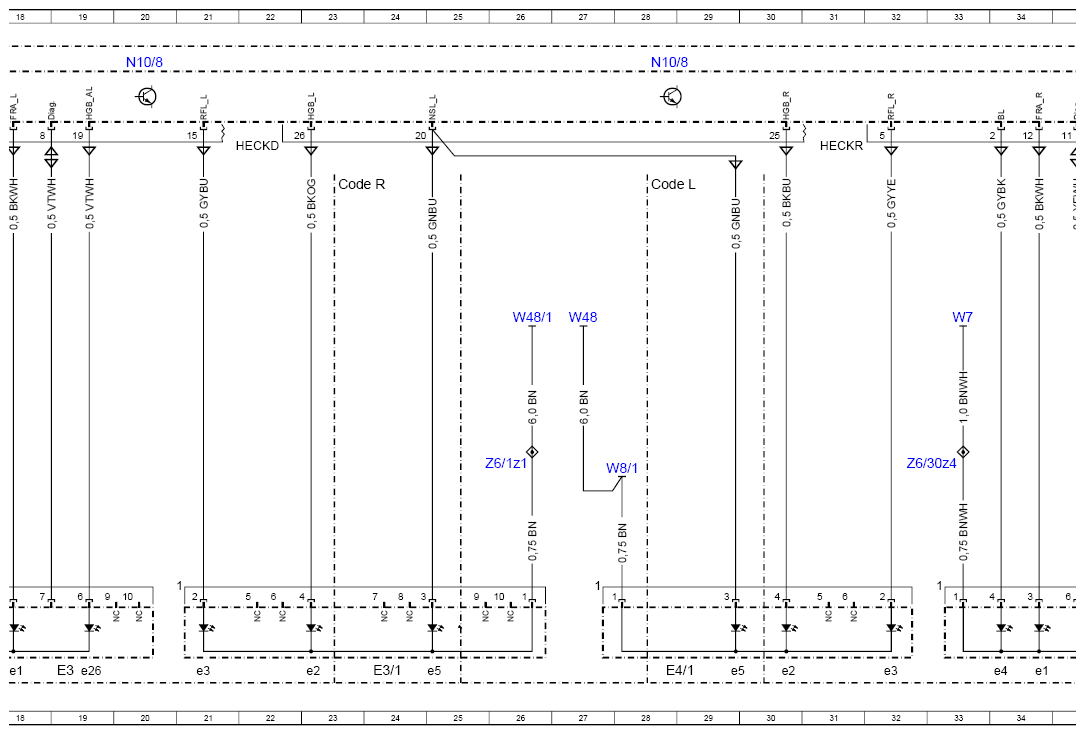

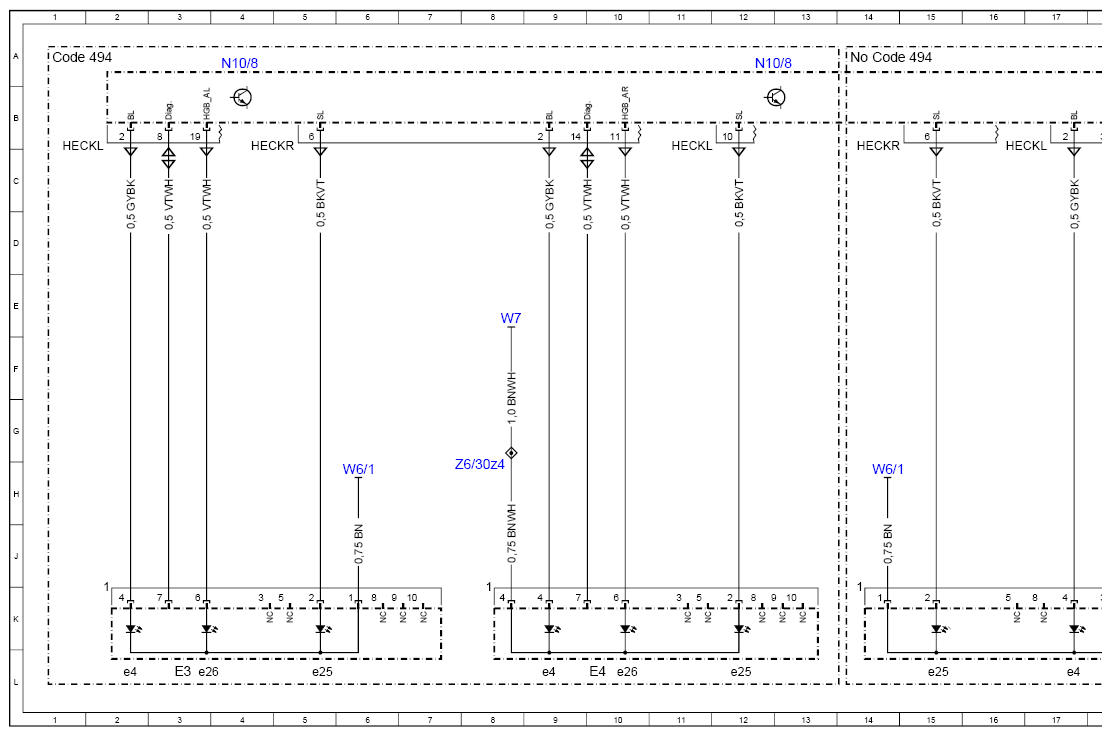

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97DBL
Model 213.2 up to model year 2021 Lamp unit E3 and E4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| Code 494 | USA version | 1A |
| Code 494 | USA version | 14A |
| Code L | LEFT-HAND DRIVE | 28C |
| Code R | RIGHT-HAND DRIVE | 23C |
| E3 | Left rear lamp unit | 3L |
| E3 | Left rear lamp unit | 19L |
| E3/1 | Inner left rear lamp unit | 24L |
| E3/1e2 | Left inside taillight | 23L |
| E3/1e3 | Left backup lamp | 21L |
| E3/1e5 | Left rear fog lamp | 25L |
| E3e1 | Left rear turn signal lamp | 18L |
| E3e25 | Upper left taillight | 5L |
| E3e25 | Upper left taillight | 15L |
| E3e26 | Lower left taillight | 3L |
| E3e26 | Lower left taillight | 19L |
| E3e4 | Left stop lamp | 2L |
| E3e4 | Left stop lamp | 17L |
| E4 | Right rear lamp unit | 10L |
| E4 | Right rear lamp unit | 35L |
| E4/1 | Inner right rear lamp unit | 28L |
| E4/1e2 | Right inside taillight | 30L |
| E4/1e3 | Right backup lamp | 32L |
| E4/1e5 | Right rear fog lamp | 29L |
| E4e1 | Right rear turn signal lamp | 34L |
| E4e25 | Upper right taillight | 12L |
| E4e25 | Upper right taillight | 37L |
| E4e26 | Lower right taillight | 10L |
| E4e26 | Lower right taillight | 35L |
| E4e4 | Right stop lamp | 9L |
| E4e4 | Right stop lamp | 34L |
| N10/8 | Rear SAM control unit | 28A |
| N10/8 | Rear SAM control unit | 36A |
| N10/8 | Rear SAM control unit | 20A |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 4A |
| W48 | Left rear roof frame ground point | 27E |
| W48/1 | Right rear roof frame ground point | 26E |
| W6/1 | Left taillamp trunk ground point | 6H |
| W6/1 | Left taillamp trunk ground point | 14H |
| W7 | Right wheel house trunk ground point | 8E |
| W7 | Right wheel house trunk ground point | 33E |
| W8/1 | Left tailgate ground point | 28H |
| Z6/1z1 | Ground line connector sleeve | 26H |
| Z6/30z4 | Circuit 31 connector sleeve | 8H |
| Z6/30z4 | Circuit 31 connector sleeve | 33H |
