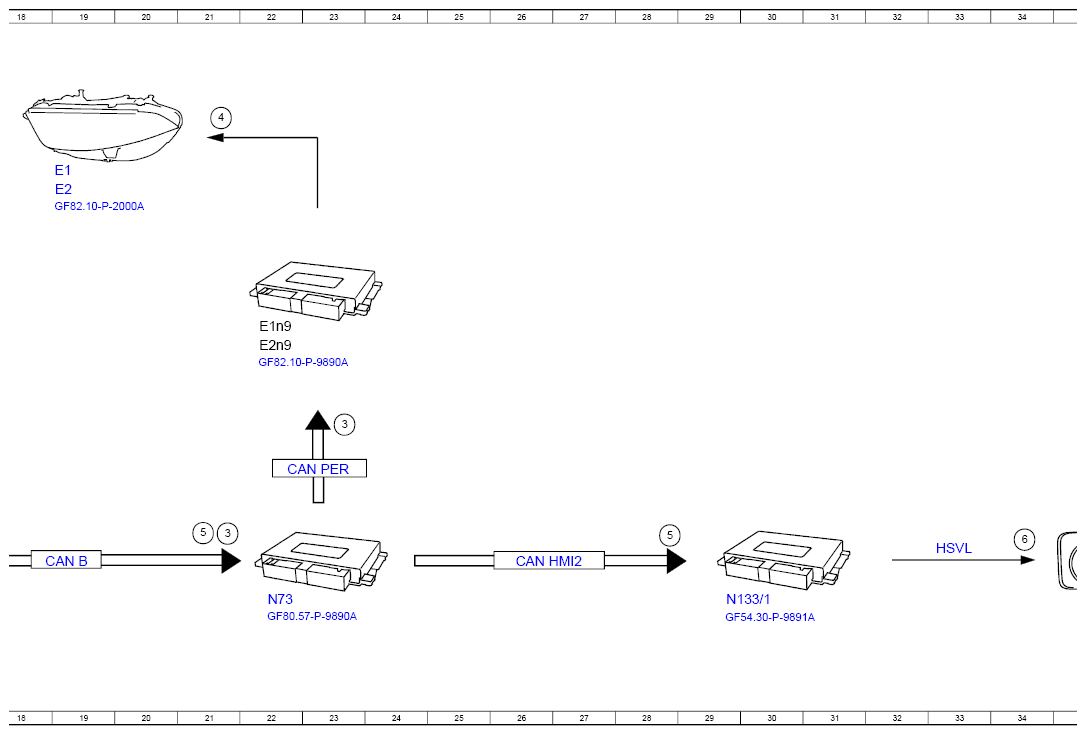

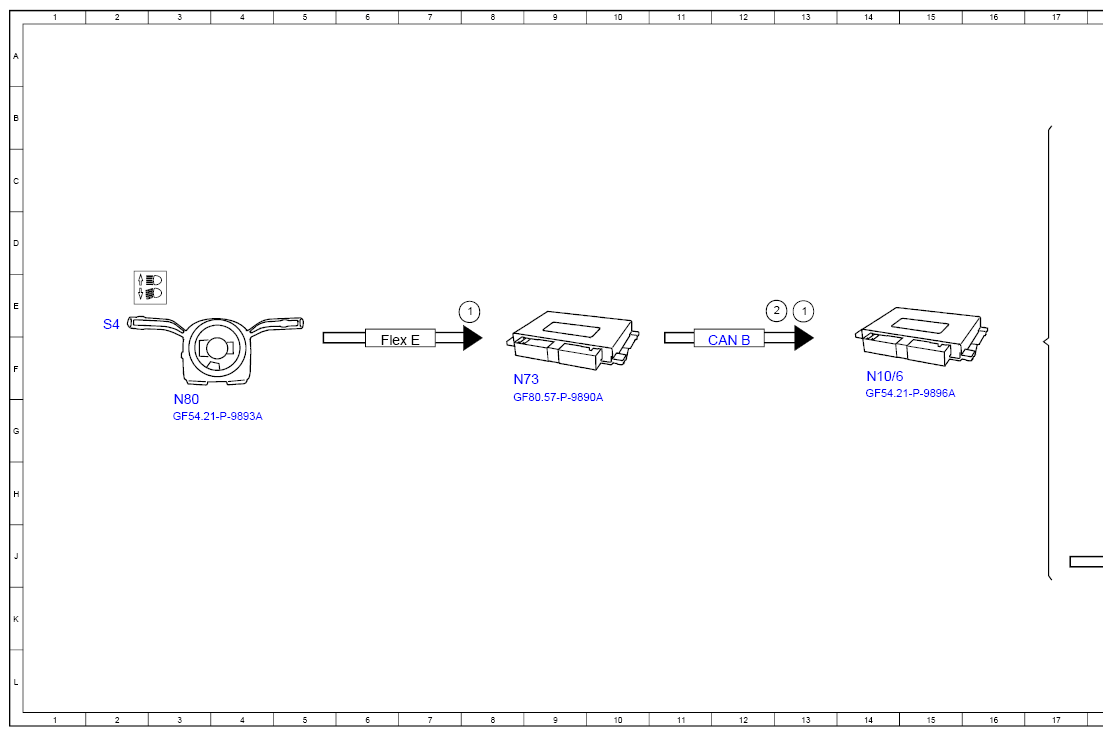

Function Schematic, Actuate High Beams - PE82.10-P-2505-97D
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Combination switch, status | 13E |
| 1 | Combination switch, status | 8E |
| 2 | Terminal 15, status | 13E |
| 3 | High beam, request | 23G |
| 3 | High beam, request | 21J |
| 4 | High beam, control | 21B |
| 5 | Indicator light, request | 21J |
| 5 | Indicator light, request | 28J |
| 6 | Image data, signal | 34J |
| A40/16 | Display group head unit / instrument cluster | 36K |
| CAN B | Interior CAN | 19J |
| CAN B | Interior CAN | 12F |
| CAN HMI2 | User interface-CAN 2 | 26J |
| CAN PER | Peripheral CAN | 23H |
| E1 | Front left light unit | 19C |
| E1n9 | Left headlight control unit | 22E |
| E2 | Front right light unit | 19C |
| E2n9 | Right headlight control unit | 22F |
| Flex E | Chassis FlexRay | 6F |
| HSVL | High-Speed-Video-Link | 33J |
| N10/6 | Front SAM control unit | 14F |
| N133/1 | Control unit instrument cluster | 29K |
| N73 | Electronic ignition lock control unit | 8F |
| N73 | Electronic ignition lock control unit | 22K |
| N80 | Control unit jacket pipe module | 3G |
| S4 | Combi switch | 2E |
