Retrofit Touchpad Wiring Harness In Area Of Center Console - AN82.60-P-0017-04LWE

Model 213 as of 6/1/17

except code 448 (Touchpad)

Model 213 up to 8/3/16

except code 448 (Touchpad)

	Risk of injury  caused by burns to skin and eyes, risk of poisoning caused by inhaling fumes during soldering.	Wear protective gloves, protective clothing and safety glasses. Ensure that the work area is adequately ventilated. Secure power supply cables. Avoid sources of fire in working area.	AS00.19-Z-0002-01A
	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on soft soldering		AH00.19-P-1000-07A

Fig 1: Identifying New Passenger Car Wiring Harness Repair Kit (220 589 04 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Welding Bead Catcher (129 589 01 98 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adapter (220 589 01 99 42)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Reflector (220 589 01 99 41)

Courtesy of MERCEDES-BENZ USA

The following operation steps describe installation in a left-hand drive vehicle. With right-hand drive vehicles these operation steps must be carried out mirror-inverted.

Courtesy of MERCEDES-BENZ USA

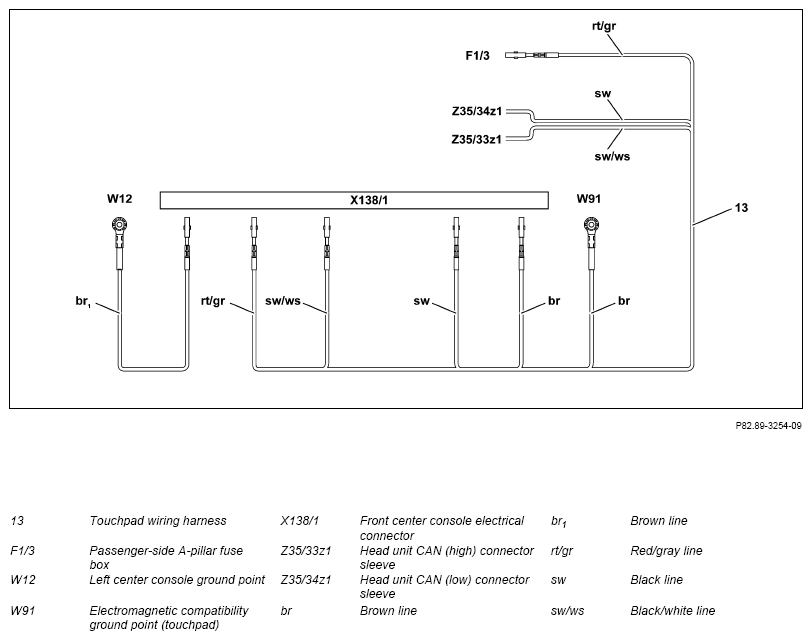

Connection scheme

1. Install individual contacts of electrical lines of touchpad wiring harness (13) as well as the individual brown line (BN₁ ) into white 10-pin connector socket (13.1).

   Contact cavity assignment:

   Contact cavity 1 = brown line (BN₁ )

   Contact cavity 3 = red/gray line (RD/GY)

   Contact cavity 8 = black/white line (BK/WH)

   Contact cavity 9 = black line (BK)

   Contact cavity 10 = brown line (BN)

2. Route brown line (BN₁ ) to the left center console ground point (W12) and connect .
3. Route red/gray line (RD/GY) of touchpad wiring harness (13), as shown, along existing lines into front passenger footwell.

   Fix touchpad wiring harness (13) in place only after routing all retrofit wiring harnesses.

   Courtesy of MERCEDES-BENZ USA

4. Route brown line (BN) to electromagnetic compatibility ground point (Touchpad) (W91) and connect .
5. Route red/gray line (RD/GY) to the passenger side A-pillar fuse box (F1/3).
6. Install red/gray line (RD/GY) into contact cavity "3" of the electric multicircuit fuse 3 (F1/3MF3).

   Contact cavity "3" as well as the electric multicircuit fuse 3 (F1/3MF3) are labeled.

   Courtesy of MERCEDES-BENZ USA

7. Route twisted black line (BK) and black/white line (BK/WH) along existing lines to left rear footwell in the head unit end sleeve CAN (Low) (Z35/34z1) and head unit end sleeve CAN (High) (Z35/33z1).

   The head unit end sleeve CAN (Low) (Z35/34z1) and head unit end sleeve CAN (High) (Z35/33z1) have yellow markings.

8. Solder black line (BK) to head unit end sleeve CAN (Low) (Z35/34z1).

   The and sleeve (14), as well as the adapter and the reflector are available in the basic wiring harness repair kit or the supplement wiring harness repair kit.

   When making the soldering joint use welding pearl catcher.

9. Wrap fabric tape around the end sleeve (14).
10. Solder black/white line (BK/WH) to head unit end sleeve CAN (high) (Z35/33z1).

    Courtesy of MERCEDES-BENZ USA

    The end sleeve (14), as well as the adapter and the reflector are available in the basic wiring harness repair kit or the supplement wiring harness repair kit.

    When making the soldering joint use welding pearl catcher.

11. Wrap fabric tape around the end sleeve (14).
