Retrofit Touchpad Wiring Harness - AN82.60-P-0017-01LWE

Model 213.0/1/2

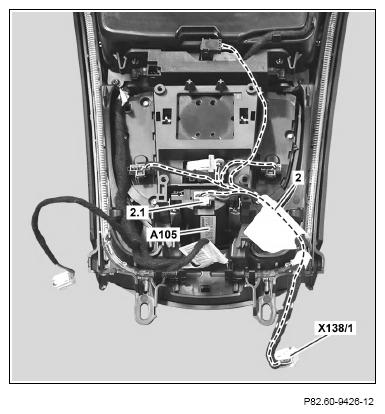

1. Connect white 4-pin coupling (2.1) of touchpad wiring harness (2) to touchpad (A105).
2. Route wiring harness for touchpad (2) into cover for center console.
3. Connect remaining electrical connectors of touchpad wiring harness (2).

   Depending on the equipment variant, a different number of electrical connectors may be present at the touchpad wiring harness (2).

   Strap down connectors not required.

   The front center console electrical connector (X138/1) is connected when installing the center console cover.
